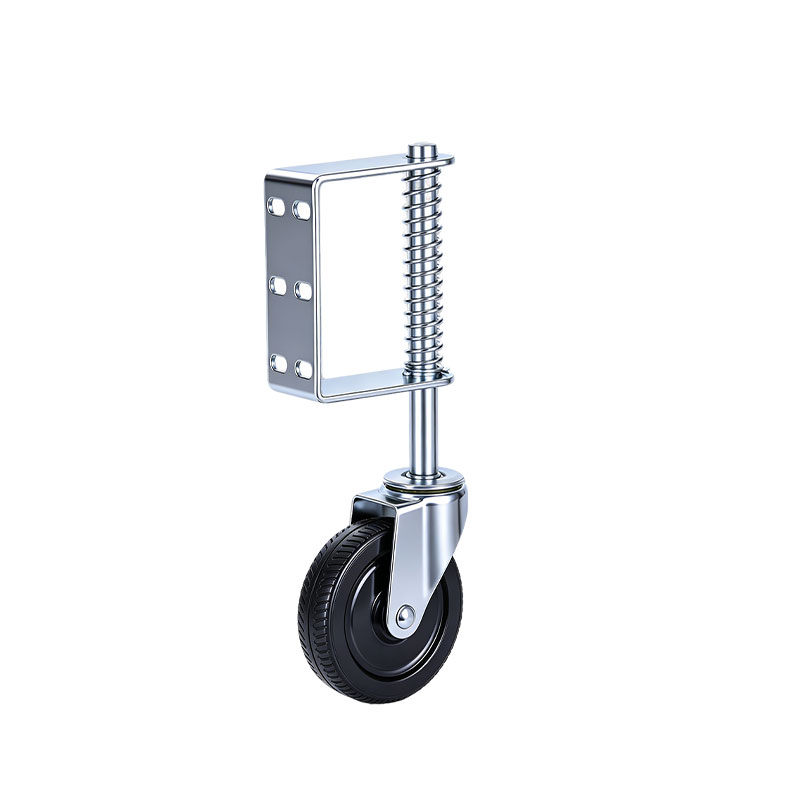

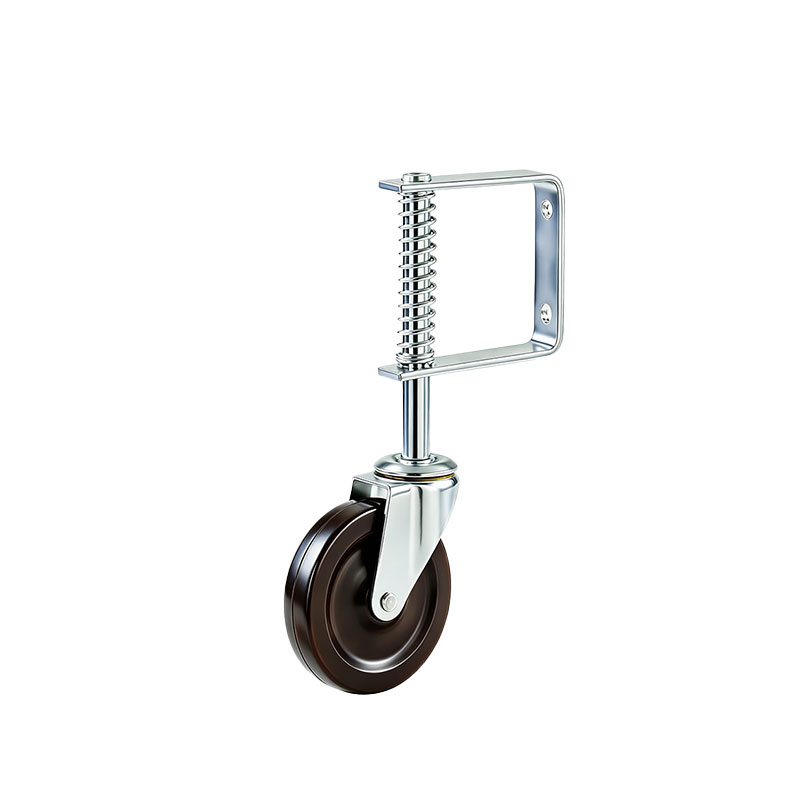

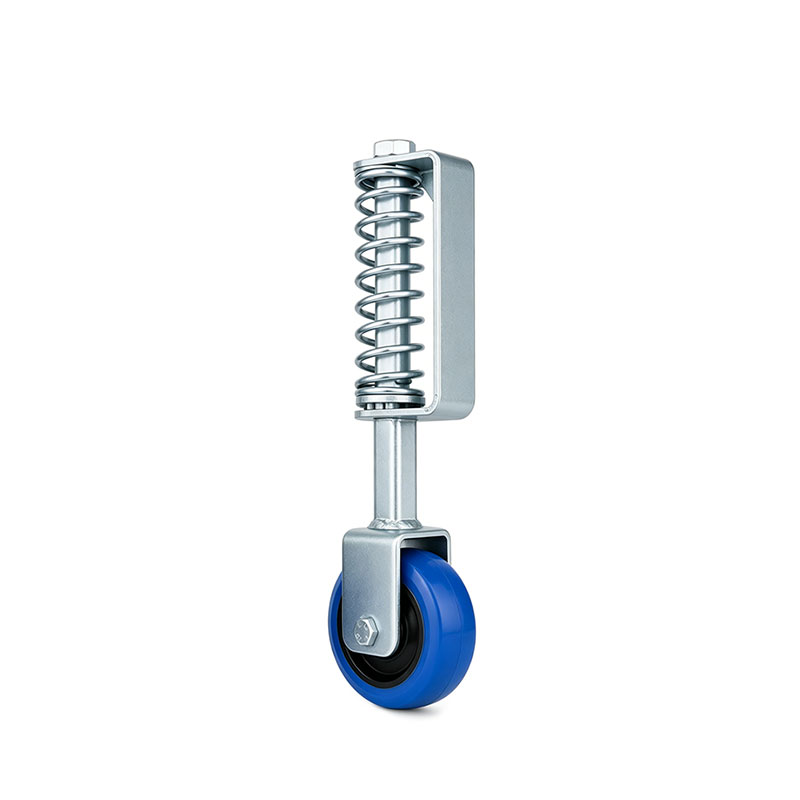

Heavy-Duty Spring Loaded Gate Caster Manufacturer
Product Overview:
Heavy industrial gates and wide residential wooden doors exert massive cantilevered stress on their mounting hinges. Over time, this weight causes the gate to sag, drag on the ground, and eventually tear the hinges away from the post. Furthermore, standard rigid caster wheels are useless on sloping driveways or uneven terrain; they either lift entirely off the ground (offering no support) or jam against bumps, transferring violent shock directly into the gate frame. The AstraRoll Heavy-Duty Spring Loaded Gate Caster is the definitive solution for gate preservation and smooth mobility. Engineered with a high-tensile steel suspension spring integrated into a robust caster yoke, these wheels act as a dynamic shock absorber. As your gate swings over gravel, uneven asphalt, or sloping concrete, the spring actively compresses and extends. This ensures the wheel maintains continuous, firm contact with the ground, perfectly supporting the gate's weight and guaranteeing a smooth, effortless swing every time.
Load Capacity: Heavy-Duty Casters
Wheel Type: Nylon, Polyurethane, Rubber
Wheel Diameter: 4 inch, 5 inch, 6 inch, 8 inch, Customizable
Mount Type:
Inquiry Email: sales@astraroll.com
Heavy-Duty Spring Loaded Gate Caster Manufacturer Details
The AstraRoll Technical Advantage
We engineer our gate casters to survive years of outdoor exposure and relentless mechanical stress:
Dynamic Sag Prevention: The integrated high-tensile spring acts as an active counterweight. By absorbing the downward force of the gate, it eliminates the leverage stress placed on the wall hinges, dramatically extending the lifespan of your entire fence infrastructure.
All-Terrain Ground Tracking: Whether rolling over a 2-inch drop in cracked asphalt or navigating a sloping driveway, the generous spring travel (up to 60mm) allows the wheel to float over obstacles while keeping the gate perfectly level.
Extreme Weather Resistance: Gate casters live outdoors in the rain, snow, and mud. AstraRoll utilizes heavy-gauge steel brackets treated with premium zinc plating or industrial powder coating, ensuring the spring mechanism and raceways remain entirely rust-free and functional for years.
Universal Mounting Architecture: We design our mounting plates with elongated, multi-position bolt holes. This allows the caster to be easily lag-bolted to wooden doors, welded to steel frames, or clamped to round tubular posts without requiring custom fabrication on site.
Key Specifications
Please note: We manufacture various load ratings and wheel diameters to match your specific gate dimensions.
Outer Diameter (O.D.): 100mm (4"), 125mm (5"), 150mm (6"), and 200mm (8").
Spring Travel (Compression): 25mm to 60mm, depending on the model.
Load Capacity: Ranging from 50 kg (110 lbs) up to 250+ kg (550+ lbs) per caster.
Bracket Thickness: 5mm to 8mm heavy-duty forged or stamped steel.
Swivel Raceway: Precision ball bearing swivel head equipped with a grease zerk for easy maintenance.
Why Choose AstraRoll?
1. Custom Spring Rate Calibration
A spring that is too stiff will not compress under a light wooden gate, acting just like a rigid wheel. A spring that is too soft will instantly bottom out under a heavy wrought-iron gate. AstraRoll allows OEM buyers to specify the exact weight of their gate product lines, and we will install custom-calibrated springs to ensure the perfect compression ratio.
2. Complete Turnkey Assembly
We supply our gate casters as complete, ready-to-install modules. Upon request, AstraRoll can package the casters with the necessary heavy-duty lag screws, carriage bolts, or U-bolt clamping plates, providing your end-users or installation crews with a seamless, frustration-free setup out of the box.
Frequently Asked Questions (FAQs)
Q: Can this caster handle a driveway that slopes upward as the gate opens?
A: Yes, that is precisely what the spring is designed for. When you install the caster, you mount it so the spring is partially compressed on flat ground. As the gate swings up the slope, the spring compresses further to absorb the rise in elevation, preventing the gate from getting stuck against the concrete.
Q: Which wheel material is best for a gravel driveway?
A: For loose gravel, dirt, or grass, you need a wheel with a wide footprint that will not sink. We highly recommend our Solid Rubber wheels or our specialized Pneumatic (Air-Filled) / Flat-Free Polyurethane tires for these terrains. Hard nylon or narrow polyurethane wheels are better suited for smooth concrete or asphalt.
Q: Can the caster be mounted to a round chain-link fence pipe?
A: Absolutely. While the standard flat mounting plate is ideal for square tubing or wood, AstraRoll offers specialized U-Bolt Mounting Kits. These feature a contoured steel backplate and heavy-duty U-bolts that clamp securely around standard 1-5/8" or 2" round chain-link gate frames without any welding required.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
