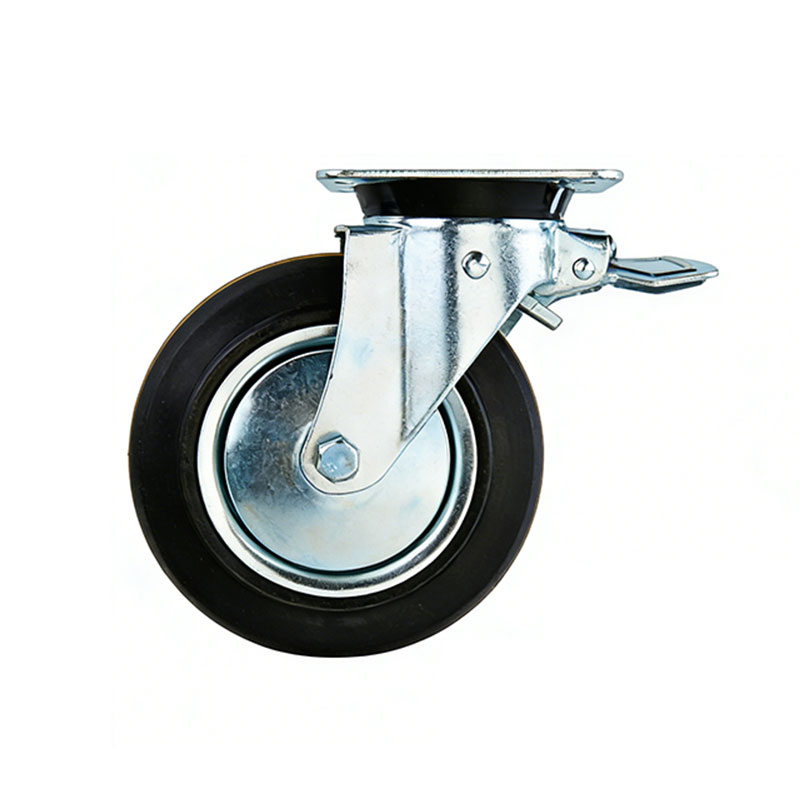

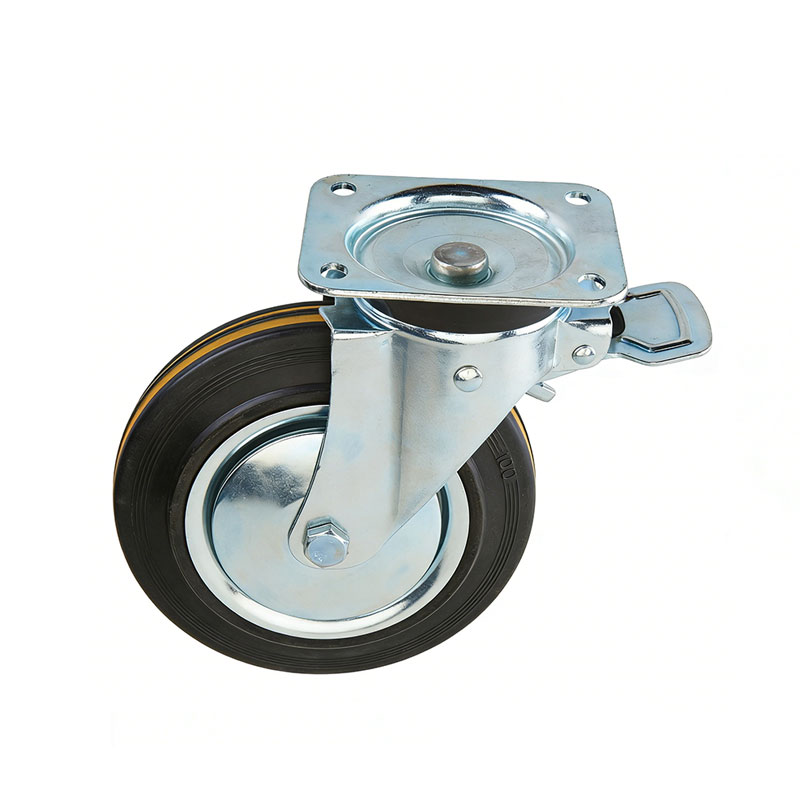

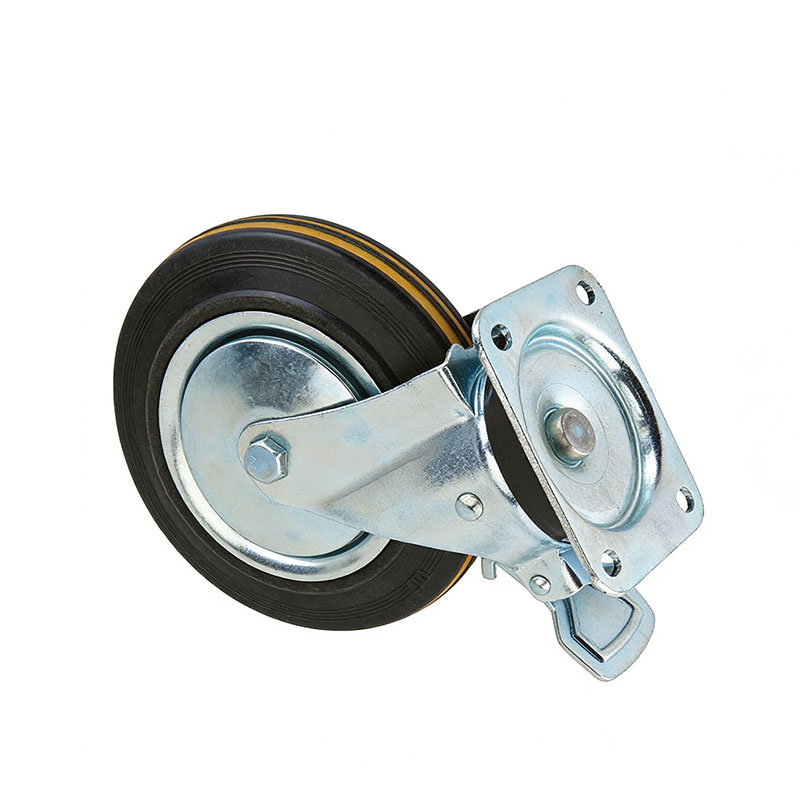

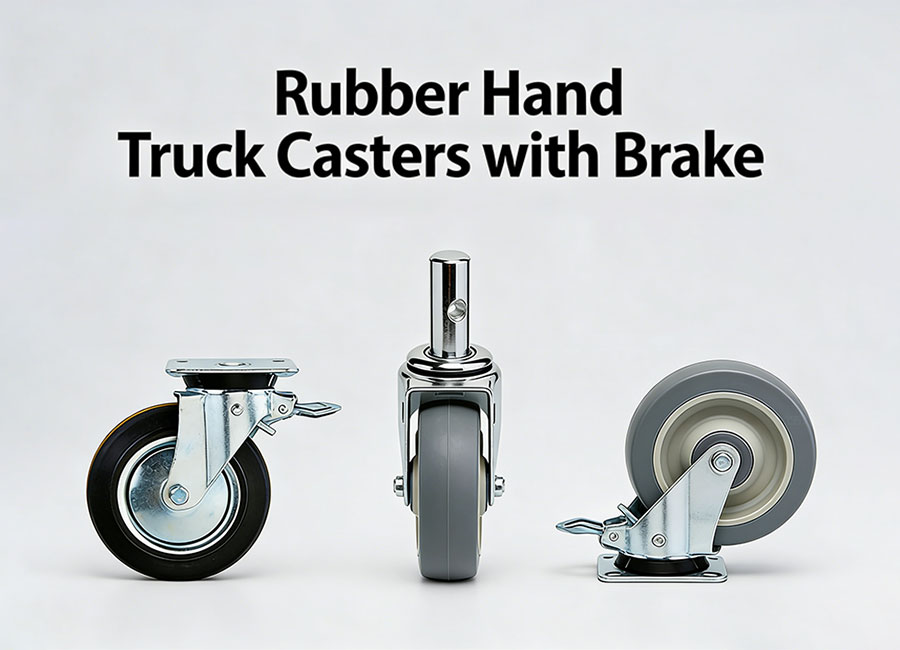

Industrial Rubber Hand Truck Casters with Brake

The AstraRoll Technical Advantage: Ergonomics & Safety
For manual push/pull equipment, the caster is the most critical component for operator safety and efficiency. We focus on two core engineering principles:

The Total-Lock Braking Mechanism: Unlike standard "wheel-only" brakes that allow the cart rig to still pivot and shift dangerously on inclines, our Total-Lock system engages a serrated brake shoe against the wheel tread and locks the upper swivel raceway simultaneously. A single downward pedal press turns a mobile cart into a rigid, immovable workstation.

High-Resilience (HR) Rubber Formulation: Standard solid rubber can be difficult to push under heavy loads. Our HR rubber compounds are engineered to maximize "rebound." This reduces the initial start-up push force required by the operator, mitigating lower back strain while still providing the acoustic damping needed for quiet hospital or office environments.

Product Features & Engineering Specs

Acoustic & Vibration Damping: The soft, thick rubber tread acts as a natural shock absorber, eliminating the rattling and clattering associated with hard plastic or metal wheels on uneven surfaces.

Ultimate Floor Protection: The rubber interface provides excellent traction without scratching, crushing, or marring expensive epoxy, tile, or polished concrete floors. (Non-marking gray/blue TPR options available).

Heavy-Duty Steel Rigging: The caster yoke and mounting plate are stamped from thick, cold-rolled steel and heavily zinc-plated to resist rust and corrosion in outdoor delivery environments.

Double Ball Raceway Swivel: The swivel head features two sets of hardened steel ball bearings packed in premium grease, ensuring buttery-smooth 360° rotation even when the cart is fully loaded.

Debris Rejecting Tread: The flexible nature of the rubber naturally expels metal shavings, gravel, and zip-ties that would otherwise embed themselves into harder polyurethane wheels.

Key Attributes & Specifications

Load Capacity: 150 lbs – 600 lbs (70 kg - 275 kg) per caster.
Tread Material: High-Resilience Rubber or Thermoplastic Rubber (TPR).
Hardness: Shore A 70-85 (Optimized for grip and shock absorption).
Brake Type: Total Lock (Locks wheel and swivel) or Top Lock (Locks wheel only).
Bearing Type: Precision sealed ball bearings or heavy-duty roller bearings.

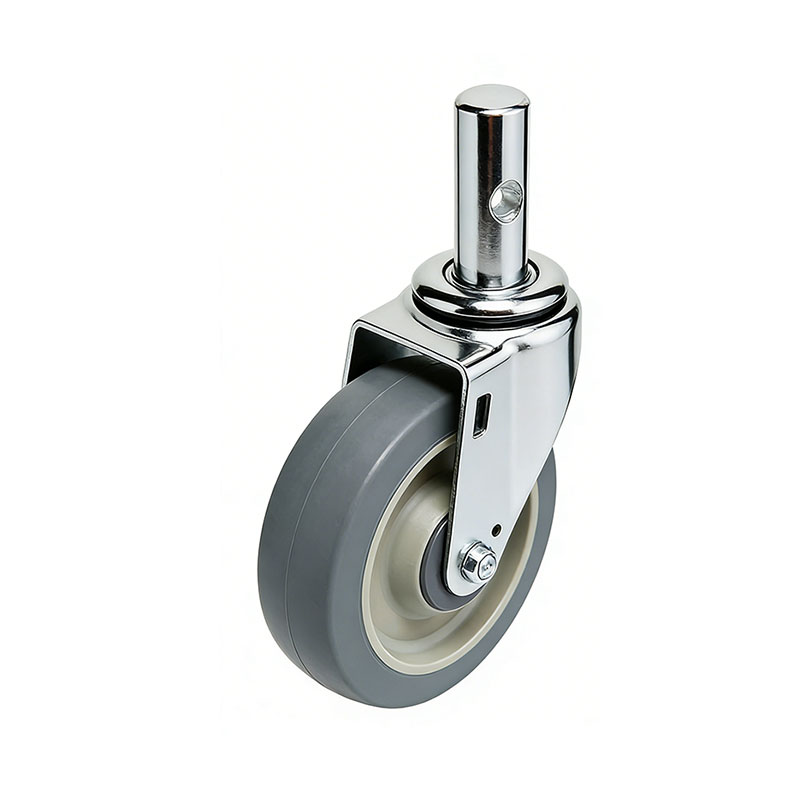

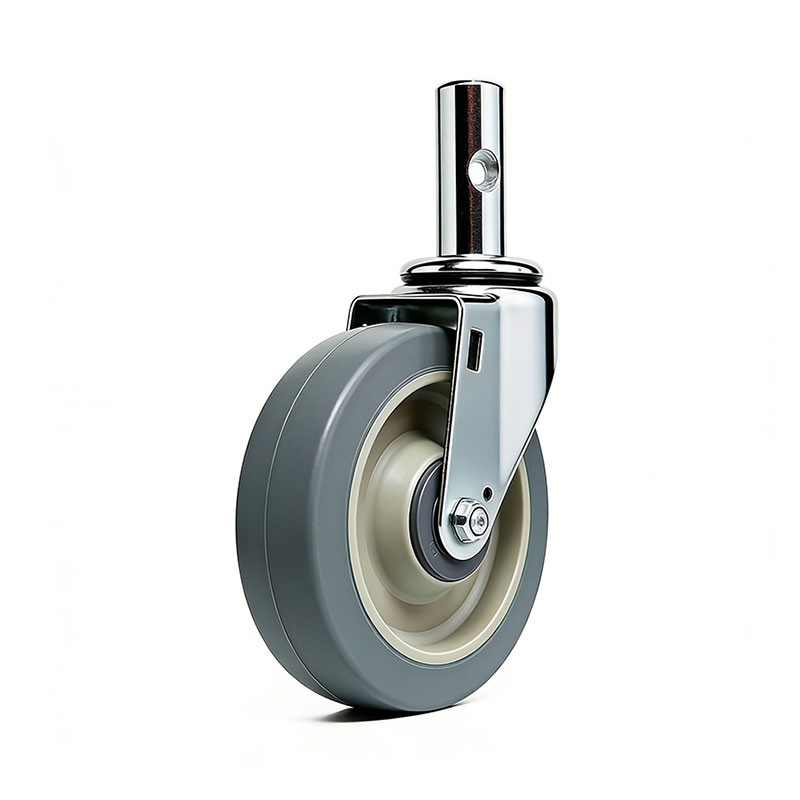

Mounting Type: Top Plate or Threaded Stem.

Why Choose AstraRoll?

Precision Engineering & Safety
Rigid Brake Testing: Our locking mechanisms are tested on steep inclines under maximum dynamic load to ensure the brake pedal does not slip or disengage, providing complete peace of mind for your warehouse staff.
Ergonomic Swivel Design: We precision-machine our double-ball raceways and use heavy-duty kingpins to prevent the "swivel chatter" or lock-up that plagues cheap casters, drastically reducing the physical exertion required to maneuver heavy hand trucks.

Customization & Fleet Integration
Non-Marking Formulations: For pharmaceutical, food service, or clean-room applications, we can compound our rubber (TPR) to be 100% non-marking, ensuring no black streaks are left on pristine floors.
Bespoke Mounting Solutions: Whether you need standard 4x4.5" mounting plates, specific bolt-hole patterns, or custom threaded stems for your OEM carts, we manufacture the exact fitment your fleet requires.

Frequently Asked Questions (FAQ)

Q: What is the difference between a Total-Lock brake and a standard brake?
A: A standard brake only presses against the wheel to stop it from rolling. The caster bracket can still spin 360 degrees, which can make a parked cart feel unstable. A Total-Lock brake stops the wheel from rolling and locks the swivel head from turning, making the caster completely rigid.

Q: Will these rubber wheels leave black marks on my warehouse floor?
A: Standard black industrial rubber can leave scuff marks under heavy friction. If floor protection is your primary concern, we highly recommend selecting our Gray or Blue Thermoplastic Rubber (TPR) option, which provides the exact same shock absorption but is 100% non-marking.

Q: Which mounting type should I choose for a standard flatbed cart?
A: For heavy-duty flatbed carts and platform trucks, a Top Plate mount is highly recommended, as the four-bolt design distributes the load stresses evenly across the cart's frame.

Q: How do I know what size mounting plate I need to replace my current casters?
A: You will need to measure the outside dimensions of your current top plate (Length x Width) and, more importantly, the distance between the center of the bolt holes.
