Steel Roller Manufacturer
Product Overview
The steel roller, also commonly named carbon steel roller or industrial steel roller, is a precision load-bearing industrial roller machined from seamless carbon steel tubing. It is engineered to deliver high structural rigidity, excellent concentricity and reliable performance under heavy load and continuous operation. Compared with aluminum alloy or lightweight rollers, the steel roller offers substantially higher mechanical strength, better wear resistance and the ability to handle demanding tension, which makes it the backbone of many conveying, converting and forming production lines. As a professional steel roller factory in China, AstraRoll manufactures custom steel rollers, surface-treated steel rollers and specialty steel rollers for slitting, rewinding, printing, wood sanding, grain processing, lithium battery and metal forming applications, supplying equipment builders and line integrators across more than 30 countries.
Structure and Construction
A standard steel roller is composed of four core components.
- Steel tube barrel — the main barrel, commonly made of seamless carbon steel (Q235, Q345 or 45# steel) to ensure uniform wall thickness, good roundness and high bending resistance.

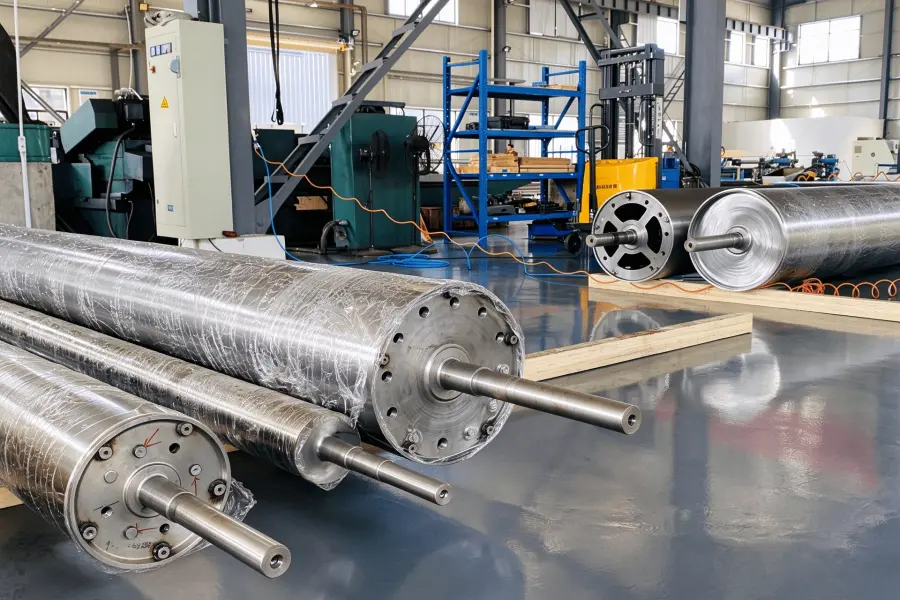

- Shaft and axle — precision turned and ground shaft available in carbon steel, hardened steel or stainless steel, machined to tight tolerance for accurate bearing seating.
- Surface treatment layer — optional zinc plating, rubber coating, hard chrome plating, mirror polishing, blackening or grooved machining, selected according to substrate, friction and wear requirements.
- Bearing and housing assembly — ball bearings, roller bearings, tapered roller bearings or custom bearing housings, chosen based on load, speed, tension and working environment.
The steel barrel and shaft are connected through interference fitting or full penetration welding, maintaining stable concentricity under continuous heavy-load rotation. The seamless structure effectively prevents deformation and ensures a consistent web path over extended service life.
Base Material Selection
Different steel grades deliver distinct mechanical performance to match varied working conditions. AstraRoll offers the following standard material options.
- Q235 carbon steel — good weldability and cost efficiency; suitable for general conveying and low-to-medium load rollers.
- Q345 low alloy steel — higher strength and better toughness; recommended for heavy-duty conveying and higher tension applications.
- 45# carbon steel — medium carbon steel with good strength and machinability after heat treatment; widely used for drive rollers and precision machined rollers.
- 40Cr alloy steel — superior strength, hardness and wear resistance after quenching; ideal for high-load and high-wear rollers.
- Stainless steel — corrosion resistance for humid, chemical or food-contact environments.
The steel grade can be tailored according to roller length, working tension, operating speed and customer technical specifications.
Surface Treatment Options
Surface treatment determines the roller's friction, hardness, corrosion and wear performance in different applications.
- Zinc plating — anti-rust protection for general conveying rollers in warehouse and logistics lines.
- Rubber coating — anti-slip, shock absorbing and belt protection; suitable for drive and conveyor rollers.
- Hard chrome plating — high surface hardness, low friction and wear resistance; ideal for printing, coating and metering rollers. Hard chrome hardness reaches HV 800–HV1000; hardness varies with coating thickness.
- Mirror polishing — ultra-smooth surface for high-precision film, paper and metal foil applications.
- Blackening — anti-corrosion finish with controlled surface appearance.
- Grooved or embossed machining — improved gripping, air release or textured surface for special processes.
- Heating design — internal cartridge or induction heating for thermoforming and heat-transfer applications.
Key Technical Parameters
The following ranges represent the typical specifications AstraRoll can produce.
- Roller diameter — from 60 mm up to 500 mm, or larger on request.
- Working face length — up to 3500 mm or longer.
- Shaft diameter — 12 mm to 100 mm, machined strictly according to customer drawings.
- Steel tube wall thickness — 3 mm to 12 mm, depending on load requirements.
- Surface roughness after precision machining — Ra 0.4 to 1.6 µm.
- Dynamic balancing grade — G6.3 for medium-speed conveying lines; G2.5 for high-speed web processing.
- Working temperature range — -20°C to 200°C. This limit is governed by surface coating performance; the steel substrate itself tolerates far higher temperatures.
- Standard steel materials — Q235, Q345, 45# and 40Cr.
Notes: Heavy-duty and wide rollers require thicker tube walls and may have a reduced maximum operating speed. Working temperature limits are determined by your selected surface treatment.
Manufacturing Process
Manufacturing of steel rollers follows a rigorous step-by-step precision workflow.
- Steel tube preparation — seamless steel tube is cut to required length, end faced and centered.

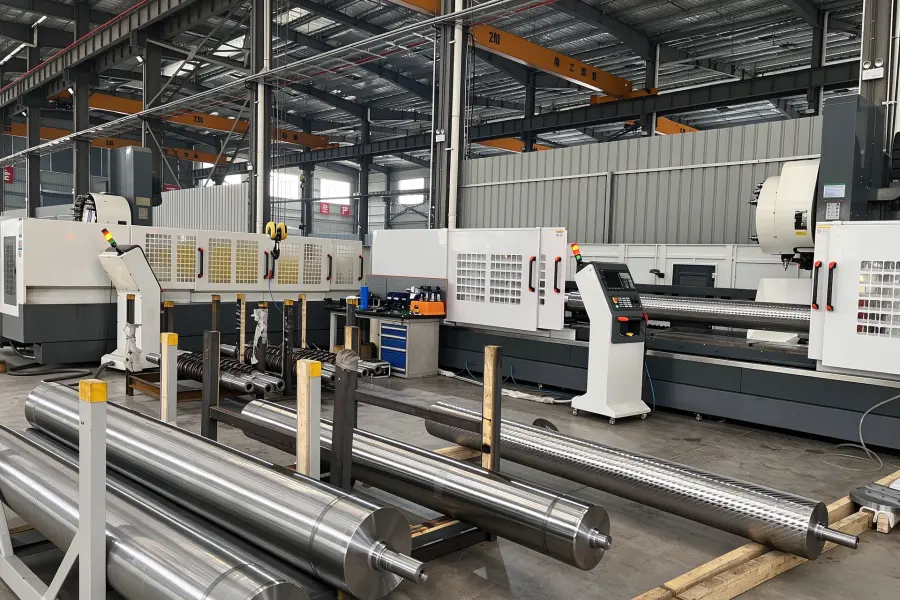

- Shaft machining — shafts are turned and ground to exact tolerances on CNC lathes.
- Assembly — shafts are press-fitted or welded onto both ends of the steel barrel.

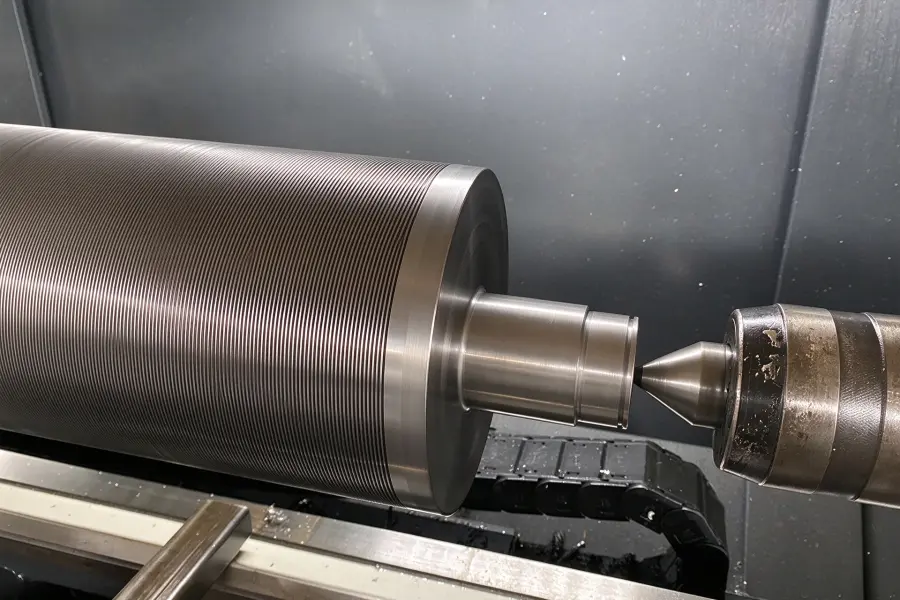

- Precision external turning — CNC turning on the outer surface to achieve required roundness, straightness and diameter tolerance.
- Surface treatment — zinc plating, rubber coating, hard chrome plating, polishing or grooving is processed as requested.
- Dynamic balancing correction — dynamic balancing test and weight removal to meet the specified balancing grade.
- Final inspection — concentricity, diameter tolerance, surface roughness and coating quality are fully verified before packing.
Application Scenarios
Steel rollers are widely adopted across multiple industrial sectors.
- Conveying and material handling — drive rollers, bend rollers and idler rollers for belt conveyors, gravity conveyors and roller lines in warehouse, logistics and bulk material handling.
- Slitting and rewinding — precision steel rollers for film, paper and metal foil slitting and rewinding machines, maintaining stable web tension.
- Printing and coating — hard chrome and polished steel rollers for gravure, flexographic and coating lines, ensuring uniform pressure and smooth web travel.
- Lithium battery production — high-precision steel rollers for electrode coating, drying and winding sections. Corrosion-resistant stainless steel rollers are recommended for submerged chemical tank processes.
- Wood sanding and processing — robust steel rollers with rubber or abrasive surface for wood sanding machines.
- Grain processing — treated steel rollers for grain conveying systems; stainless steel options are available for direct food contact applications.
- Metal forming — hardened steel rollers for roll forming, embossing and sheet metal processing.
- Packaging machinery — feed, pinch and pull rollers that guide materials reliably in form-fill-seal and bag-making machines.
Customization Capability (OEM / ODM)
AstraRoll supports full customization to satisfy unique project requirements.
- Dimensions — outer diameter, face length and shaft configuration can all be tailored.
- Steel material — steel grade, tube wall thickness and internal structure are selectable.
- Surface treatment — zinc plating, rubber coating, hard chrome, polishing, blackening, grooving or embossing can be engineered to your needs.
- Bearing system — bearing type and bearing housing can be specified.
- High-speed requirement — dynamic balancing service is available for fast-running lines.
- Heating design — internal heating structure can be designed for thermoforming processes.
- Production basis — manufacturing can be carried out strictly according to customer drawings or reference samples.
Our product range also includes drive rollers, conveyor rollers, embossing rollers, heating rollers, rubber coated rollers and stainless steel rollers to match your full production line.
Quality Control and Export

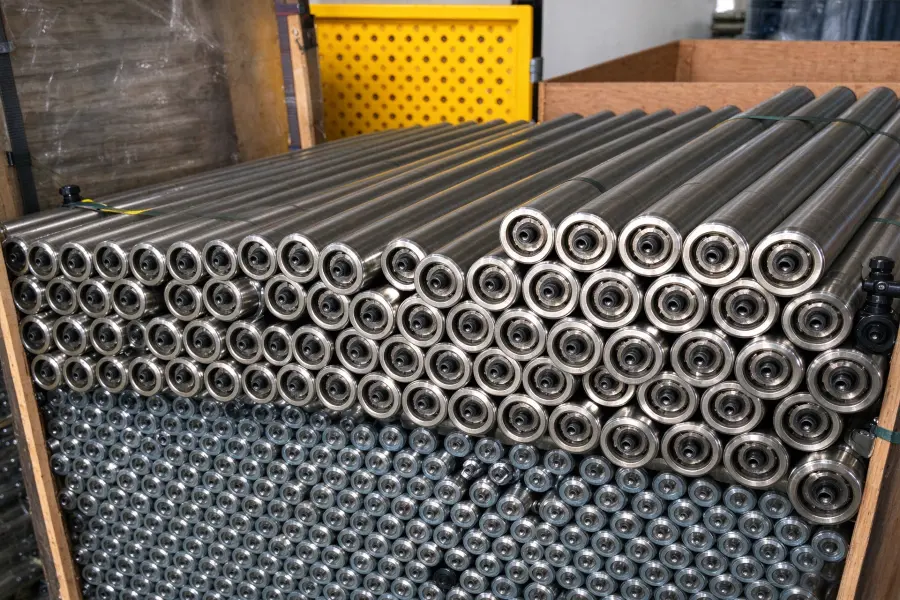

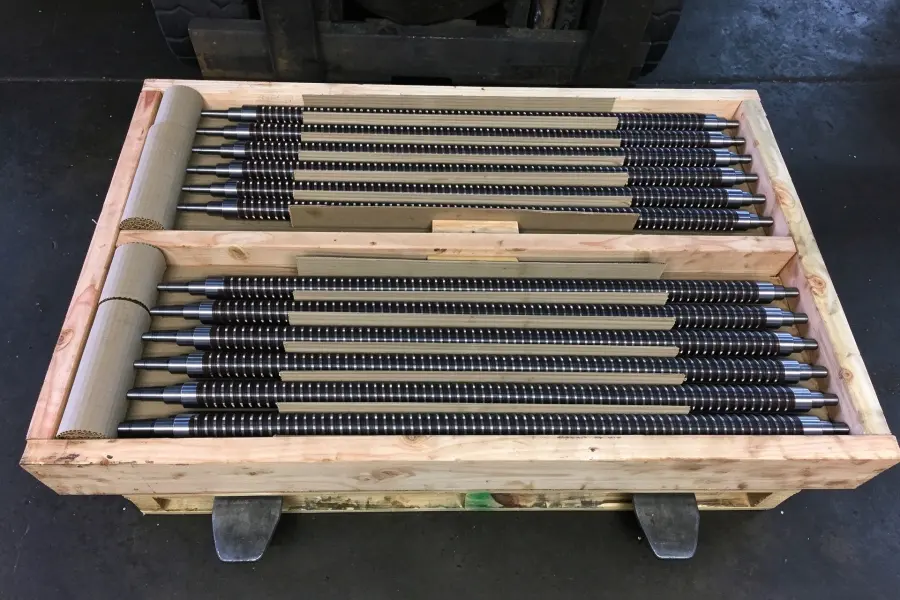

Every steel roller undergoes full dimensional inspection. Concentricity, surface finish and coating quality are checked one by one. Finished rollers are individually wrapped to protect the surface from scratches during shipment, and shaft ends are protected against corrosion. We can arrange sea freight, air freight or express delivery based on order volume and lead time requirements.
Why Choose AstraRoll
As a China-based steel roller manufacturer, AstraRoll combines precision CNC machining with competitive factory pricing and flexible custom service. Direct factory supply delivers cost advantages and shorter lead times. Customers can communicate directly with our engineering team for technical consultation, drawing review and solution optimization for their production lines.
Closing Paragraph
AstraRoll is a China-based steel roller factory manufacturing a full portfolio of precision steel rollers, surface-treated steel rollers and specialty steel rollers to support stable substrate movement and reliable conveying across battery, wood, textile, printing and web converting industries. Custom surface treatments & shaft assemblies, OEM/ODM, international delivery.
