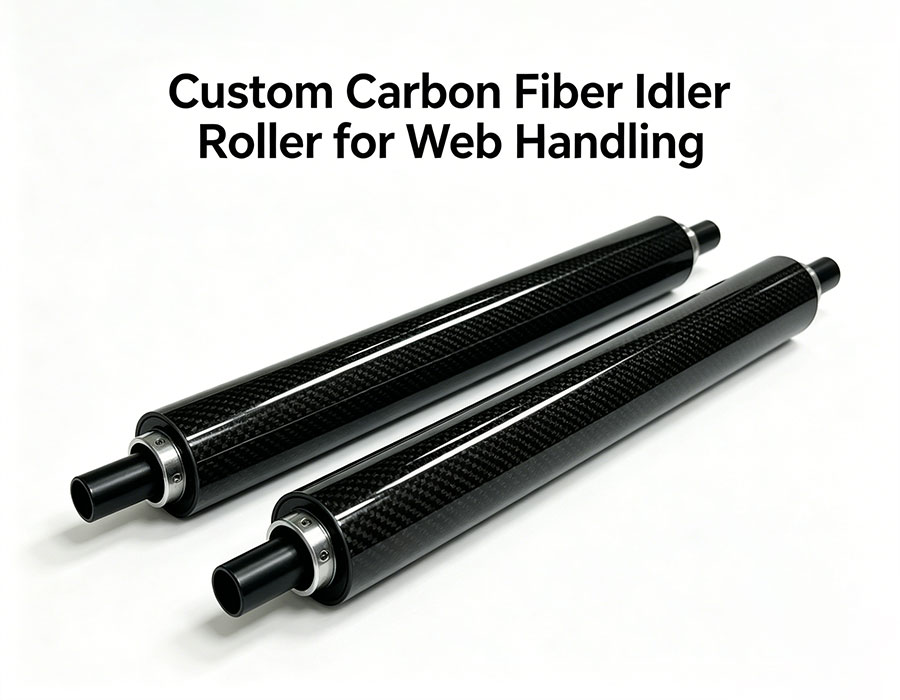

Custom Carbon Fiber Idler Roller for Web Handling

AstraRoll's Carbon Fiber Idler Rollers represent the next generation of precision web handling technology, specifically engineered for the high-speed requirements of lithium-ion and sodium-ion battery production. By utilizing advanced carbon fiber reinforced polymer (CFRP), these rollers offer an exceptional strength-to-weight ratio, being significantly lighter than traditional steel while maintaining superior stiffness.

The primary advantage of our carbon fiber rollers is their ultra-low moment of inertia. This allows the rollers to react instantaneously to changes in line speed, preventing substrate slipping and tension spikes during the smooth moving of delicate foils and separators. Designed to support a higher loading capacity with minimal deflection, AstraRoll ensures that your high-speed automated lines achieve maximum throughput with high quality output.

Technical Parameter

Material: High-Modulus Carbon Fiber Reinforced Polymer (CFRP)

Surface Treatment: Hard Chrome Plating, Teflon Coating, or Conductive Epoxy Resin

Surface Finish: Mirror Polished (Ra≤0.1μm) or Specialized Matte

Inertia: Up to 80% lower than steel rollers for rapid response

Concentricity/ TIR: ≤0.01mm to 0.02mm for ultra-stable smooth moving

Dynamic Balance: ISO G1.0 Standard for vibration-free smooth driving

Loading Capacity: Engineered for higher loading capacity with zero-deflection over long spans

Application Industrial

Battery Manufacturing: Essential for high-speed electrode winding, slitting, and separator lamination in lithium and sodium cell lines.

Optical Film Converting: Transporting sensitive functional films where tension control is critical.

Flexible Electronics: Handling thin-film circuits and flexible displays during high-speed printing.

Wide-Web Printing: Reducing vibration and deflection in large-scale high-speed printing machinery.

Advanced Packaging: Facilitating smooth moving of ultra-thin substrates in high-efficiency packaging lines.

Why choose AstraRoll's Custom Carbon Fiber Idler Roller?

Ultimate Tension Control: Our rollers feature ultra-low inertia, allowing them to synchronize with line speeds instantly, which ensures smooth driving and prevents damage to thin foils.

Superior Rigidity & Low Deflection: Even in wide-web applications, our carbon fiber rollers maintain a higher loading capacity without bowing, ensuring uniform coating and winding.

Vibration Damping Properties: The composite structure naturally absorbs high-frequency vibrations, resulting in exceptional driving quiet wear resistance and stable operation.

Corrosion & Chemical Resistance: Highly resistant to aggressive chemicals used in battery slurries, ensuring high quality performance in harsh processing environments.

Seamless Motion Integration: Furthermore, our carbon fiber rollers are fully customizable to interface seamlessly with various models of motors, reducers, and encoders for precise high-speed synchronization.

FAQ

Q: Why should I choose carbon fiber over aluminum or steel for my battery line?

A: Carbon fiber offers much lower inertia and higher stiffness. This is critical for smooth moving at high speeds, as it reduces web breakage and tension errors that occur when heavy rollers cannot react to speed changes fast enough.

Q: Can you provide anti-static properties on a carbon fiber surface?

A: Yes. We can apply specialized conductive coatings or integrate carbon filaments to ensure the roller provides consistent ESD protection while maintaining high quality surface finishes.

Q: How does carbon fiber contribute to "driving quiet wear resistance"?

A: Because carbon fiber is an inherently dampening material, it eliminates the resonance found in metal rollers. This leads to smooth driving with significantly less noise and vibration-related wear.

Q: Are these rollers customizable for specific machine interfaces?

A: Absolutely. Our carbon fiber idler rollers are fully customizable to interface seamlessly with various models of motors and existing mounting systems, ensuring they fit perfectly into your automation layout.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
