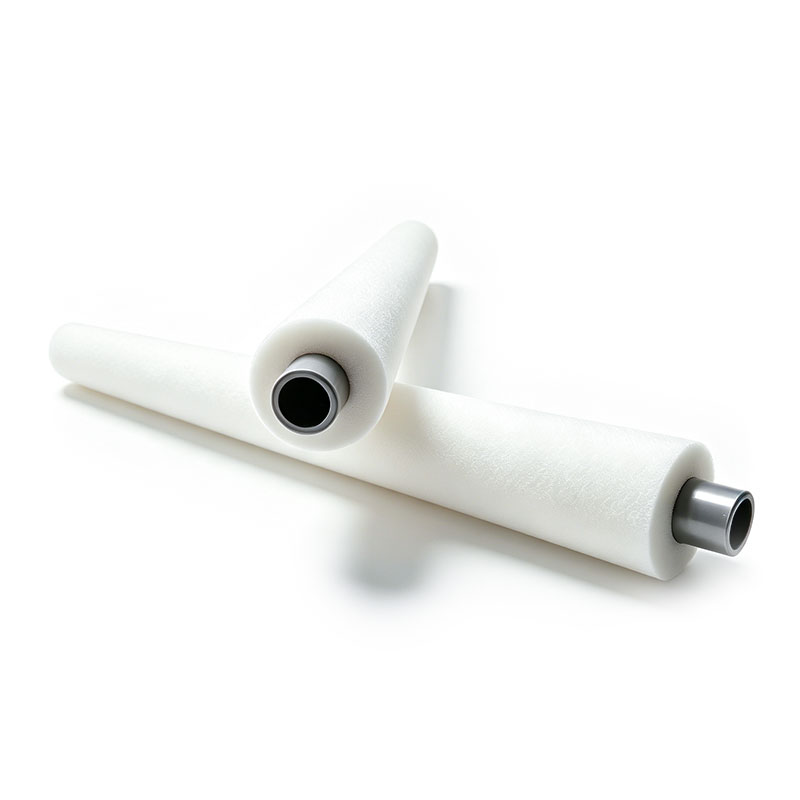

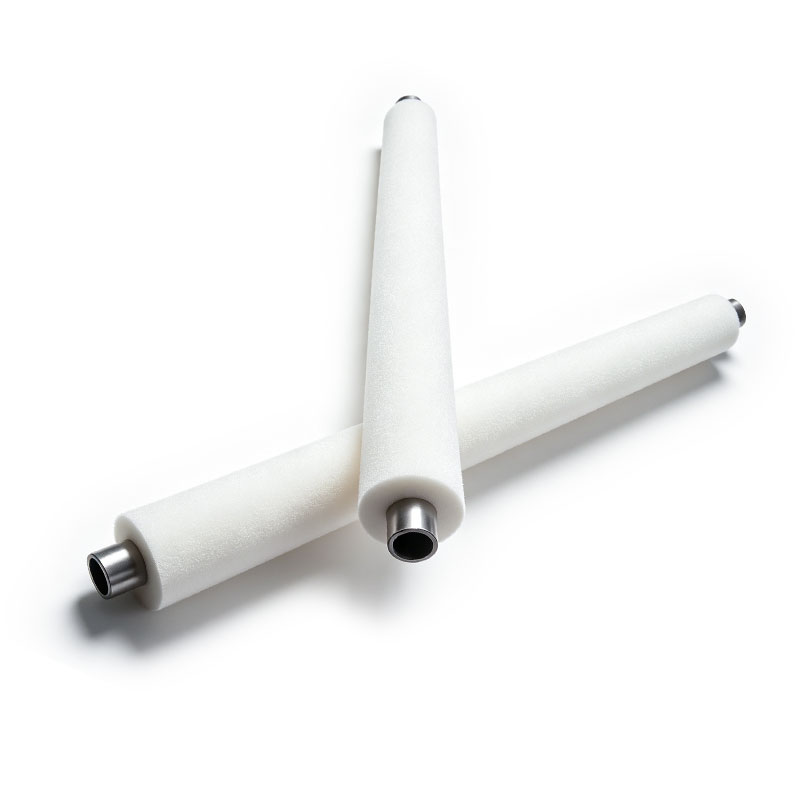

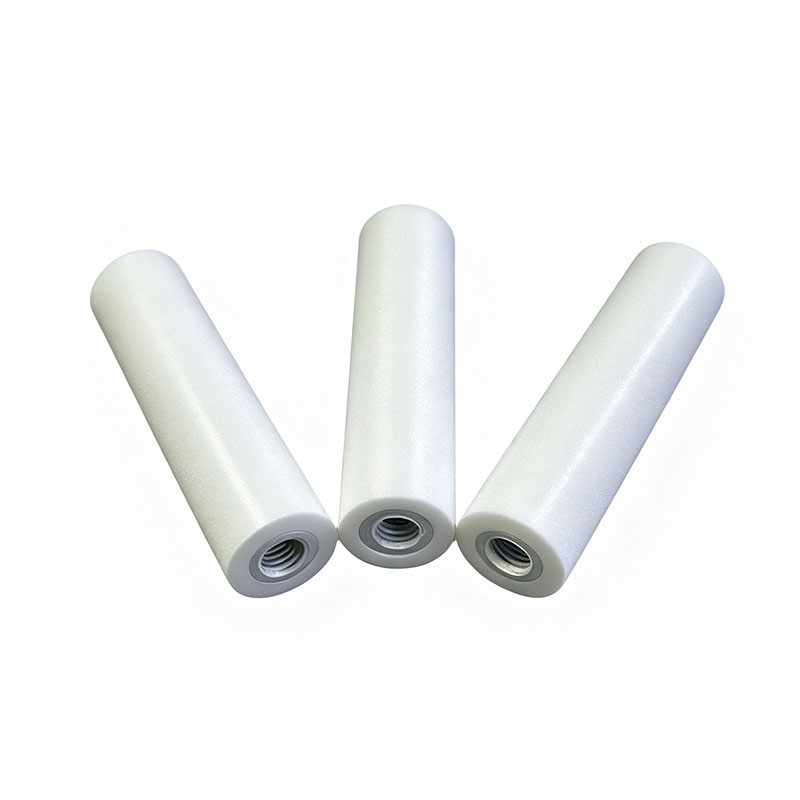

Custom PU Sponge Rollers for PCB Electronic Component Cleaning

The AstraRoll Technical Advantage

Engineering a sponge roller for cleanroom electronics requires strict control over polymer foaming and chemical purity:

Ultra-High Liquid Absorption: Our advanced PU and PVA foaming technologies create an interconnected 3D micro-pore structure. This allows the roller to absorb and retain up to 10 times its own dry weight in water, guaranteeing that PCBs exit the washing station completely dry and ready for immediate soldering or inspection.

Lint-Free & Cleanroom Safe: Unlike cloth or felt rollers that shed fibers into the cleanroom environment, AstraRoll PU sponges are solid, continuous polymers. They will not shed particles or leave lint residues on your electronic components.

Superior Elasticity & Scratch Prevention: The PU sponge is exceptionally soft and pliable when wet. It conforms perfectly to the uneven topography of a populated PCB, gently wiping around soldered components without applying damaging pressure or scratching delicate metallic traces.

Chemical Resistance: PCB washing often involves mild etching acids, flux removers, or alkaline detergents. Our industrial-grade PU rollers are chemically resilient, resisting degradation, swelling, or crumbling when exposed to standard electronics cleaning chemicals.

Primary Applications

AstraRoll PU Sponge Rollers are specifically designed for continuous, high-speed automated wet-processing equipment:

• PCB Manufacturing: Used in etching lines, developer stations, and final washing machines to instantly dry bare boards and populated assemblies.
• Electronic Component Cleaning: Gently scrubbing and drying lead frames, silicon wafers, and micro-sensors without inducing static or physical damage.
• Glass & Display Processing: Installed in horizontal glass washing machines to dry ultra-thin LCD panels, OLED substrates, and optical lenses without leaving watermarks.
• Metal Etching & Plating: Squeezing excess chemical baths off continuous metal foils or precision-stamped lead frames to prevent chemical drag-out.

Key Specifications

Please note: Every AstraRoll sponge roller is 100% custom-manufactured to match your specific washing machine dimensions.

Outer Diameter (O.D.): Custom from 30mm up to 200mm.
Inner Diameter (I.D.): Custom bored to fit standard PVC or stainless steel shafts.
Face Length: Custom manufactured from 100mm up to 3,000mm.
Material Options: White PU (Standard), Blue PVA, or Yellow PVA.
Heat Resistance: Up to 60°C (140°F) in continuous wet operation.

Why Choose AstraRoll?

1. Precision Concentric Grinding

A sponge roller that is out of round will bounce on the PCB, leaving wet patches. AstraRoll utilizes specialized cryogenic or high-speed abrasive grinding to machine our sponge rollers to strict concentricity tolerances (TIR ≤ 0.5mm). This ensures uniform, continuous contact pressure across the entire width of the electronic component.

2. Turnkey Core Assembly

We don't just sell raw sponge tubes. AstraRoll provides ready-to-install assemblies. We will manufacture the internal PVC or 304 Stainless Steel shaft, seamlessly bond the PU sponge to the core using water-resistant industrial adhesives, and machine the bearing journals to drop perfectly into your automated drying equipment.

Frequently Asked Questions (FAQs)

Q: Do I need to keep the PU sponge roller wet when the machine is turned off?
A: If you are using PVA Sponge, it will dry out and become rigid like a stone. It must be soaked in water for 10–20 minutes to regain its elasticity before the machine is turned on, it will scratch the product or tear itself apart. If you are using our PU Sponge, it remains relatively soft and elastic even when dry, making it much easier to maintain and faster to start up on production lines.

Q: Can these rollers withstand high-temperature drying ovens?
A: Sponge rollers are designed exclusively for liquid absorption in the wet section of the machine, operating optimally in water temperatures between 10°C and 60°C. They should not be placed inside hot air drying ovens or IR curing stations, as high dry heat will permanently melt or degrade the polyurethane matrix.

Q: How often do PCB drying rollers need to be replaced?
A: The lifespan depends entirely on the abrasiveness of the product and the machine speed. In standard PCB or glass washing lines running 24/7, a premium AstraRoll PU sponge roller will typically last 3 to 6 months before the surface begins to physically wear down or the pores become irreversibly clogged with chemical residues.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
