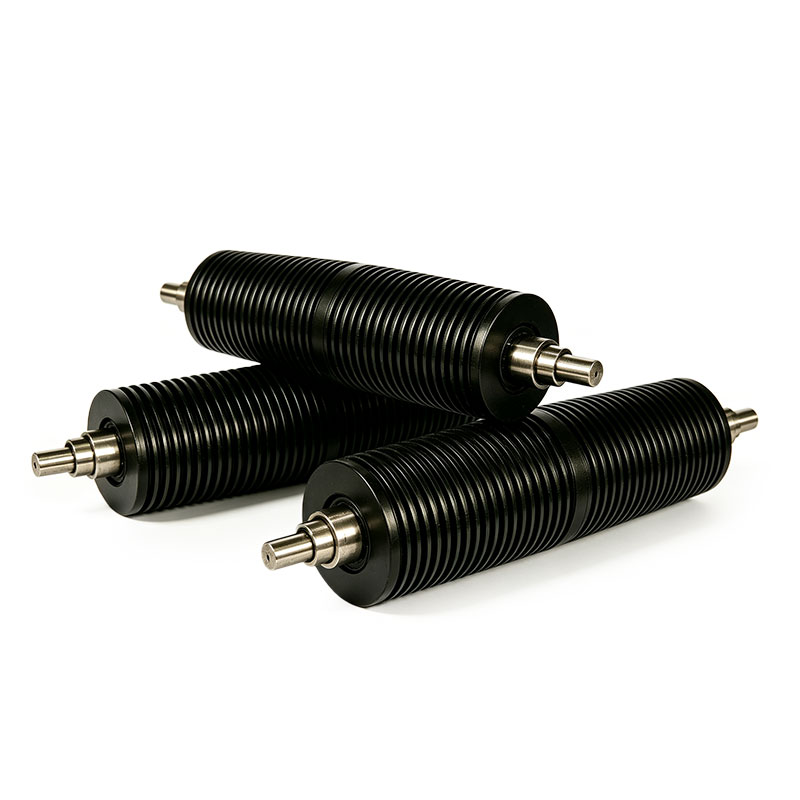

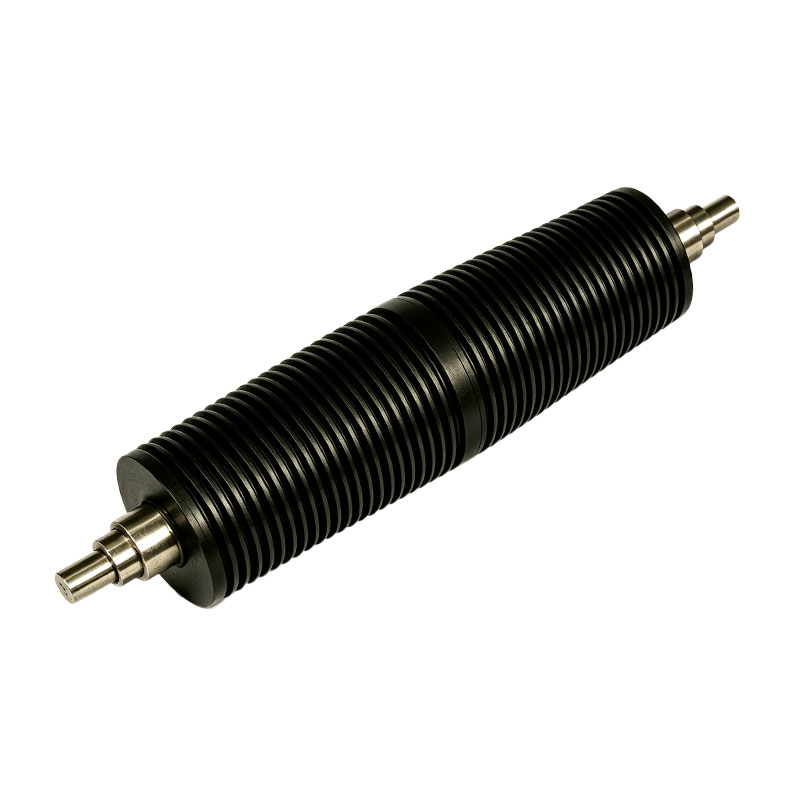

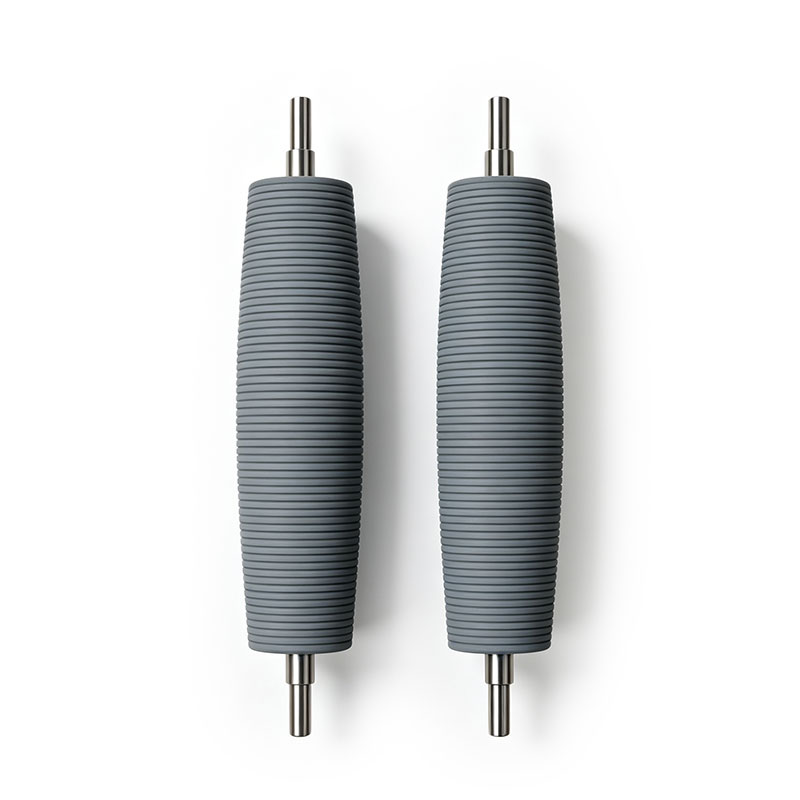

Custom Parabolic Camber Scroll Spreader Roller

The AstraRoll Custom Parabolic Camber Scroll Spreader Roller offers a highly reliable, low-maintenance solution for continuous web smoothing and anti-wrinkle control. In high-speed coating, slitting, and printing operations, minor tension imbalances cause material wrinkling, web interleaving, and structural tracking drift—leading to severe substrate scuffing and high scrap rates.

Our precision parabolic scroll rollers eliminate these conversion bottlenecks. Unlike traditional rubber expander rolls that rely on complex internal bowing shafts and wear-prone bearing segments, our solid-core design achieves smooth lateral expansion using a continuous CNC-machined crown profile combined with precision face grooving. The smooth polyurethane surface grips sensitive foils or films gently, distributing linear tension evenly to ensure flat, defect-free material tracking.

Technical Parameters

Product Framework: Precision Monolithic Parabolic Camber / Helical Scroll Spreader Roller

Camber Profile: Mathematically calculated parabolic crown customized per web thickness

Grooving Pattern: Center-outward dual-directional helical/spiral grooves (Custom pitch & depth)

Coating Material: Premium High-Resilience Liquid-Cast Polyurethane (PU) Matrix

Hardness Window: 60 Shore A – 95 Shore A (± 3 Shore A precision engineering)

Total Indicator Runout (TIR): ≤0.005 mm(CNC finish-ground for micron-level concentricity)

Dynamic Balancing: ISO 21940 G2.5 standard matching for high-speed vibration reduction

Chemical Immunity: Exceptional resistance to aggressive coating solvents, moisture, and oils

Applications

Lithium Battery Manufacturing: Anti-wrinkle spreader rollers handling ultra-thin copper foils, aluminum current collectors, and separator films in continuous slot-die coating lines.

Optical & Functional Film Conversion: Precision web-flattening rolls for polarizer films, solar films, and flexible electronic substrates.

High-Speed Printing & Packaging: Web expansion and steering rollers inside wide-web flexographic printers, laminators, and slitter-rewinders.

Paper & Textile Machinery: Smooth-running contact rolls used to prevent edge-curling and line overlaps in high-volume paper conversion and textile treatment lines.

Why Choose AstraRoll's Custom Parabolic Camber Scroll Spreader Roller?

Monolithic Solid Core Defeats Segmented Bowed Roll Failures: Conventional multi-segment bowed rollers suffer from internal bearing seizing, rubber sleeve sagging, and frequent maintenance. AstraRoll features a solid-core, single-piece design that delivers smooth, reliable web-spreading action with zero internal moving parts to wear out or lubricate.

Dual-Action Geometric Expansion Maximizes Smoothing Efficiency: Our design pairs a precision-ground parabolic crown with dual-directional helical scrolling. The camber mechanically tenses the slack center of the web, while the center-outward grooving channels airflow and channels micro-expansion forces to the outer margins, completely removing center wrinkles and baggy edges.

Micron-Level CNC Profile Grinding ( ≤0.005 mmTIR): Jarring diameter transitions create tension spikes that can tear or distort delicate, thin foils. We finish-grind the parabolic curve using advanced CNC profiling equipment to a total indicator runout (TIR) of ≤0.005 mm
, guaranteeing uniform pressure delivery and smooth cross-web tension transitions.

Ultra-Low Intermittent Heat Formulations Protect Sensitive Webs: High-speed friction can overheat and deform thin plastic films. AstraRoll uses proprietary, high-rebound polyurethane compounds with excellent thermal dissipation and a non-marking face finish, providing a gentle grip that keeps delicate optical surfaces completely scratch-free.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
