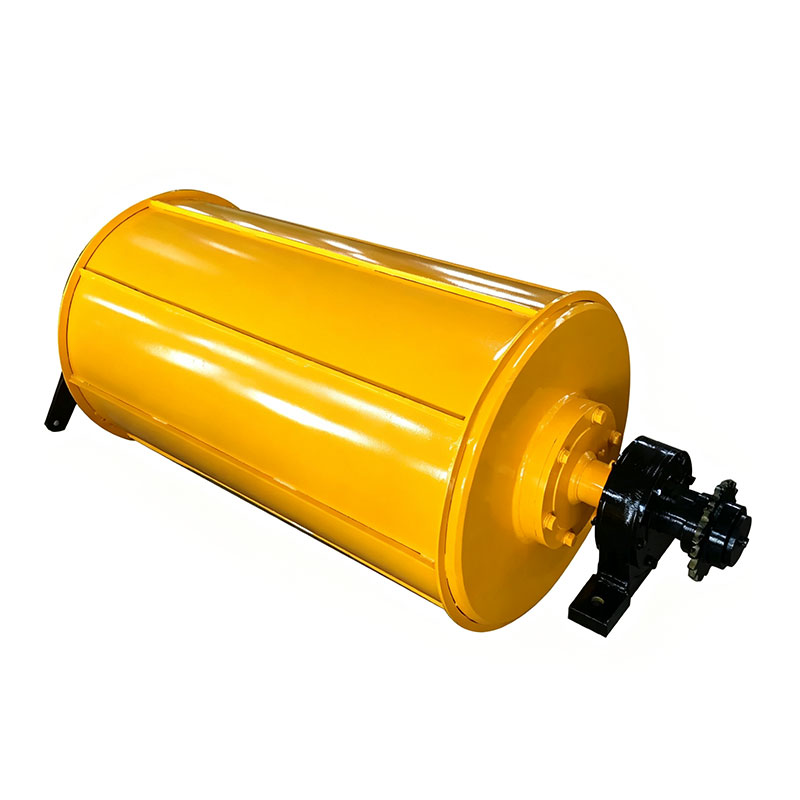

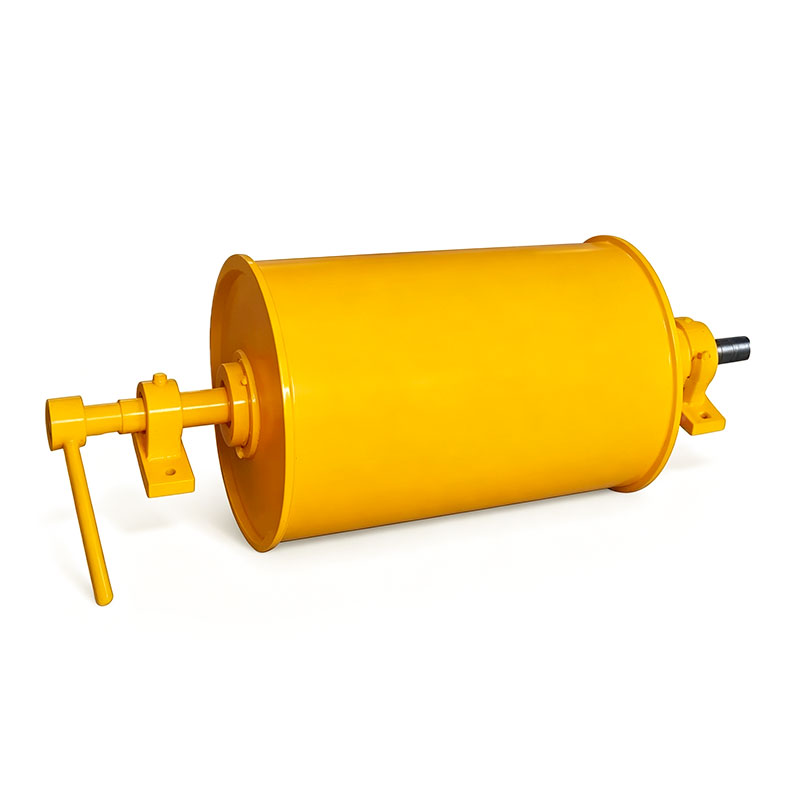

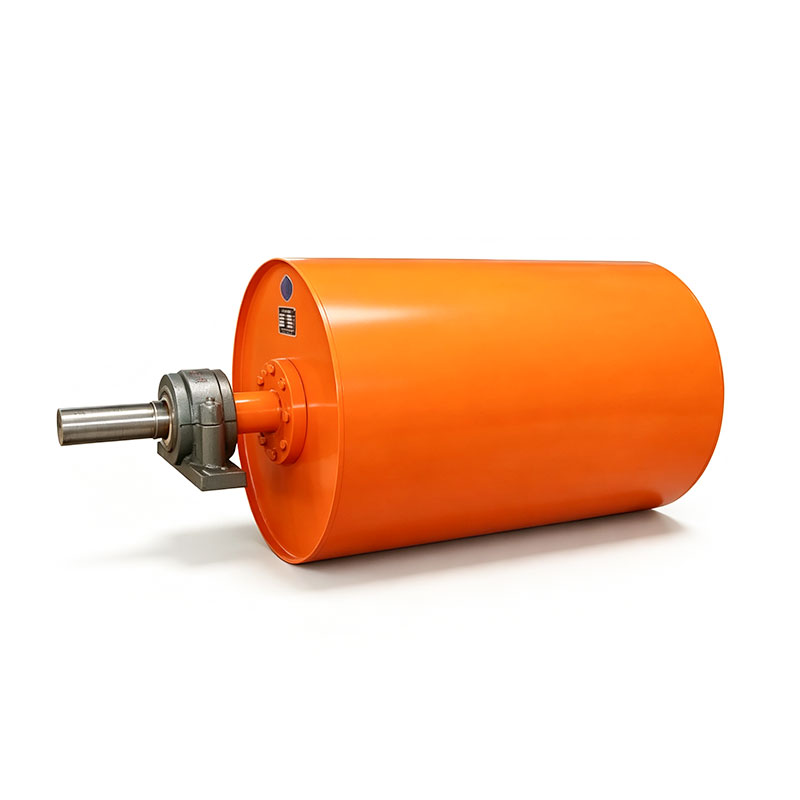

Custom High-Intensity Hematite Permanent Magnetic Pulley Roller for Conveyor Belt

The AstraRoll Technical Advantage

Engineering a permanent magnetic pulley capable of capturing weakly magnetic ores requires advanced magnetic circuit modeling and heavy-duty mechanical reinforcement:

Ultra-High Magnetic Gradient Architecture (超强磁场梯度优化磁路): Capturing hematite requires more than just high magnetic flux; it demands an intense magnetic field gradient. AstraRoll engineers utilize finite element magnetic simulation to assemble high-energy NdFeB blocks into a proprietary crowded-pole array. This projects a dense, ultra-high-gradient field reaching up to 15,000 Gauss directly through your conveyor belt to firmly grip fine and coarse hematite particles.

Dry Pre-Concentration Efficiency: By rejecting 20% to 50% of coarse waste rock (gangue) immediately after primary or secondary crushing, our magnetic pulleys drastically reduce the volume of barren material sent to your grinding circuit. This significantly extends ball mill liner life, reduces water and power consumption, and maximizes overall processing plant capacity.

Permanent Magnetism & Zero Energy Costs: Unlike electromagnetic rollers that consume continuous electrical power and suffer from field decay due to coil overheating, AstraRoll permanent magnetic pulleys require zero electricity to generate their magnetic field. We guarantee a magnetic force loss of less than 1% over a 10-year operational period.

Heavy-Duty Armored Construction: Mining environments subject equipment to brutal impact and abrasion. The rare-earth magnetic core is hermetically enclosed within a thick-walled, non-magnetic stainless steel shell. Seamlessly welded and reinforced, it withstands the continuous pounding of coarse crushed rock without denting or allowing dust and moisture to degrade the magnets.

Primary Applications

AstraRoll High-Intensity Hematite Magnetic Pulleys are engineered for high-tonnage dry beneficiation across the global mining sector:

Iron Ore Beneficiation: Dry pre-concentration and waste rejection (cobbing) of hematite, specularite, limonite, and siderite ores prior to fine grinding.

Manganese & Weakly Magnetic Minerals: Upgrading rhodochrosite, pyrolusite, and chromite ores by removing non-magnetic silicate and carbonate gangue rock.

Slag & Tailings Recovery: Extracting valuable weakly magnetic metallic alloys and iron-bearing minerals from steel furnace slag and historical mine tailings.

Industrial Minerals Purification: Removing fine, weakly magnetic iron oxide and titanium impurities from quartz, feldspar, nepheline, and kaolin clays to achieve high-purity grades.

Key Specifications

Please note: Every AstraRoll Hematite Magnetic Pulley is custom-engineered based on your ore feed size, belt speed, and tonnage requirements.

Outer Diameter (O.D.): Custom from 300mm up to 1,200mm+.
Face Length: Custom manufactured from 500mm up to 2,500mm+.
Surface Magnetic Intensity: 10,000 GS to 15,000 GS (1.0 Tesla to 1.5 Tesla).
Magnetic Material: Sintered Rare-Earth NdFeB (Neodymium Iron Boron).
Optimal Feed Particle Size: 0.5mm to 75mm (depending on pulley diameter and magnetic circuit).
Shell Material: Non-Magnetic SUS304 or SUS316L Stainless Steel.

Why Choose AstraRoll?

1. Ore Specificity & Trajectory Engineering

Hematite separation depends heavily on balancing centrifugal force against magnetic retention force. If your conveyor belt runs too fast, centrifugal force will throw the weakly magnetic hematite off the belt before the magnet can pull it into the concentrate chute. AstraRoll provides full engineering support: we evaluate your ore's specific magnetic susceptibility, grain size distribution, and belt speed (m/s) to design the exact pulley diameter and magnetic pole pitch required to achieve a clean physical split between concentrate, middlings, and waste rock.

2. Turnkey Drop-In Replacement

Upgrading your crushing plant to automated dry pre-concentration does not require redesigning your conveyor structure. As a dedicated Hematite Magnetic Separator Roller Manufacturer, we precision-machine the mounting shafts, bearing journals, and drive keyways to match your current head pulley's exact engineering drawings. Your maintenance crew can seamlessly drop the AstraRoll hematite separator directly into your existing conveyor frame during a standard shutdown.
