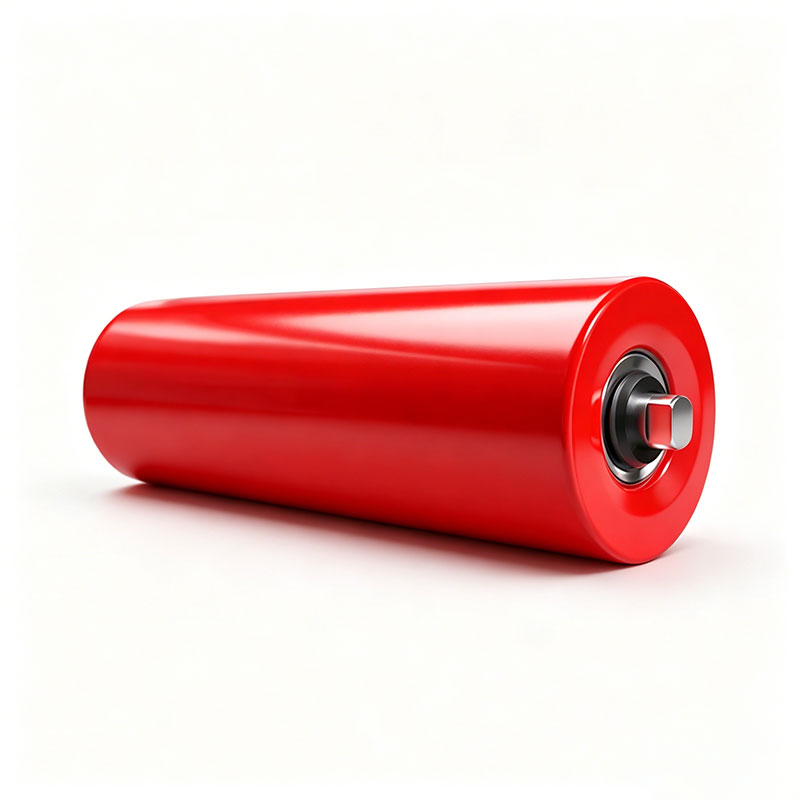

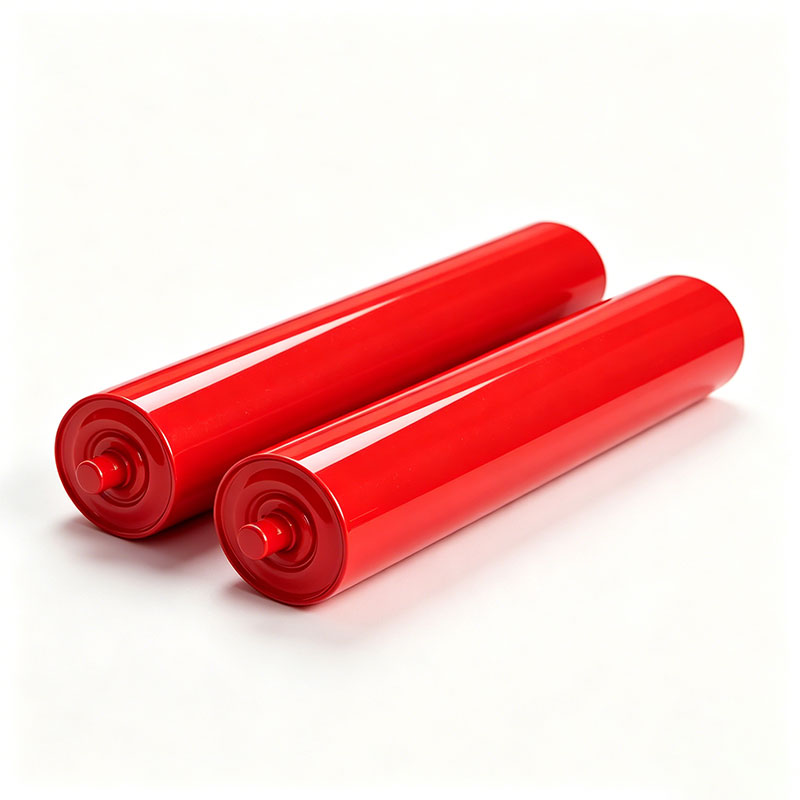

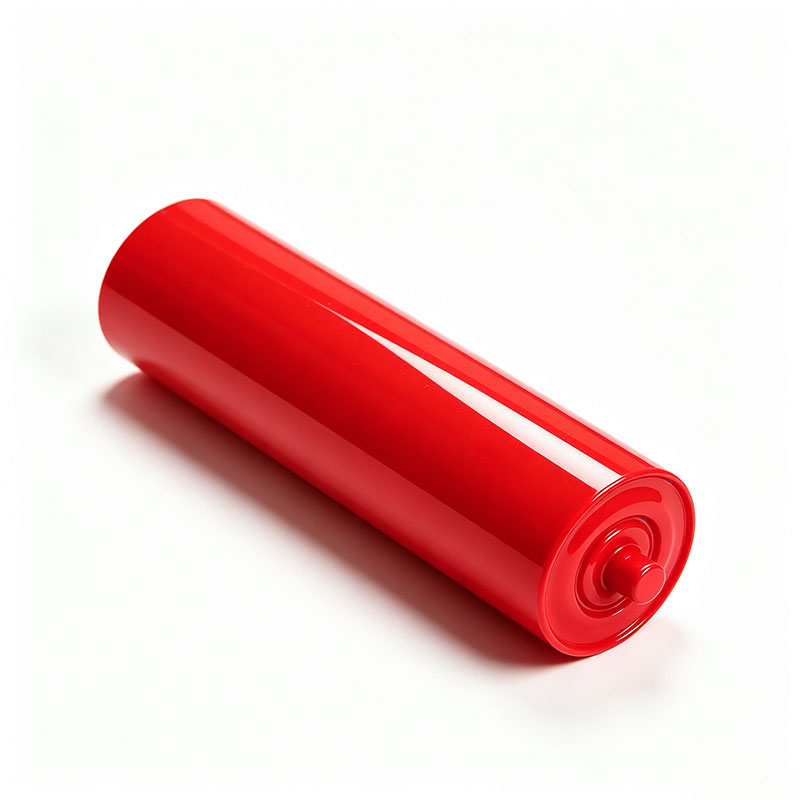

Industrial Heavy-Duty Stainless Steel Return Rollers for Corrosive Bulk Handling
Product Overview:
In heavy-duty bulk material handling, the return side of the conveyor belt is often neglected, yet it is where the most devastating equipment failures occur. In highly corrosive environments—such as fertilizer manufacturing, salt mining, and chemical processing—standard painted carbon steel return idlers rapidly oxidize. The rust causes the bearings to seize, transforming the spinning roller into a stationary steel blade that slices through expensive conveyor belts. The AstraRoll Heavy-Duty Stainless Steel Return Roller is the definitive safeguard against corrosive infrastructure failure. Fabricated from thick-walled SUS304 or SUS316L stainless steel, these flat return rollers are completely immune to rust and chemical degradation. Housed within the welded steel are premium deep-groove ball bearings protected by an advanced triple-labyrinth sealing system, which flawlessly rejects highly abrasive dust and corrosive slurries. Built to bear the weight of heavy, wet conveyor belts, these rollers ensure maximum uptime and drastically reduce belt replacement costs.
Roll Function: Conveyor Roller, Material Handling
Industry Applications: Industry, Chemical, Mining, Medical, Agriculture, Food, Recycling
Inquiry Email: sales@astraroll.com
Industrial Heavy-Duty Stainless Steel Return Rollers for Corrosive Bulk Handling Details
We engineered our bulk return rollers to survive the harshest industrial climates on earth:
Total Corrosion Immunity: By utilizing pure austenitic stainless steel rather than thin galvanized coatings or paint, these rollers indefinitely resist the aggressive pitting caused by sea salt, bulk sulfur, agricultural fertilizers, and continuous moisture.
Heavy-Walled Structural Integrity: Bulk conveyor belts are incredibly heavy, especially when wet or loaded with sticky carryback. We utilize steel tubing with wall thicknesses ranging from 3.0mm to 6.0mm+, ensuring the roller will not deflect or collapse under extreme belt tension.
Advanced Multi-Labyrinth Sealing: Airborne corrosive dust destroys standard bearings in weeks. Our proprietary labyrinth seal creates a complex, grease-filled physical barrier that makes it impossible for particulate matter or washdown water to reach the internal bearing races.
Belt-Protective Surface: The stainless steel tube is precision-machined and polished. This extremely low-friction surface prevents sticky material buildup (carryback) and significantly reduces the wear and tear on the bottom cover of your conveyor belt.
Key Specifications
Please note: We manufacture entirely to your custom bracket dimensions.
Outer Diameter (O.D.): 76mm, 89mm, 108mm, 133mm, 159mm.
Wall Thickness: 3.0mm to 6.0mm+ (Engineered for your belt width and speed).
Face Length: Ranging from 400mm up to 2,200mm+ (Supporting belt widths from 500mm to 2000mm).
Bearing Types: Deep groove ball bearings (e.g., 6204, 6205, 6306) sourced from top-tier brands (SKF, FAG, or premium domestic).
Shaft Material: Cold-drawn stainless steel or highly anti-corrosive alloy steel.
| Comparison Item | AstraRoll Stainless Return Rollers |
| Vs. Carbon Steel Idlers | Lifespan in Corrosive Zones: Carbon steel will rust, swell, and seize within months in a fertilizer or salt plant. Stainless steel operates flawlessly for years in the exact same environment. |
| Vs. HDPE / Plastic Rollers | Load Capacity & Wear: While plastic won't rust, it lacks the structural rigidity for massive, high-tension belts and wears out quickly under abrasive friction. Stainless steel provides the ultimate combination of rust-proofing and heavy-duty steel strength. |
Why Choose AstraRoll?
1. Drop-In Replacement for Global Standards
Whether your conveyor system utilizes what standards, AstraRoll machines the shaft ends precisely to your existing bracket slots. Your maintenance team can pull out a seized steel roller and drop in an AstraRoll stainless upgrade in seconds, without any frame modifications.
2. Factory-Direct Infrastructure Supply
Upgrading a mile-long bulk conveyor to stainless steel idlers represents a major capital expenditure. By bypassing specialized mining equipment distributors and partnering directly with AstraRoll's manufacturing plant, bulk handling facilities secure heavy-duty, corrosion-proof idlers at aggressive B2B wholesale pricing.
Frequently Asked Questions (FAQs)
Q: Why should I use a Stainless Steel return roller instead of a cheaper UHMW/HDPE plastic roller for corrosion resistance?
A: HDPE rollers are excellent for lightweight or medium-duty corrosive applications. However, if your conveyor handles extremely wide, heavy belts with high tension, plastic rollers can bend, and the abrasive nature of the belt can quickly wear grooves into the plastic. Thick-walled stainless steel provides the absolute maximum load capacity and wear resistance while still being 100% rust-proof.
Q: Do these rollers require manual greasing or maintenance?
A: No. AstraRoll return rollers are "sealed for life." The internal deep groove ball bearings are packed with high-quality lithium-based grease, and the triple-labyrinth seal locks that lubrication inside permanently. They require zero maintenance throughout their operational lifespan.
Q: Can you manufacture "V-Return" configurations instead of a single flat roller?
A: Yes. For very wide or heavy belts that have a tendency to wander, we can manufacture two-piece "V-Return" idler sets in stainless steel, which help to actively center the belt as it returns to the tail pulley.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
