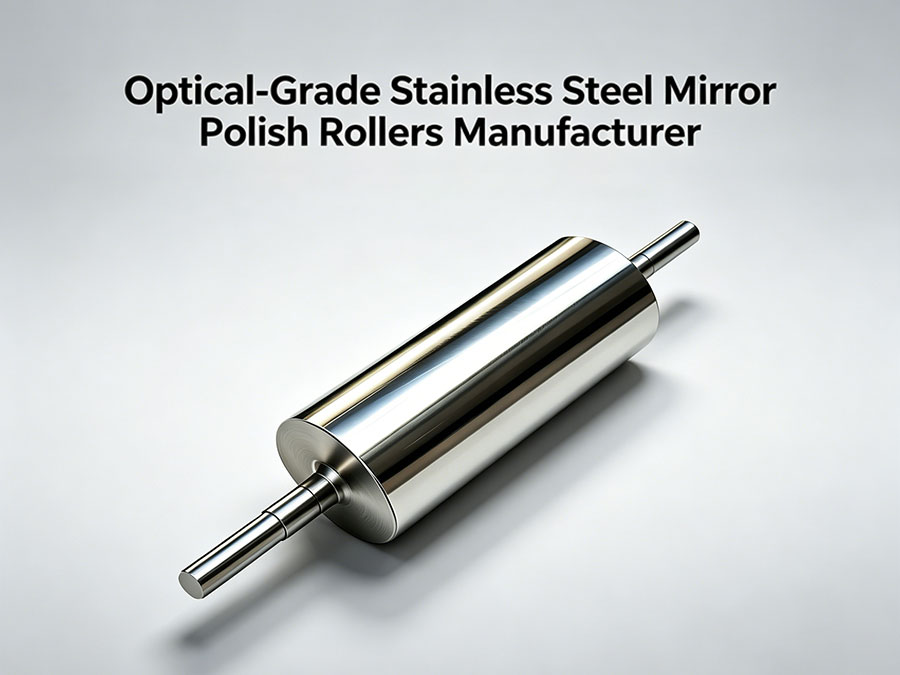

Optical-Grade Stainless Steel Mirror Polish Rollers Manufacturer

The AstraRoll Technical Advantage

We engineer our mirror rollers to deliver absolute perfection under extreme thermodynamic and mechanical stress:

Sub-Micron Super-Finishing: We utilize proprietary 3D lapping and abrasive polishing technologies to eliminate micro-pitting, resulting in an impeccable Grade 14 (Ra 0.005) optical finish. This guarantees that transparent films retain 100% clarity without "orange peel" or ghosting defects.

Thermodynamic Uniformity: For extrusion and laminating applications, inconsistent roller temperatures cause web warping and gauge variation. Our double-jacketed spiral flow channels ensure high-velocity fluid dynamics, maintaining a temperature variance of strictly ≤ ±0.5°C across the entire roller face.

Micro-Precision Concentricity: To maintain exact film thickness (gauge control) during calendering, the roller must spin perfectly true. We cylindrical-grind our rollers to achieve a Total Indicator Runout (TIR) of ≤ 0.005mm.

High-Density Substrate Forging: A mirror finish cannot be achieved on porous metal. We utilize vacuum-degassed, high-density forged steel or premium stainless steel to ensure there are zero subsurface inclusions or gas pockets that could surface during the final polishing phase.

Key Specifications

Please note: We manufacture entirely to your strict engineering tolerances and fluid dynamics requirements.

Outer Diameter (O.D.): Custom engineered from 100mm up to 1,200mm+.
Face Length: Custom manufactured up to 6,000mm+.
Surface Roughness: Ra 0.005 to Ra 0.08 (Mirror Finish Grades 12 to 14).
TIR (Total Indicator Runout): ≤ 0.005mm.
Temperature Variance (Delta-T): ≤ ±0.5°C across the working face (for jacketed rolls).
Dynamic Balancing: ISO G2.5 to G1.0, customized for high-speed vibration elimination.

Why Choose AstraRoll?

1. Cleanroom-Grade Optical Inspection

Achieving a mirror finish is only half the battle; proving it is flawless is the other. Every AstraRoll optical roller is subjected to rigorous multi-angle illumination inspections in a cleanroom environment to detect microscopic pinholes, hazing, or polishing shadows before it is carefully wrapped in protective shielding for shipment.

2. Fluid Dynamic Flow Engineering

We do not use standard internal spirals. AstraRoll engineers calculate the exact pitch and depth of the internal baffles based on your specific heating/cooling medium (water or thermal oil), your required flow rate, and the specific heat capacity of your extruded polymer, guaranteeing maximum thermal efficiency.

Frequently Asked Questions (FAQs)

Q: Should I choose Solid Stainless Steel or Chrome-Plated Carbon Steel for my mirror roller?
A: If your facility operates under strict cleanroom/hygienic protocols (medical, highly corrosive chemical processing, or food grades), Solid SUS316L Stainless Steel is required. However, for most industrial optical films, laminating, and casting lines, a Forged Carbon Steel core with Heavy Hard Chrome Plating is preferred, as the chrome layer provides significantly higher surface hardness (HV 800+) to resist scratching.

Q: How should my maintenance team clean and protect an optical mirror roller?
A: Extreme caution is required. An optical surface can be permanently ruined by a single piece of abrasive dust. Only use industrial, lint-free optical wipes combined with approved volatile solvents (like isopropyl alcohol). Never touch the working face with bare hands or standard shop rags.

Q: If the mirror surface gets lightly scratched, can it be fixed?
A: Yes. If the scratch is superficial, you do not need to replace the roller. Ship the unit back to the AstraRoll facility; we will mount it on our specialized polishing lathes, perform a micro-abrasive compounding process, and restore the exact Ra 0.005 surface finish.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
