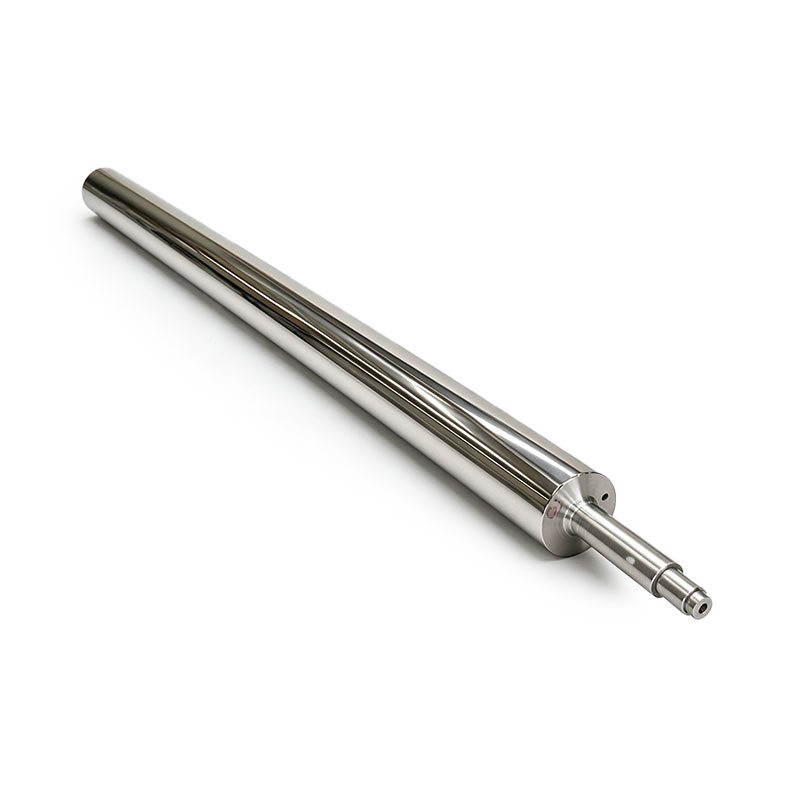

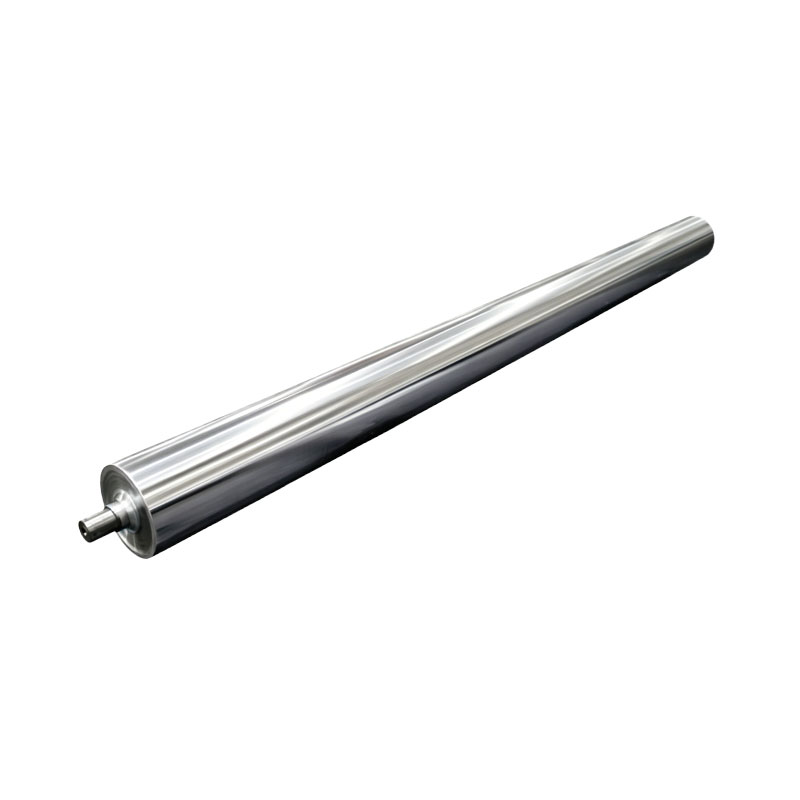

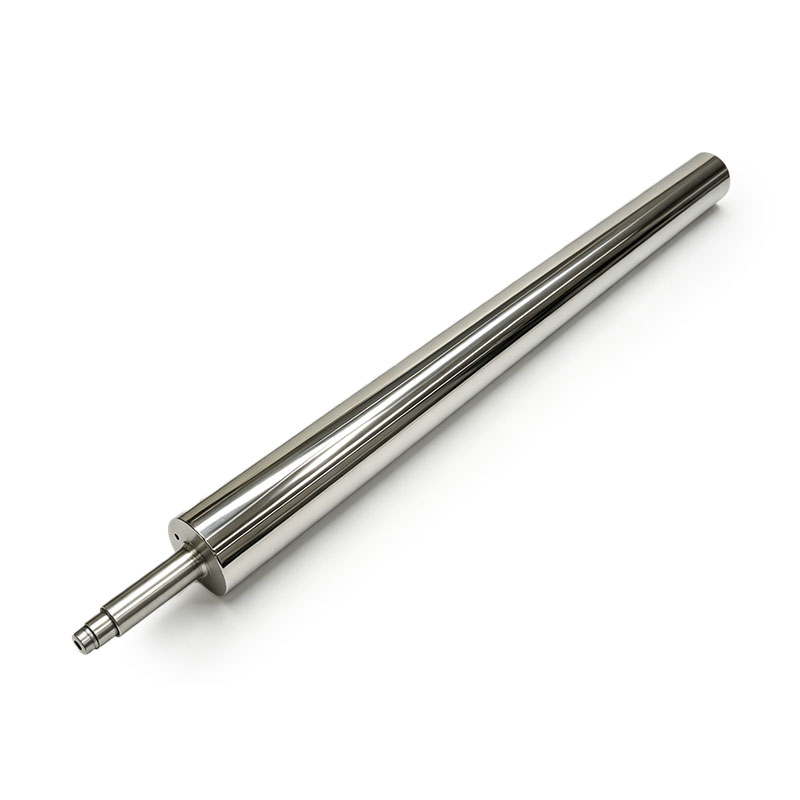

Custom Extra-long Heat Transfer Roller and Guiding Roller

The AstraRoll Custom Extra-long Heat Transfer and Guiding Roller is an advanced engineering solution designed explicitly for heavy-duty, wide-format web processing machinery. When industrial rollers extend across substantial lengths, standard steel tubes suffer from gravitational deflection and structural whipping at high RPMs, which ruins material tension and film gauge profiles.

AstraRoll solves this by utilizing premium, thick-walled alloy steel or complete forgings that undergo rigorous multi-stage dynamic balancing and thermal tempering. Tailored for heavy-duty conversion lines, these oversized rollers can be engineered as high-efficiency thermal rollers with dual-shell internal fluid paths or as ultra-precise structural guide rollers, providing the ultimate combination of high geometric concentricity, structural deflection resistance, and long-term mechanical reliability.

Technical Parameter

Concentricity (static run out):≤0.05mm

Temperature difference on roll face: ≤±1.5 degree

Roughness on roll surface: Ra≤0.01um

Surface treatment: chrome plating (plating thickness≥0.1mm), mirror by polishing

Max dimension: Φ900*16000mm

Product Applications

Engineered for uncompromised web stabilization and thermal control across massive spans:

Wide-Web Packaging & Printing: Heavy-duty guiding and backing rollers for wide-format flexographic and rotogravure printing presses.

Non-Woven & Textile Calendering: High-span thermal transfer rollers for bonding, embossing, and laminating non-woven fabrics and industrial textiles.

Wide-Format Plastic Sheet Lines: Primary guide rollers and cooling rolls handling wide geomembranes, agricultural films, and automotive sheet lines.

Paper & Board Converting Equipment: High-speed, oversized carrier and slitter guiding rollers in massive paper mills and corrugating lines.

Why Choose AstraRoll's Extra-long Heat Transfer & Guiding Roller?

Ultra-Low Deflection Architecture: A long roller that sags even fractions of a millimeter in the center causes severe material wrinkling and edge-slackness. AstraRoll engineers every extra-long roller with optimized internal structural ribs or progressive wall thicknesses based on finite element analysis (FEA). This ensures the roll face remains dead-straight and uniform under multi-ton continuous web tension.

Vibration-Free High-Speed Performance: Oversized rollers are highly susceptible to centrifugal whipping and resonance vibrations at high line speeds. Every extra-long roller we build undergoes dual-plane precision dynamic balancing to G2.5 standards on our heavy-duty CNC balancing rigs, ensuring whisper-quiet operation, minimal bearing wear, and zero web chatter marks.

Flawless Surface Finish Across Full Width: Achieving tight tolerances over a 1-meter roller is standard; maintaining a radial runout of ≤0.008mm over a 5-meter span requires world-class machining. Our extra-long grinding facilities ensure that the parallelism, cylindricity, and surface roughness (Ra≤0.01μm for mirror finishes) remain completely uniform from the left journal to the right journal.

Tailored Thermal Fluid Dynamics for Long Spans: For heat transfer configurations, maintaining temperature uniformity across an extra-long face is incredibly challenging due to coolant temperature drops. AstraRoll designs custom multi-pass internal spiral (flow channels) that accelerate fluid velocity and alternate fluid directions, locking cross-web temperature variances to less than ±0.5℃ to prevent localized thermal expansion issues.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
