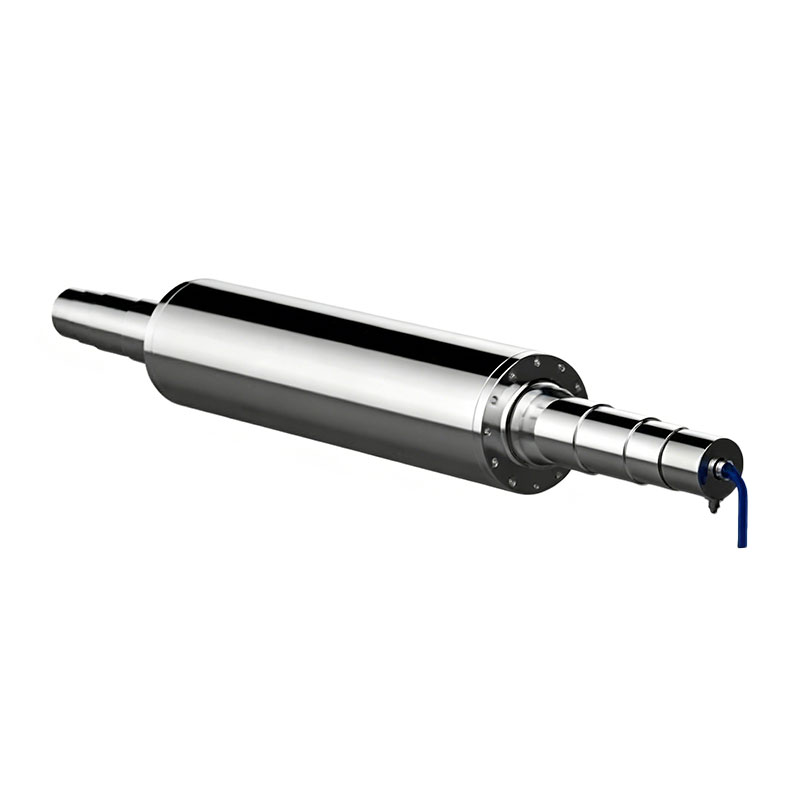

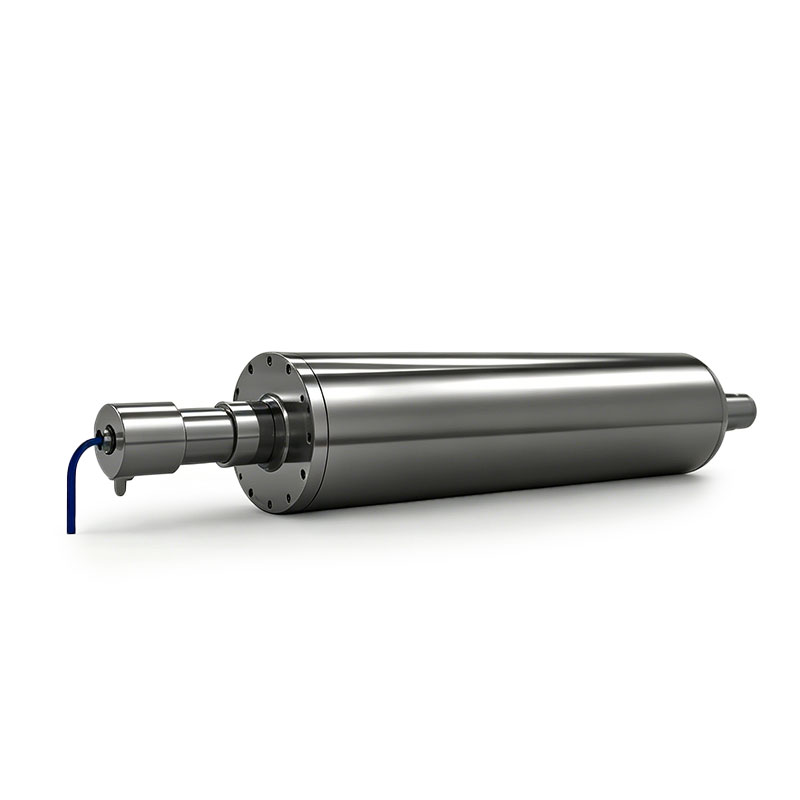

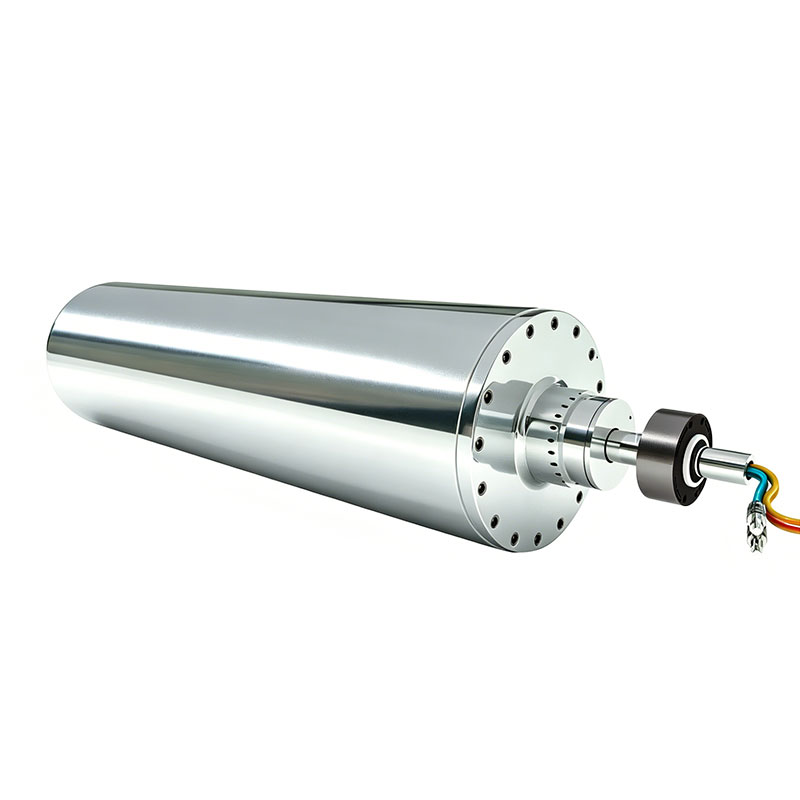

Custom Electromagnetic Induction Heating Steel Roller
Product Overview:
The AstraRoll Custom Electromagnetic Induction Heating Steel Roller utilizes advanced internal electromagnetic induction coils to generate precise, rapid, and uniform thermal energy directly within the shell profile. Engineered to replace traditional thermal oil or steam cylinders, this heavy-duty steel roller achieves stable running temperatures up to +400℃ with a strict cross-web thermal variance of ≤±1℃. Restricting dynamic total indicator runout (TIR) to ≤0.005mm, it delivers superior energy efficiency and zero-contamination heating for high-speed non-woven calendering, plastic extrusion, and composite lamination lines.
Roll Function:
Industry Applications: Industry, Printing, New Energy, Electronics
Inquiry Email: sales@astraroll.com
Custom Electromagnetic Induction Heating Steel Roller Details
Constructed from premium forged alloy or carbon steel cores, the outer face is precision CNC ground, hardened, and hard-chrome plated or ceramic-coated depending on application requirements. The integrated multi-zone electromagnetic induction architecture guarantees rapid preheating times, highly sensitive closed-loop thermal response, and perfectly symmetrical heat distribution, protecting sensitive flexible substrates from thermal distortion during continuous high-speed compression.
Technical Parameter
Core & Shell Material: Forged 42CrMo Alloy Steel / Premium Carbon Steel Cores
Surface Treatment: Electroplated Hard Chrome (Thickness ≥0.15mm) / Custom Ceramic Coatings
Surface Hardness: HRC58 - 62 (Excellent wear and high-load compression resistance)
Surface Roughness (Ra): Super Mirror Finish: Ra≤0.01μm to 0.02μm
Maximum Operating Temp: Continuous heating performance up to +400℃
Temperature Uniformity: Cross-Web Temperature Variance ≤±1℃
Total Indicator Runout (TIR): ≤0.005mm (Maintained under maximum heated thermal expansion)
Dynamic Balancing Level: ISO 21940 Grade G2.5 standard for vibration-free running
Heating Medium: Solid-state internal electromagnetic coils (Fluid-free architecture)
Applications
Non-Woven Fabric Calendering: High-pressure thermal bonding and smooth finishing of medical, hygienic, and industrial non-woven webs.
Plastic & Film Extrusion: Operating as the primary heating or laminating cylinder in multi-layer co-extrusion film and sheet casting lines.
Composite Sheet Lamination: Delivering intense, uniform heat for bonding aluminum-plastic panels, technical textiles, and copper-clad laminates (CCL).
Paper & Textile Finishing: Precise hot-pressing, embossing, and moisture extraction within high-speed converting lines.
Why Choose AstraRoll's Electromagnetic Induction Heating Steel Roller?
Eco-Friendly Fluid-Free Architecture with Zero Leakage: Replaces hazardous thermal oil and pressurized steam with internal solid-state induction coils. This completely eliminates the threat of oil leaks, structural fluid seals failing, and material contamination, while lowering workshop emissions.
High-Yield Thermal Efficiency with Rapid Response: Traditional hot oil rolls require extensive preheat cycles due to indirect heat transfer. AstraRoll's induction coils generate eddy currents that heat the outer steel shell directly, cutting preheat times by up to 50% and reducing continuous energy consumption by 30% to 60%.
≤±1℃ Multi-Zone Precision Temperature Controls: Any cross-web thermal variance ruins web flatness and bonding depth. We utilize advanced multi-zone internal coil arrays that adaptively modulate power inputs, holding the entire face profile within an ultra-strict ≤±1℃ grid, even at +400℃ operation.
Sub-Micron Heated Runout Precision (≤0.005mm Runout): High operational heat causes non-uniform structural expansion in standard cores, creating runout waves. We execute final finish grinding with the core pre-stressed to counteract thermal elongation, guaranteeing a hot dynamic runout within 0.005mm for faultless web thickness calibration.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
