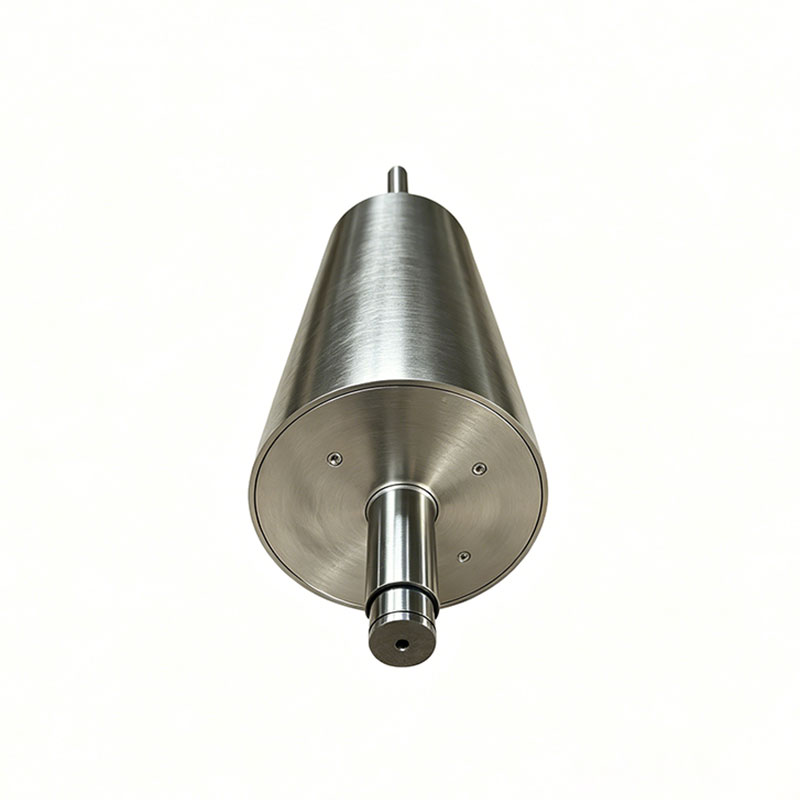

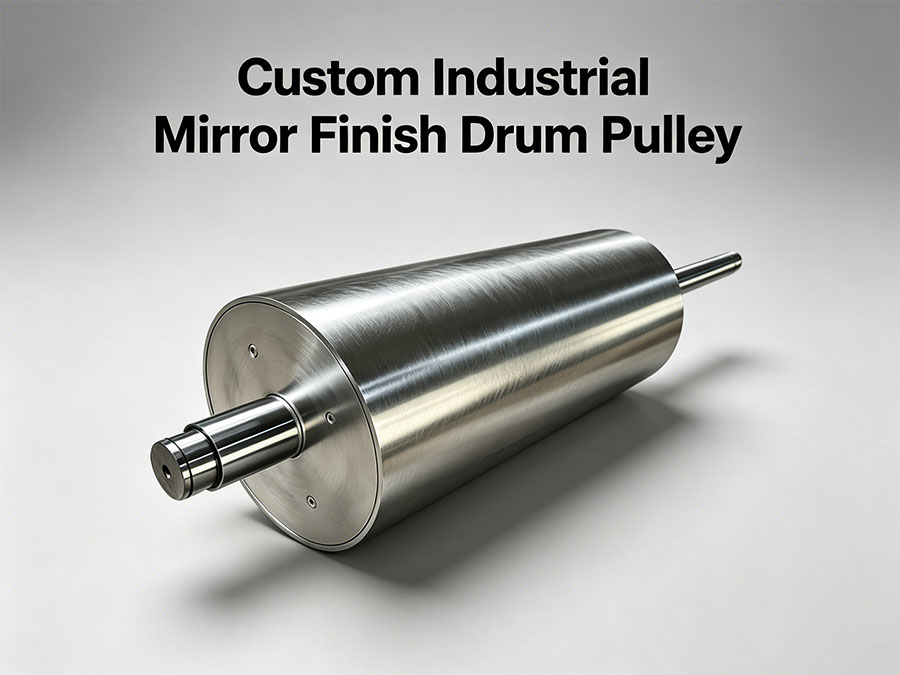

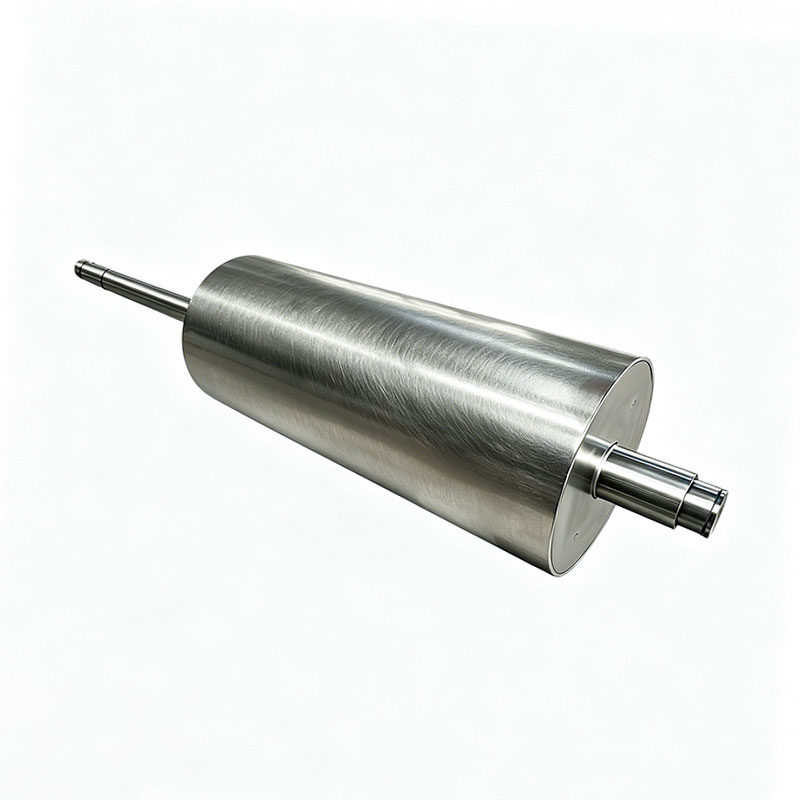

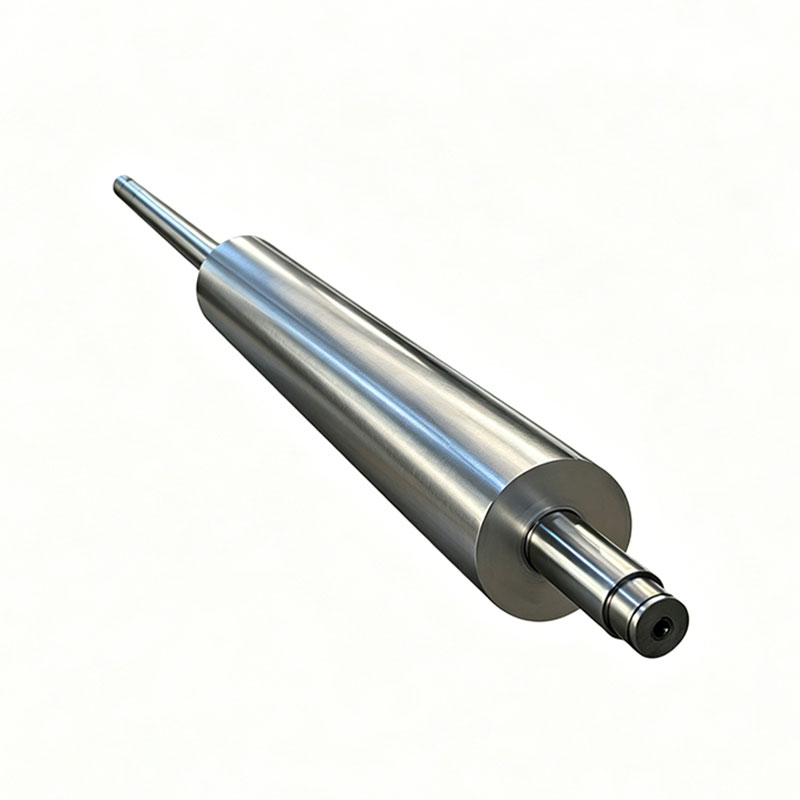

Custom Industrial Mirror Finish Drum Pulley

AstraRoll's Mirror Finish Drum Pulleys are high-precision transmission components designed for industrial processes where substrate surface integrity is the top priority. Utilizing advanced multi-stage super-finishing and specialized buffing techniques, we achieve an ultra-smooth, glass-like surface (Ra≤ 0.1μm). This flawless finish is essential for the smooth moving of delicate materials—such as optical films, copper foils, and high-end papers—preventing micro-scratches, streaks, or adhesive buildup.

Beyond surface aesthetics, these pulleys are engineered for structural excellence. Built to support a higher loading capacity, they maintain absolute concentricity and thermal stability during high-speed operation. By reducing friction and eliminating surface imperfections, AstraRoll's mirror rollers ensure driving quiet wear resistance and high-fidelity material tracking in the most demanding automated production lines.

Technical Parameter

Body Material: SUS304/ SUS316L Stainless Steel or High-Tensile Carbon Steel

Surface Treatment: Super-Finishing Mirror Polishing (Optional Hard Chrome Base)

Surface Roughness: Standard Ra≤0.1μm; Premium Ra≤0.05μm

Concentricity / TIR: ≤0.01mm to 0.02mm for ultra-stable smooth moving

Dynamic Balance: ISO G1.0 Standard for vibration-free smooth driving

Surface Hardness: Up to HRC 62 (with hard chrome plating)

Loading Capacity: Precision-wall thickness for higher loading capacity

Application Industrial

Battery Manufacturing: Ideal for transporting ultra-thin separators and electrodes in lithium and sodium cell production.

Optical & Functional Films: Handling sensitive substrates for solar panels, displays, and polarizing films.

Flexible Packaging & Printing: Used in high-end gravure and flexographic presses for scratch-free results.

Pharmaceutical & Food: Ensuring non-contaminating, high quality transport of medical-grade foils and packaging.

Laminating & Coating: Critical for pressure rollers and guide rollers in precision lamination processes.

Why Choose AstraRoll's Industrial Mirror Finish Drum Pulley?

Optical-Grade Surface Perfection: Our high quality mirror finish provides a non-marking interface, ensuring your products are free from surface defects during smooth moving.

Ultra-Strict Tolerances: We maintain a TIR as low as 0.01mm, ensuring zero vibration and consistent tension for high-speed smooth driving.

Superior Wear Characteristics: By combining mirror polishing with optional hard chrome, we provide a surface that offers exceptional driving quiet wear resistance and chemical inertness.

Robust Structural Integrity: Designed for a higher loading capacity, our pulleys do not deflect or bow, even when subjected to the high web tensions required in wide-web manufacturing.

Motion System Synergy: Furthermore, our mirror finish rollers are fully customizable to interface seamlessly with various models of motors, reducers, and high-resolution encoders for a complete automation solution.

FAQ

Q: How do you protect the mirror surface during shipping?

A: Every high quality mirror pulley is wrapped in protective film and secured in custom wooden crates to ensure it arrives ready for smooth moving in your facility.

Q: Can you achieve a specific Ra value for my coating process?

A: Yes. We can customize the finish from Ra≤0.2μm down to Ra≤0.05μm depending on your specific requirements for smooth driving.

Q: Will the mirror finish cause the belt to slip?

A: For drive applications, we carefully calibrate the surface friction; for idler applications, the ultra-low friction ensures smooth moving without dragging or damaging the substrate.

Q: Are these rollers resistant to cleaning chemicals?

A: Yes. Our stainless steel mirror rollers offer excellent corrosion resistance, maintaining their driving quiet wear resistance even after frequent chemical wash-downs.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
