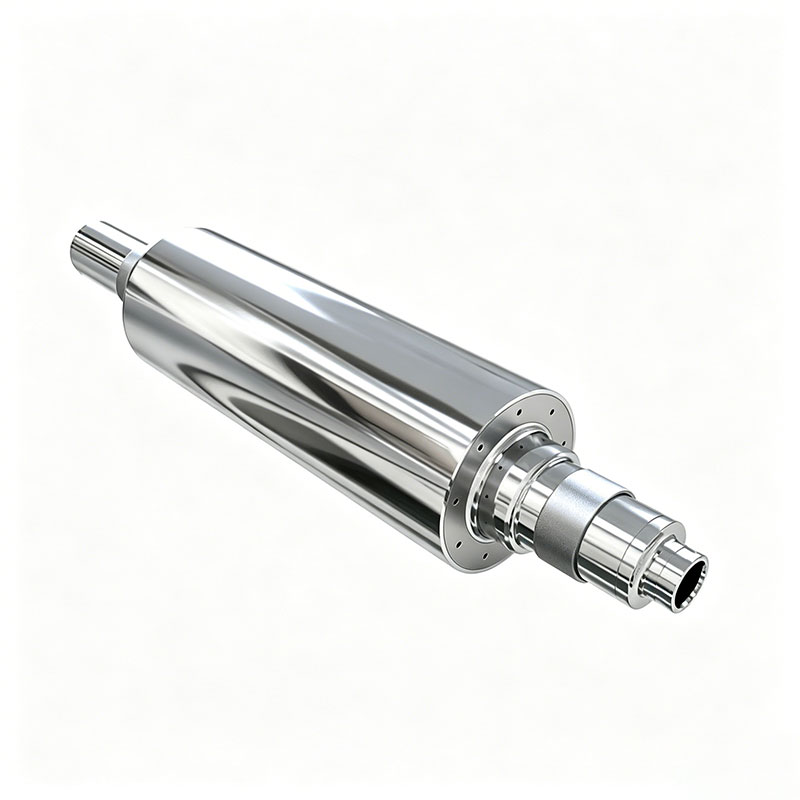

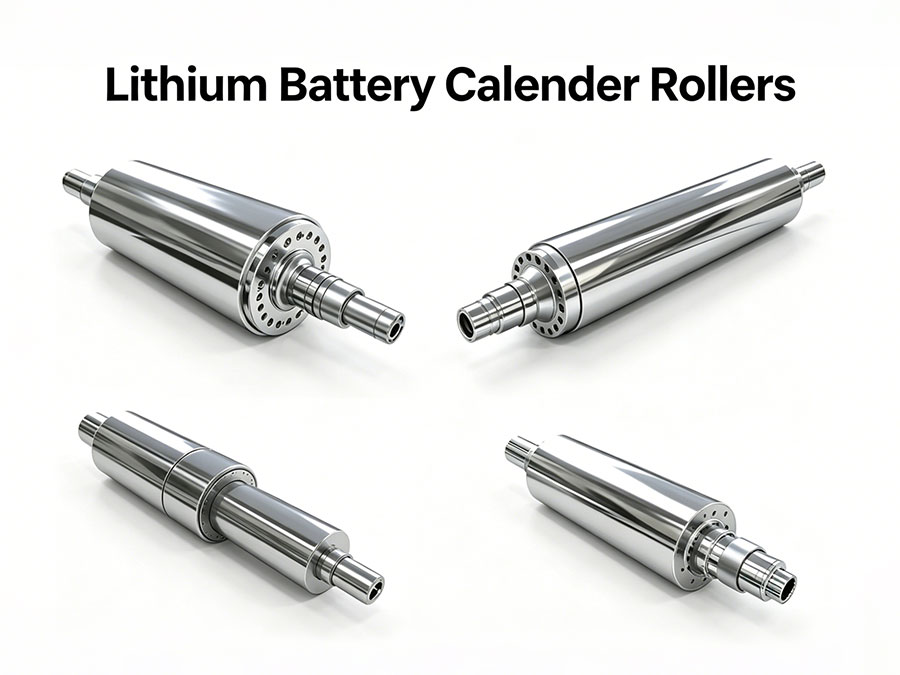

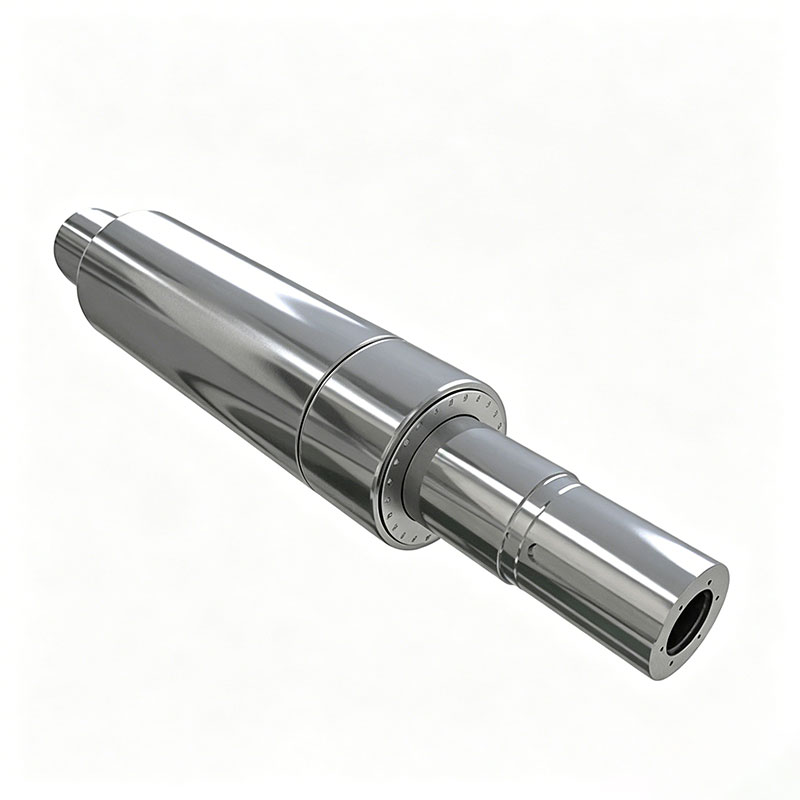

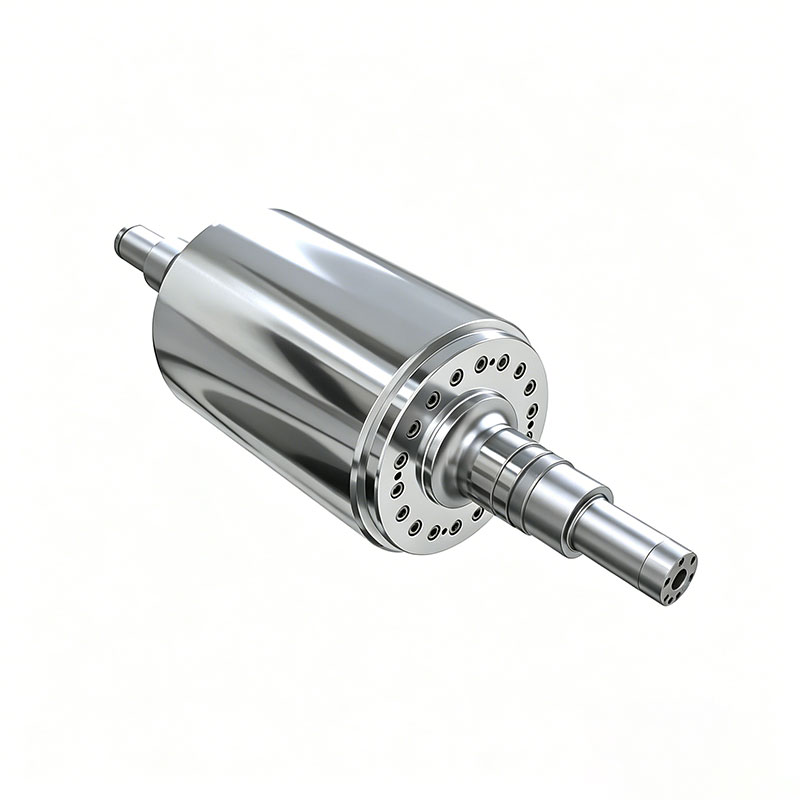

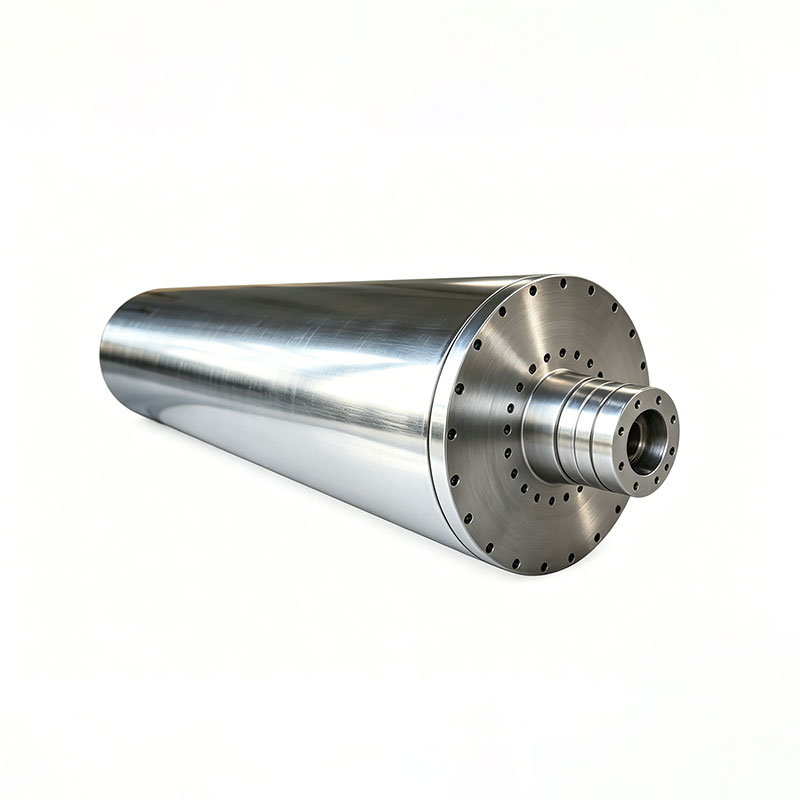

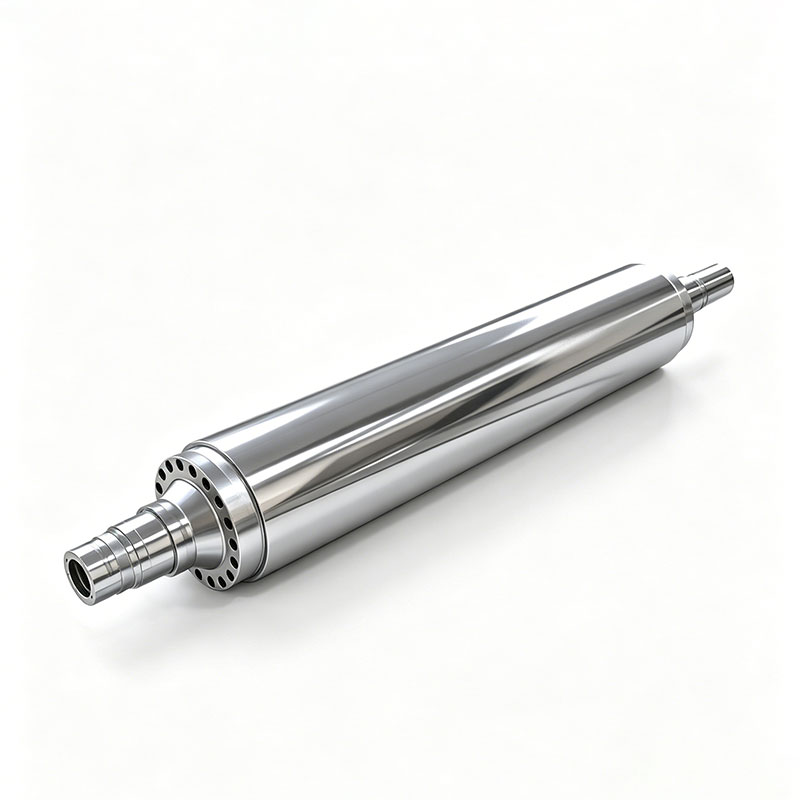

Lithium Battery Calender Rollers

AstraRoll's Lithium Battery Calender Rollers are the cornerstone of high-performance electrode production. Designed to deliver extreme linear pressure with micron-level precision, these rollers are essential for compacting active materials on anode and cathode foils to achieve maximum energy density.

Engineered for higher loading capacity, our calender rollers utilize advanced induction hardening and sub-zero treatment to ensure structural stability under intense stress. The precision mirror-finish surface ensures smooth moving of the substrate, preventing any micro-cracks or surface irregularities. Whether for cold or hot calendering, AstraRoll provides the thermal consistency and mechanical rigidity required for high-yield battery manufacturing.

Technical Parameter

Base Material: Premium Alloy Steel

Surface Hardness: HRC 62 - 68 (Induction Hardened)

Surface Treatment: Hard Chrome Plating or Tungsten Carbide Coating (HV1100-1300)

Surface Finish: Mirror Polished (Ra≤0.05μm - 0.1μm)

Concentricity / TIR: ≤0.002mm (2 microns)

Hardened Depth: 10mm - 25mm (Customizable for driving quiet wear resistance)

Heating Method: Internal Oil or Electromagnetic Induction (for Hot Calendering)

Application Industrial

Lithium-ion Battery Production: Precision pressing of anode and cathode electrodes for EV and ESS cells.

Supercapacitor Manufacturing: High-pressure densification of carbon-based electrode materials.

Solid-State Battery R&D: Specialized compacting for next-generation solid electrolyte layers.

Metal Foil Processing: Precision thickness reduction for copper, aluminum, and other non-ferrous foils.

Why choose AstraRoll's Lithium Battery Calender Rollers？

Ultra-Precision Compression: Our rollers are ground to a TIR of 0.002mm, ensuring perfectly uniform electrode thickness across the entire web width.

Superior Pressure Management: Engineered for higher loading capacity, our rolls maintain zero deflection even under the extreme pressures required for high-density coatings.

Advanced Thermal Control: Integrated flow channels ensure $\pm$ 1°C temperature uniformity across the roller surface, essential for high-quality hot calendering.

Extreme Wear Resistance: The high quality surface coatings provide exceptional driving quiet wear resistance, maintaining a flawless mirror finish over millions of cycles.

Optimized for Automation: Furthermore, our calender rollers are fully customizable to interface seamlessly with various models of motors, reducers, and encoders.

FAQ

Q: How do you maintain surface precision under high-temperature calendering?

A: We use a proprietary heat-treatment process that stabilizes the steel's molecular structure, ensuring the roller maintains its smooth moving precision even at operating temperatures up to 200°C.

Q: Can you refurbish or regrind existing calender rollers?

A: Yes. We offer precision regrinding services to restore the high quality mirror finish and TIR specs, extending the service life of your high-investment components.

Q: What surface coating is best for high-nickel cathode materials?

A: We typically recommend a Tungsten Carbide coating for its extreme hardness and driving quiet wear resistance, which prevents material adhesion and surface scratching.

Q: Do these rollers support integration with smart thickness-control systems?

A: Absolutely. Our calender rollers are fully customizable to interface seamlessly with various models of motors, reducers, and encoders, allowing for real-time gap adjustments.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
