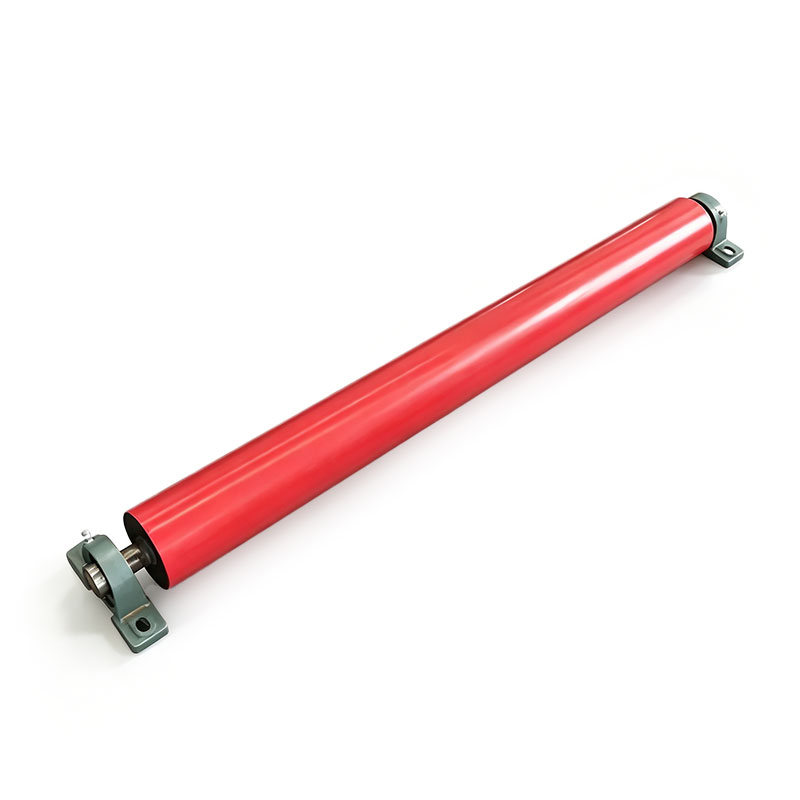

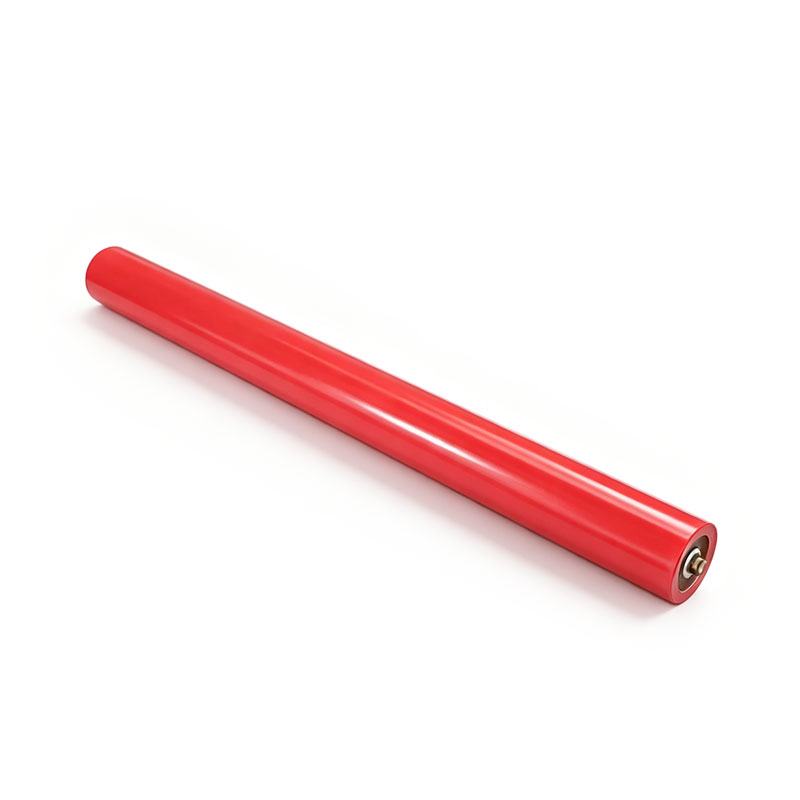

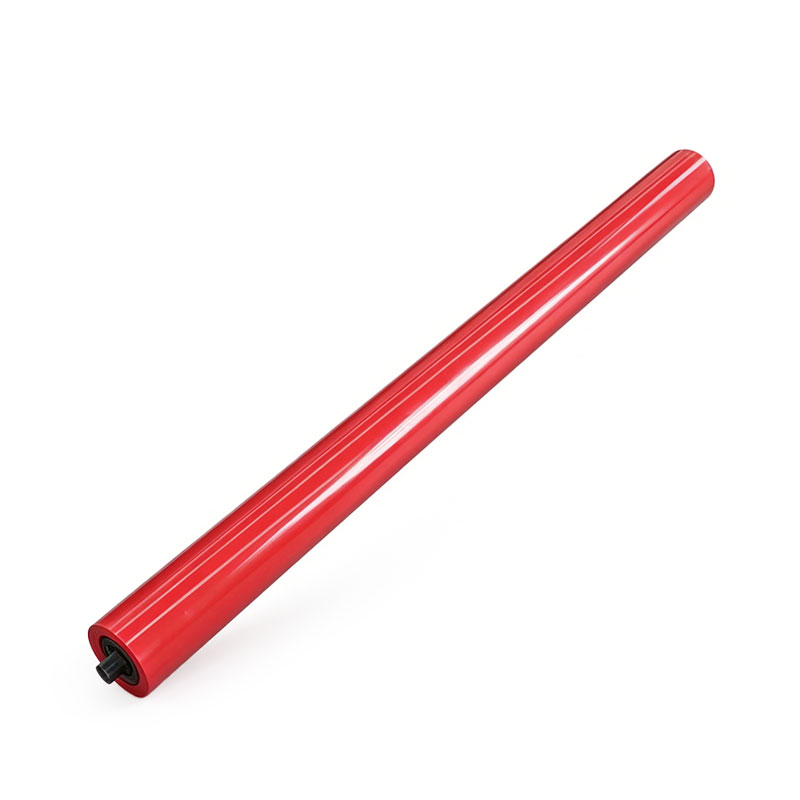

Custom Nylon Coated Steel Roller for Conveying & Processing Machinery

The AstraRoll Custom Nylon Coated Steel Roller delivers exceptional surface protection, low rotational drag, and long-term durability for high-velocity manufacturing and distribution environments. In modern converting, packaging, and sorting lines, materials must move rapidly without facing surface defects or tracking friction. Standard metallic rollers often score or mark sensitive substrates (such as films, foils, papers, and delicate components), while common rubber rollers can suffer from rapid frictional wear, hardening, or gouging under constant web contact.

Our industrial-grade nylon-clad rollers eliminate these processing bottlenecks. Leveraging the advanced material properties of premium polyamides, these rollers provide a slippery, self-lubricating outer shell that allows products to glide seamlessly across the production plane. Its high impact strength dampens structural vibrations, cutting running noise drastically while protecting both the machinery and the handled goods from mechanical stress.

Technical Parameters

Product Framework: Precision Heavy-Duty Nylon Coated / Polyamide Clad Industrial Roller

Coating Material: Premium Technical Nylon (PA6, PA66, PA11, PA12 options available)

Base Core Options: Steel / Carbon Steel / Corrosion-Proof 304 & 316 Stainless Steel

Coating Thickness: 1mm - 10 mm (Thick-wall cladding customized per load requirement)

Hardness Window: 70Shore D - 85Shore D (High-rigidity, wear-resistant structural face)

Total Indicator Runout (TIR): ≤0.01mm (CNC turn-ground for flawless concentric rotation)

Dynamic Balancing: ISO 21940 G2.5 standard matching for smooth, vibration-free high-speed running

Thermal Stability: Continuous execution from -40℃ up to +100℃

Key Performance: Self-lubricating, high wear immunity, anti-scratch, low noise, chemical-resistant

Applications

Printing, Coating & Flexible Packaging: Safe guide, idler, and steering rollers transporting delicate papers, plastic films (BOPP, PET, PE), laminates, and foils without scratching or static buildup.

Automated Material Handling & Logistics: Low-friction conveyor rollers, drive rollers, and sorting line shafts for high-speed parcel hubs, airport baggage systems, and warehouse distribution center conveyors.

Food Processing & Pharmaceutical Packaging: Clean, non-marking, and chemical-resistant rollers utilized in food-grade sorting, bottle washing, capping, and cleanroom packaging lines.

Textile & Non-Woven Converting: Durable web-guiding and pulling rollers capable of handling continuous threads, synthetics, fabrics, and heavy non-woven webs under constant friction.

Automotive Assembly & Metal Stamping: Protective transport rollers used to guide body panels, stamped metal sheets, and finished parts without denting or oil contamination.

Electronics & PCB Manufacturing: Dust-free, precision-ground rollers managing delicate circuit boards, glass panels, and sensitive electronic substrates.

Why Choose AstraRoll's Custom Nylon Coated Steel Roller?

Elite Anti-Scratch Protection & Non-Marking Face: The smooth, continuous nylon cladding acts as a gentle yet rigid shield. It prevents metal-to-product contact, ensuring that sensitive materials like optical films, coated papers, or pre-printed graphics suffer zero scratching, scuffing, or cosmetic damage during high-speed travel.

Exceptional Wear & Impact Resistance Cuts Tearing: Industrial nylon is highly resilient against friction, mechanical shock, and localized impact. It resists surface grooving, flat-spotting, and micro-cracking caused by sharp material edges or constant loads, outlasting standard plastics and soft rubbers by up to 3 to 5 times.

Self-Lubricating Low Friction Reduces Line Tension: Polyamide features a naturally low coefficient of friction and excellent slip properties. This cuts web drag and material resistance, preventing tension spikes, material slipping, or stretching on thin substrates, while decreasing drive-motor strain to optimize energy efficiency.

Vibration Damping for Whisper-Quiet Production: Our nylon matrix absorbs structural chattering and continuous mechanical impacts from traveling chains, belts, or products. This significantly muffles operational rattling and noise, creating a quieter, safer, and more compliant working environment in high-volume plants.

Micron-Level CNC Grinding for Flawless Web Alignment (≤0.01mm TIR): Diameter variations or structural runout can cause material tracking drift or edge wrinkling. Every AstraRoll nylon coated shaft is finish-ground on precision CNC machinery, ensuring perfect parallel contact and absolute concentric running stability.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
