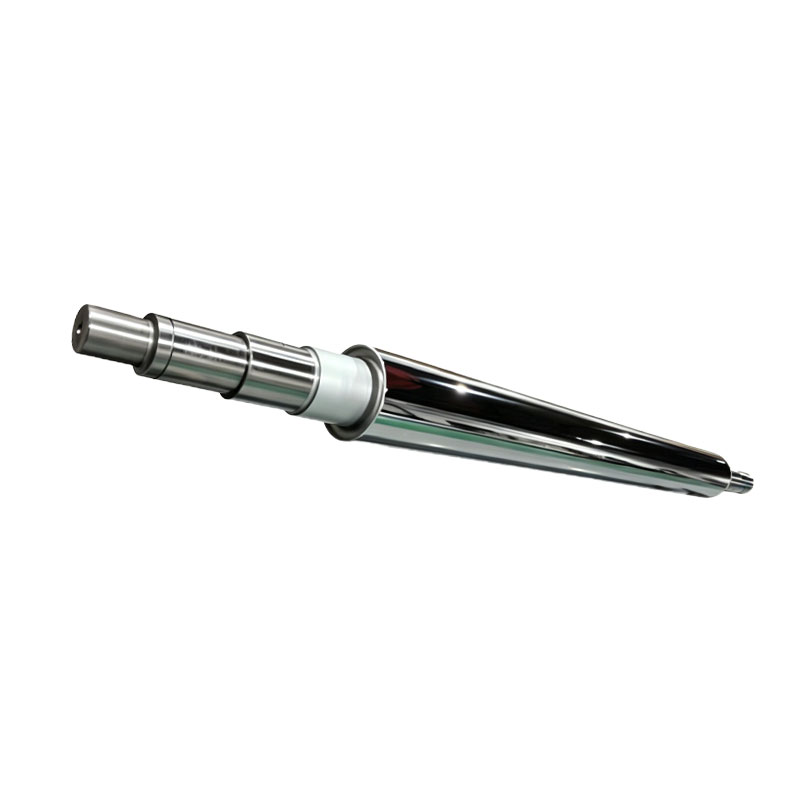

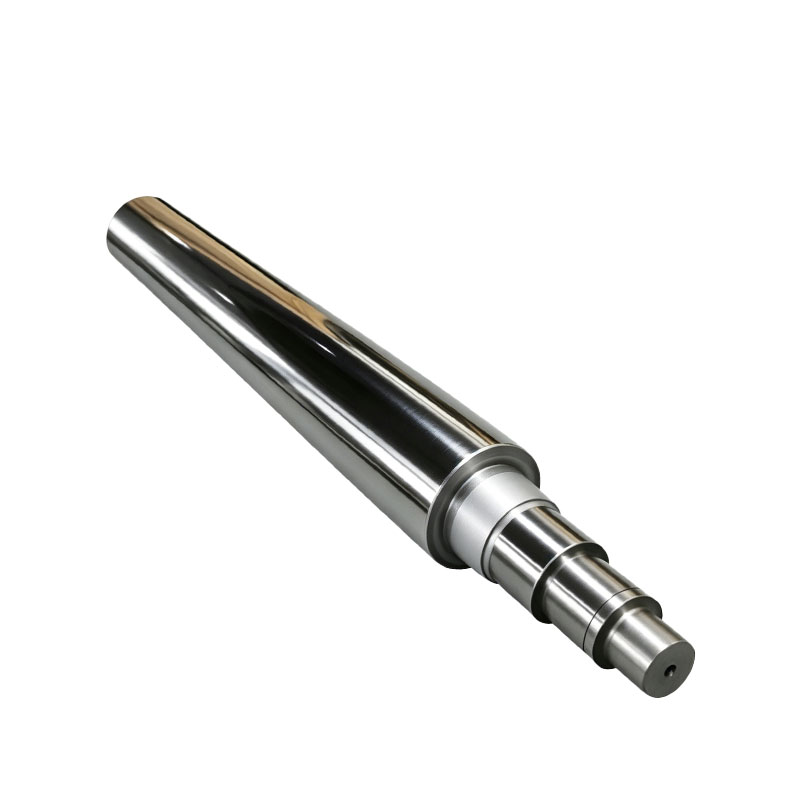

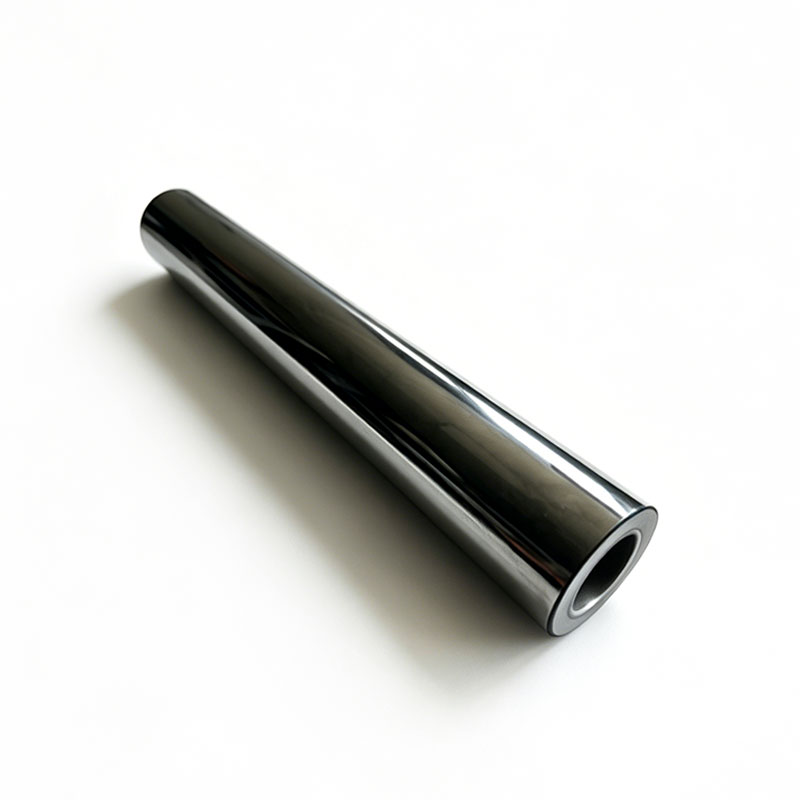

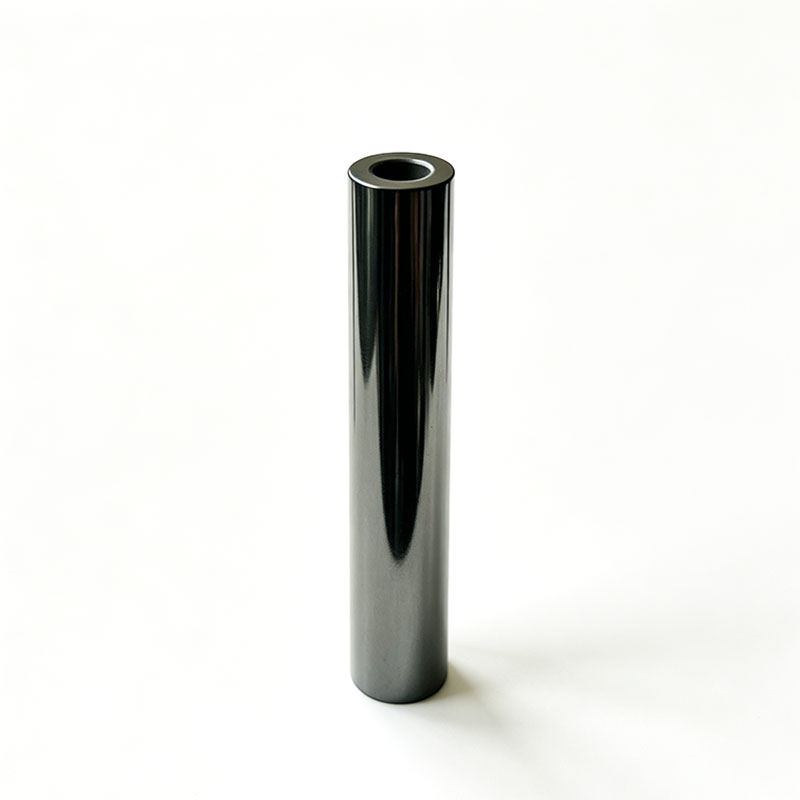

Custom Tungsten Carbide Stretching Roller

The AstraRoll Custom Tungsten Carbide Stretching Roller is an elite-tier engineering solution designed explicitly for heavy-duty, high-wear manufacturing lines where standard hard chrome or tool steel rollers fail due to surface scratching, groove wear, or web slippage. In modern high-tension stretching and pulling applications (such as metal processing, sheet drawing, and advanced polymer orientation), rollers face immense friction and localized stress that quickly degrade ordinary metal surfaces.

AstraRoll solves this issue by using an advanced high-velocity oxy-fuel (HVOF) plasma gun to weld high-purity tungsten carbide particles onto a multi-tempered 42CrMo forged steel body. This creates an ultra-dense, non-porous cladding that reaches diamond-like hardness levels (≥HRC 70). Optimized for extreme operating loads, our carbide rollers prevent premature tracking wear, eliminate film/wire slippage, and maintain high geometric parallelism, yielding maximum production runtime without structural micro-cracking or surface degradation.

Technical Specifications

Product Category: Heavy-Duty HVOF Thermal Spray Tungsten Carbide (WC) Roller

Core Shaft Material: High-Grade Forged Alloy Steel (42CrMo / 45# Seamless Steel Core)

Surface Cladding: Premium-Grade Tungsten Carbide Cobalt Matrix (WC-Co-Cr)

Surface Hardness: ≥HRC 70 (Equivalent to ≥HV 1200 - 1400 ultra-hard armor)

Surface Topography: Mirror-Polished (Ra≤0.01μm) or Controlled Non-Slip Matte

Concentricity / Runout: ≤0.005mm (Achieved through specialized diamond cylindrical grinding)

Bonding Strength: ≥70MPa (High-density mechanical matrix integration, zero peeling)

Dynamic Balance Rating: G2.5 precision calibrated at high operational linear velocities

Product Applications

Metal Wire Drawing & Shearing Lines: High-durability capstans, pulling rolls, and stretching guides for processing steel cables, copper wires, and welding filaments.

High-Tension Plastic Film Stretching (MDO): Critical orientation rollers in plastic film lines that require excellent wear resistance against sharp film margins and localized friction.

Lithium Battery Aluminum & Copper Foil Converting: Guiding, slitting, and wind-up reference backing rollers exposed to abrasive active material edges and high-tension webs.

Textile & Non-Woven Carding Lines: Heavy-duty calendering input and tension-stretching components handling tough synthetic fibers and abrasive glass-mat surfaces.

Why Choose AstraRoll's Tungsten Carbide Stretching Roller?

Diamond-Like≥HRC 70 Hardness Shield: Standard hard chrome rollers eventually develop micro-grooves from continuous friction, which can ruin smooth thin films or wire paths. AstraRoll utilizes premium, micro-grained WC-Co-Cr powder blended under extreme HVOF temperatures. This yields a dense outer shell that resists score marks, allowing your lines to run continuously for years without requiring regrinds.

Advanced Diamond-Wheel Finishes (Ra≤0.01μm to Grip-Matte): Tungsten carbide is too hard for standard grinding wheels. AstraRoll utilizes automated diamond-matrix grinding rigs to achieve your exact surface specifications. Whether your process demands a smooth, mirror finish (Ra≤0.01μm) for delicate optical matrices or a micro-textured profile to increase traction and stop film slip, we lock it in with absolute cross-web uniformity.

Deflection-Free 42CrMo Forged Framework: High pulling tension applies tremendous bending forces across long roller spans. We discard cheap welded structural tubes, using single-piece 42CrMo alloy forged steel cores instead. Multiple thermal aging steps remove all internal stresses, locking radial runout strictly below ≤0.005mm to ensure vibration-free tracking under multi-ton loads.

Zero Shell Peeling via High-Bonding HVOF Welding: Thermal expansion differences between steel cores and carbide coatings can cause inferior coatings to flake off. AstraRoll optimizes the intermediate metallurgical bond layer using high-velocity plasma kinetics, achieving a strong bonding strength of ≥ 70MPa. This guarantees the coating will never delaminate or chip, even when subjected to sudden thermal shocks or aggressive mechanical impacts.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
