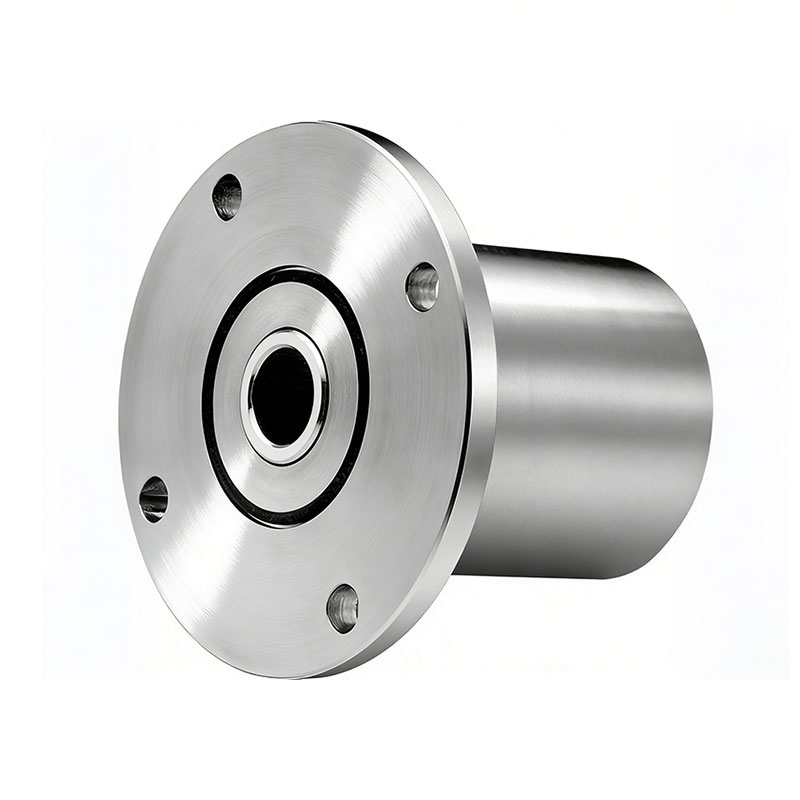

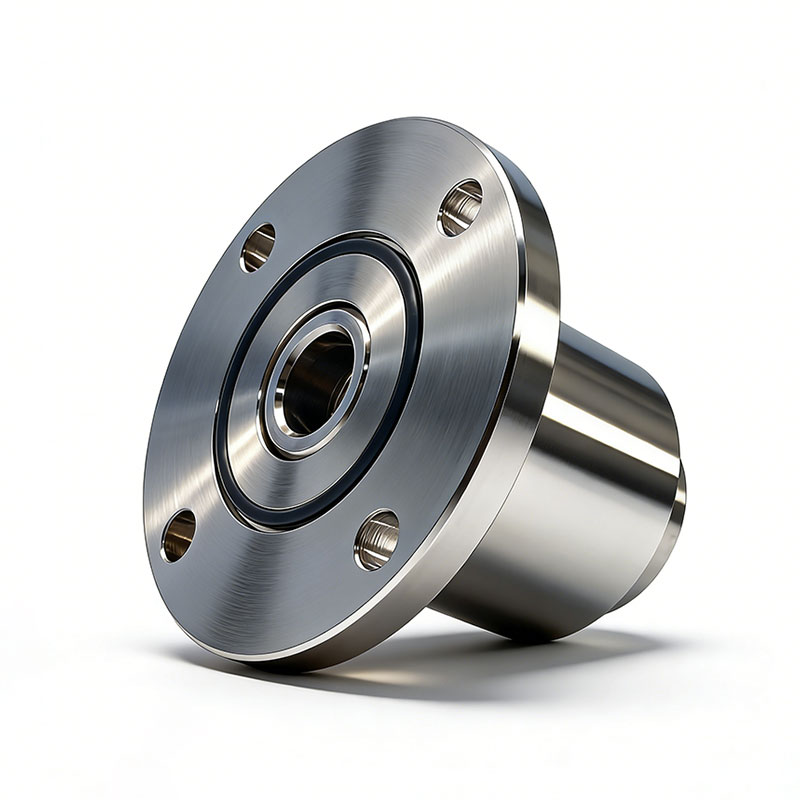

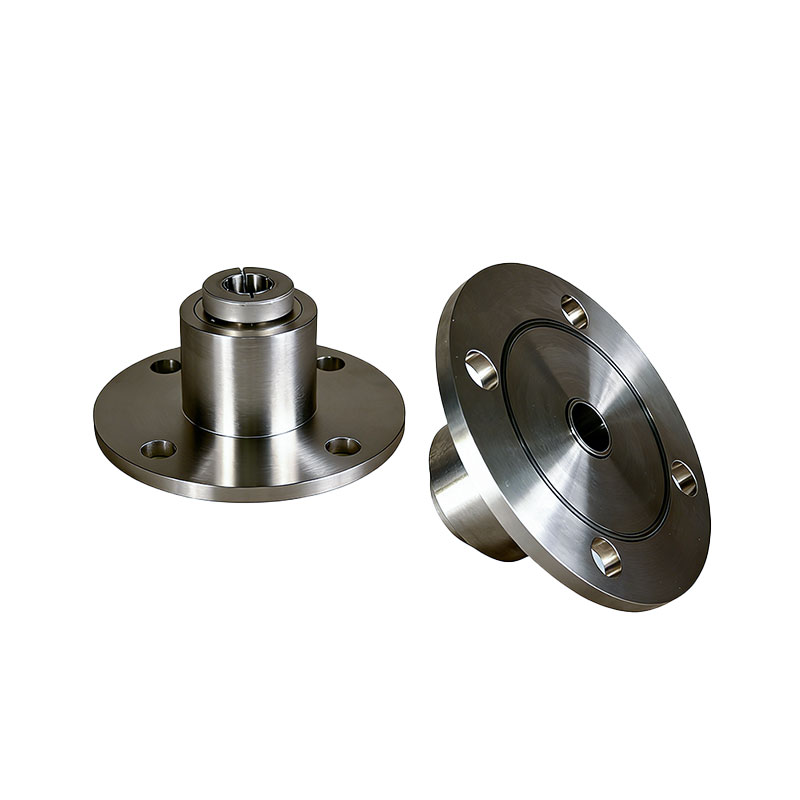

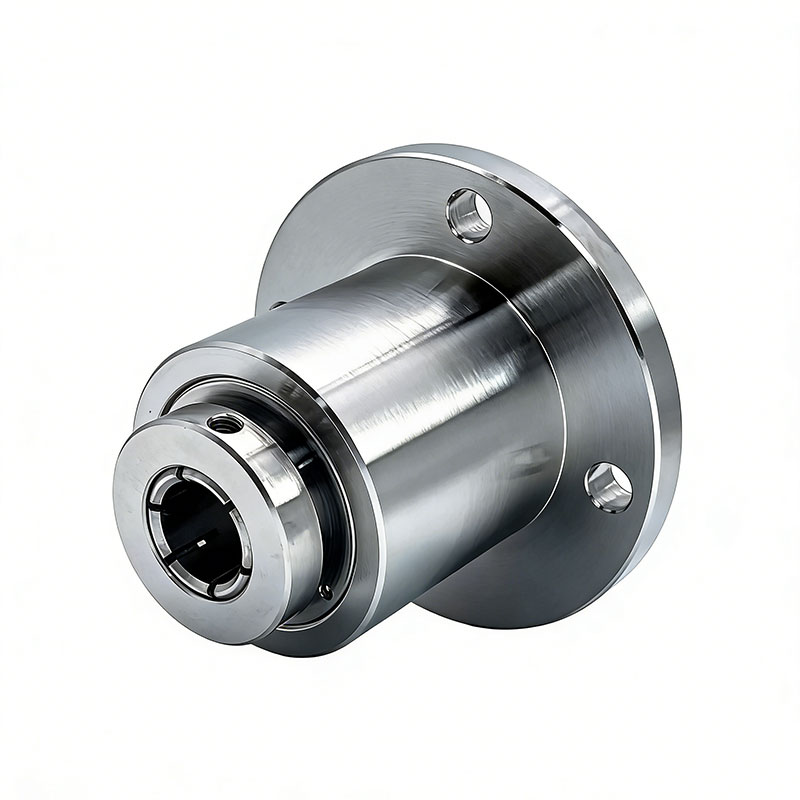

Custom Flanged Hollow Shafts with O-Ring Grooves
Product Overview:
AstraRoll is a premier industrial manufacturer of Custom Flanged Hollow Shafts featuring precision-machined O-ring grooves. Designed to perform double duty—transmitting high torque while maintaining a strict fluid, gas, or vacuum seal—these shafts are the critical backbone of modern rotary unions, vacuum feedthroughs, and multi-axis robotic joints. Manufactured from aerospace-grade aluminum, high-strength carbon steel, or 316L stainless steel, our hollow shafts guarantee absolute concentricity to prevent dynamic seal wear. Whether you need a highly polished radial groove for a continuous-rotation swiveling joint or a deep face-seal groove for high-pressure fluid transfer, AstraRoll delivers factory-direct OEM CNC components with micro-inch surface finishes and uncompromising dimensional accuracy.
Custom Flanged Hollow Shafts with O-Ring Grooves Details
When a shaft must transmit mechanical power while simultaneously holding back pressurized fluids or vacuums, standard machining is not enough. We engineer these components to prevent catastrophic seal failure:
Absolute Concentricity (Zero Runout): Because the shaft is hollow, the inner diameter (ID) and outer diameter (OD) must be perfectly aligned. Even minor runout (wobble) during rotation will cause uneven compression on dynamic O-rings, leading to immediate leaks. Our CNC turning centers hold concentricity tolerances to 0.005mm (0.0002").
Micro-Finish Gland Geometry: Sharp edges or rough tool marks inside an O-ring groove will shred an elastomer under dynamic loads. We apply dedicated burnishing and polishing to our dynamic radial grooves, achieving a 16 to 32 micro-inch Ra finish to ensure your O-rings slide smoothly and last up to 300% longer.
Product Features & Engineering Specs
Dual-Media Capability: The precision hollow bore allows pneumatic lines, hydraulic fluids, fiber optics, or electrical cables to route directly through the center axis of rotation without tangling.
Custom Flange Integration: The mounting flange is machined from the same solid billet as the shaft, preventing the weak points associated with welded flanges. Bolt hole circles (BHC) are CNC-drilled for perfect mating alignment.
Hardened Sealing Surfaces: For aluminum shafts subjected to dynamic O-ring friction, we offer Mil-Spec Hard Coat Anodizing to prevent the rubber seal from wearing a trench into the metal over time.
Optimized Corner Radii: All O-ring glands feature engineered bottom corner radii and top chamfers, preventing the O-ring from being cut during installation or pinched under high fluid pressure.
Key Attributes
Bore Diameter (ID): Fully custom (Typically from 5mm to over 100mm).
Material Selection: 304/316L SS, Aluminum, Carbon Steel, Brass, Titanium.
Dynamic Groove Surface Finish: Ra 0.4 to 0.8 µm (16 - 32 µin).
Concentricity Tolerance: Up to 0.005mm (0.0002").
Seal Compatibility: Radial (ID/OD) Seals, Axial Face Seals, PTFE Lip Seals.
Post-Processing: Passivation, Hard Anodizing, Black Oxide, or Electroless Nickel Plating.
Why Choose AstraRoll? (Your B2B Partner)
Factory-Direct Precision
OEM Prototyping to Production: Whether you need 5 prototype shafts for a new robotic arm or 5,000 units for a commercial rotary union production line, our factory scales with your demand, offering aggressive wholesale tier pricing.
Strict Quality Documentation: For aerospace, medical, and semiconductor clients, we provide full material certifications (MTRs) and First Article Inspection (FAI) reports detailing the exact groove depths and surface roughness measurements.
Frequently Asked Questions (FAQ)
Q: Do I need a different surface finish for a static seal versus a dynamic seal?
A: Yes. If the flange is simply bolted against a wall and doesn't move (Static), a standard machined finish in the groove is usually acceptable. If the shaft rotates or slides against the O-ring (Dynamic), the groove and mating surface must be highly polished to prevent the rubber from wearing away.
Q: Can you machine standard vacuum flanges (like KF or CF) directly onto the hollow shaft?
A: Absolutely. We frequently machine integrated KF (Klein Flange) or CF (Conflat) geometries onto the ends of our hollow shafts for customers building custom vacuum chamber feedthroughs.
Q: What information do you need to provide an accurate CNC quote?
A: To provide the most accurate B2B pricing, we need your CAD file (STEP/IGES) or PDF drawing, the required material, the expected quantity, and specific callouts for the O-ring groove tolerances and surface finishes.
Q: Will an aluminum shaft wear out if it rotates against a rubber O-ring?
A: Bare aluminum is relatively soft and will eventually gall or wear down from dynamic O-ring friction. If weight reduction requires you to use aluminum, we strongly recommend adding our Type III Hard Coat Anodizing service to harden the sealing surfaces.
