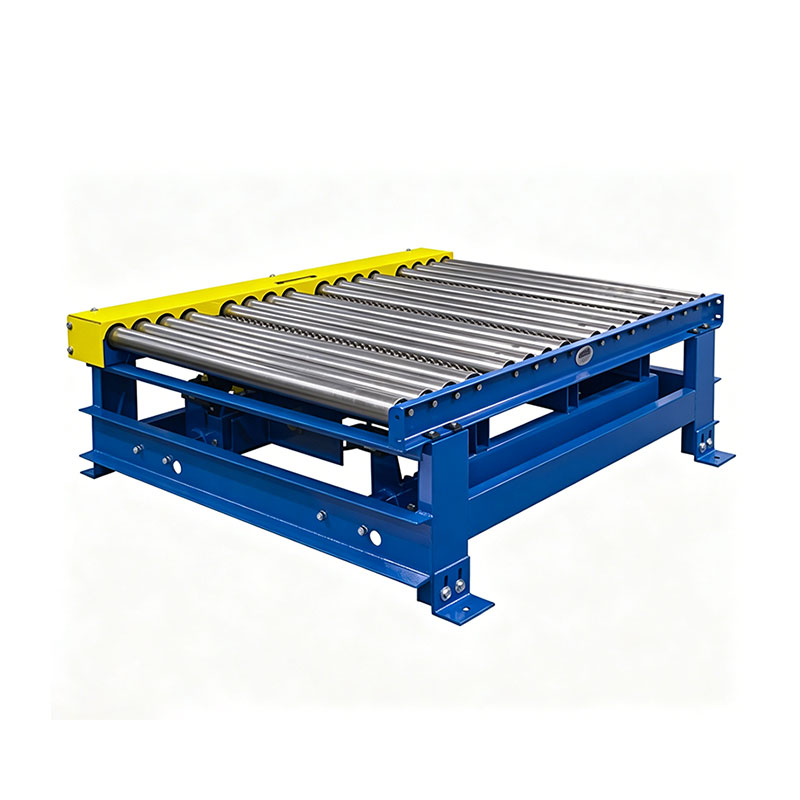

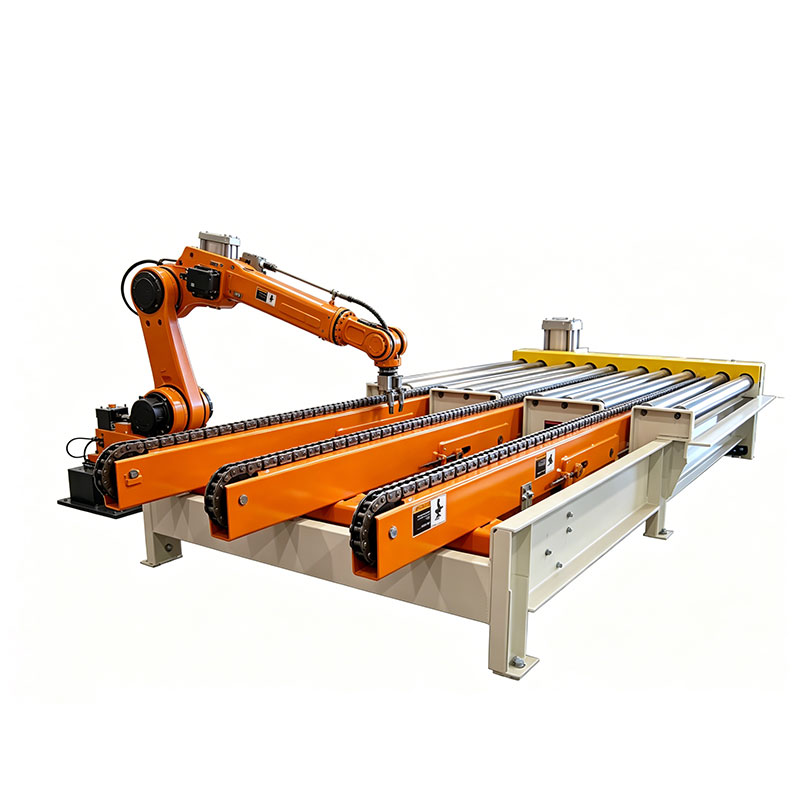

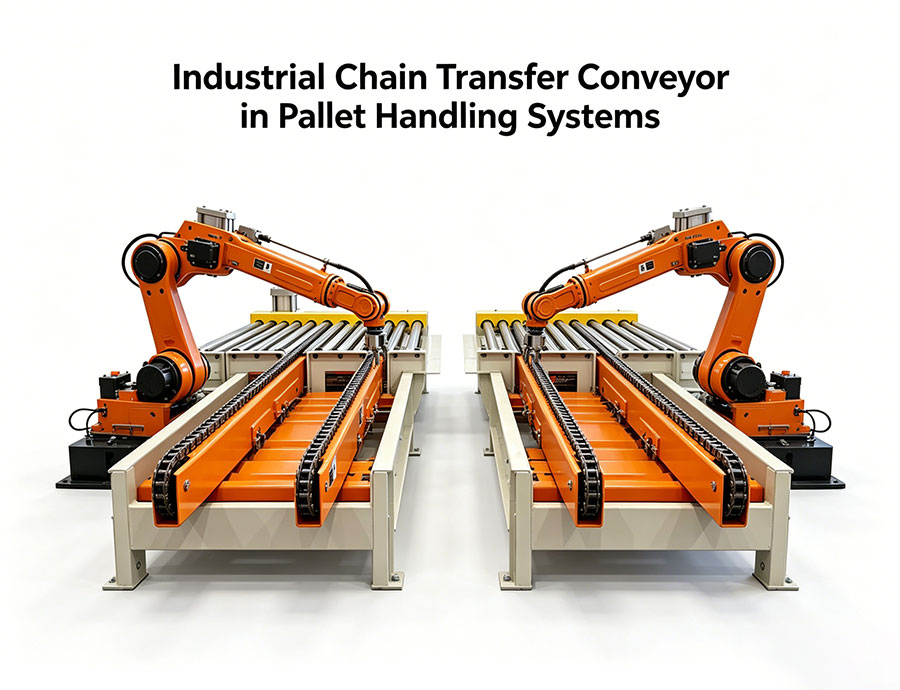

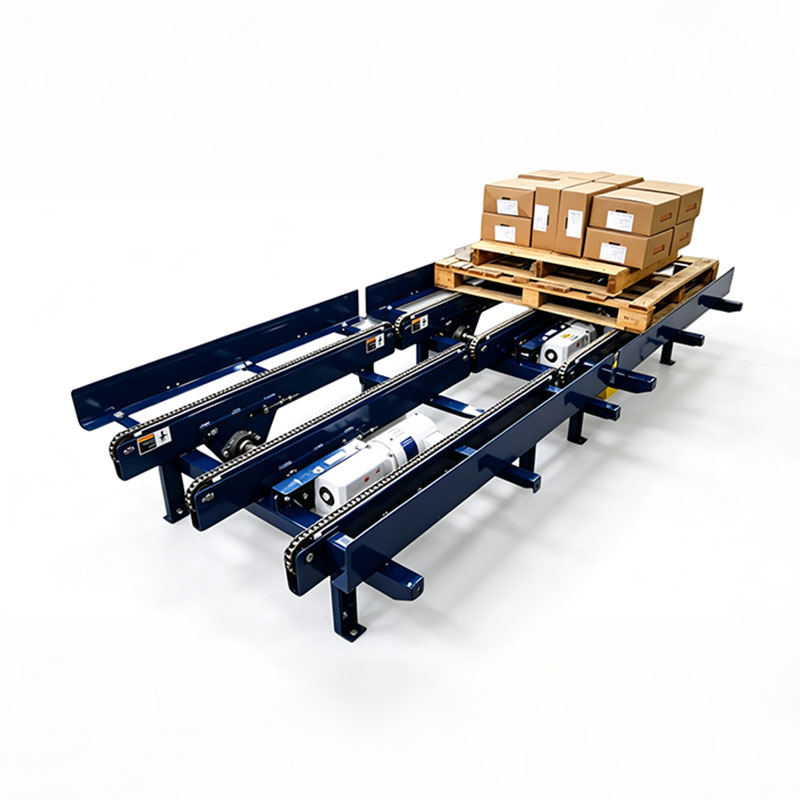

Industrial Chain Transfer Conveyor in Pallet Handling Systems

The Industrial Chain Transfer Conveyor is a high-performance solution designed for the automated 90-degree redirection of pallets within a conveyor circuit. Positioned at the intersection of two conveyor lines, this unit utilizes a precision-engineered lifting mechanism (Pop-up) to raise the load and transfer it via high-strength chains.

Our systems are built to withstand the rigors of heavy-duty industrial environments, ensuring consistent material flow in palletizing, warehousing, and production line operations. By providing a stable, multi-strand contact surface, it is the superior choice for handling standard wooden pallets, plastic skids, and even irregular-bottom containers that may struggle on traditional roller systems.

Key Features & Design Advantages

• Robust Structural Frame: Heavy-duty, precision-welded steel frame (available in powder-coated or galvanized finishes) provides maximum structural integrity under full load.
• Precision Pop-up Mechanism: Utilizing high-capacity pneumatic cylinders or electric actuators, the "lift and transfer" action is smooth, synchronized, and designed for millions of cycles.
• Multi-Strand Versatility: Available in 2, 3, or even 4-strand configurations to accommodate varying pallet dimensions and bottom configurations.
• Smooth Surface Transition: Engineered with low-friction chain guides (UHMW-PE) to reduce wear, noise, and energy consumption.
• Modular Integration: The compact footprint allows for seamless integration into existing roller, chain, or belt conveyor layouts without major structural modifications.

Technical Parameters

Standard Load Capacity: 500 kg to 3,000 kg (Heavy-duty custom builds available)
Transfer Angle: 90 Degree (Bi-directional optional)
Standard Lifting Height: 19 mm – 50 mm (Adjustable)
Drive System: High-torque industrial gear motors (Globally sourced options)
Chain Type: Double-pitch precision roller chain (ISO standard)
Conveying Speed: 9 – 18 m/min (Standard), customizable to match line speed
Lifting Mechanism: Heavy-duty pneumatic cylinder with flow control valves
Operating Temperature: -10°C to +50°C (Special low/high temp versions available)

Why It's a Vital Component in Pallet Handling Systems?

In a high-speed Pallet Handling System, the transfer junction is often the most critical point. Our Industrial Chain Transfer Conveyor addresses three major operational needs:

• Directional Flexibility: It enables the creation of "T", "L", or cross-junctions, allowing pallets to be diverted to different storage aisles or processing stations.
• Safety & Stability: The positive chain drive ensures the pallet does not slide or twist during the 90-degree transition, significantly reducing the risk of load shifts.
• Accumulation Support: Capable of handling back-to-back pallet flow, ensuring that sorting and merging do not create bottlenecks in the main trunk line.

Applications Across Industries

• Automated Warehousing (AS/RS): Acting as the critical bridge between main transport lines and storage racking systems.
• Lithium Battery Manufacturing: Safe handling of heavy, sensitive battery modules in assembly and high-temperature testing lines.
• Automotive Logistics: Transporting heavy engine blocks or chassis components through assembly workstations.
• Food & Beverage: Efficient routing of palletized finished goods to wrapping and shipping bays.
• Construction Materials: Handling heavy palletized bags of cement, tiles, or bricks with high reliability.

Why Choose AstraRoll's Industrial Chain Transfer Conveyor in Pallet Handling Systems?

• Engineering Expertise: We specialize in custom-engineered solutions. Whether you require specific frame dimensions or unique lifting heights, our team provides full CAD support.
• High-Quality Component Sourcing: While we use globally recognized, high-torque industrial motors to ensure reliability, our designs are brand-agnostic, allowing for easy replacement and maintenance anywhere in the world.
• Proven Durability: Our systems are trusted by global automation leaders (such as Lead Intelligent and Han’s Laser), ensuring they meet the highest standards for uptime and longevity.
• ISO Certified Manufacturing: Every unit undergoes rigorous load and cycle testing at our facility before being shipped to your site.

FAQ

Q1: Can your chain transfer handle pallets with boards running parallel to the chains?

A: To ensure stability, we typically recommend that the pallet boards run perpendicular to the chains. If your system requires parallel handling, we can customize a 3-strand or 4-strand solution to provide the necessary support.

Q2: How is the lifting synchronized for heavy loads?

A: We use a mechanical linkage system or synchronized pneumatic controls to ensure all chain strands lift perfectly level, preventing any tilting of the pallet.

Q3: What maintenance is required?

A: Maintenance is minimal. We recommend periodic lubrication of the chains, checking the tension, and ensuring the pneumatic seals are in good condition for the lifting mechanism.
