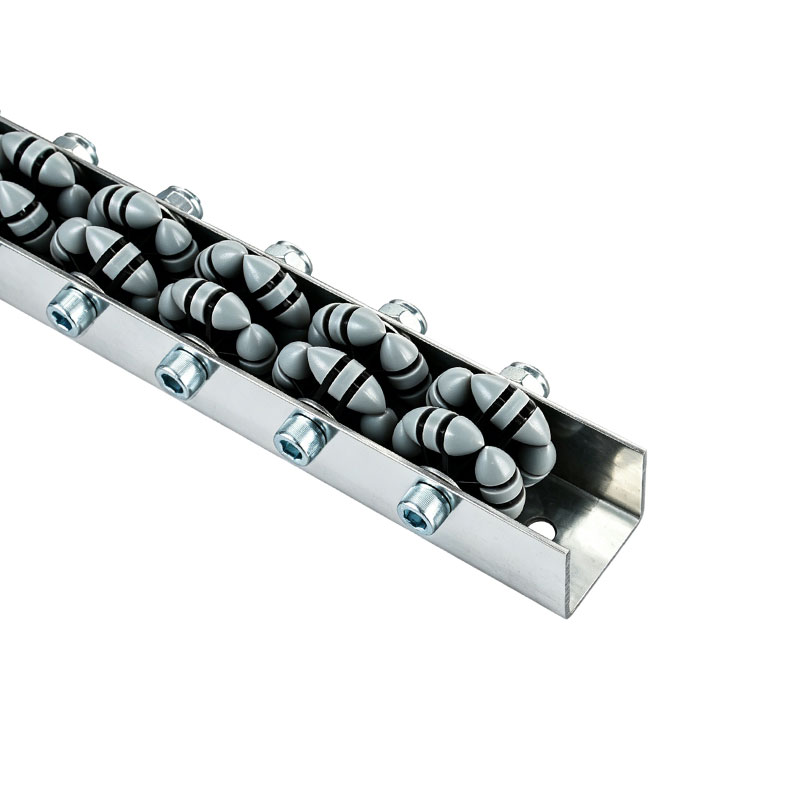

Industrial Multi-Directional Roller Track and Rails

The AstraRoll Technical Advantage

We engineer our multi-directional tracks to survive relentless 24/7 warehouse environments while minimizing maintenance:

Jam-Free Flow Architecture: Unlike Ball Transfer Units (BTUs) that sit in recessed cups and rapidly jam with cardboard dust and debris, our omni rollers feature an open, self-cleaning design. Dust and debris simply fall through the track, ensuring zero maintenance and continuous rotation.

Heavy-Duty Rail Profiles: The foundation of the track is critical. Our heavy-gauge galvanized steel U-profiles are engineered to prevent bowing or torsion when spanning wide conveyor gaps, ensuring the rollers remain perfectly level under heavy dynamic loads.

Ultra-Low Friction Pins: The internal peripheral rollers spin on precision-machined stainless steel or polished steel pins. This drastically reduces the manual push-force required by operators to rotate or divert heavy packages at packaging stations.

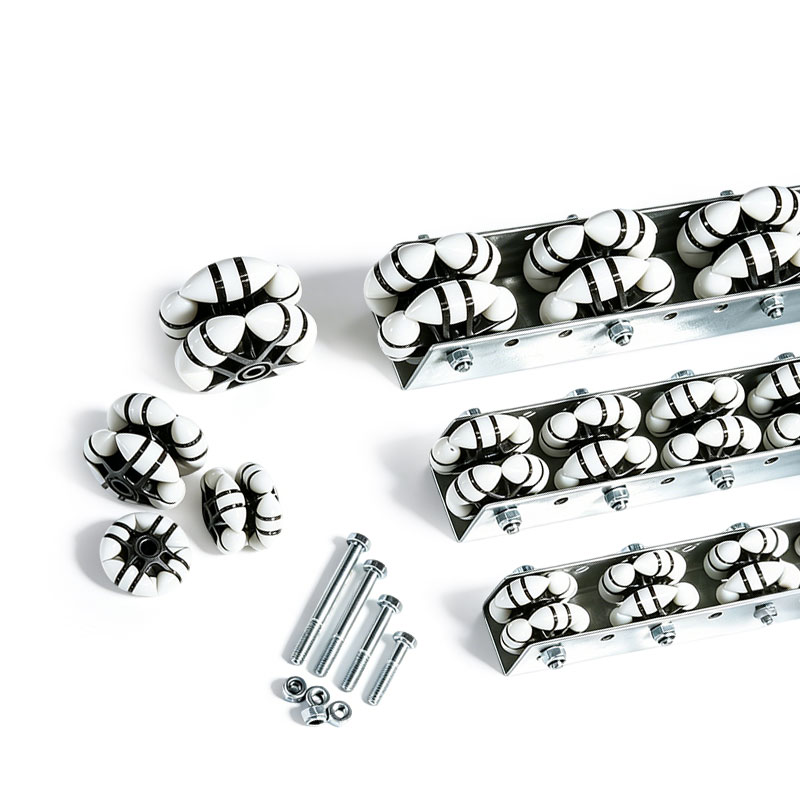

Modular Drop-In Design: AstraRoll tracks are designed for seamless integration. The linear rails can be easily bolted side-by-side to create massive multi-directional tables or dropped into existing conveyor frames to instantly upgrade a standard intersection.

Key Specifications

Please note: AstraRoll provides standard catalog tracks and custom-engineered configurations based on your OEM facility layouts.

Standard Track Lengths: 1,000 mm to 3,000 mm (Custom cut lengths available).
Track Profiles: Typically 40mm to 50mm widths, matching standard industry conveyor extrusions.
Roller Diameter: 48mm, 50mm, 60mm, or 80mm.
Load Capacity: Ranging from 10 kg to 40+ kg per single roller (Track overall capacity depends on support span and pitch).
Operating Temperature: -20°C to +80°C.

Why Choose AstraRoll?

1. Exact Pitch Engineering

A roller track only works if the cargo is supported properly. If the pitch (spacing) is too wide, small boxes will fall between the rollers and jam. AstraRoll’s engineering team will calculate the optimal roller density based on your minimum and maximum package sizes, ensuring perfectly level and snag-free transferring across your entire matrix.

2. Turnkey Conveyor Manufacturer

We supply thousands of meters of multi-directional track to global logistics integrators with rapid lead times and strictly controlled dimensional tolerances.

Frequently Asked Questions (FAQs)

Q: How do I determine the correct roller pitch (spacing) for my track?

A: The golden rule of material handling is that the smallest item being conveyed must be supported by a minimum of three rollers at all times. If your smallest box is 150mm long, you must select a track with a pitch of 50mm or less to ensure the box does not tip or jam between the wheels.
Q: Can these roller tracks be used in wet or washdown environments?
A: If you select our Aluminum Profile paired with Polyamide Rollers and Stainless Steel Pins, the track is highly resistant to moisture and can be used in damp environments. Standard galvanized steel profiles are excellent for dry warehouses but will eventually oxidize under constant high-pressure washdowns.

Q: Can I cut the rails to size myself on-site?
A: Yes. Both the aluminum and galvanized steel tracks can be cut on-site using standard industrial metal-cutting band saws or chop saws. However, for large OEM orders, we highly recommend utilizing AstraRoll's factory CNC cutting service to ensure perfect, burr-free edges and exact hole alignments.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
