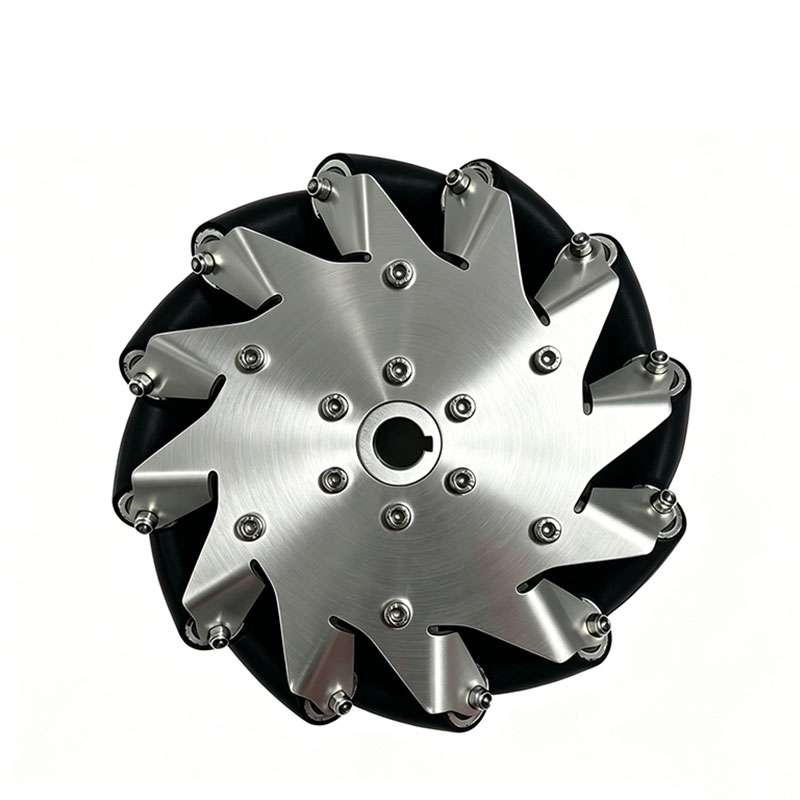

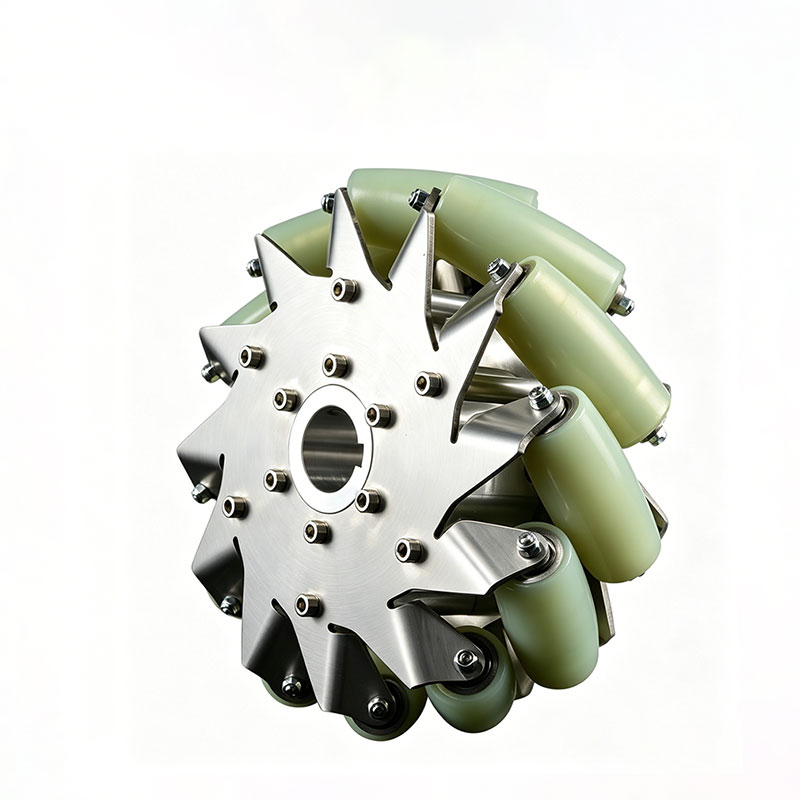

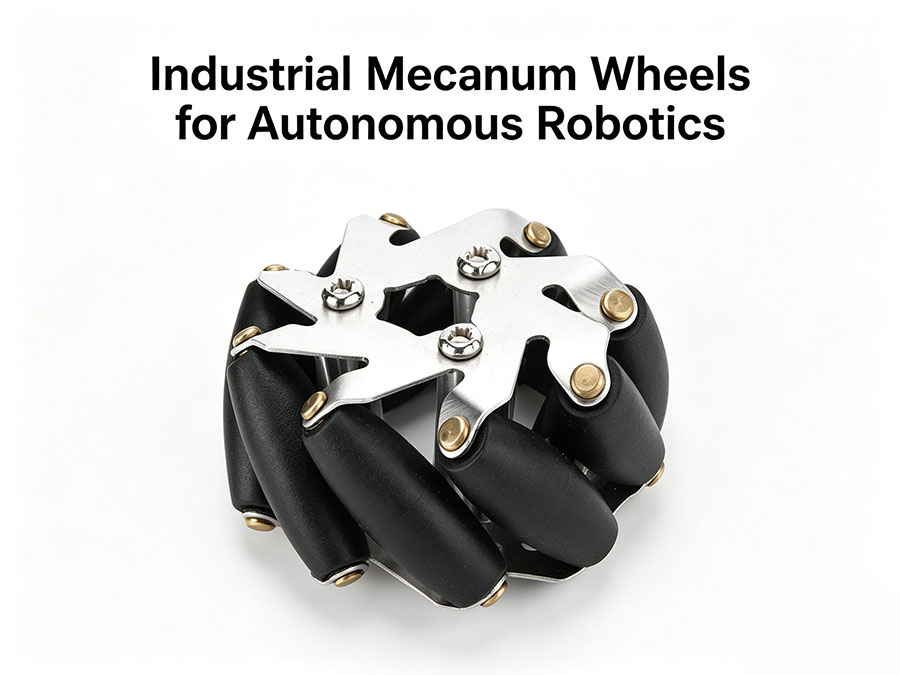

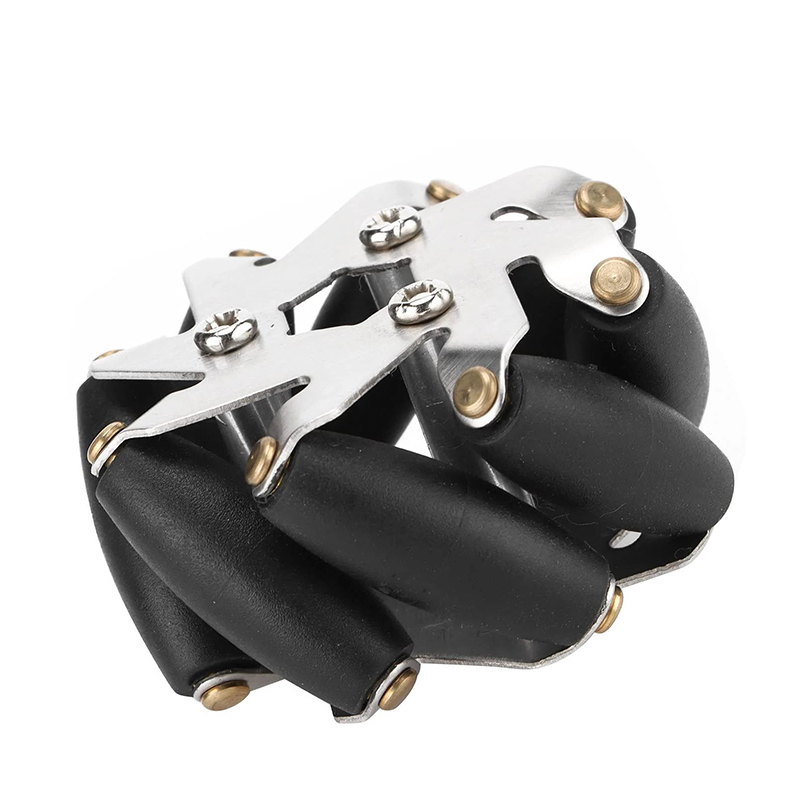

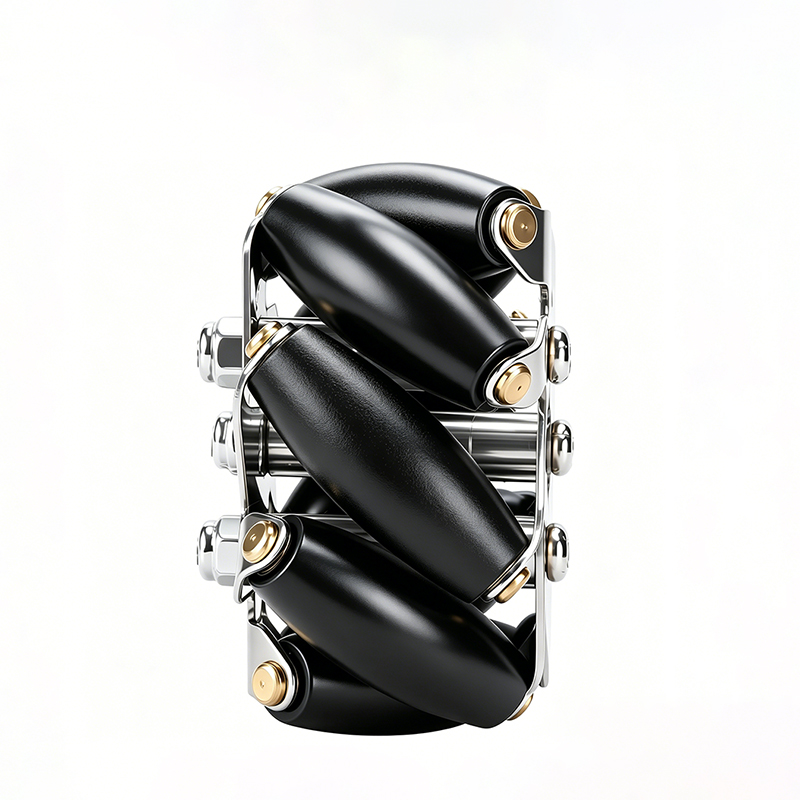

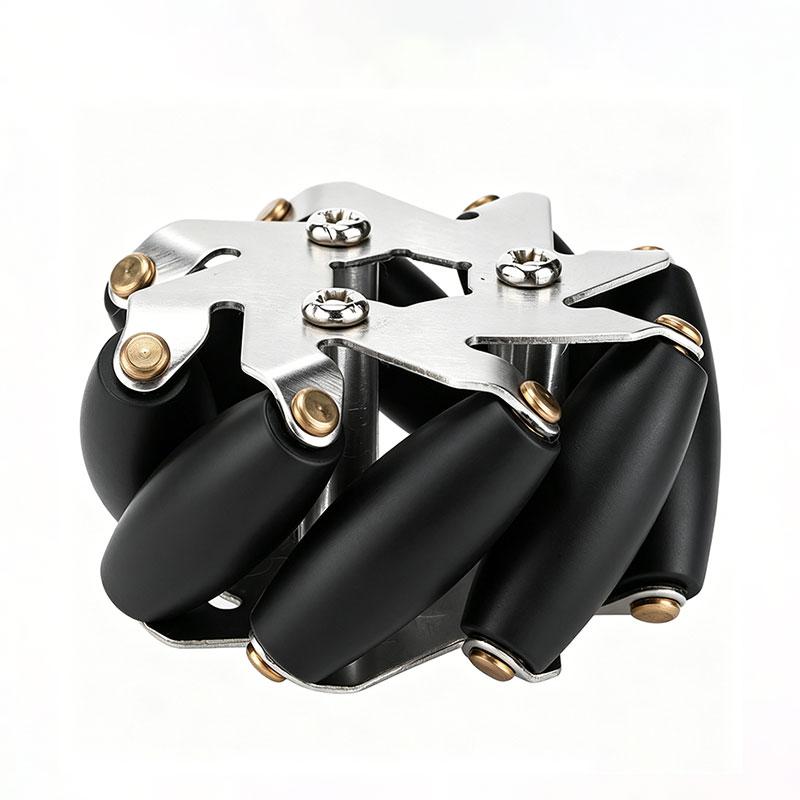

Industrial Mecanum Wheels for Autonomous Robotics

The AstraRoll Technical Advantage: Precision Omni-Directional Drive

In the world of robotics, the wheel is the most critical interface between the software and the floor. We engineer our Mecanum wheels to eliminate the "jitter" and battery drain found in lower-grade hobbyist wheels:

High-Durometer PU Rollers: We use an industrial-grade Polyurethane (Shore 90-95A) that provides the perfect balance of floor grip and durability. This prevents the "flat-spotting" common in rubber rollers and ensures the wheel won't delaminate under heavy static loads.

Dual-Bearing Roller System: Each of the 8 or 12 rollers is supported by two high-precision sealed ball bearings. This ensures that when the robot strafes sideways, the rollers spin effortlessly, reducing the torque required from your motors and extending battery life.

Optimized Roller Profile: Our rollers are CAD-engineered with a specific parabolic curve. This ensures that as the wheel rotates, the contact point transitions seamlessly from one roller to the next, minimizing vibrations that can interfere with sensitive onboard LIDAR and camera sensors.

Zero-Slip Hub Interface: The central hub is CNC-machined from 6061-T6 aluminum with customizable keyways or hex bores, ensuring a zero-play connection to your drive motor's output shaft.

Key Specifications & Technical Attributes

Wheel Diameter Options: 4" (100mm), 6" (150mm), 8" (200mm), 10" (250mm).
Load Capacity: 150 LBS to 1,500 LBS per wheel (depending on size).
Roller Quantity: 8 Rollers (Compact) or 12 Rollers (Smooth-Run).
Roller Material: Premium Non-Marking Polyurethane.
Hub Material: CNC Machined Aluminum Alloy (Anodized finish).
Orientation: Sold in "Left" and "Right" configurations (Required for omni-directional movement).

Why Choose AstraRoll? (Your Robotics Partner)

1. Scalable Manufacturing for AGV Integrators
Whether you are building a single prototype or a fleet of 500 autonomous forklifts, AstraRoll offers scalable production. We provide consistent tolerances and material quality to ensure that your navigation algorithms don't need to be recalibrated for different batches of wheels.

2. Customized Bore & Hub Design
Don't settle for universal adapters that slip. We can CNC machine the center bore to your specific motor shaft requirements (Keyway, Hex, Spline, or D-profile) directly at our factory, ensuring a perfect mechanical fit and maximum power transfer.

Frequently Asked Questions (FAQs)

Q: Do I need a specific motor controller for these wheels?
A: Yes. To achieve omni-directional movement, you typically need a 4-wheel configuration where each wheel is independently driven by its own motor. Your software must calculate the specific vector speeds for each motor to move the robot in the desired direction.

Q: What is the difference between the 8-roller and 12-roller versions?
A:The 12-roller version provides a more "continuous" circle. This results in much lower vibration and a smoother ride, which is critical if your robot carries sensitive electronics or top-heavy payloads. The 8-roller version is more cost-effective and suitable for smaller, lighter platforms.

Q: Can these wheels be used outdoors?
A: Our PU rollers are highly resistant to water and oils; however, Mecanum wheels perform best on hard, flat surfaces (concrete, tile, epoxy). While they can handle light debris, they are not intended for soft soil, deep sand, or thick grass, as the rollers can become clogged.

Q: How do I know which wheels are "Left" and which are "Right"?
A: When viewed from the top, the rollers of a "Left" wheel point one way, and a "Right" wheel point the other, forming a "V" or "X" pattern across the robot's chassis. We laser-etch the orientation on each hub to ensure easy assembly.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
