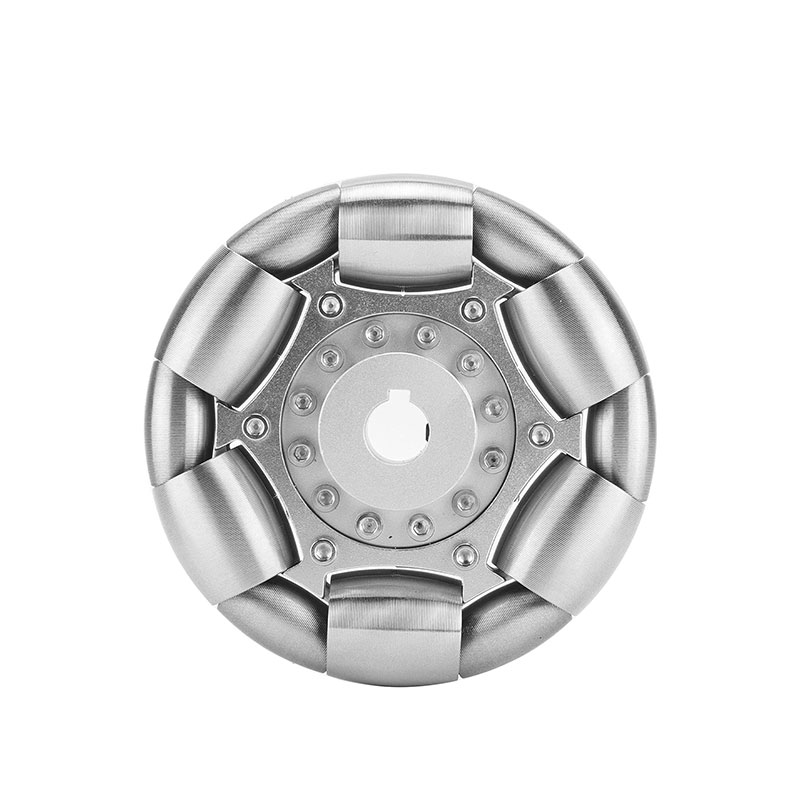

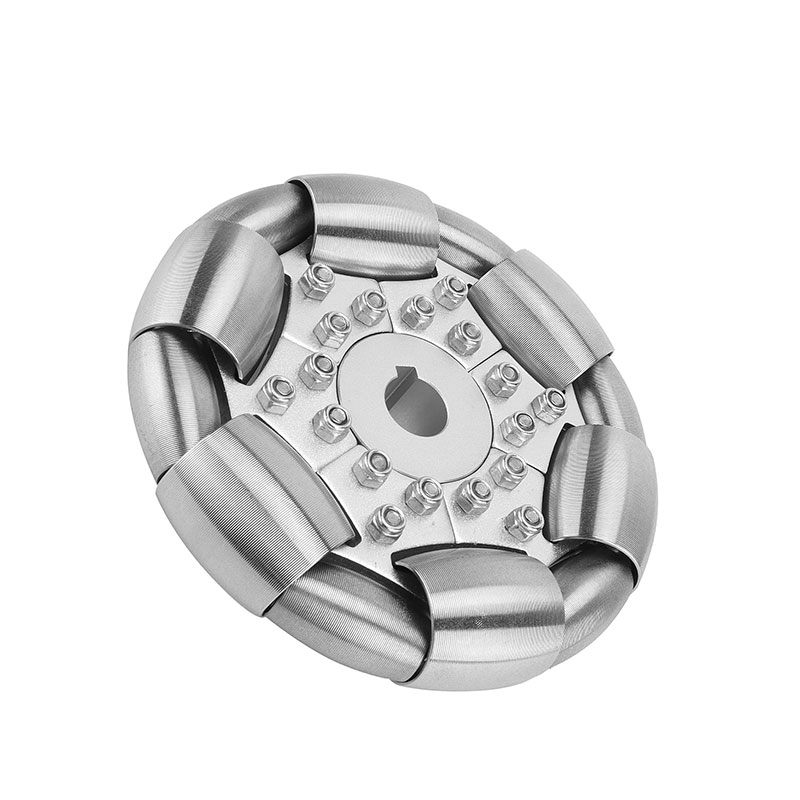

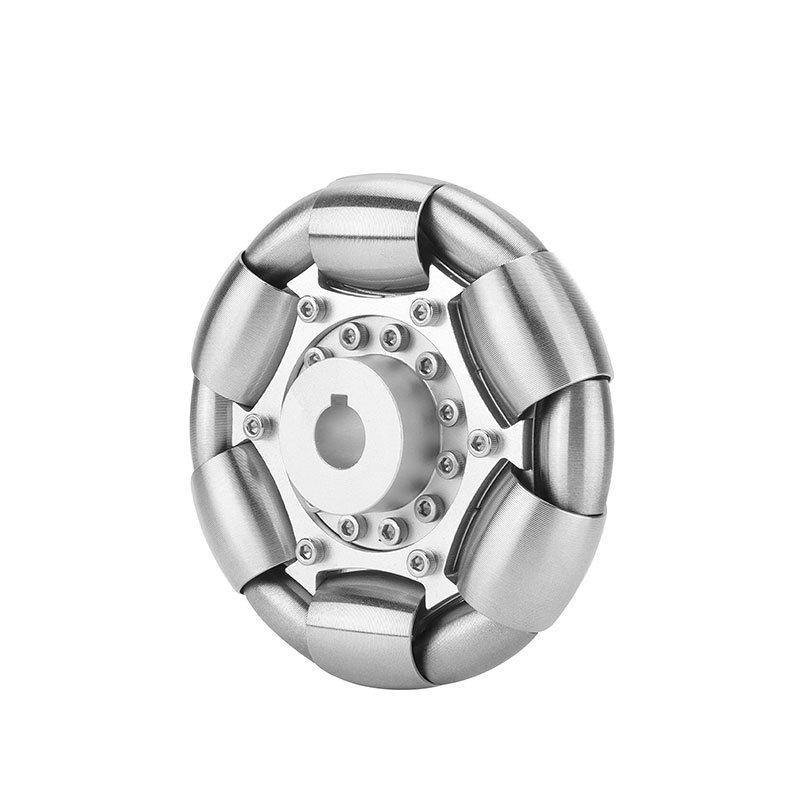

Industrial Stainless Steel Omni Wheels
Product Overview:
In modern automated logistics and advanced robotics, traditional swivel casters present a major flaw: the "swivel offset" causes a delay and requires physical space to pivot before changing direction. When navigating tight aisles or rapidly sorting parcels on a transfer deck, instant zero-radius multi-directional movement is mandatory. While standard plastic omni wheels break under impact and wear out quickly, the AstraRoll Industrial Stainless Steel Omni Wheel is engineered for permanent, heavy-duty performance. Constructed entirely from premium stainless steel, the main wheel core features a series of free-spinning peripheral rollers mounted at exactly 90 degrees to the direction of travel. This allows the wheel to drive forward and backward like a normal wheel, while seamlessly gliding laterally (side-to-side) with near-zero friction. Equipped with precision ball bearings in every sub-roller, these indestructible wheels deliver absolute directional freedom for your automated guided vehicles (AGVs), ballbots, and high-speed conveyor systems.
Inquiry Email: sales@astraroll.com
Industrial Stainless Steel Omni Wheels Details
The AstraRoll Technical Advantage
We machine our stainless steel omni wheels to provide flawless kinematics and unyielding structural integrity:
True Zero-Radius Turning: Because the wheel does not need to physically swivel to change direction, it eliminates the "caster flutter" and sweeping space required by traditional wheels. An AGV equipped with omni wheels can spin exactly on its own center axis and strafe laterally instantly.
All-Stainless Steel Architecture: Plastic and polyurethane peripheral rollers degrade under heavy continuous use or in harsh environments. AstraRoll’s solid stainless steel rollers are immune to chipping, cracking, and rust, ensuring an exceptionally long operational lifespan even in washdown or high-impact conditions.
Frictionless Lateral Glide: The defining feature of a premium omni wheel is its lateral rollability. We install highly sensitive miniature ball bearings inside every single peripheral roller. When subjected to a side-load, the rollers spin effortlessly, preventing the wheel from dragging or skidding across the floor.
Continuous Ground Contact: The overlapping design of the stainless steel sub-rollers ensures that there is always a continuous point of contact with the ground. This minimizes the vertical "bumpiness" or vibration typically associated with lower-quality multi-directional wheels.
Key Specifications
Please note: AstraRoll provides standard catalog sizes (like the popular 100mm profile) as well as custom-machined dimensions for OEM robotics manufacturers.
Outer Diameter (O.D.): 100mm (4") standard.
Body / Core Material: Solid Stainless Steel.
Roller Material: Solid Stainless Steel.
Load Capacity: ~10 kg (22 lbs) per wheel for the standard 100mm precision model; higher capacities available for custom heavy-duty automation builds.
Roller Bearings: Sealed ball bearings on every secondary roller axis.
Axle / Hub: Custom CNC-machined to client motor shaft requirements.
Why Choose AstraRoll?
1. OEM Motor Integration
An omni wheel must connect perfectly to your drive system to function correctly. AstraRoll does not just sell the raw wheel; our CNC department will custom-machine the central hub coupling with exact bore diameters, keyways, or threaded mounting holes to perfectly mate with your specific motors or drives.
2. Complete Transfer Table Solutions
For the logistics and packaging industries, we supply these stainless steel omni wheels in massive bulk quantities. When mounted upside-down in a matrix across a conveyor table, they create a heavy-duty, multi-directional sorting deck, allowing workers or automated pushers to effortlessly slide heavy crates and parcels in any direction.
Frequently Asked Questions (FAQs)
Q: What is the difference between an Omni Wheel and a Mecanum Wheel?
A: The angle of the rollers. On an Omni Wheel, the peripheral rollers are mounted at exactly 90 degrees to the main wheel's axis. On a Mecanum Wheel, the rollers are mounted at a 45-degree angle. Omni wheels are typically used in holonomic drives (often a 3-wheel or 4-wheel cross setup) or as unpowered idler wheels, whereas Mecanum wheels must be used in a specific 4-wheel driven configuration to achieve lateral strafing.
Q: Will the stainless steel rollers scratch my floor?
A: Yes, solid stainless steel is an aggressive material. If you are using these wheels on a mobile robot, they are designed strictly for industrial surfaces like polished concrete, epoxy, or steel plating. Using them on soft floors, wood, or delicate tiles will cause scratching and indentations under heavy loads.
Q: Can these wheels be used as unpowered "free-spinning" casters?
A: Absolutely. While they are frequently attached directly to drive motors, many engineers use omni wheels as non-driven support wheels (idlers) on the front or rear of an AGV. Because they glide effortlessly side-to-side, they provide perfect support for the robot chassis without interfering with the steering dynamics of the main drive wheels.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
