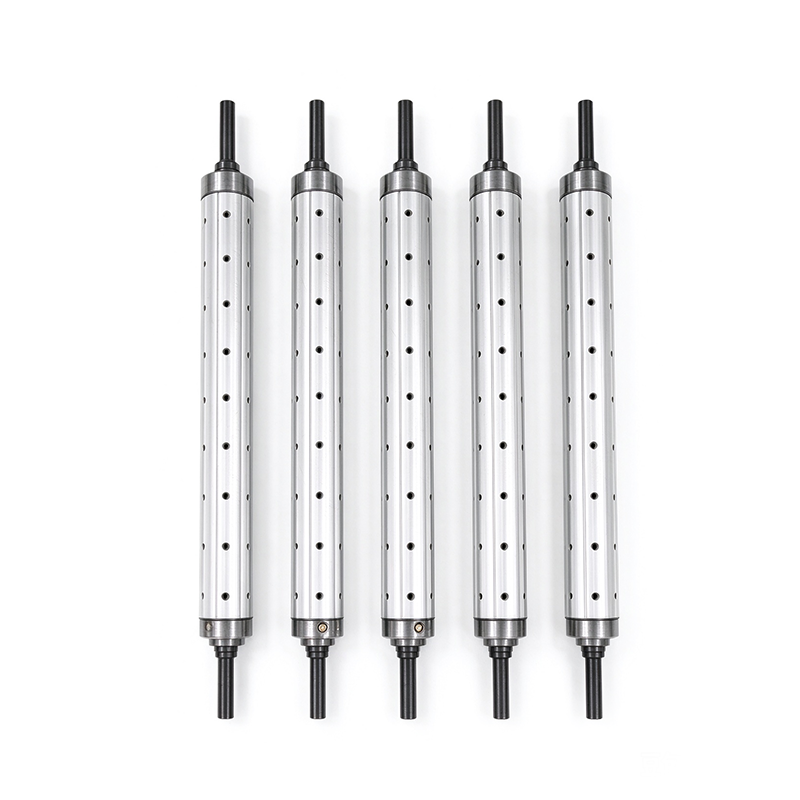

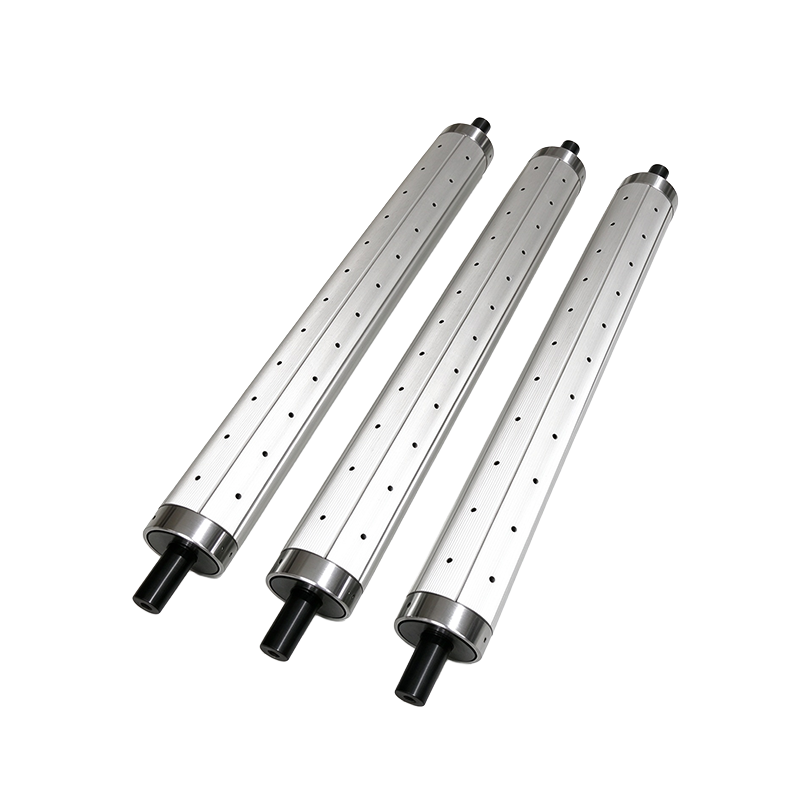

Aluminum Inflatable Pneumatic Air Shaft

Product Overview
The AstraRoll Aluminum Inflatable Pneumatic Air Shaft is built for reliable core gripping in winding, unwinding, slitting, rewinding, and continuous web handling applications. By using compressed air to expand the gripping elements, the shaft securely engages the inside of the roll core for stable rotation and torque transmission. When the air is released, the expanding elements retract, allowing rolls to be installed and removed quickly without complicated mechanical clamping.

For web processing equipment, the air shaft is an important connection between the machine drive and the material roll. A suitable shaft must provide secure core engagement while matching the machine’s dimensions, load requirements, working width, and operating conditions. AstraRoll therefore focuses on non-standard manufacturing rather than limiting customers to a single fixed specification.

Core and Shaft Compatibility
Different machines use different core diameters, shaft lengths, mounting arrangements, and working widths. AstraRoll can manufacture the air shaft according to the actual requirements of the equipment, including shaft diameter, overall length, applicable core size, expanding elements, shaft ends, and other mounting details.

Customers can also select different shaft body materials according to the application. Aluminum alloy can provide a lighter construction for applications where reduced rotating mass is beneficial, while steel can be selected where greater structural strength and load capacity are required.

The exact core dimensions are important when configuring an inflatable air shaft. By confirming the actual core ID and machine interface before production, the expansion range and shaft configuration can be matched more appropriately to the application.

Reliable Pneumatic Expansion
When compressed air is supplied, the internal pneumatic mechanism drives the expanding elements outward to engage the roll core. The distributed gripping force helps maintain stable contact between the shaft and core during winding or unwinding.

After the roll is processed, releasing the air allows the expanding elements to retract. This simplifies roll changeovers and reduces the manual adjustment associated with conventional mechanical clamping methods, making the shaft suitable for production environments where rolls need to be changed regularly.

Designed for Different Web Handling Applications
Air shafts are widely used in equipment that handles materials in roll form. AstraRoll’s customized solutions can be configured for applications including:

• Slitting and rewinding
• Winding and unwinding
• Printing and converting
• Film and flexible packaging
• Paper and label processing
• Coating and laminating
• Foil and electronic material processing
• Other roll-to-roll web handling systems

The shaft configuration can be adapted according to the material, roll dimensions, machine layout, operating speed, and required load or torque.

Factory-Direct Custom Manufacturing
AstraRoll manufactures customized air shafts directly, giving customers greater flexibility over dimensions, materials, structure, and production quantities. Instead of adapting equipment to an off-the-shelf shaft, customers can specify the shaft around their actual machine and core requirements.

Our production capability supports prototype development, small-batch orders, and repeat production. Direct manufacturing also helps reduce unnecessary intermediary costs, allowing AstraRoll to provide competitive factory-direct pricing while maintaining control over machining, assembly, and production consistency.

From a replacement shaft for an existing machine to a customized component for new equipment development, AstraRoll provides a practical combination of pneumatic core gripping, flexible engineering, precision manufacturing, and cost-effective production.
