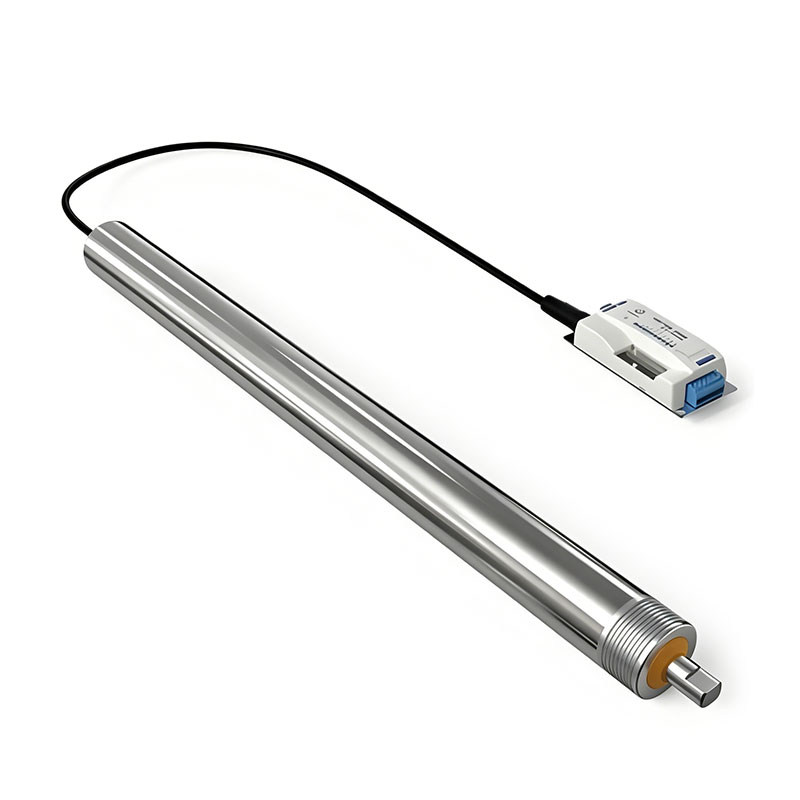

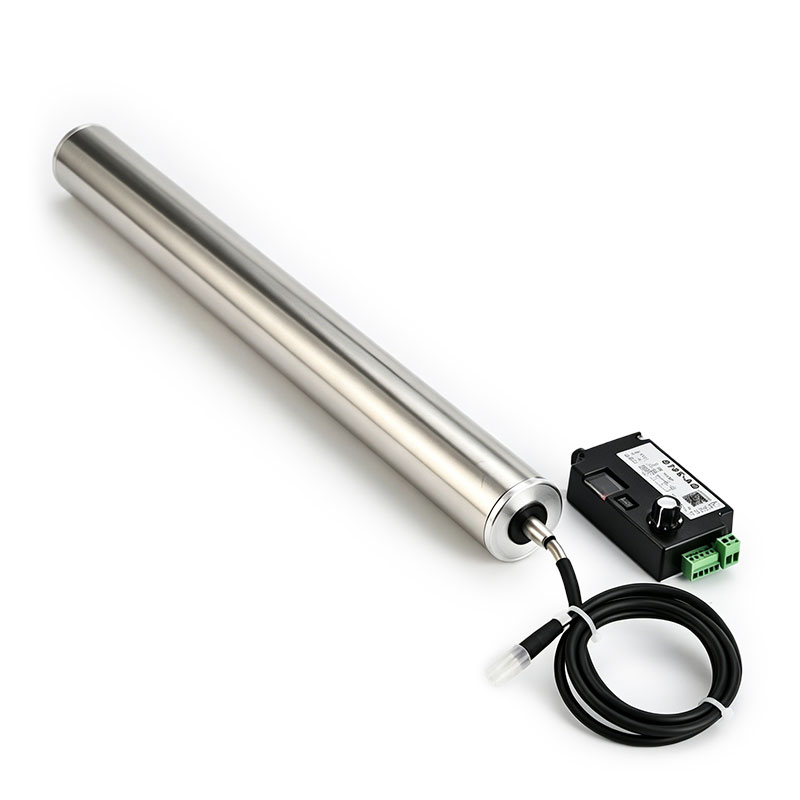

Industrial Belt Drive Roller Carbon Steel Drum Motors for Conveyors

The AstraRoll Technical Advantage

Engineering a self-contained motorized pulley that can survive multi-ton industrial loads requires superior mechanical design:

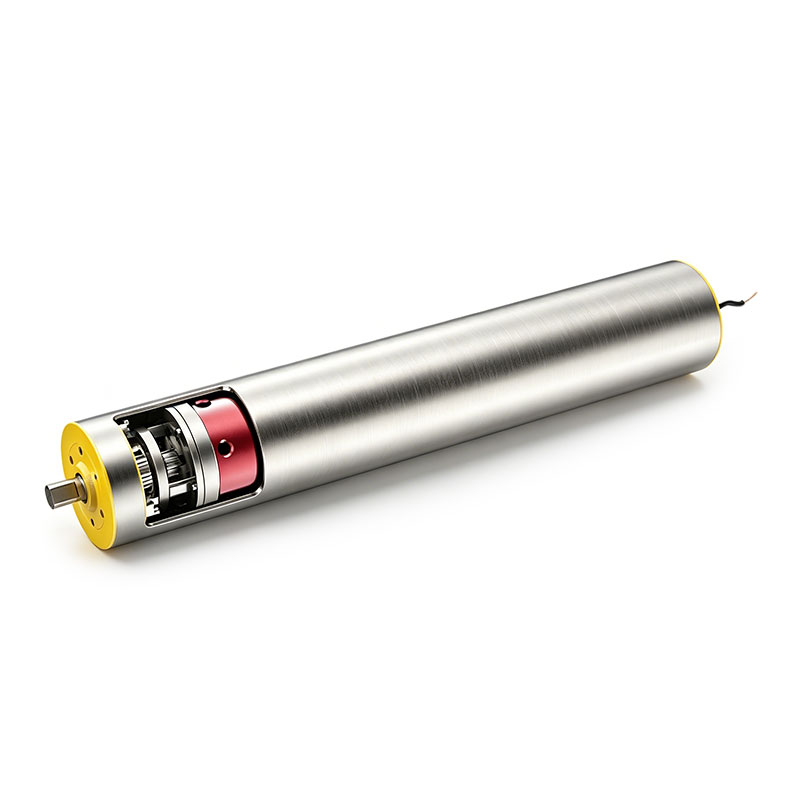

Space-Saving Internal Architecture: Because the motor and gearing are inside the roller, there are no protruding parts on the side of your conveyor frame. This allows conveyors to be built narrower, placed closer together, and eliminates the dangerous pinch-points of exposed chains and belts.

High-Torque Gear Transmission: AstraRoll utilizes precision-cut helical or planetary gears forged from hardened alloy steel. This ensures smooth, silent power transmission capable of starting heavy belts under full load without stalling.

Heavy-Duty Carbon Steel Shell: Bulk handling and logistics conveyors exert massive tension on the head pulley. Our thick-walled carbon steel drums will not bow or deflect under extreme radial loads, ensuring your belt tracks perfectly true.

Sealed Oil-Bath Lubrication: The internal components are submerged in a premium synthetic oil bath. This continuously lubricates the gears and bearings while actively transferring the motor's heat to the steel shell, where it is dissipated by the moving conveyor belt.

Primary Applications

AstraRoll Carbon Steel Drum Motors are the driving force behind the world's most demanding material handling systems:

• Logistics & E-Commerce: Powering high-speed sorting lines, belt curves, and telescoping conveyors in mega-warehouses.
• Airport Baggage Handling: Reliable, space-constrained driving for check-in counters, screening belts, and baggage carousels.
• Bulk Material Handling: Driving heavy-duty rubber belts for conveying sand, gravel, grain, and mining ores in harsh, dusty environments (IP66/IP67 rated).
• Automotive & Industrial Assembly: Continuous, smooth transport of heavy machinery parts and chassis.

Key Specifications

Please note: Every AstraRoll Drum Motor is custom-built based on your conveyor's load, belt speed, and width requirements.

Outer Diameter (O.D.): Custom from 60mm (miniature logistics) up to 800mm+ (heavy bulk handling).
Face Length: Custom manufactured from 200mm up to 2,500mm+.
Power Output: Custom from 0.05 kW up to 30 kW+.
Voltage Options: 24V / 48V DC, 115V / 230V / 380V / 480V (Single or 3-Phase).
Sealing Rating: IP66 standard (Dust-tight and protected against powerful water jets).

Why Choose AstraRoll?

1. Factory-Direct Lagging Solutions

For heavy industrial and mining applications, a bare steel drum will often slip against the belt, causing heat and damage. AstraRoll possesses in-house vulcanization facilities. We can permanently bond high-friction NBR rubber, Polyurethane (PU), or ceramic lagging directly to your carbon steel drum, complete with diamond or chevron grooving to channel away water and dirt for unstoppable traction.

2. VFD & Encoder Integration

Modern logistics require precision tracking. Our AC and BLDC drum motors are fully compatible with Variable Frequency Drives (VFDs) for dynamic speed control. Furthermore, we can integrate high-resolution encoders directly into the motor assembly for precise positioning and indexing on automated sorting lines.

Frequently Asked Questions (FAQs)

Q: Do I need a bare steel drum or a rubber-lagged drum?
A: If your conveyor operates in a clean, dry environment with light to medium loads, a bare carbon steel drum (machined with a slight crown for belt tracking) is sufficient. If you are operating in wet, dusty, or oily conditions, or pulling massive bulk loads, you must select our Rubber Coated (lagged) option to increase the coefficient of friction and prevent the belt from slipping.

Q: Will the internal motor overheat during continuous 24/7 operation?
A: No. Our drum motors are specifically engineered for continuous duty (S1). The internal synthetic oil bath acts as a highly efficient coolant. It transfers the heat from the motor stator directly to the carbon steel shell. As your conveyor belt wraps around the cold steel shell, it acts like a massive radiator, continuously drawing the heat away from the motor.

Q: Can I use this carbon steel drum motor in a food processing plant?
A: For general packaging of sealed foods (boxes, cartons), carbon steel is perfectly fine. However, if the roller will be exposed to raw food (meat, dairy, produce) or subjected to daily chemical washdowns, carbon steel will rust. For sanitary environments, you must upgrade to our Washdown Stainless Steel Drum Motors.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
