Timing Belt Driven Roller Supplier

Features of AstraRoll's Timing Belt Driven Roller

Timing belt conveyor rollers are designed for high-precision conveying applications where accurate synchronization and reliable power transmission are critical. Unlike friction-driven rollers, these rollers utilize toothed timing belts that engage directly with the roller structure, eliminating slippage and ensuring consistent motion control.

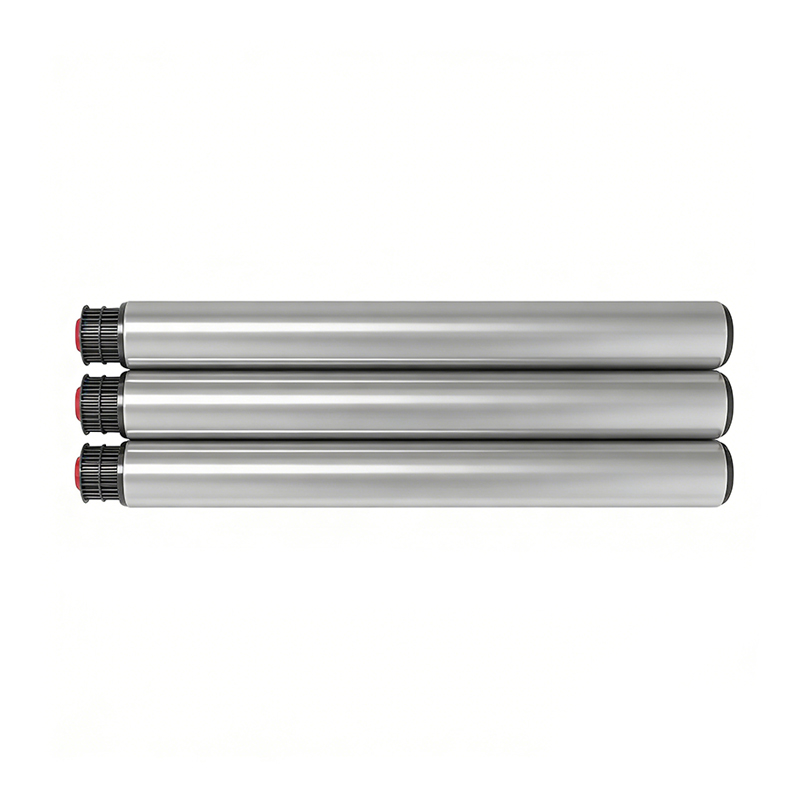

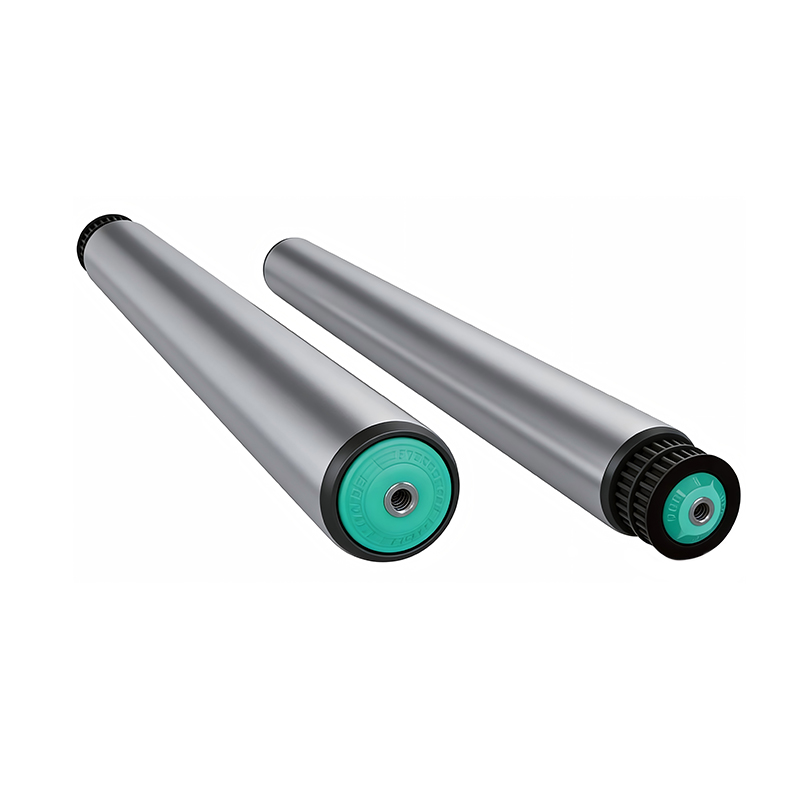

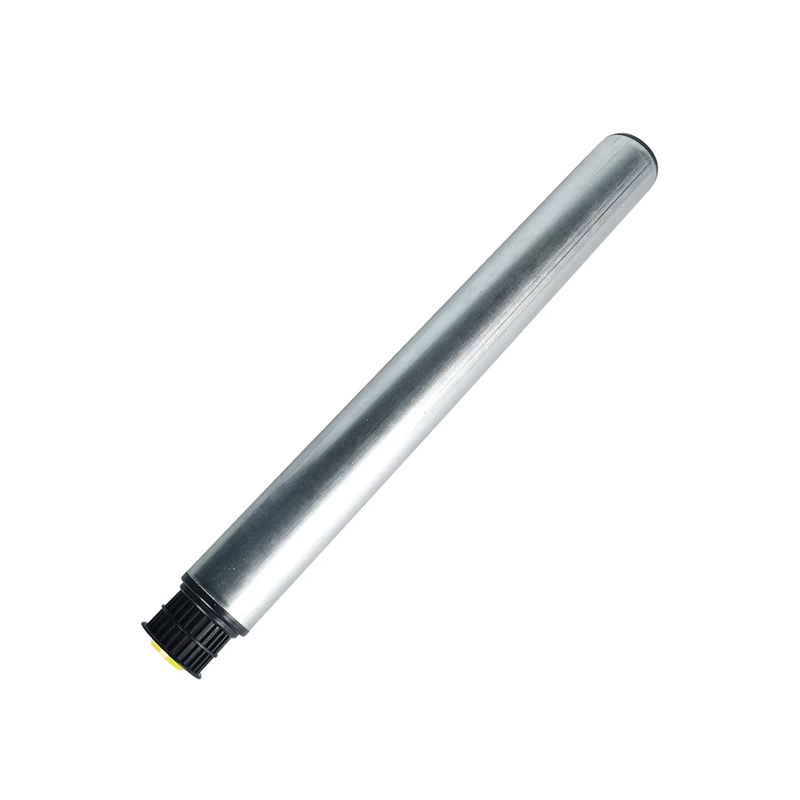

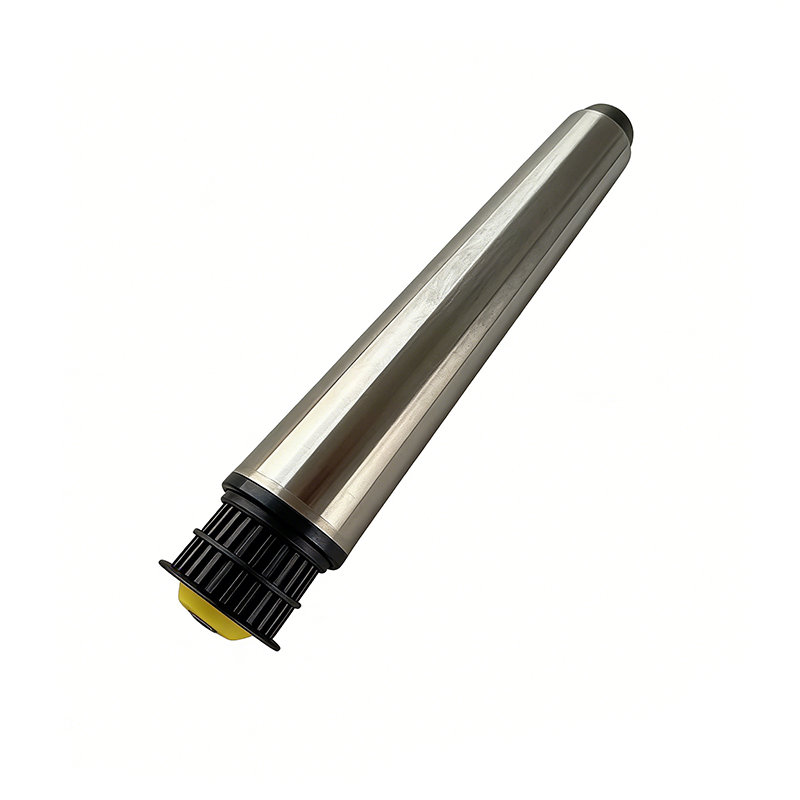

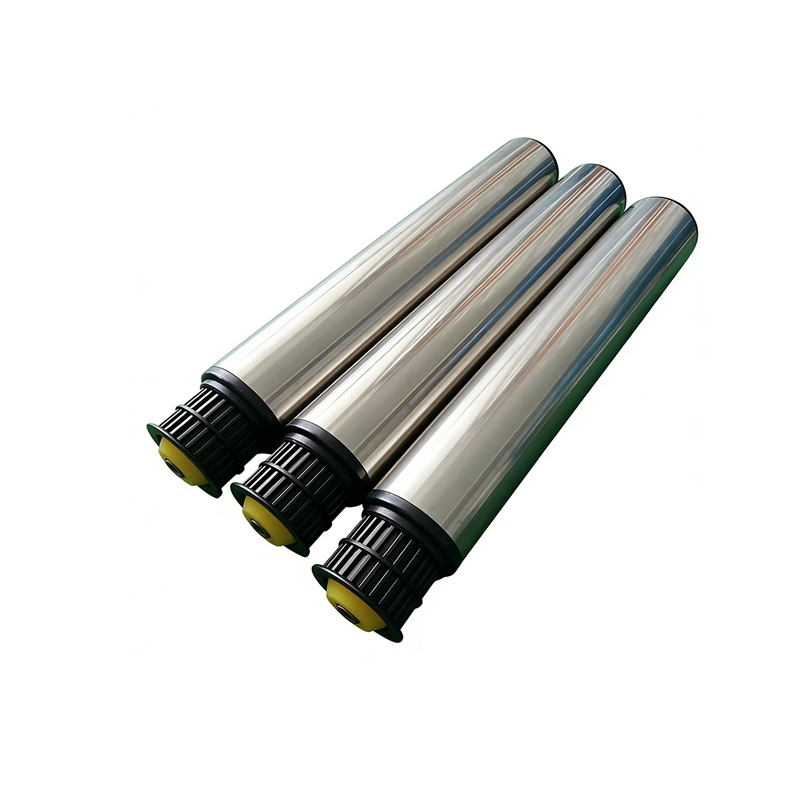

The roller assembly typically includes a high-strength steel or lightweight aluminum tube, integrated timing pulley or toothed profile, precision bearings, shaft components, and end caps. The toothed design enables precise belt engagement, while high-quality bearings ensure smooth, low-resistance rotation.

Optional shaft configurations such as spring-loaded or fixed shafts provide flexibility for different installation requirements. Surface treatments such as galvanizing, anodizing, or polishing enhance durability and corrosion resistance.

This design delivers key advantages including high positioning accuracy, stable transmission, reduced maintenance, and reliable long-term performance. Timing belt conveyor rollers are widely used in automated production lines, robotics systems, lithium battery manufacturing, electronics assembly, and precision material handling applications.

Working Principle

The timing belt conveyor roller operates through a synchronous transmission system driven by a motor. A drive unit, such as a servo motor, stepper motor, or geared motor, is connected to a timing pulley mounted on the output shaft.
Timing belts are looped around the drive pulley and the corresponding toothed pulleys integrated with the conveyor rollers. As the motor rotates, the drive pulley engages with the timing belt through precise tooth meshing, transmitting motion to all connected rollers.
This synchronous engagement ensures that each roller rotates at the same speed and in the same direction, providing accurate, slip-free power transmission. As a result, materials are conveyed smoothly and consistently along the conveyor line, making the system ideal for applications requiring precise positioning and controlled movement.

Key Attributes

Application Scenarios: Synchronous Conveying Systems, Robotic Transfer and Material Handling Systems, High-speed Sorting and Distribution Lines
Surface Treatment: Galvanizing, Chrome plating, Powder coating, Polishing, Mirror Polishing, Anodizing
Material: Carbon Steel, Stainless Steel, Aluminum, Engineering Plastics, Custom materials available upon request
Specification: Customized
Function: Conveyor Roller
Usage: Industrial Automation, Electronics Manufacturing, New Energy Industry, Packaging, Food Processing and Pharmaceutical Industry, Logistics System
Load Capacity: Lightweight to Medium-Duty

Why Choose AstraRoll's Timing Belt Driven Roller?

AstraRoll ensures precise tooth profile machining and strict tolerance control, eliminating slippage and guaranteeing accurate, synchronized conveying for automation systems.
With full customization of dimensions, shaft types, pulley profiles, and materials, AstraRoll rollers are designed to match your existing conveyor system seamlessly, avoiding costly modification or mismatch issues.
High-quality bearings and optimized structure minimize vibration, noise, and wear, reducing the risk of unexpected downtime in high-speed or long-hour production lines.
AstraRoll offers carbon steel, stainless steel, and aluminum solutions, helping you avoid corrosion, contamination, or premature failure in demanding environments.
Strict manufacturing standards and inspection processes ensure every roller delivers stable performance, reducing maintenance frequency and long-term operating costs.
AstraRoll provides responsive technical support and reliable lead times, helping you avoid project delays and ensuring smooth implementation of your conveyor systems.
