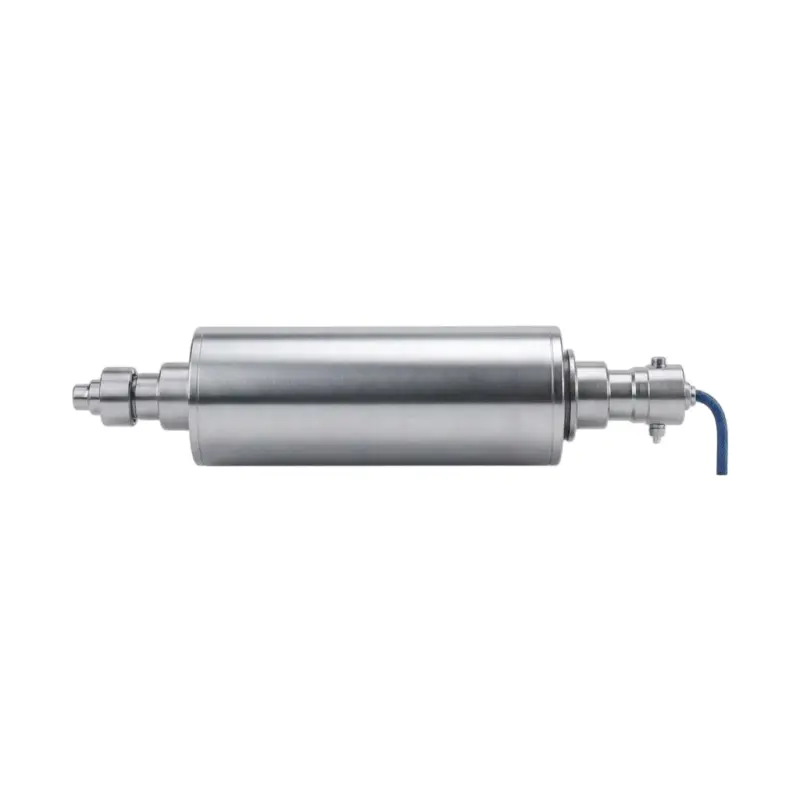

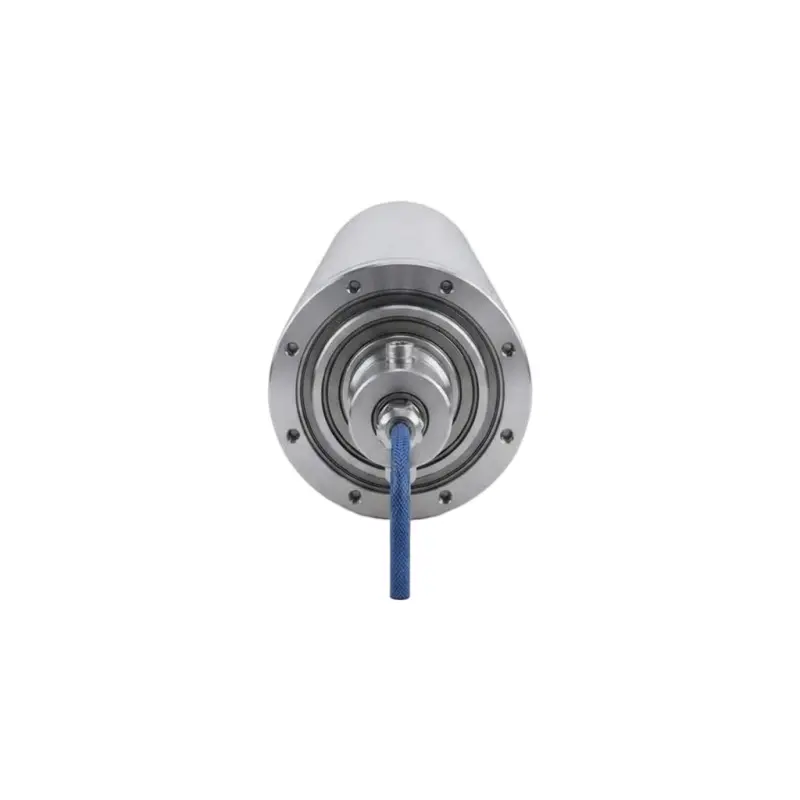

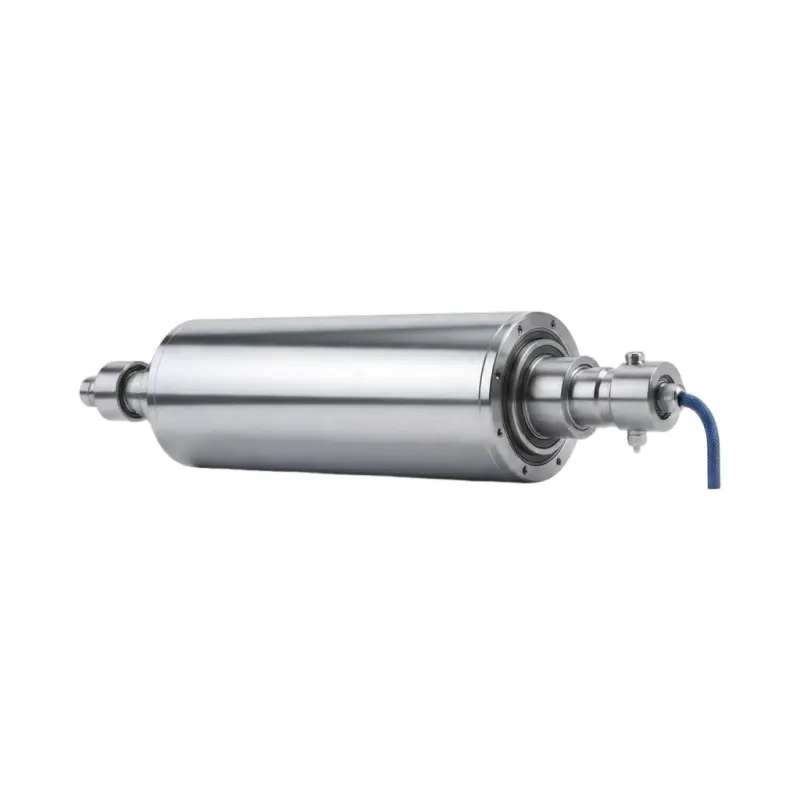

Precision Ground Electromagnetic Induction Heating Roller
Product Overview:
AstraRoll Precision Ground Electromagnetic Induction Heating Roller is custom-built for optical film, nonwoven, pAstraRoll Precision Ground Electromagnetic Induction Heating Roller uses internal high-frequency induction coils to heat the steel shell directly, eliminating thermal oil or steam systems. The outer face is precision CNC ground and hard-chrome plated, achieving mirror finish and stable running performance. Built to drawing or sample. Suitable for nonwoven, film, optical film and lamination lines. AstraRoll provides full-process CNC machining and long-term technical support.rinting and lamination lines. The roller body is precision ground and mirror polished, with internal induction heating, flanged end cover, integrated cable or conduit, and bearing support. It is machined to drawing, dynamically balanced, assembled and tested.
Roll Function: Conveyor Roller, Heat Transfer Rollers
Industry Applications: Industry, Printing, Textile, Electronics
Inquiry Email: sales@astraroll.com
Precision Ground Electromagnetic Induction Heating Roller Details
Product Overview
AstraRoll precision ground electromagnetic induction heating roller is built for continuous web lines requiring uniform temperature, high surface finish, and stable rotation under thermal load. Used in optical film, nonwoven, film stretching, printing, lamination, and coating. Internal high-frequency induction coils heat the shell directly—no oil or steam. Forged or seamless steel shell, CNC machined and mirror ground. Core options: stainless steel, carbon steel, high-strength alloy. Custom-built to drawing or sample.
Technical Parameters
Core Base: Stainless Steel 304/316L, Carbon Steel, High-Strength Alloy
Heating Method: Internal High-Frequency Electromagnetic Induction Coils
Electrical Connection: Precision Terminal & Heavy-Duty Cable Wiring
Working Temperature: Customizable
Temperature Uniformity: Customizable across roll face width
Surface Finish: Ra 0.02μm – 0.2μm
Concentricity: TIR ≤0.005mm via CNC cylindrical grinding
Dynamic Balancing: ISO 21940 G2.5
Optional Treatments: Chrome Plating, Polishing, Teflon Coating, Ceramic Coating, Induction Hardening, Tempering
Primary Applications
- Optical Film Lines
- Nonwoven Fabric Lines
- Film Stretching & Calendering Lines
- Printing, Coating & Lamination Equipment
- Lithium Battery Electrode Coating & Drying Lines
Why AstraRoll
Machined, Not Assembled
The shell is CNC ground to TIR ≤0.005mm and Ra ≤0.02μm. Induction coils are integrated into the shell profile. Hard chrome is plated and finished after plating to maintain concentricity under thermal expansion. Deep-hole boring, cylindrical grinding, balancing, and plating are performed in-house. We hold specified tolerances or state they cannot be held.
Direct Internal Heating
No oil, steam, or external heat exchanger. Fast warm-up, instant shutdown, uniform surface temperature, lower energy consumption.
Strict Quality Control
Raw material inspection to finished product testing. Dimensional accuracy, dynamic balance, temperature consistency, surface treatment, wear resistance, and rotation stability are verified.
One-Stop CNC Machining Service
AstraRoll manufactures rollers and precision cylindrical components. The same CNC turning, grinding, boring, plating, and balancing equipment used for this heating roller is used for shafts, sleeves, flanges, bearing housings, and custom parts. Send a drawing, we machine it. Roller production and CNC machining service are the same operation.
Long-Term Partnership
Priority production, preferential policies for repeat orders, and lifecycle technical support.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
