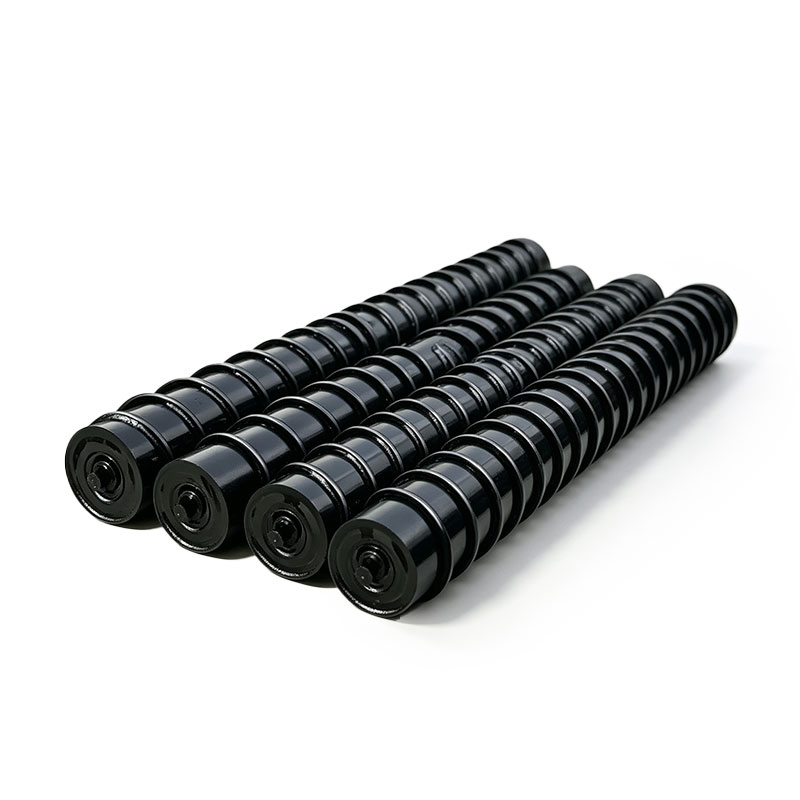

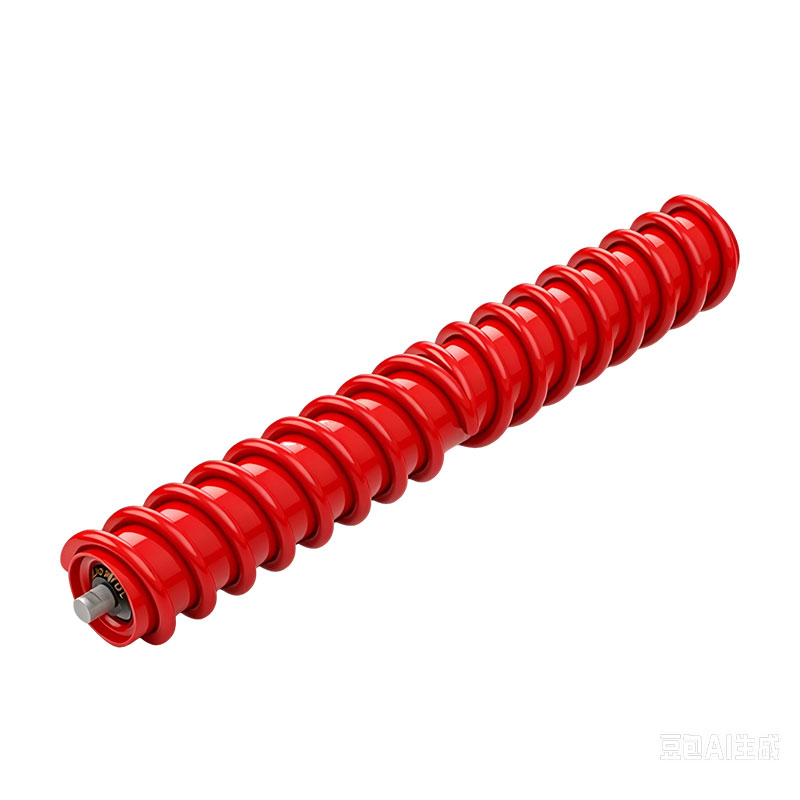

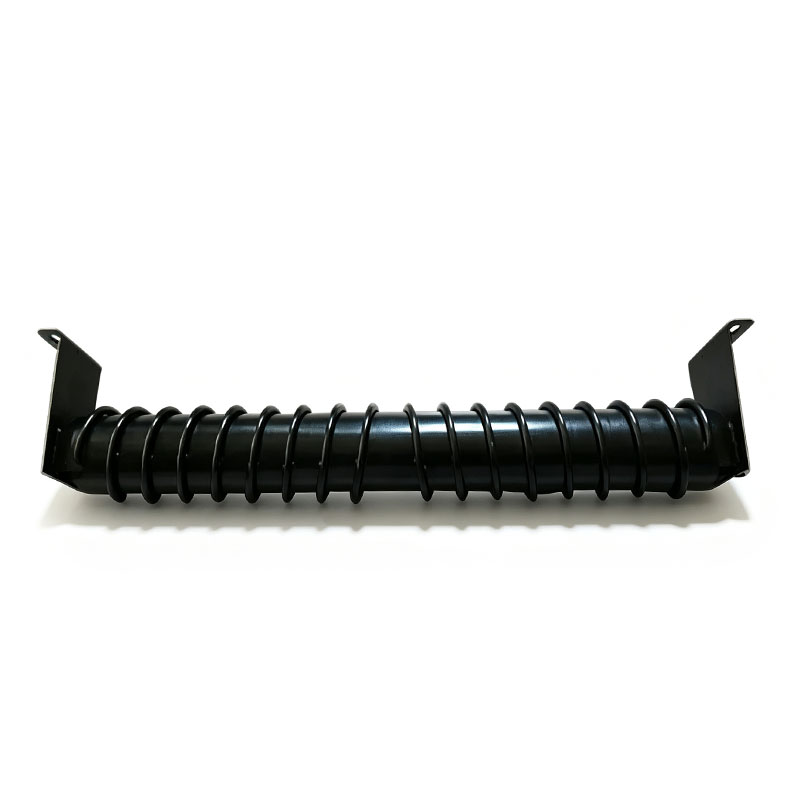

Custom Self-Cleaning Steel Spiral Return Idler for Belt Conveyor

The AstraRoll Technical Advantage

Engineering a self-contained spiral idler that survives multi-ton mining loads and abrasive slurry requires rugged mechanical fabrication and fail-safe bearing protection:

Continuous Self-Cleaning Action: The open helical geometry creates a continuous scraping and shedding effect against the underside of the belt. As the idler rotates, the smooth round steel flights dislodge wet mud, freezing coal, and sticky clay. Because there is no solid cylindrical tube for material to stick to, carryback simply falls through the spiral cage to the ground, preventing buildup.

Active Belt Wandering Prevention: By utilizing a center-out divergent helix (left-hand and right-hand spirals meeting at the center point), the idler exerts a balanced, outward lateral spreading force across the width of the belt. This automatically guides and centers the return belt, completely eliminating the lateral wandering that destroys conveyor structural frames and belt edges.

Robotic Welded Steel Construction: Unlike cheap clip-on rubber spirals that tear off or slide out of position when struck by freezing ore lumps, our solid steel spiral rods are robotically welded to the central supporting discs with deep penetration welds. This creates an indestructible, cage-like steel monoblock structure capable of absorbing heavy impact shocks.

Multi-Stage Labyrinth Sealing: Mining return belts are constantly showered in abrasive slurry, dust, and water. Our proprietary multi-groove labyrinth seals, combined with high-quality lithium grease barriers, completely isolate the internal C3 clearance ball bearings (IP66/IP67 rated), guaranteeing years of rotation without bearing seizure.

Please note: Every AstraRoll Spiral Idler is custom-manufactured to match your conveyor belt width and troughing frame parameters.

Outer Diameter (O.D.): Custom from 89mm up to 194mm+ (3.5" to 7.6"+).
Face Length: Custom manufactured from 500mm up to 2,400mm+ (for belt widths from 400mm to 2,000mm+).
Spiral Rod Diameter: 10mm to 16mm solid round carbon steel or stainless steel bar.
Bearing Types: Precision Deep Groove Ball Bearings (6204, 6205, 6305, 6306 with C3 internal clearance).
Operating Temperature: -40°C to +120°C (-40°F to +248°F).

AstraRoll Custom Steel Spiral Return Idlers are the industry standard for eliminating carryback and belt drift in demanding environments:

Coal Mining & Power Generation: Handling wet, freezing coal and slurry where carryback causes severe belt misalignment on long overland return runs.

Aggregate & Stone Quarries: Processing muddy gravel, crushed limestone, and clay-rich overburden that instantly cakes onto standard smooth rollers.

Cement & Concrete Batching: Preventing wet clinker, limestone paste, and mineral dust from accumulating on return idlers.

Chemicals & Fertilizers: Handling highly adhesive, hygroscopic bulk powders and potash that rapidly form hard crusts on conventional rollers.

Why Choose AstraRoll?

1. Custom Pitch and Helix Geometry Engineering

Not all carryback is the same. A fine, watery iron ore slurry requires a vastly different scraping action than heavy, freezing chunks of coal clay. AstraRoll engineers do not rely on generic off-the-shelf spirals. We evaluate your material's moisture content, viscosity, and belt speed (m/s) to customize the exact pitch distance and spiral rod diameter required to optimize self-cleaning efficiency without excessive belt wear.

2. Turnkey Dynamic Balancing for High-Speed Belts

Because spiral rollers are inherently asymmetrical in their mass distribution, a poorly built spiral idler will vibrate violently at high conveyor belt speeds, shaking the conveyor frame and destroying mounting brackets. AstraRoll subjects every completed steel spiral idler to computerized dynamic balancing. By precision-welding internal counterweights, we balance our idlers to ISO 1940 Grade G2.5, ensuring smooth, vibration-free operation even on high-speed overland conveyors running at speeds exceeding 4.5 m/s.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
