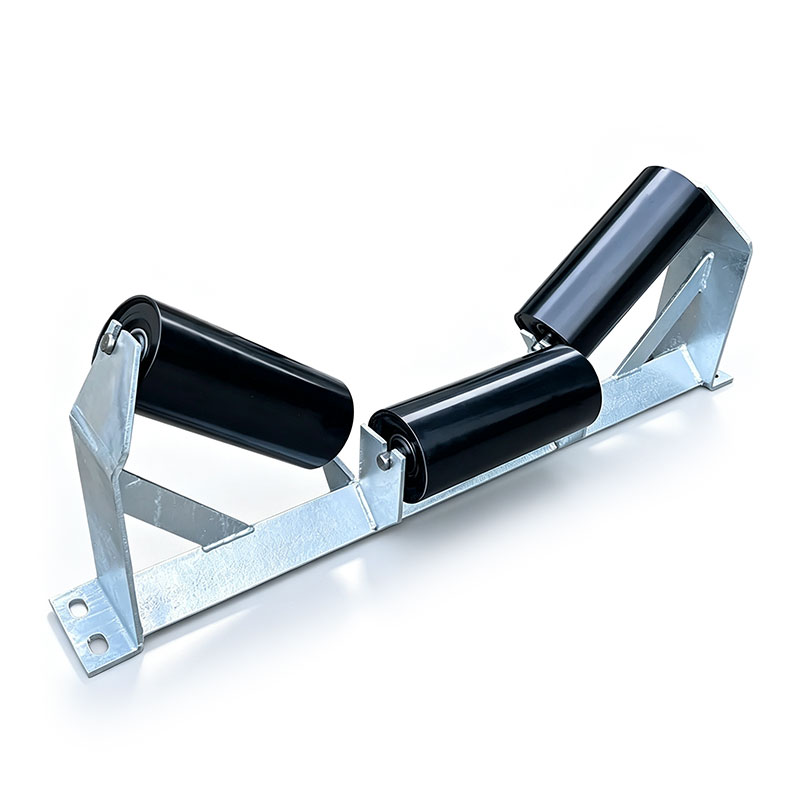

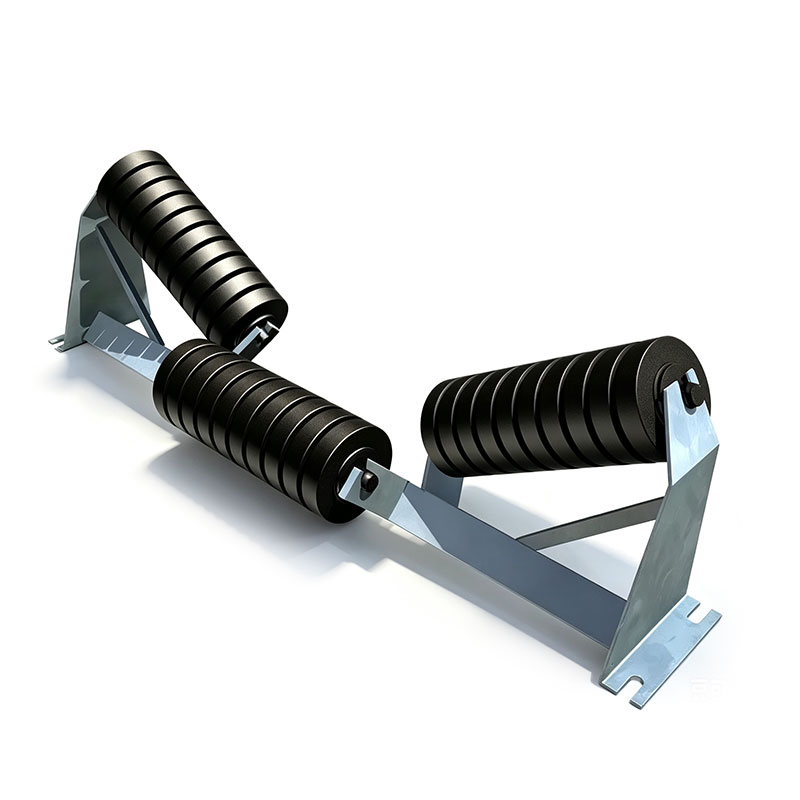

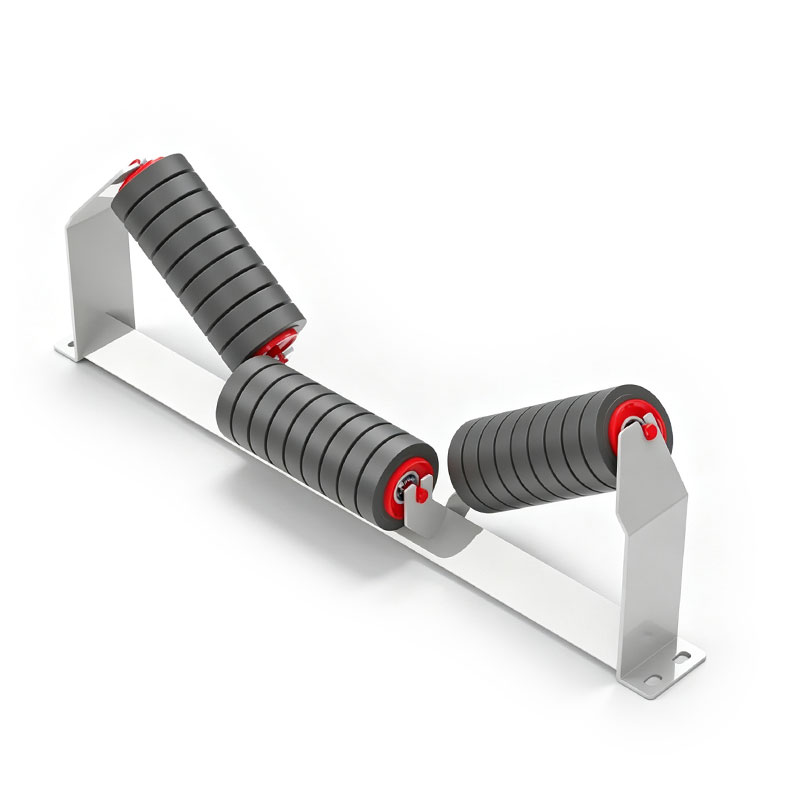

Heavy-Duty Offset Trough Carrying Idler for Mining Conveyor Belts

The AstraRoll Technical Advantage

Engineering a heavy-duty offset carrying idler requires structural rigidity and flawless rotational alignment to handle multi-ton mining loads:

Zero-Gap Anti-Pinching Architecture: By offsetting the center carrying roller from the two side wing rollers, the physical gap between the rollers is completely eliminated from the belt's perspective. The belt is supported across 100% of its width by an overlapping roller geometry, rendering belt pinching, crease lines, and junction failures physically impossible.

Robotic Welded Staggered Frame: The offset frame is constructed from heavy-gauge SS400 or Q345 structural steel channel. Using multi-axis robotic welding, the center and wing roller mounting brackets are permanently fused into a rigid, non-deformable monoblock frame capable of surviving severe operational vibration and heavy ore burdens.

Multi-Stage Labyrinth Sealing: Mining conveyors operate in clouds of abrasive iron ore dust, coal grit, and high-pressure water washdowns. AstraRoll utilizes a proprietary multi-channel labyrinth seal packed with lithium-based grease. This creates an impenetrable IP66/IP67 barrier that isolates the internal C3 precision bearings from contaminants, ensuring years of maintenance-free rotation.

Low-Profile Load Distribution: The staggered arrangement allows for a lower overall frame height compared to standard heavy-duty inline idlers. This tight, low-profile center of gravity distributes the kinetic impact of heavy rocks more evenly across the conveyor frame, reducing vibration and structural fatigue on your conveyor stringers.

Key Specifications

Please note: Every AstraRoll Offset Trough Idler is custom-manufactured to match your specific belt width, troughing angle, and load classification.

Roller Outer Diameter (O.D.): 89mm, 102mm, 114mm, 127mm, 133mm, 152mm, 159mm, 178mm (CEMA / DIN standard diameters).
Belt Width Compatibility: 400mm up to 2,400mm+ (18" up to 96"+).
Troughing Angles: 20°, 30°, 35°, 45° (or custom engineered angles).
Bearing Sizes: 6204, 6205, 6305, 6306, 6307, 6308 C3 precision ball bearings.
Shaft Diameter: 20mm, 25mm, 30mm, 35mm, 40mm cold-drawn alloy steel.
Operating Temperature: -40°C to +120°C (-40°F to +248°F).

Primary Applications

AstraRoll Heavy-Duty Offset Trough Idlers are engineered for continuous, high-tonnage bulk handling across critical industrial sectors:

• Mining & Quarrying: Primary and secondary carrying conveyor lines handling heavy, sharp iron ore, copper ore, crushed granite, and overburden.
• Coal Handling & Power Generation: High-speed, high-capacity coal export terminals and power plant feed conveyors where belt preservation is paramount.
• Cement & Aggregates: Heavy limestone and clinker transport systems operating in abrasive, dusty environments.
• Overland Bulk Conveyors: Long-distance overland conveyors where preventing longitudinal belt rips is critical to avoiding catastrophic downtime.

Why Choose AstraRoll?

1. Custom Frame Engineering & Retrofitting

Upgrading your mining conveyor from inline idlers to offset idlers does not require modifying or drilling new holes into your existing conveyor stringers. Provide AstraRoll with the bolt-hole center dimensions (footprint) of your current conveyor frames. Our engineering team will CNC-machine the mounting slots of your new offset trough idler frames to match your exact existing bolt patterns, allowing your maintenance crews to perform drop-in replacements during standard plant shutdowns.

2. Total Indicated Runout (TIR) & Dynamic Balancing

An idler that is out-of-round will act like a hammer against the bottom of your conveyor belt, generating severe noise, spilling material, and destroying bearings. AstraRoll precision-machines our steel tubes and welds bearing end-housings using automated hydraulic press fixtures. This guarantees an ultra-low Total Indicated Runout (TIR ≤ 0.5mm) and meets ISO 1940 Grade G2.5 dynamic balancing standards, ensuring smooth, whisper-quiet operation on high-speed belts running over 4.5 m/s.
