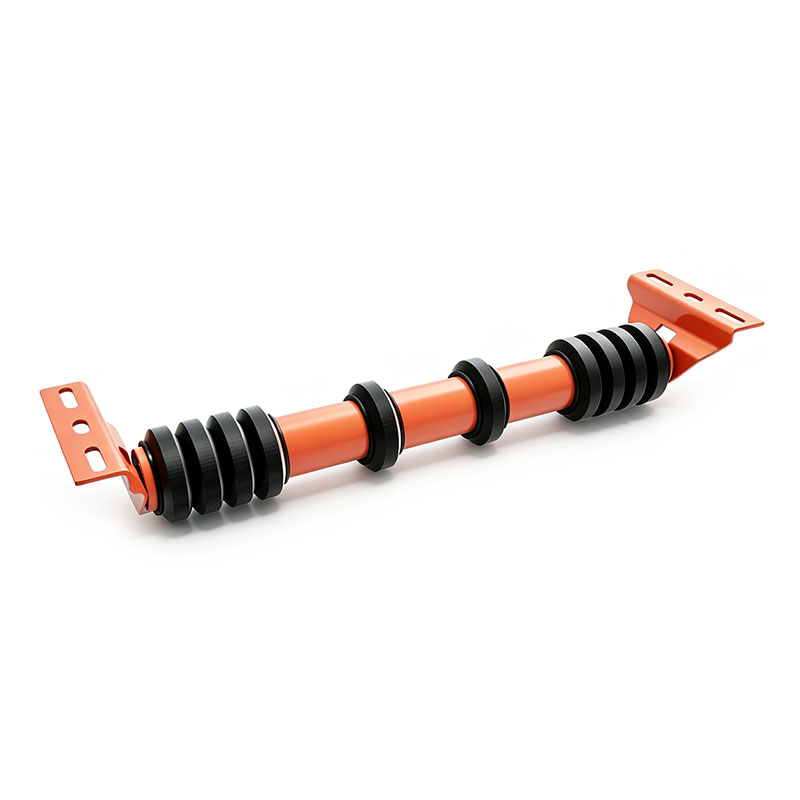

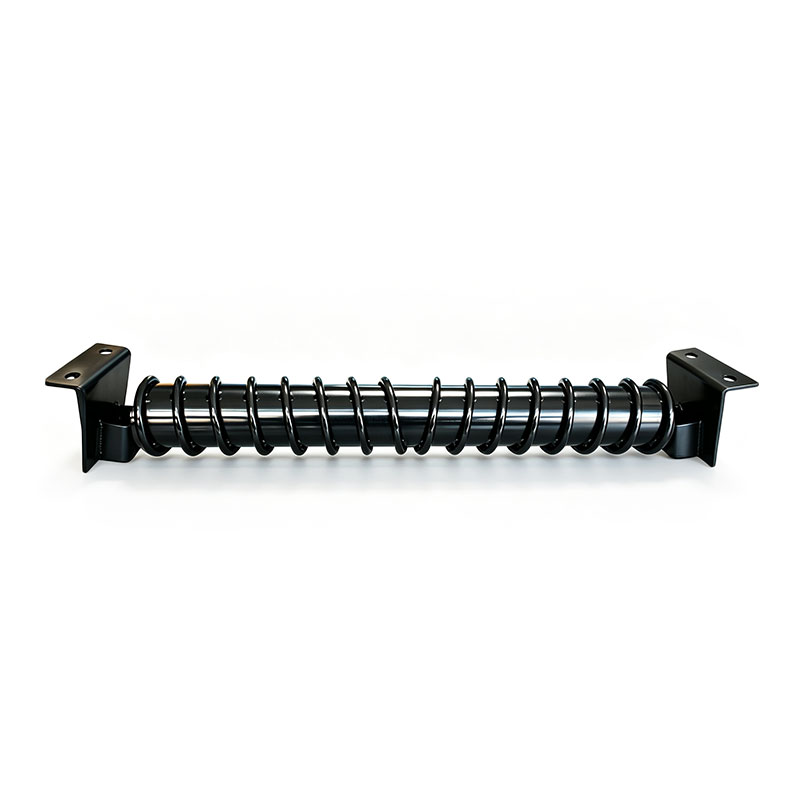

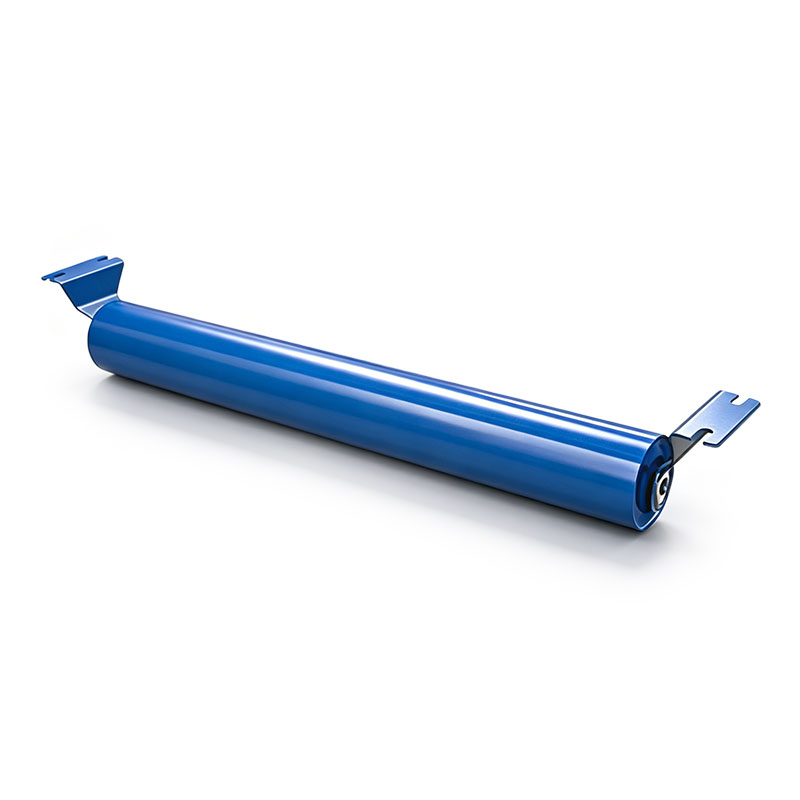

Industrial Durable Flat Return Idler Rollers for Belt Conveyor System

The AstraRoll Technical Advantage

Engineering a durable return idler requires balancing structural rigidity with ultra-low rotational friction:

Ultra-Low Rolling Resistance: Return belts lack the heavy payload of the carrying side, meaning they apply less downward force to spin the idlers. If internal bearing friction is too high, the idler will stall, causing the belt to drag. AstraRoll machines our bearing housings to exacting tolerances and utilizes premium lithium grease, ensuring our return idlers spin effortlessly, reducing overall conveyor motor energy consumption.

Impenetrable Labyrinth Sealing: Return idlers are located directly beneath the carrying belt, meaning they are constantly showered with falling dust, dirt, and material spillage. Our proprietary multi-channel labyrinth seals (IP66/IP67 rated) act as an absolute barrier, isolating the internal C3 precision deep groove ball bearings from grit and moisture to prevent premature seizure.

Anti-Deflection Structural Tube: On wide conveyor belts (e.g., 1,500mm to 2,400mm), a single flat return idler must span a massive distance without central support. We utilize extra-thick Q235/Q345 carbon steel tubing to ensure the roller will not bow or deflect under the tension of a heavy, long-distance rubber belt.

Precision Total Indicated Runout: Using automated robotic welding and CNC lathe finishing, we ensure the steel tube is perfectly concentric to the shaft (TIR ≤ 0.5mm). This eliminates vibrational "chatter" on the return run, significantly extending the lifespan of the idler bearings and conveyor brackets.

Key Specifications

Please note: Every AstraRoll Return Idler is custom-manufactured to match your specific belt width and conveyor stringer dimensions.

Outer Diameter (O.D.): Standard sizes include 89mm, 102mm, 108mm, 114mm, 127mm, 133mm, 152mm, 159mm.
Belt Width Compatibility: 400mm up to 2,400mm+ (18" up to 96"+).
Bearing Sizes: 6204, 6205, 6305, 6306 (Deep Groove Ball Bearings, C3 Clearance).
Shaft Diameter: 20mm, 25mm, 30mm, 35mm, 40mm.、
Wall Thickness: Custom from 3.0mm to 6.0mm+ depending on span and tension.

Primary Applications

AstraRoll Industrial Durable Flat Return Idler Rollers are the backbone of continuous bulk material transport:

• Mining & Aggregates: Supporting heavy, thick-ply rubber belts on their return journey in coal mines, copper pits, and crushed stone quarries.
• Cement & Steel Manufacturing: Operating reliably in extremely dusty environments where limestone dust and slag spillage frequently jam standard rollers.
• Port Terminals & Ship Loading: High-speed, continuous-duty return support for wide overland and gallery conveyors.
• Wood Processing & Paper Mills: Transporting wood chips and biomass without allowing the belt to sag and spill residual materials.

Why Choose AstraRoll?

1. Seamless Drop-In Replacement

You do not need to modify your conveyor frame to upgrade to AstraRoll quality. Simply provide us with your belt width and the required standard (CEMA, DIN, ISO, etc.), and we will manufacture the flat return idler with the exact face length and milled shaft ends (flats or slots) needed to drop perfectly into your existing return brackets.

2. Optional Drop Bracket Integration

If you are building a new conveyor line or replacing severely rusted return structures, AstraRoll can supply your flat return idlers fully assembled with heavy-duty steel drop brackets. These brackets are pre-drilled to match your conveyor stringers, providing a complete, turnkey return-side solution.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
