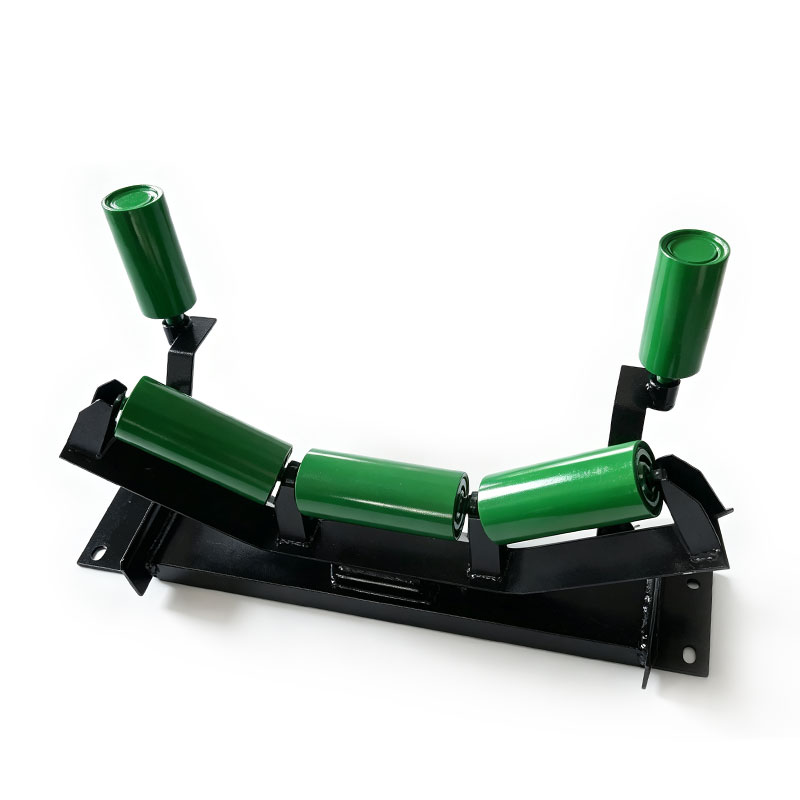

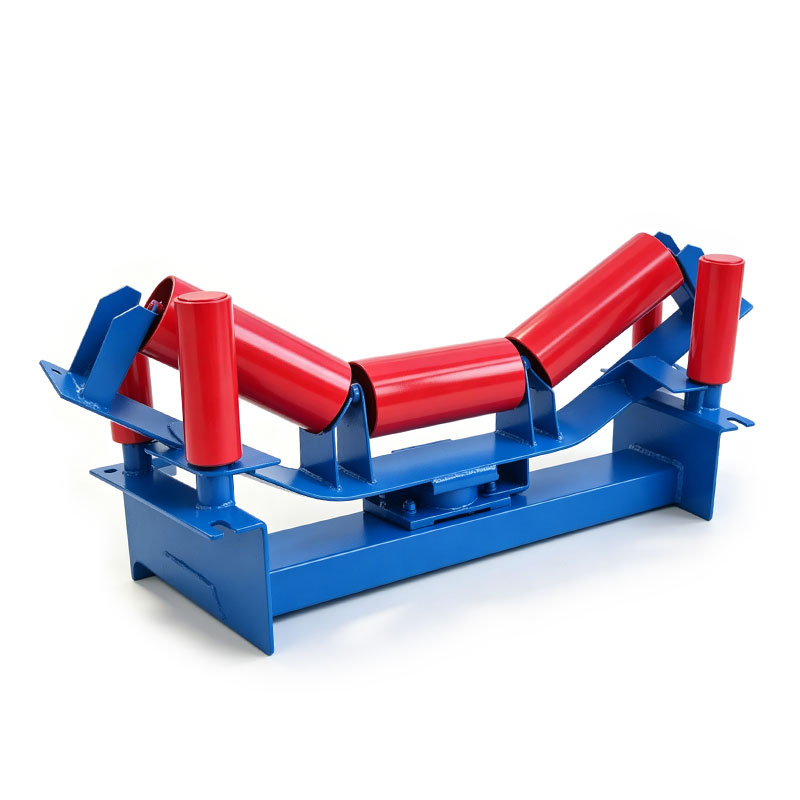

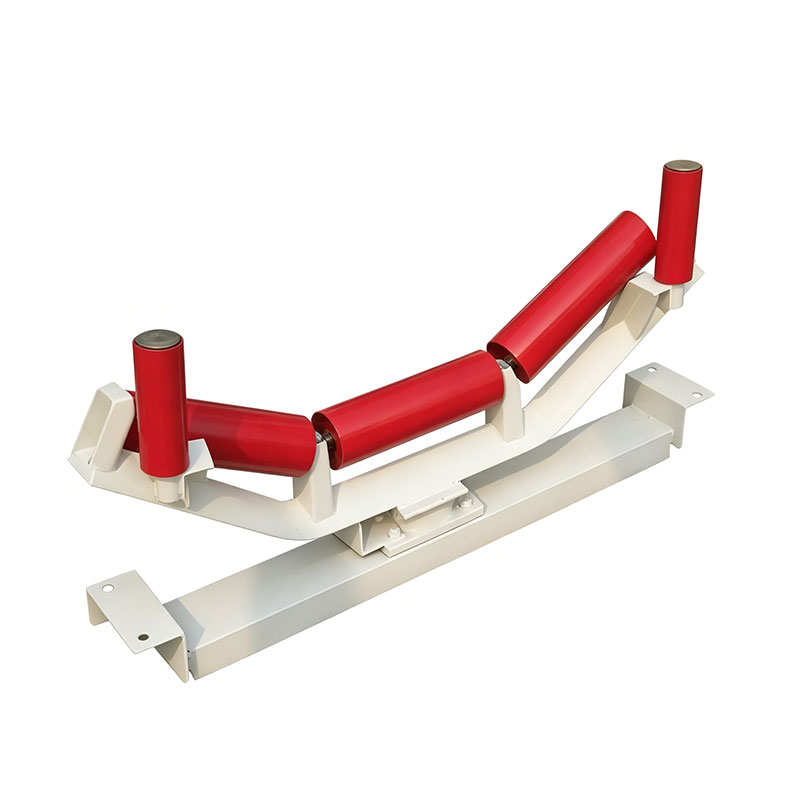

Custom Self Aligning Troughing Carrying Idler Roller for Conveyor Belt

The AstraRoll Technical Advantage

Engineering a self-aligning idler that reacts instantly without jamming requires precision rotational mechanics and heavy-duty sealing:

Automatic Belt Steering: Our training idlers utilize dynamic friction to your advantage. When the belt drifts, the lateral pressure against the vertical guide roller forces the central frame to slew (rotate) forward on the drifting side. This steers the belt back to the center line precisely and automatically, without requiring electric sensors or pneumatic actuators.

Jam-Free Slewing Bearing: The fatal flaw of cheap training idlers is that their central pivot rusts and seizes up in dusty conditions. AstraRoll utilizes a heavy-duty, fully sealed slewing bearing (or enclosed conical pin) packed with waterproof grease. This ensures the frame can pivot effortlessly even when buried in coal dust or abrasive iron ore.

Belt-Safe Guide Rollers: The side vertical guide rollers are designed to spin freely on precision bearings. When the belt edge makes contact, the guide roller rotates with the belt, minimizing edge friction and preventing the rubber cover from fraying or tearing during the alignment process.

Multi-Stage Labyrinth Sealing: The three troughing carrying rollers utilize our proprietary IP66/IP67 multi-channel labyrinth seals. This isolates the internal C3 precision bearings from harsh mining contaminants, guaranteeing ultra-low rotational resistance and years of maintenance-free operation.

Key Specifications

Please note: Every AstraRoll Self-Aligning Idler is custom-manufactured to match your specific belt width and conveyor stringer footprint.

Belt Width Compatibility: 500mm up to 2,400mm+ (20" up to 96"+).
Roller Outer Diameter (O.D.): 89mm, 102mm, 114mm, 127mm, 133mm, 152mm, 159mm.
Troughing Angles: 20°, 30°, 35°, 45°.
Pivot Angle: Standard ±5° to ±10° of rotational freedom.
Bearing Sizes: 6204, 6205, 6305, 6306 C3 precision ball bearings.
Standard Compliance: CEMA, DIN, ISO, JIS mounting slot specifications.

Primary Applications

AstraRoll Self-Aligning Troughing Idlers are mandatory safety components for all major bulk handling systems:

• Mining & Overland Conveyors: Correcting belt drift caused by uneven ground settlement, crosswinds, and massive load shifts on kilometer-long belts.
• Port & Terminal Ship Loading: Ensuring high-speed belts track perfectly to prevent material spillage into the ocean or dockside.
• Cement & Aggregates: Maintaining alignment in severely dusty environments where material buildup on pulleys frequently causes belt wandering.
• Reversible Conveyor Lines: (When equipped with our specialized bidirectional pivot mechanism) keeping belts centered regardless of the travel direction.

Why Choose AstraRoll?

1. Seamless Drop-In Installation

You do not need to modify your conveyor stringers to install our training rollers. Provide us with your current belt width and standard (CEMA, DIN, etc.), and we will manufacture the self-aligning frame's mounting footprint (bolt-hole centers) to perfectly match your existing fixed carrying idlers. Simply unbolt a standard idler and bolt the AstraRoll self-aligning idler in its place.

2. Application-Specific Friction Engineering

For extremely stubborn belts that refuse to track properly, the standard smooth steel rollers on the training frame may not generate enough steering grip. AstraRoll can customize the self-aligning idler by supplying the outer wing rollers with Rubber Lagging. This dramatically increases the coefficient of friction, providing a much more aggressive steering response to force heavy belts back into alignment.
