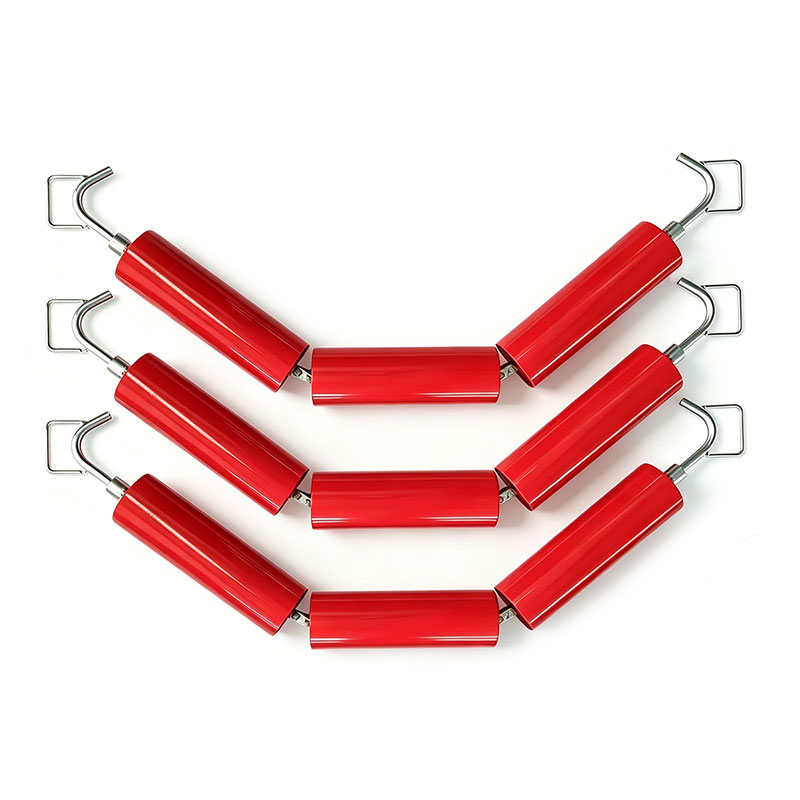

Industrial Garland Idlers for Heavy-Duty Belt Conveyor

The AstraRoll Technical Advantage

Engineering a suspended idler requires indestructible linkage components and advanced bearing protection:

Hammock-Style Impact Absorption: Unlike rigid frames that force the roller to absorb 100% of the shock, the flexible garland linkage allows the entire roller set to yield slightly upon impact. This drastically reduces the stress on the conveyor belt carcass and prevents bearing shatter under loading chutes.

Automatic Load Centering: Because the idler set hangs freely, it naturally adjusts its troughing profile based on the weight and position of the material. If the load shifts to one side, the garland assembly physically shifts to cradle the load, naturally steering the belt back to the center line.

Rapid Quick-Release Maintenance: Replacing a garland idler is incredibly fast. There are no rusted bolts to cut or heavy frames to disassemble. Maintenance teams simply unhook the end links from the conveyor stringer and drop a new garland assembly into place, reducing downtime from hours to minutes.

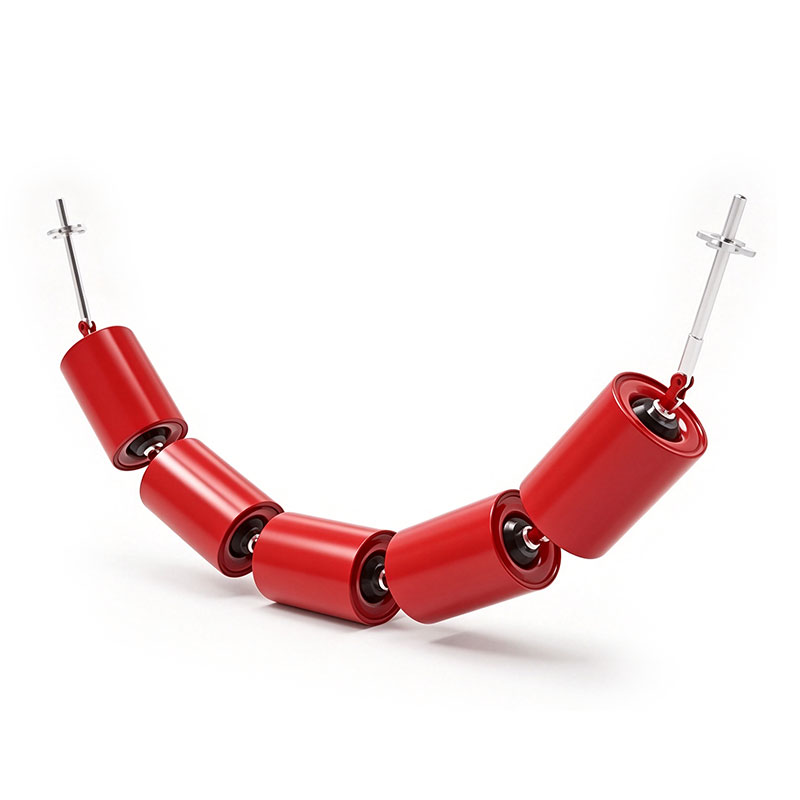

High-Tonnage Troughing Depth: Utilizing a 5-roll garland configuration allows for a much deeper, more rounded troughing angle than standard 3-roll rigid frames. This safely encapsulates high volumes of bulk material, preventing spillage over the belt edges on steep inclines.

Key Specifications

Please note: Every AstraRoll Garland Idler is custom-manufactured to match your specific belt width, load profile, and suspension brackets.

Belt Width Compatibility: 600mm up to 3,000mm+ (24" up to 120"+).
Roller Outer Diameter (O.D.): 89mm, 108mm, 133mm, 159mm, 194mm+.
Bearing Sizes: 6205, 6305, 6306, 6307, 6308 (Deep Groove Ball Bearings, C3 Clearance).
Linkage Break Strength: Custom drop-forged links rated for extreme tensile loads (up to 50+ kN).
Troughing Angles: Flexible, naturally adapting to 20°, 35°, 45°, or deeper depending on suspension mounting points.

Primary Applications

AstraRoll Garland Idlers are engineered for dynamic, heavy-duty bulk material handling environments:

• Loading Zones & Transfer Points: Installed directly under crushers, hoppers, and transfer chutes where extreme lump sizes are dropped onto the belt.
• Mobile & Shiftable Conveyors: Essential for crawler-mounted conveyors, stacker/reclaimers, and open-pit mining shiftable belts where the ground is uneven and rigid frames would cause severe misalignment.
• Tunnel Boring Machines: Ideal for tunnel muck conveyors where space is limited and rapid installation/removal of idlers is critical.

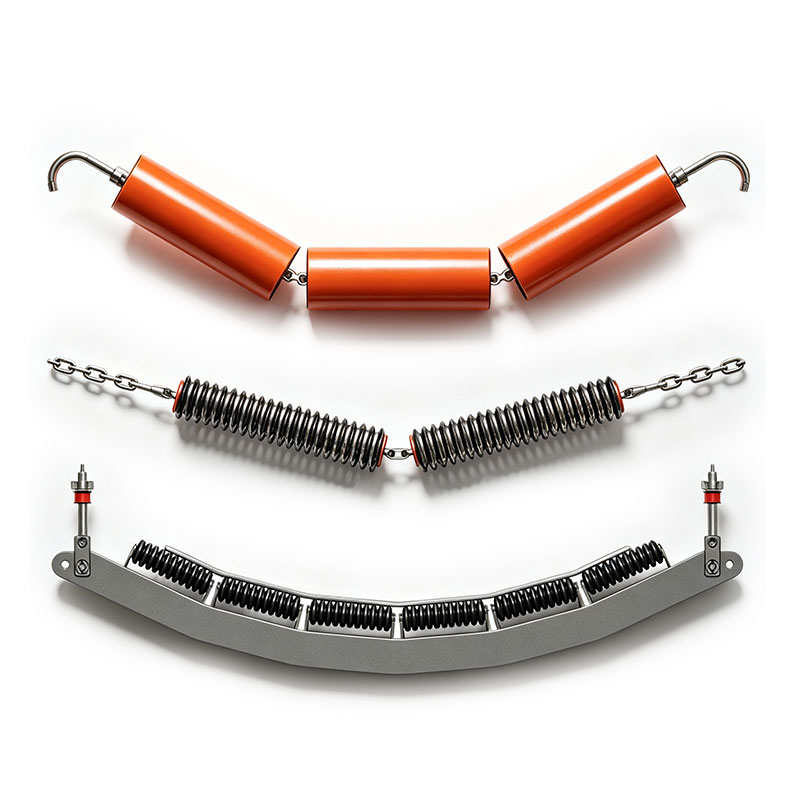

• Return Side Sticky Material: Using a 2-roll V-return garland allows sticky carryback (like wet clay) to drop off the belt more effectively than a single flat return idler.

Why Choose AstraRoll?

1. Drop-Forged Unbreakable Linkages

The weakest point of a cheap garland idler is the hinge or chain link connecting the rollers. If a link snaps, the entire assembly collapses, tearing the conveyor belt. AstraRoll does not use cheap stamped steel. We utilize heavy-duty, drop-forged alloy steel linkages and shackles that are pull-tested for extreme tensile strength, guaranteeing they will never separate under massive mining payloads.

2. Turnkey Suspension Bracket Engineering

If you are upgrading an existing rigid conveyor line to a suspended garland system, you will need somewhere to hang the rollers. AstraRoll can engineer and supply custom quick-release suspension brackets that weld or bolt directly to your existing conveyor stringers, ensuring a flawless and secure retrofit.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
