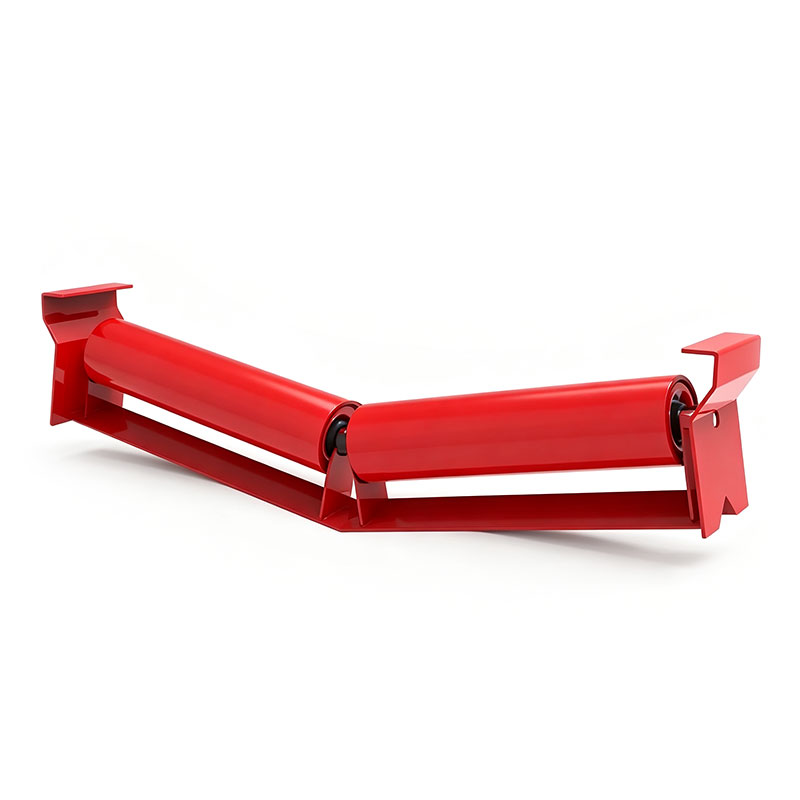

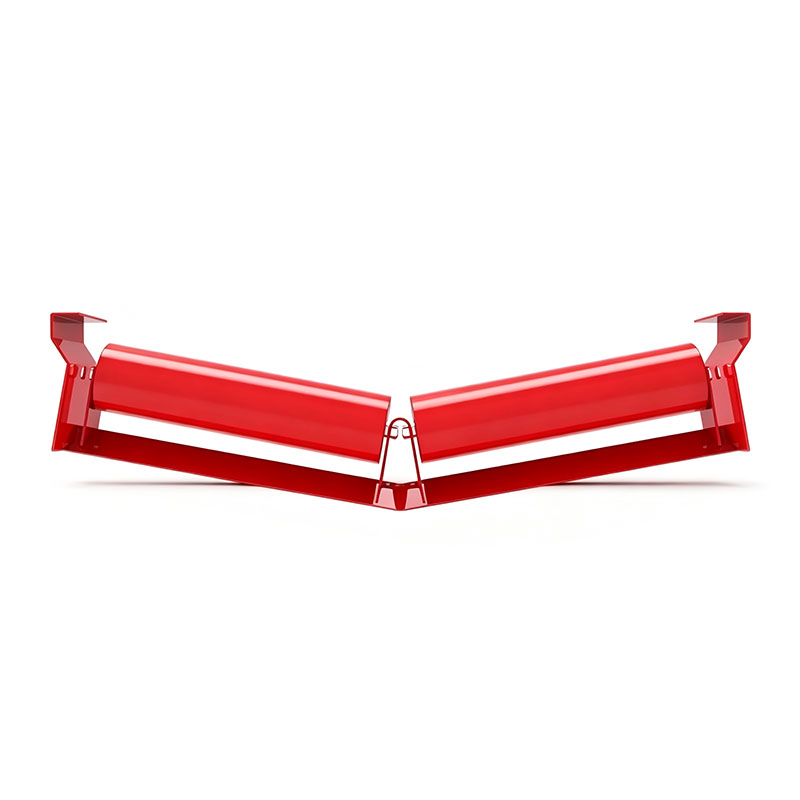

Custom Vee Return Idler for Heavy-Duty and Overland Belt Conveyor Tracking



The AstraRoll Technical Advantage

Engineering a V-return idler for high-tension bulk conveyors requires precise angular alignment and robust load distribution:

Active Self-Centering Tracking: The 10° to 20° angle of the two rollers creates a continuous, gentle V-shape in the return belt. As gravity pulls the belt down into the center vertex of the V-shape, it naturally fights any lateral drift, keeping the belt continuously centered without the need for complex pivoting training idlers.

Double Load Capacity: A standard flat return idler supports the entire belt weight on just two bearings. The AstraRoll V-Return assembly utilizes two separate rollers, distributing the heavy dead-weight of wide steel-cord belts across four high-capacity C3 precision ball bearings. This drastically reduces bearing fatigue and extends the maintenance lifecycle.

Heavy-Duty Welded V-Frame: The two rollers are supported by a heavy-gauge, robotically welded central mounting bracket. This prevents the idler assembly from flexing or separating under the extreme downward tension of long-distance conveyor belts.

Impenetrable Labyrinth Sealing: Because return idlers are mounted beneath the carrying side, they are constantly exposed to falling dust and material spillage. Our proprietary IP66/IP67 labyrinth seals and premium lithium grease barriers ensure the internal bearings remain completely isolated from grit and moisture.

Key Specifications

Please note: Every AstraRoll Vee Return Idler is custom-manufactured to match your specific belt width, V-angle, and stringer mounting dimensions.

Belt Width Compatibility: 800mm up to 3,000mm+ (30" up to 120"+).
Vee Angles: 10°, 15°, or 20° (custom angles available upon engineering review).
Standard Compliance: CEMA B, C, D, E, F, DIN, ISO, JIS standard mounting.

Primary Applications

AstraRoll Custom Vee Return Idlers are specifically engineered for maximum-duty conveyor architectures:

• Overland Conveyors: Kilometers-long belts where continuous center tracking is notoriously difficult to maintain with flat return idlers.
• Steel-Cord Belt Systems: Handling the extreme dead weight and high tension of steel cord belts used in major mining operations.
• High-Capacity Port Terminals: Wide-belt, high-speed ship loading conveyors where edge wandering cannot be tolerated.
• Underground Mining: Conveyors operating in restricted spaces where belt edge damage from rubbing against tight tunnel walls must be prevented.

Why Choose AstraRoll?

1. Drop-In Frame Replacements

You do not need to drill new holes in your conveyor stringers to upgrade to V-returns. Simply provide AstraRoll with your current belt width and standard (e.g., CEMA or DIN). We will manufacture the V-Return drop brackets to match your exact existing bolt-hole centers, allowing your maintenance crews to upgrade the return run seamlessly.

2. Anti-Buildup Customization

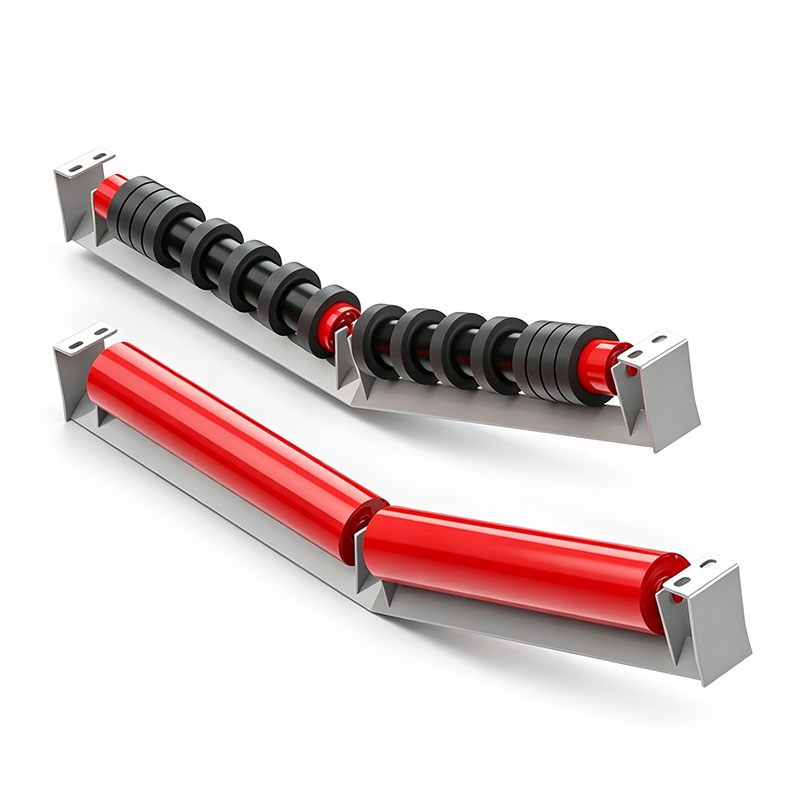

If your return belt carries wet or sticky carryback (like clay or iron ore slurry), the center vertex of a V-return idler can sometimes accumulate mud. AstraRoll can customize your Vee Return Idlers with Rubber Discs or Polyurethane Lagging. This provides the tracking benefits of the V-shape while actively shedding sticky carryback and preventing material buildup on the roller surface.

Frequently Asked Questions (FAQs)
Q: When exactly should I upgrade from a Flat Return Idler to a Vee Return Idler?

• You should upgrade to a Vee Return Idler if your conveyor system meets any of the following criteria:
• Your belt width exceeds 1,200mm (48 inches) and carries significant dead weight.
• You are using a heavy steel-cord conveyor belt.
• Your conveyor is extremely long (e.g., overland conveyors) where belt wandering on the return side is a chronic issue.
• Your single flat return idlers are frequently failing due to blown bearings caused by excessive belt weight.

Q: Which V-angle (10°, 15°, or 20°) should I choose for my conveyor?

The optimal angle depends on the thickness and transverse flexibility of your conveyor belt.

• 10° Angle: Typically used for highly rigid, thick steel-cord belts that cannot bend deeply.
• 15° Angle: The most common industry standard, offering an excellent balance of centering capability without over-stressing the center of the belt.
• 20° Angle: Used for thinner, highly flexible fabric belts that require aggressive centering guidance.

AstraRoll engineers will help you select the exact angle based on your belt manufacturer's specifications.

Q: Can V-Return idlers be used on reversible (bi-directional) conveyors?

Yes, absolutely. Because the two rollers are fixed symmetrically in a stationary V-frame and rotate freely without a directional pivot mechanism, they provide excellent belt support and centering regardless of whether the conveyor is running forward or in reverse.
