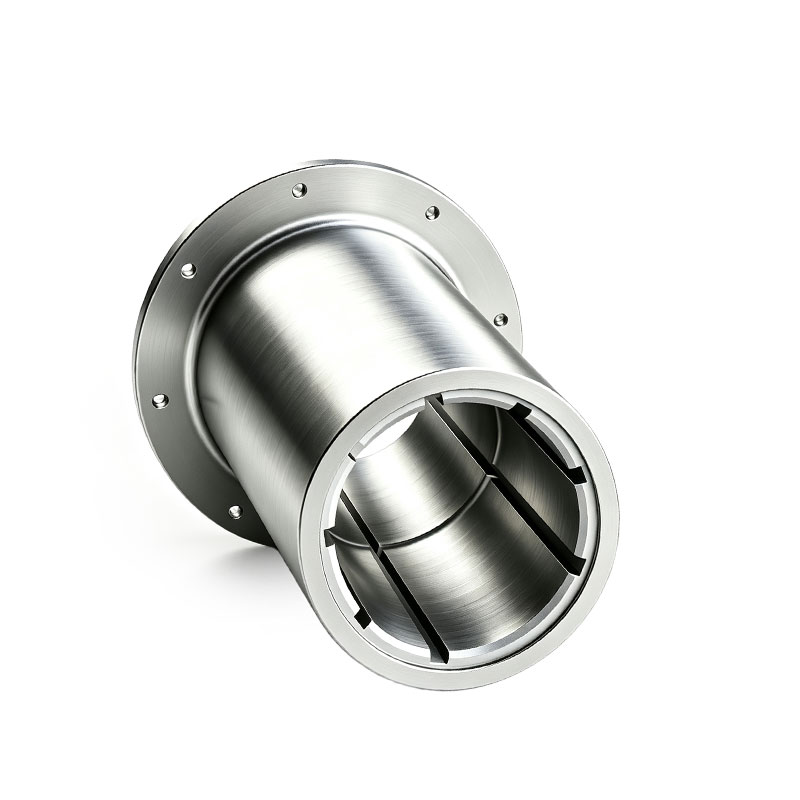

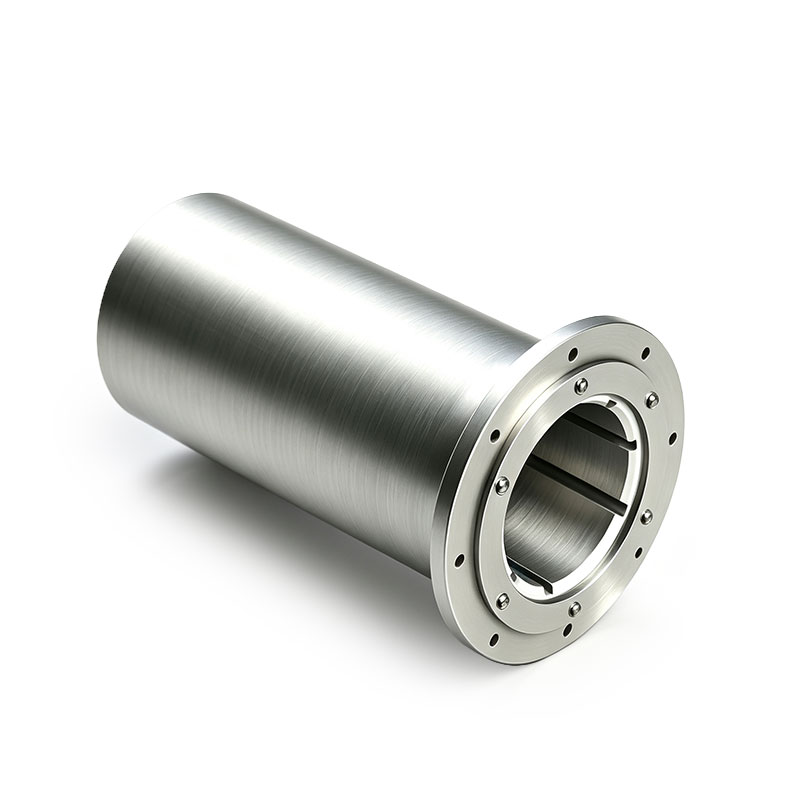

Seawater Lubricated Shaft Sleeve & Stern Tube Bushing

The AstraRoll Custom Seawater Lubricated Shaft Sleeve & Bushing is a high-precision, heavy-duty engineering component designed explicitly for high-salinity marine environments, marine propeller shafts, and reverse osmosis (RO) seawater desalination pump systems. In continuous submerged and wet-processing operations, conventional drive shaft assemblies face extreme operational threats: high-concentration chloride ion pitting, severe galvanic corrosion, micro-vibrations, and rapid seal degradation caused by suspended sand grit.

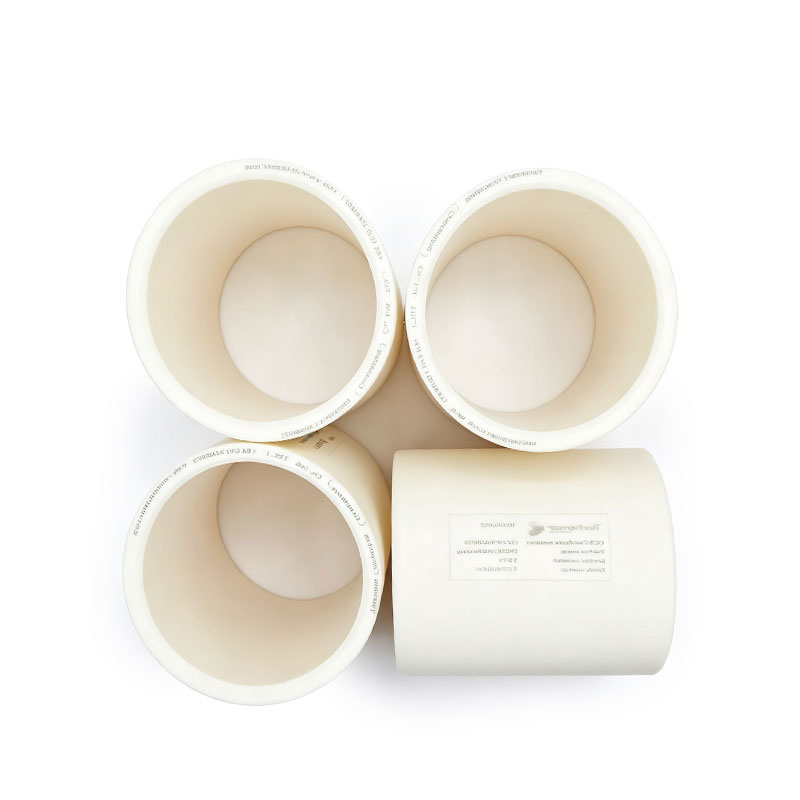

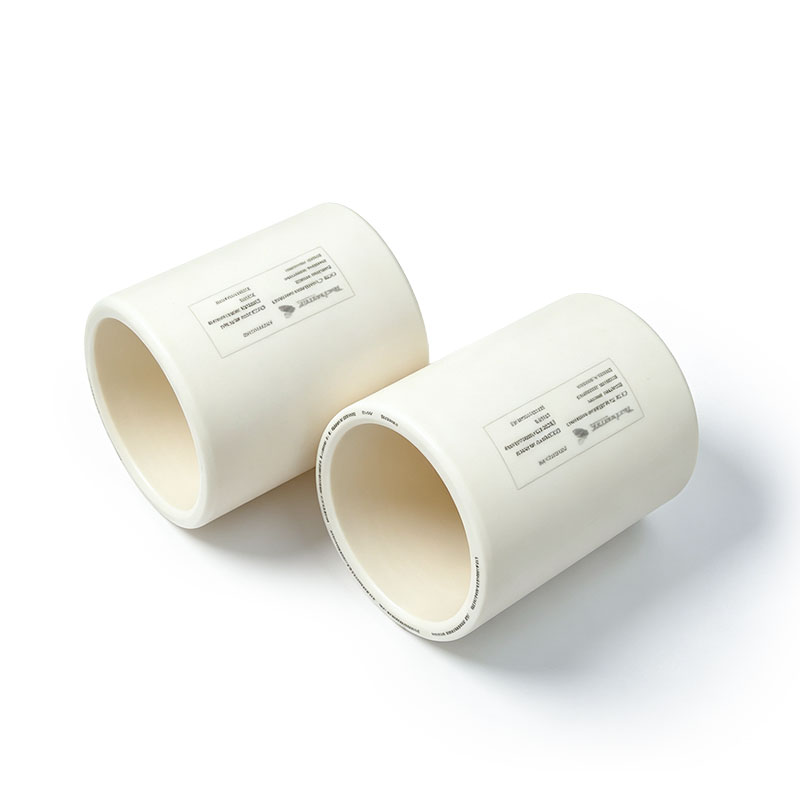

Our engineered shaft sleeves provide an ideal renewable wear barrier and smooth bearing journal surface over critical motor and pump shafts. Precision-machined from ultra-durable corrosion-resistant metallurgy—such as Duplex 2205, Super Duplex 2507, and Marine Bronze—or self-lubricating composite polymers, every sleeve utilizes ambient seawater directly as its hydrodynamic lubricant. This eliminates the need for grease or oil seals, preventing environmental fluid contamination while extending maintenance intervals in high-pressure desalination lines and marine propulsion units.

Technical Parameters

Product Framework: Precision Seawater-Lubricated Wear Shaft Sleeve / Stern Tube Bushing

Material Grades: Duplex 2205 (UNS S31803), Super Duplex 2507 (UNS S32205), 316L, Marine Bronze

Hardness Window: 200HB - 350HB (Metal Alloys) / Custom Durometer for Polymer variants

Pitting Resistance: PREN (Pitting Resistance Equivalent Number) ≥40 for Super Duplex configurations

Machining Precision: Inner/Outer Diameter Tolerance held within ±0.008 mm via CNC turning

Surface Finish Profile: Ra 0.2μm - Ra0.4μm (Ultra-smooth micro-ground journal surface)

Concentricity & Runout: TIR (Total Indicator Runout) ≤0.010mm to prevent fluid bypass

Lubrication Mode: 100% Seawater / Brackish Water / Self-Lubricating (Zero Grease / Zero Oil)

Applications

Seawater Reverse Osmosis (SWRO) Desalination Plants: Installed inside high-pressure feed pumps, booster pumps, and energy recovery devices (ERD) to shield drive shafts from aggressive brine pitting.

Marine Propeller & Stern Tube Assemblies: Serves as a marine propeller shaft sleeve or water-lubricated strut bushing for commercial vessels, tugboats, and offshore support ships.

Coastal Cooling & Intake Pumps: Protects rotating impellers and shaft journals in power plant cooling water circulating pumps and seawater intake facilities.

Deck Machinery & Offshore Winches: Functions as heavy-duty, rustproof bushings in anchor windlasses, fairlead rollers, and umbilical cable tensioners exposed to harsh salt spray.

Why Choose AstraRoll's Seawater Shaft Sleeves?

Super-Duplex Metallurgy Prevents Chloride Pitting: High-salinity seawater rapidly attacks standard 304/316L stainless steels. AstraRoll utilizes high-PREN Super Duplex alloys and marine bronzes specifically certified to withstand continuous salt exposure, securing zero structural degradation over extended service campaigns.

Micron-Level CNC Precision Extends Mechanical Seal Lifespan: Rotational runout causes mechanical seals in high-pressure seawater pumps to fail and leak. Every sleeve we produce is CNC turned and finish-ground to a strict ≤0.010mm TIR, ensuring parallel sealing contact and vibration-free rotation.

100% Seawater Hydrodynamic Lubrication: Grease-lubricated bushings pose constant oil-leakage risks in marine ecosystems and sensitive RO filtration units. Our hydrodynamic surface profiles allow seawater to form a natural lubricating film, guaranteeing low friction coefficients without environmental hazard.

High Resistance to Grit & Sand Abrasion: Raw seawater contains suspended sand particles and microscopic silica that grind down soft metals. AstraRoll’s heat-treated alloy surfaces deliver exceptional surface hardness and wear immunity, preventing deep groove formation under heavy linear load forces.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
