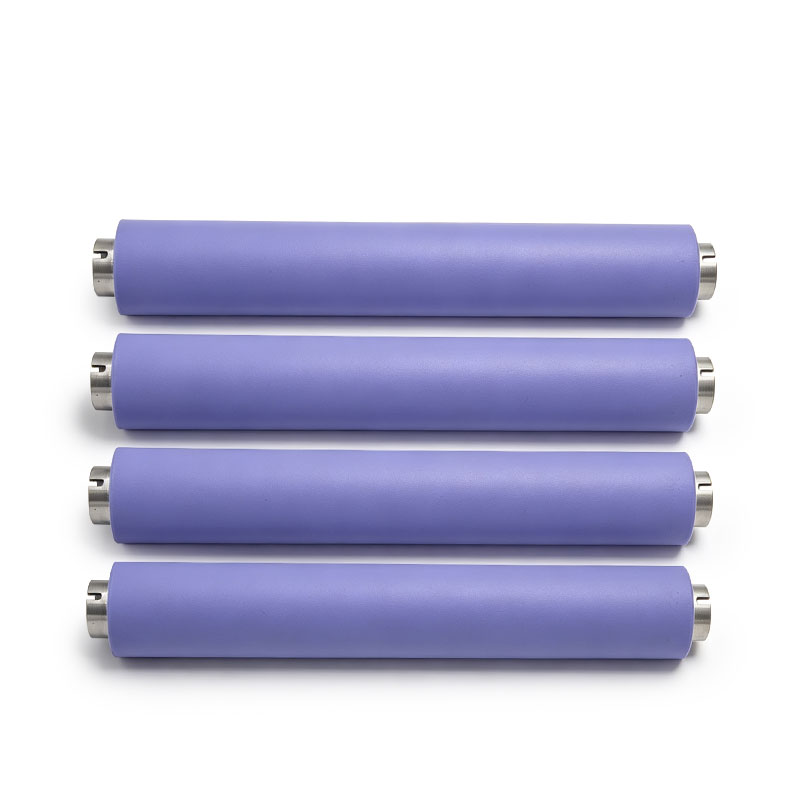

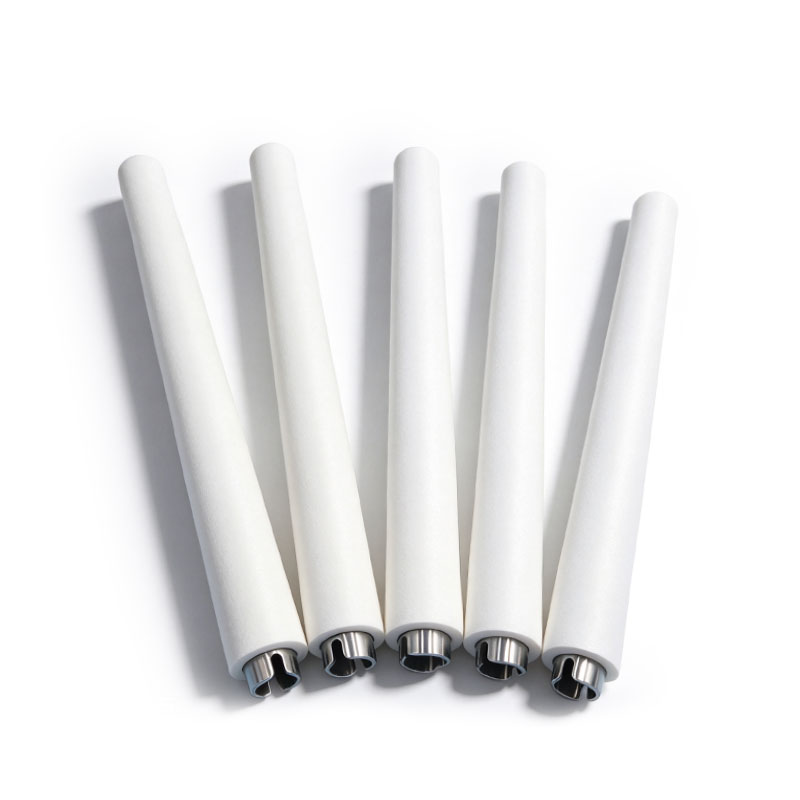

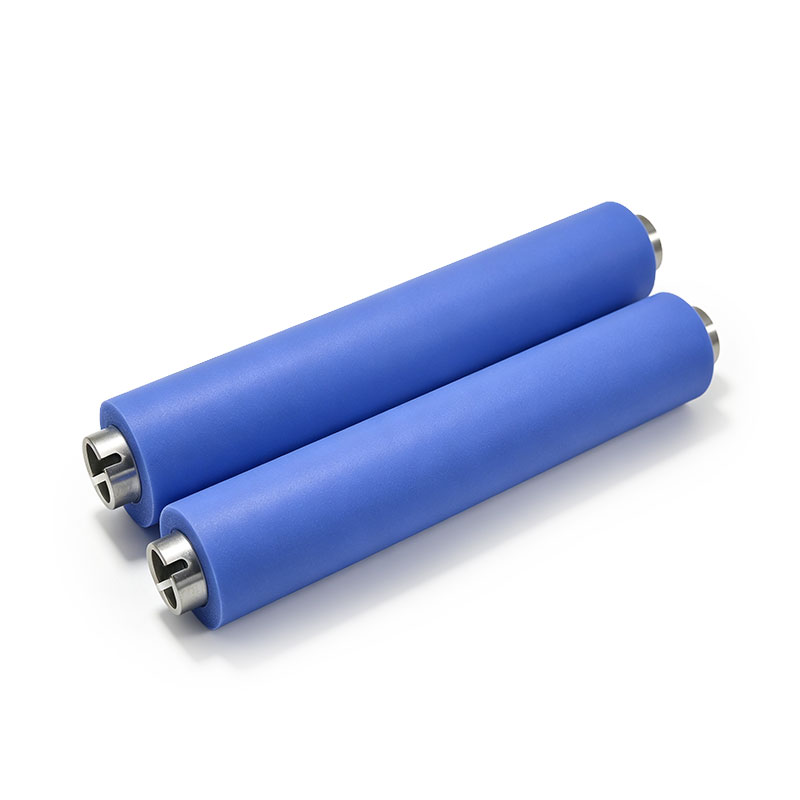

Custom Sticky Rubber Roller for Film Web Cleaning

The AstraRoll Custom Sticky Rubber Roller is an advanced, contact-cleaning solution engineered specifically for high-speed flexible packaging and plastic film converting applications. During film extrusion, slitting, and continuous roll-to-roll transport, static charges naturally attract ambient micro-dust, airborne lint, polymer fines, and slitting debris onto traveling film surfaces. If left uncleaned, these microscopic contaminants lead to severe converting defects, including ink voids, pinholes, bubble formation during laminating, and compromised heat-seal integrity.

Our high-tack elastomer rollers completely eliminate these quality bottlenecks. Formulated with a proprietary, surface-activated polymer resin, the roller maintains a soft, sticky surface profile that gently engages moving webs—such as BOPP, PET, PE, CPP, and barrier foils. It captures surface particles as small as 1 micron down to the microscopic level without scratching delicate film coatings or leaving behind any tacky residue, securing a pristine substrate for subsequent high-precision printing, metalizing, or laminating operations.

Technical Parameters

Product Framework: Precision Tacky Contact-Cleaning Rubber Roller for Web Processing

Elastomer Polymer Base: High-Purity Non-Transferring Polyurethane / Silicone-Free Tacky Resin

Hardness Window: 20 Shore A - 55 Shore A (Ultra-soft for gentle web contact)

Tackiness Level Options: High Tack, Medium Tack, Low Tack (Customized to film tension & gauge)

Residue / Migration Level: Zero Migration / Zero Residue (Guaranteed no oil/tack transfer)

Static Control Property: Anti-static formulation available to prevent secondary dust attraction

Surface Precision: TIR (Total Indicator Runout) ≤ 0.015 mm via CNC turn-grinding

Core Shaft Options: Precision Aluminum Alloy / Lightweight Heavy-Wall Steel Tubing

Applications

Flexible Packaging Printing Lines: Installed immediately before flexographic or rotogravure printing units to clean PE/BOPP film webs, preventing printing voids, doctor blade drag-marks, and ink-hazing defects.

Dry & Solventless Film Laminating: Removes microscopic dust and slitting fines prior to adhesive application, eliminating air bubbles, fish-eyes, and delamination spots between laminated film layers.

High-Speed Slitter Rewinders: Acts as an inline cleaning roll during high-speed slitting to catch airborne edge-trim debris and static-bound fibers before the web is rewound into finished rolls.

Vacuum Metalizing & Barrier Coating: Cleans plain polymer films prior to aluminum vapor deposition or barrier coating, securing maximum coating adhesion and pinhole-free barrier performance.

Why Choose AstraRoll's Custom Sticky Rubber Roller?

Zero-Residue Formulation Protects Downstream Adhesion:

Low-grade tacky rollers often bleed plasticizers or oily tackifiers onto the film, ruining surface tension and causing ink delamination. AstraRoll utilizes cross-linked elastomer chemistry that traps dust purely through physical surface dynamics, leaving 100% zero chemical residue on your packaging films.

Anti-Static Integration Prevents Re-Contamination:

High-speed film movement generates intense friction static, which instantly re-attracts airborne dust. Our sticky rollers can be infused with permanent anti-static additives to neutralize surface charges as they clean, keeping your film web cleaner for longer distances.

Micro-Particle Capture Down to 1 Micron:

Equipped with high elastic memory and a ultra-soft durometer profile, the roller conforms to minor film thickness variations, picking up tiny slitting dust, paper fibers, and static-bound particles as small as 1 micron with zero scratching.

Easy Maintenance & Long Tackiness Retention:

Designed for continuous industrial duty, AstraRoll sticky rollers maintain consistent tackiness over millions of rotation meters. The surface can be continuously cleaned inline via an adhesive tape roll (Tacky Paper Roll) or easily refreshed using specialized cleaning solutions during routine maintenance.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
