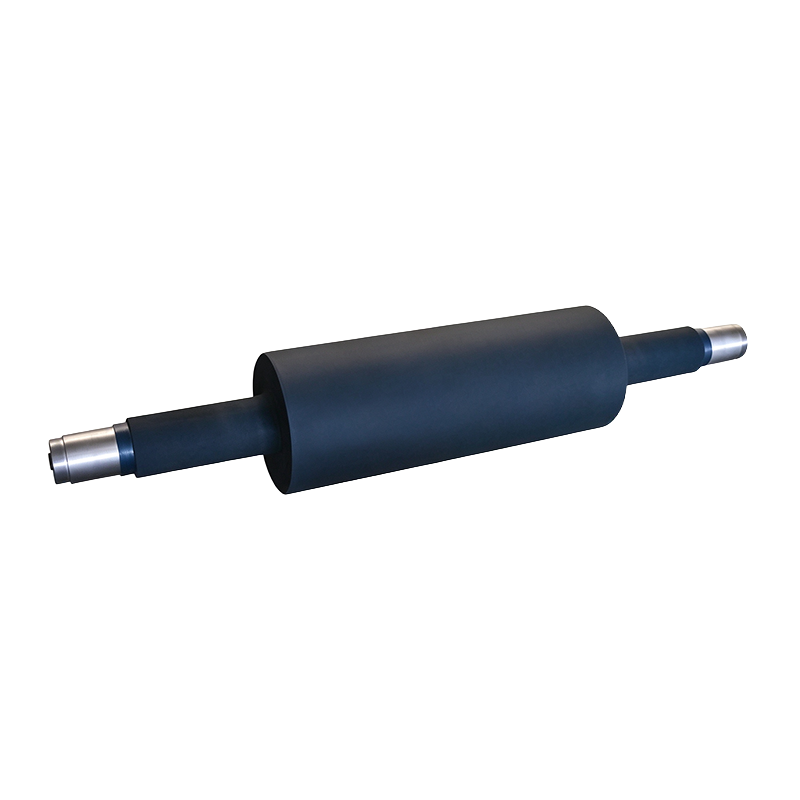

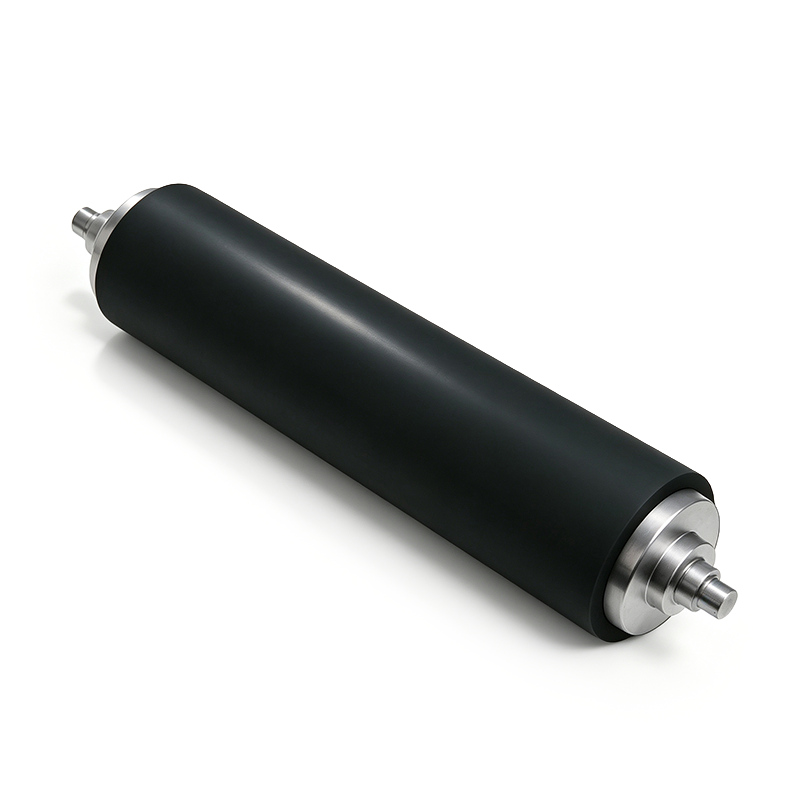

Ultra-High-Hardness Rubber Roller for Lithium Battery Copper Foil Production

The AstraRoll Ultra-High-Hardness Rubber Roller is a precision rubber-covered roller developed for lithium battery copper foil production and surface treatment applications.

During copper foil processing, rubber rollers may be used for squeezing, guiding, transporting, tension control or contact with the foil during surface treatment. These applications require more than simply a soft rubber covering. The rubber layer must maintain stable hardness, surface geometry and finish under continuous mechanical contact.

AstraRoll combines a precision-machined roller core with a customized high-hardness rubber covering and precision grinding process. The final roller can be manufactured according to the required diameter, working length, hardness, surface roughness, tolerance and shaft configuration.

For copper foil applications, roller surface quality is particularly important because scratches, uneven contact or excessive wear can affect the appearance and surface quality of the foil. Industry technical literature also identifies the precision of rubber roller surfaces as an important factor in copper foil surface treatment equipment.

Technical Parameters

Roller Type: Rubber Covered Roller

Application: Lithium Battery Copper Foil Production

Roller Diameter : Customized

Working Length : Customized

Core Material: Carbon Steel / Stainless Steel / Alloy Steel / Customized

Rubber Material: Customized Rubber Compound

Rubber Hardness: Ultra-High Hardness / Customized

Rubber Thickness: Customized

Surface Roughness: According to Application / Drawing

Roundness: Precision Ground

Concentricity: According to Drawing

Shaft Design: Customized

Surface Finish: Precision Ground / Customized

Chemical Resistance: According to Rubber Compound

OEM Service: Available

Applications

Copper foil surface treatment lines

Lithium battery copper foil processing

Copper foil squeezing equipment

Liquid squeeze roller applications

Copper foil guiding and conveying

Copper foil tension control

Cleaning and surface treatment sections

Anti-oxidation treatment equipment

Continuous copper foil processing machinery

Battery electrode material handling

Metal foil processing

Separator film handling

Roll-to-roll battery production equipment

Precision web handling systems

Why Choose AstraRoll's Ultra-High-Hardness Rubber Roller?

High-hardness rubber compounds are available for applications requiring improved wear resistance and dimensional stability.

Precision grinding technology helps achieve the required roller diameter, roundness and surface finish.

Customized rubber formulations allow the roller to be matched to mechanical load, temperature and chemical exposure.

Stable contact performance helps maintain uniform contact pressure across the working width.

Surface quality is carefully controlled to help reduce scratches, marks and uneven contact with copper foil.

Customized core and shaft designs allow direct integration with existing copper foil production equipment.

FAQ

Q1. Why is high rubber hardness important for copper foil production rollers?

A: High rubber hardness can improve wear resistance and help maintain stable roller geometry during continuous operation. It is particularly useful when the roller is exposed to repeated contact pressure, friction and high production speeds.

However, the highest possible hardness is not always the best solution. The rubber hardness should be selected together with the required elasticity, contact pressure, roller speed and copper foil surface requirements.

Q2. Can the rubber roller be used in copper foil surface treatment equipment?

A: Yes. Rubber-covered rollers can be used in various sections of copper foil surface treatment equipment, including squeezing, guiding, conveying and other web-handling applications. The rubber compound should be selected according to the processing liquid, temperature and mechanical conditions.

Q3. How does the rubber surface affect copper foil quality?

A: The roller surface directly contacts the copper foil, so surface roughness, roundness, hardness and surface condition can affect contact uniformity and the risk of scratches or marks. Precision grinding helps achieve a more consistent working surface for demanding copper foil applications.

Q4. What rubber materials are available?

A: AstraRoll can provide different rubber compounds according to hardness, wear resistance, elasticity, temperature and chemical-resistance requirements. The specific rubber material should be selected based on the actual operating environment rather than using one standard compound for all applications.

Q5. Can the rubber roller be customized according to our existing equipment?

A: Yes. Roller diameter, working length, rubber thickness, hardness, surface roughness, shaft dimensions, mounting configuration and other specifications can be customized according to customer drawings or equipment requirements.
