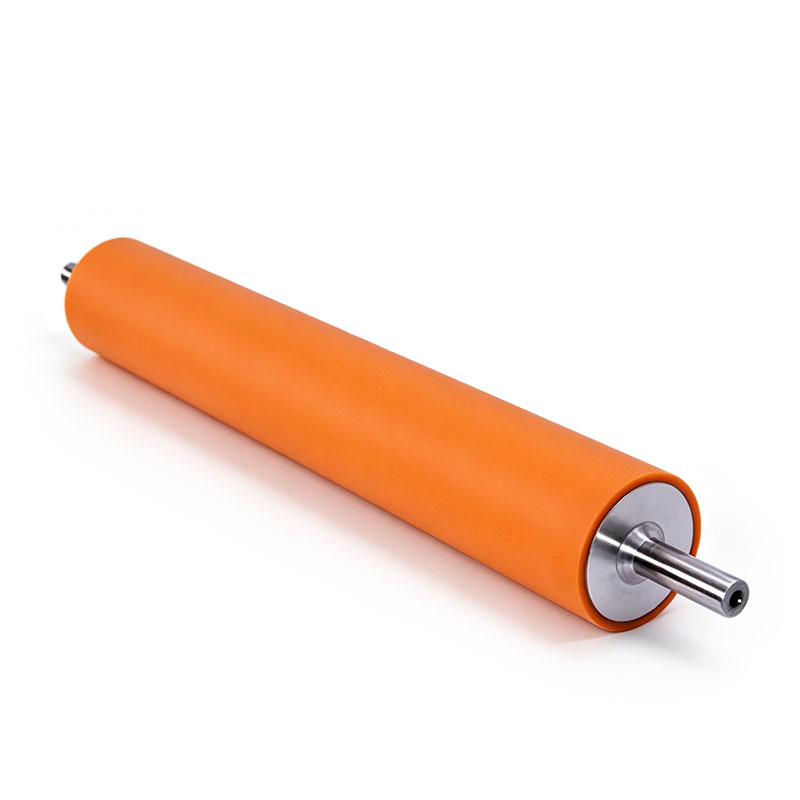

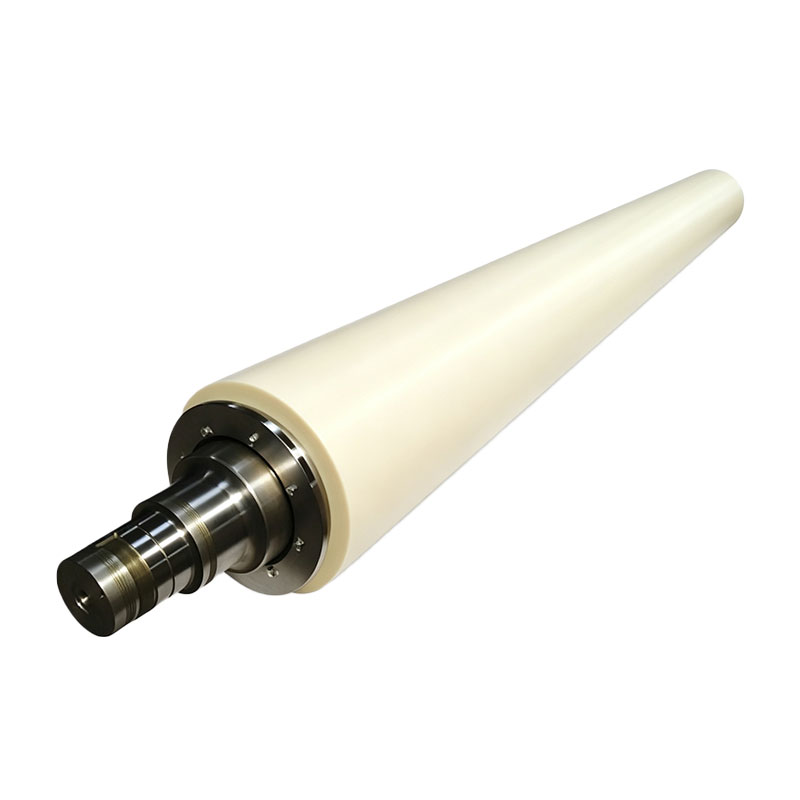

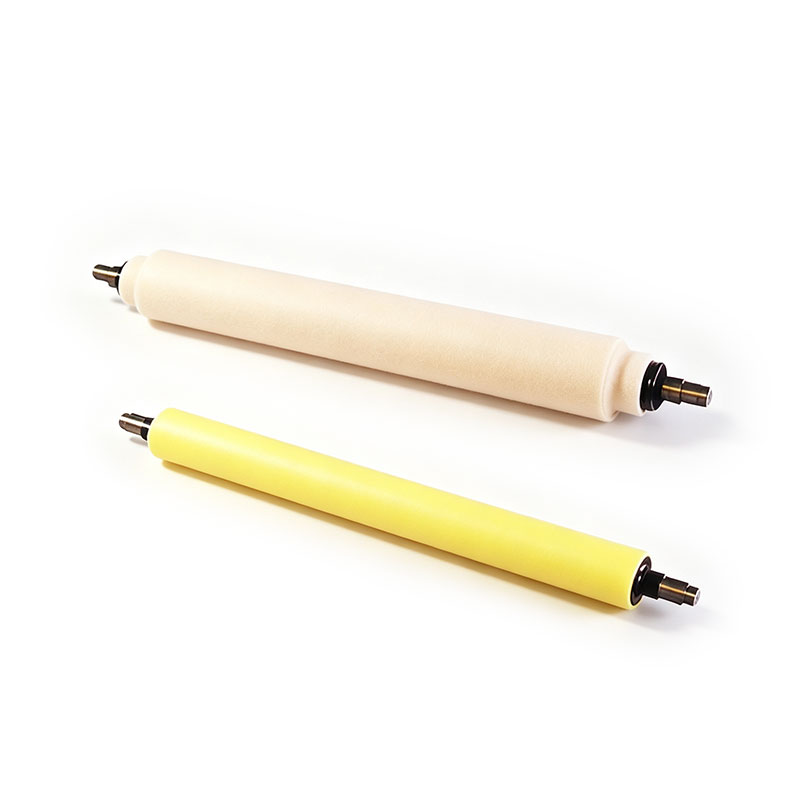

Custom Mercerizing Foulard Squeeze Roller for Textile Finishing

The AstraRoll Custom Mercerizing Foulard Squeeze Roller delivers elite chemical immunity and uniform extraction pressure for high-efficiency textile wet-finishing lines. In continuous mercerization and padding loops, fabric passes through highly concentrated alkaline baths under severe mechanical squeeze. Standard rubber rollers rapidly swell, soften, or crack when exposed to caustic chemicals and thermal stress—leading to uneven chemical dosing, fabric tearing, and frequent line shutdown.

Our heavy-duty foulard rollers eliminate these processing bottlenecks. The specialized alkali-resistant compound maintains a highly stable durometer and geometrical profile under continuous immersion. Featuring excellent compression recovery and low heat buildup, it acts as a precise pressure barrier that forces chemical liquors uniformly into the yarn matrix, guaranteeing optimal fabric luster and flawless dyeing affinity.

Technical Parameter

Product Framework: Heavy-Duty Precision Mercerizing / Foulard / Padding Squeeze Roller

Coating Material: Specialized Ultra-Alkali Resistant Synthetic Rubber / Elastomer Matrix

Hardness Window: 70 Shore A - 95 Shore A (± 3 Shore A strict industrial matching)

Chemical Immunity: Extreme resistance to concentrated Caustic Soda (NaOH), wetting agents, and dyes

Core Shaft Base: Heavy-Wall Seamless Carbon Steel / Corrosion-Proof Stainless Steel Core

Total Indicator Runout (TIR): ≤0.01 mm (CNC finish-ground for perfect horizontal nip extraction)

Dynamic Balancing: ISO 21940 G2.5 standard matching for vibration-free heavy-load rotation

Bonding Integrity: Multi-layer chemical vulcanization (Zero rubber-to-metal delamination warranty)

Applications

Chain & Chainless Mercerizing Ranges: Primary high-pressure squeeze and extraction rolls handling concentrated alkaline solutions (28-30°Bé).

Foulard & Padding Mangles: Precision chemical dosing and uniform dyestuff impregnation rollers for open-width fabric lines.

Continuous Washing & Bleaching Lines: High-extraction dewatering and squeegee rolls exposed to elevated temperatures and oxidative agents.

Denim & Yarn Dyeing Infrastructure: Heavy-load pulling and nip rollers used in automated indigo padding and continuous sizing loops.

Why Choose AstraRoll's Mercerizing Foulard Squeeze Roller for Textile Finishing?

Elite Caustic Resistance Prevents Roller Swelling: Concentrated caustic soda quickly dissolves standard polymers, causing sticky faces and diameter distortion. AstraRoll utilizes a proprietary, cross-linked rubber compound that remains completely inert in harsh alkaline fluids, ensuring the roller retains its structural profile and hardness over long operational campaigns.

Heavy-Duty Bonding Integrity Defeats Face Delamination: Extreme linear nip pressures create immense internal shear stress at the roller core interface. Every core shaft undergoes rigorous chemical anchoring and multi-stage vulcanization, creating an unbreakable bond that completely eliminates shell delamination and edge peeling.

Micron-Level CNC Crown Profile Eliminates Shading Defects (≤0.01mm TIR): Deflections along the roller body cause uneven squeeze pressure, resulting in side-center-side color shading defects on fabrics. We cut mathematically calculated crown profiles via precision CNC grinding, ensuring a perfectly flat, uniform nip contact across the entire fabric web width.

Outstanding Elastic Recovery Maintains Long Run Times: Constant continuous compression under high load causes low-grade rubber to develop permanent set or flat spots. Our high-resilience matrix exhibits exceptional dynamic memory, absorbing joint seam shocks from traveling fabrics and outlasting ordinary textile rollers by up to 3 times.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
