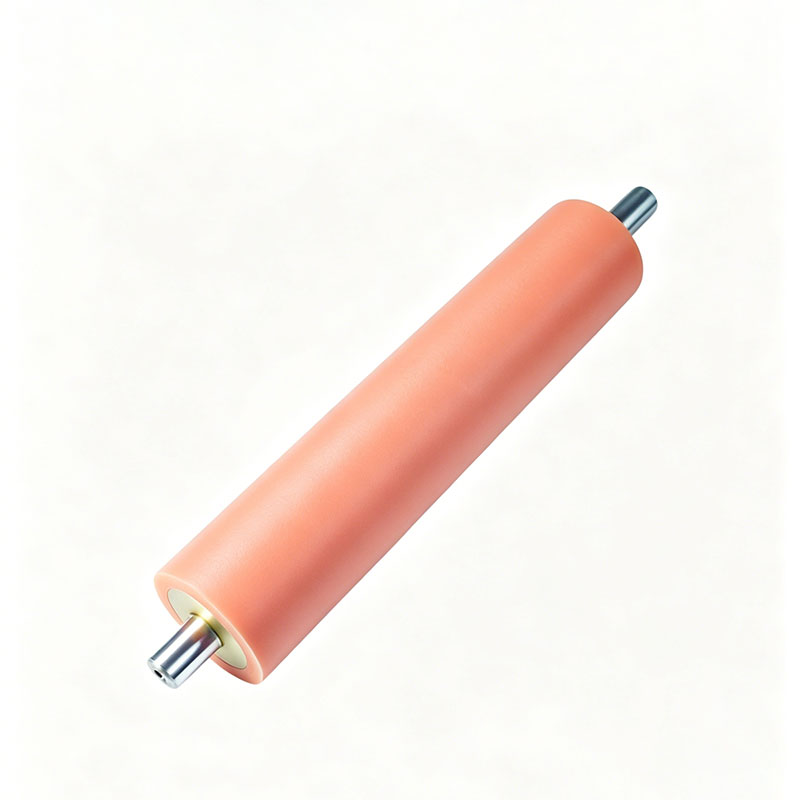

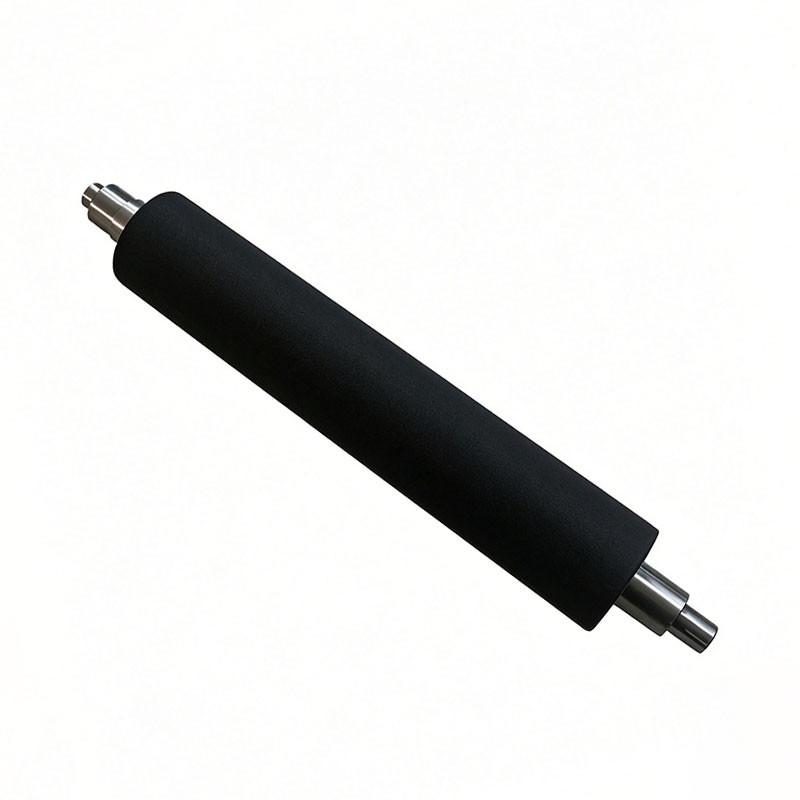

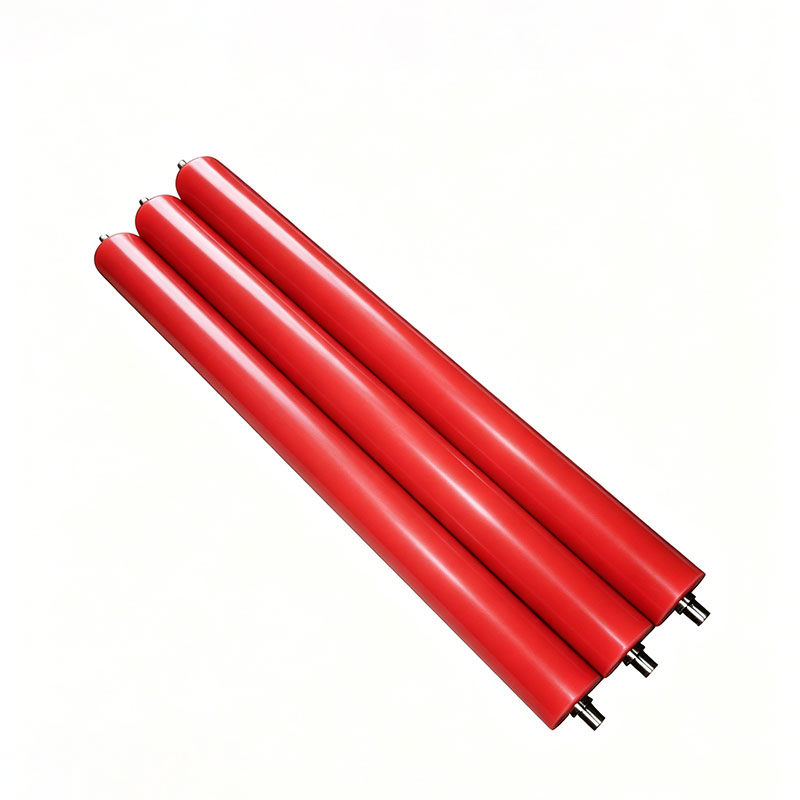

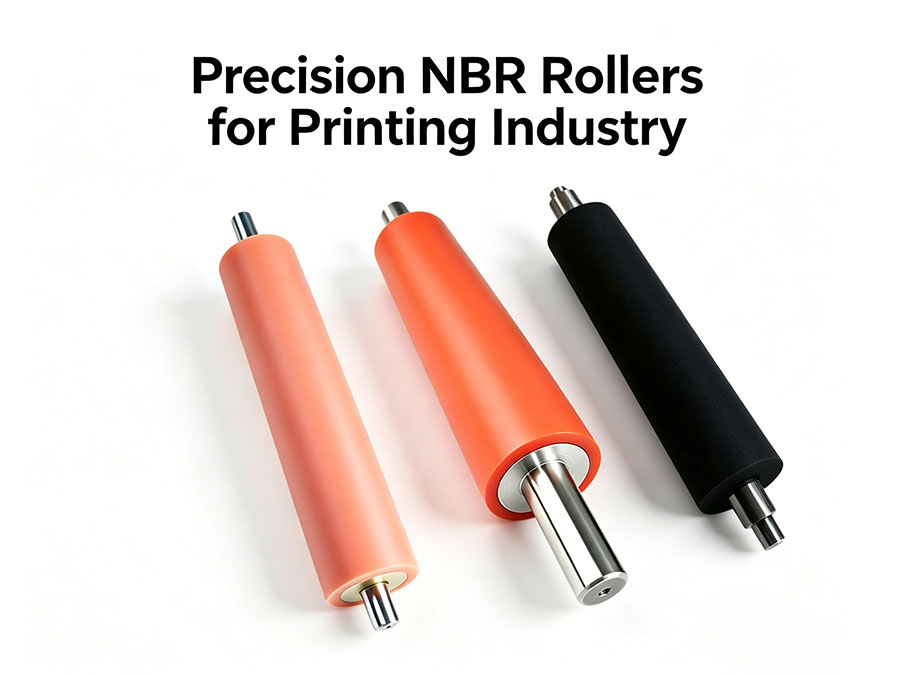

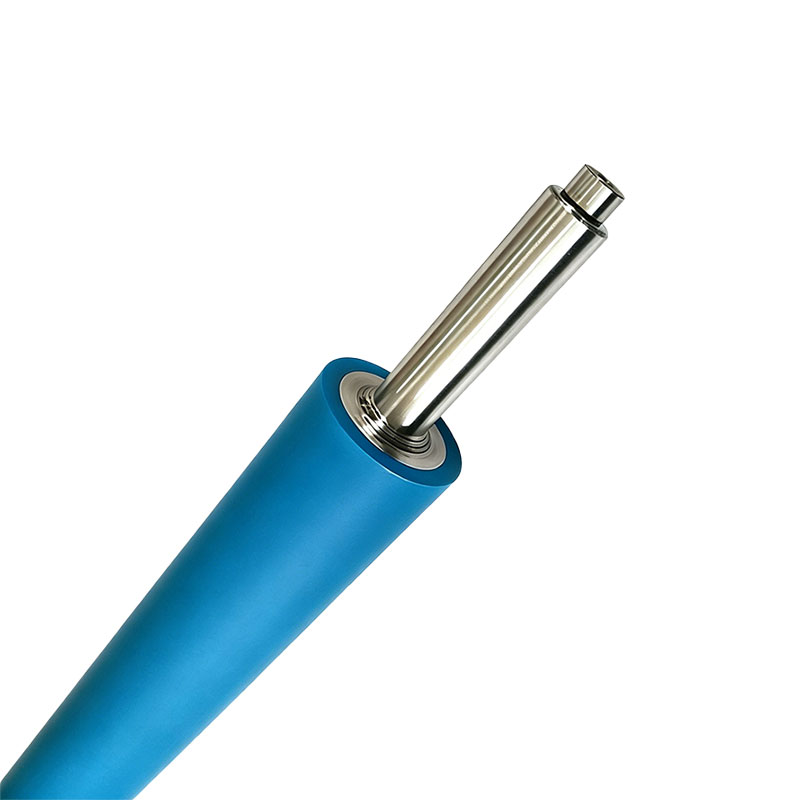

Precision NBR Rollers for Printing Industry

The AstraRoll Technical Advantage: Precision Ink Transfer
A printing roller is not just a rubber-coated tube; it is a high-precision fluid dynamics tool. We engineer our NBR series to solve the most critical pain points in the pressroom:

Extreme Solvent & Ink Resistance: NBR (Nitrile) is chemically engineered to repel oils. Our specialized NBR blend prevents the roller from absorbing printing inks or wash-up solvents. This completely eliminates the "swelling" or "shrinking" effect that ruins roller settings (nip stripes) and degrades print quality over time.

Micron-Level Surface Grinding: An uneven roller surface causes uneven ink distribution (mottling). AstraRoll utilizes state-of-the-art CNC cylindrical grinders to achieve a flawless surface finish with exceptionally tight concentricity (runout tolerance typically ≤ 0.02mm). This guarantees perfectly uniform contact across the entire printing plate.

Excellent Resilience & Heat Dissipation: High-speed printing generates intense friction heat in the ink train. Our NBR compound is highly resilient, meaning it bounces back instantly after compression, reducing internal heat buildup and extending the lifespan of the roller.

Dynamic Balancing: Modern presses run at 15,000+ sheets per hour. At these speeds, a poorly balanced roller will vibrate, causing "gear marks" or "chatter" on the printed sheet. Every AstraRoll printing roller undergoes strict high-speed dynamic balancing to ensure whisper-quiet, vibration-free operation.

Key Specifications & Custom Capabilities

Please note: As an OEM manufacturer, every parameter below can be engineered to your exact press specifications.
Rubber Material: Specially compounded NBR (Nitrile Butadiene Rubber).
Hardness Profile: 20 Shore A to 90 Shore A (Uniformity of ±2A across the entire roller face).
Concentricity / Runout: ≤ 0.02mm (Standard) to ≤ 0.01mm (Ultra-Precision).
Surface Roughness (Ra): Polished smooth or custom ground to specific Ra values for optimal ink retention.
Maximum Length: Custom manufactured up to 4,000mm+ for wide-web presses.
Compatibility: Drop-in replacements compatible with Heidelberg, Komori, Roland, KBA, Ryobi, and custom machinery.

Why Choose AstraRoll? (Your Printing OEM Partner)
1. Complete Core Fabrication & Rubber Coating

We don't just coat rollers; we build them from scratch. Our factory houses precision CNC lathes to manufacture the heavy-duty steel or aluminum cores, mill the journals (shaft ends), and apply the NBR coating all under one roof. This single-source quality control guarantees the mechanical integrity of the entire assembly.

2. Expert Reverse Engineering

Having trouble sourcing expensive original equipment parts for older or imported printing presses? Simply send us a worn roller or a CAD drawing. Our engineers will reverse-engineer the core dimensions and match the exact rubber compound and hardness required to provide a flawless, cost-effective OEM equivalent.

Frequently Asked Questions (FAQs)

Q: Can these NBR rollers be used for UV Printing?
A: Standard NBR is excellent for conventional oil-based inks and water-based coatings, but it is not recommended for UV inks, as the UV monomers will cause NBR to swell and degrade. For UV printing applications, please specify our Specialized EPDM Printing Rollers, which are chemically immune to UV ink systems.

Q: Why is my current ink roller "glazing" (becoming hard and shiny)?
A: Glazing is caused by ink pigments, paper dust, and dried solvents clogging the microscopic pores of the rubber. AstraRoll's NBR compound is designed with optimized surface porosity to resist premature glazing, allowing for easier wash-ups and longer periods between deep chemical cleaning.

Q: Do you offer a re-covering (re-rubberizing) service for printing rollers?
A: Yes. The steel core of a printing roller is highly valuable. You can send your worn rollers to our factory. We will strip the old rubber, inspect and repair the journals if necessary, apply a brand new NBR coating, grind it to precision specifications, and return it ready for the press.

Q: How do I specify the hardness (Shore A) when ordering?
A: Hardness depends on the roller's position. Generally, "Form rollers" (which touch the plate) are softer (e.g., 25-35A) to provide a delicate touch, while "Distributor rollers" in the middle of the ink train are harder (e.g., 40-60A) to crush and spread the ink. Let us know the roller's function, and our engineers will formulate the perfect durometer.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
