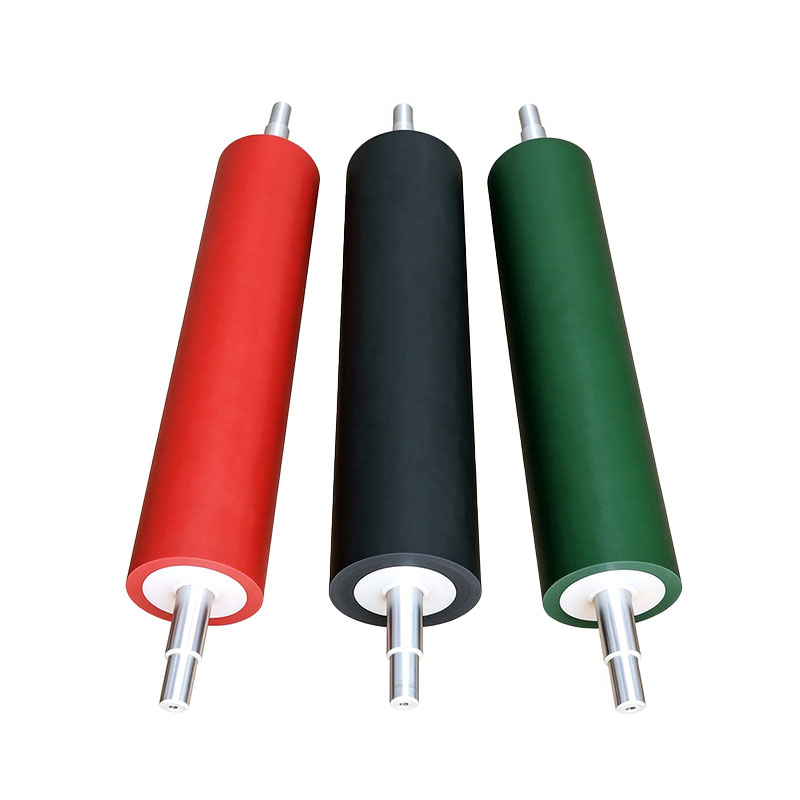

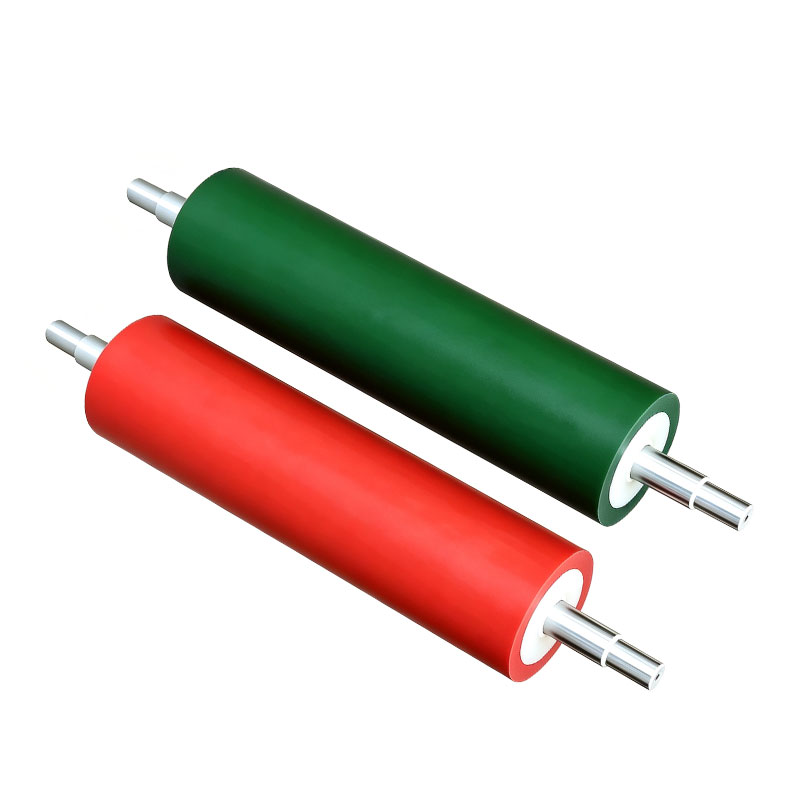

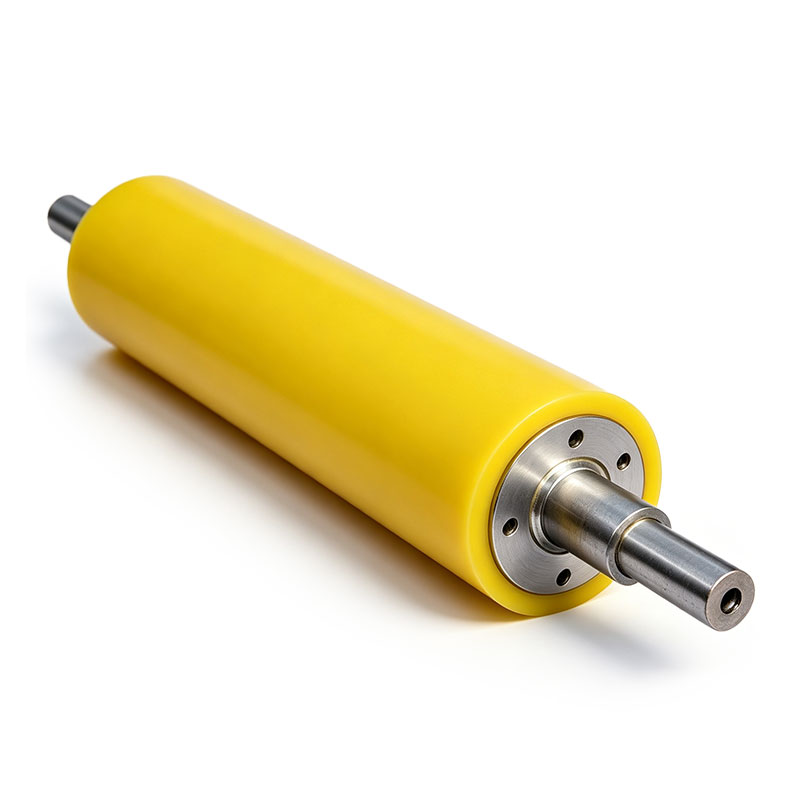

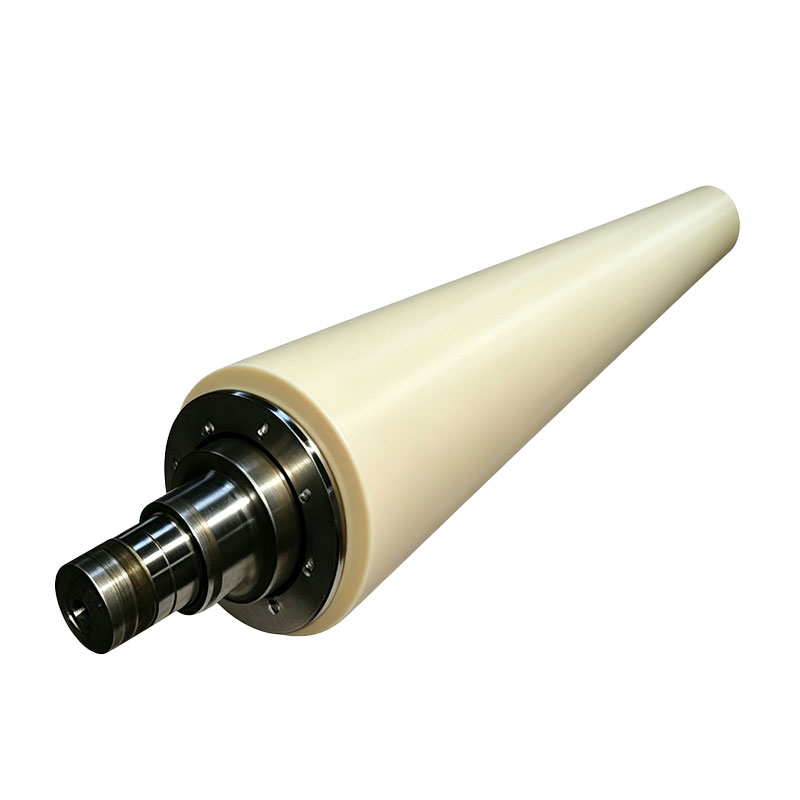

Custom Neoprene Rubber Roller for Printing & Industrial Machinery

The AstraRoll Custom Neoprene (CR) Rubber Roller is designed to deliver exceptional transfer consistency, solvent immunity, and long service lifetimes for modern high-speed offset, flexographic, and gravure printing systems. Inside busy print shops and converting facilities, rubber rollers are constantly exposed to complex solvent chemistry, friction-induced heat, and ambient ozone. Ordinary rubbers degrade, swell, or harden rapidly in these conditions, resulting in uneven ink transfer, stripe defects, and costly machine downtime.Our precision-molded chloroprene rubber rollers entirely eliminate these operating bottlenecks. By carefully calibrating our proprietary Neoprene compound matrix, we achieve a highly stable surface dynamic that remains inert to oils and typical pressroom chemicals. The precision-molded finish ensures absolute geometric uniformity across the small $25\text{ mm}$ diameter profiles, maintaining steady, vibration-free material contact for crisp graphic replication and steady tension control.

Technical Parameters

Product Framework: Precision Molded Neoprene (CR / Chloroprene) Industrial Rubber Roller

Coating Material: Premium Industrial-Grade Neoprene (Chloroprene Rubber Coating)

Base Core Material: Heavy-Duty Precision Iron / High-Tensile Steel Core Shafts

Hardness Window: 40Shore A - 80 Shore A (± 3 strict tolerance window)

Standard Dimensions: Diameter: 25 mm | Face Length: 300 mm (Fully customizable)

Surface Finish: High-Precision Ground, Micro-Polished, Zero-Defect Smooth Profile

Total Indicator Runout (TIR): ≤0.015mm (CNC precision-ground relative to bearing journals)

Chemical Resistance: High immunity to mineral oils, greases, ozone, alcohols, and aliphatic solvents

Applications

High-Speed Offset & Gravure Printing: Ideal for ink duct rollers, dampening distribution links, and squeegee rollers handling aggressive ink chemistries.

Packaging & Laminating Machinery: Precision pull, feed, and guide rollers transferring films, foils, and coated paper webs.

Industrial Web Guiding Systems: Lightweight, high-friction driving and steering rolls running in conveyor and sorting loops.

Textile & Leather Processing: General-duty material transport and light-pressure squeeze rollers exposed to mild chemical baths.

Why Choose AstraRoll's Neoprene Rubber Roller?

Excellent Chemical & Oil Swell Resistance: Printing solvents and petroleum-based inks can dissolve or distort generic rubber. AstraRoll's chemically cross-linked Neoprene matrix resists swelling and softening, ensuring your rollers maintain tight diameter tolerances over months of continuous shifts.

Advanced Ozone & Heat Aging Immunity: High-speed rotation generates friction heat and static-induced ozone, which typically crack standard polymers. Our specialized CR rubber compounds maintain consistent elastic recovery and surface softness even under steady operational heat buildup.

CNC Precision-Molded Flawless Concentricity (≤0.015mm TIR): Any slight vibration in a small 25mm roller leads to ink-streaking or tension loss. We finish-grind every single Neoprene shaft on automated CNC tooling to deliver micron-level geometric concentricity for perfectly parallel contact gaps.

Industrial Autoclave Vulcanization Defeats Rubber Delamination: Heavy rotational shear forces can tear weak rubber jackets right off their metal cores. We prepare every iron core with specialized chemical bonding primers before high-pressure autoclave curing, fusing the rubber and metal into an inseparable, heavy-duty unit.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
