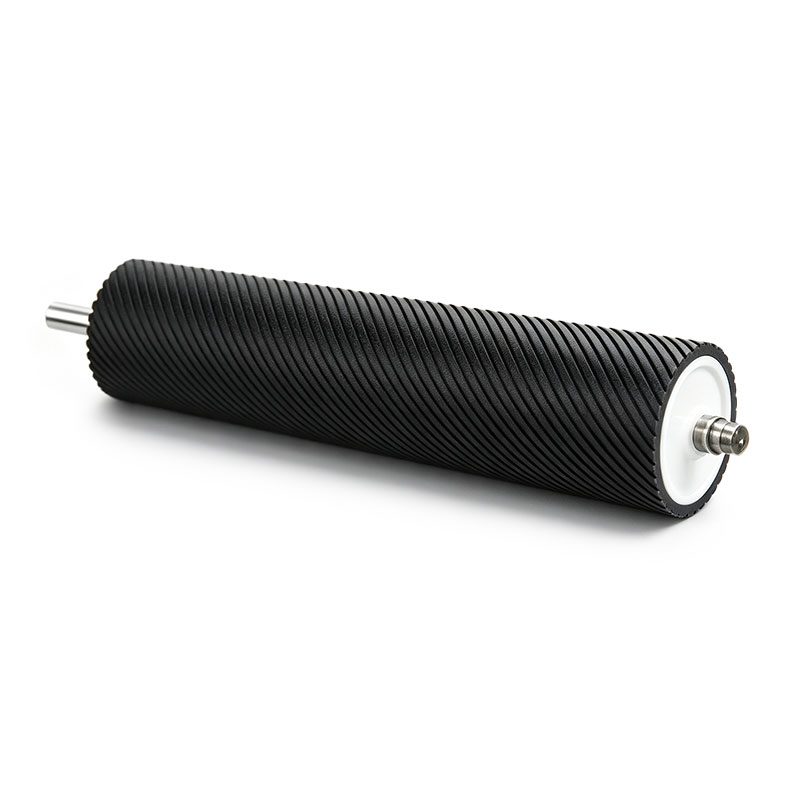

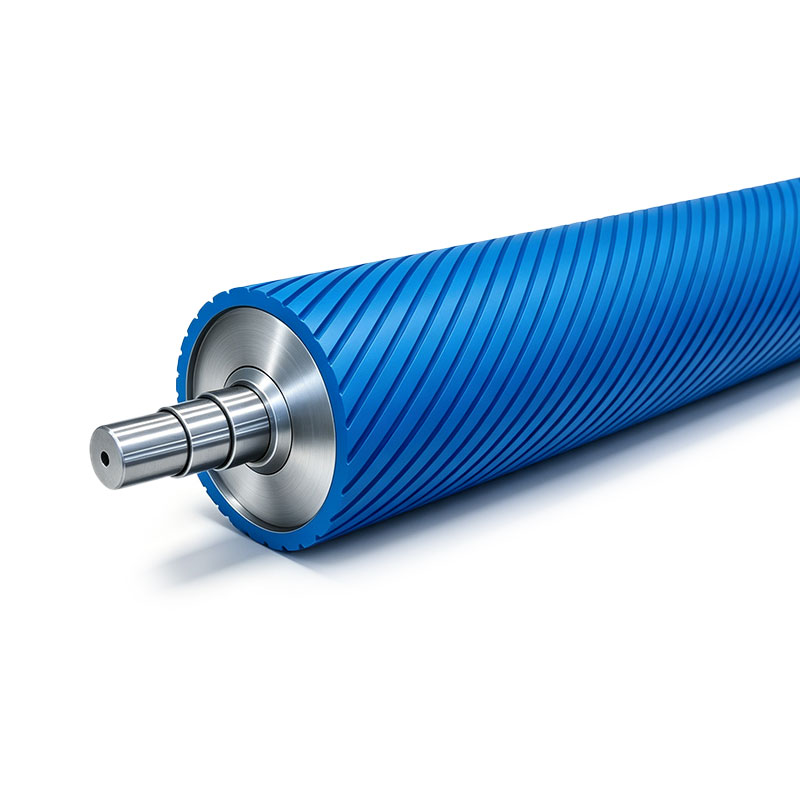

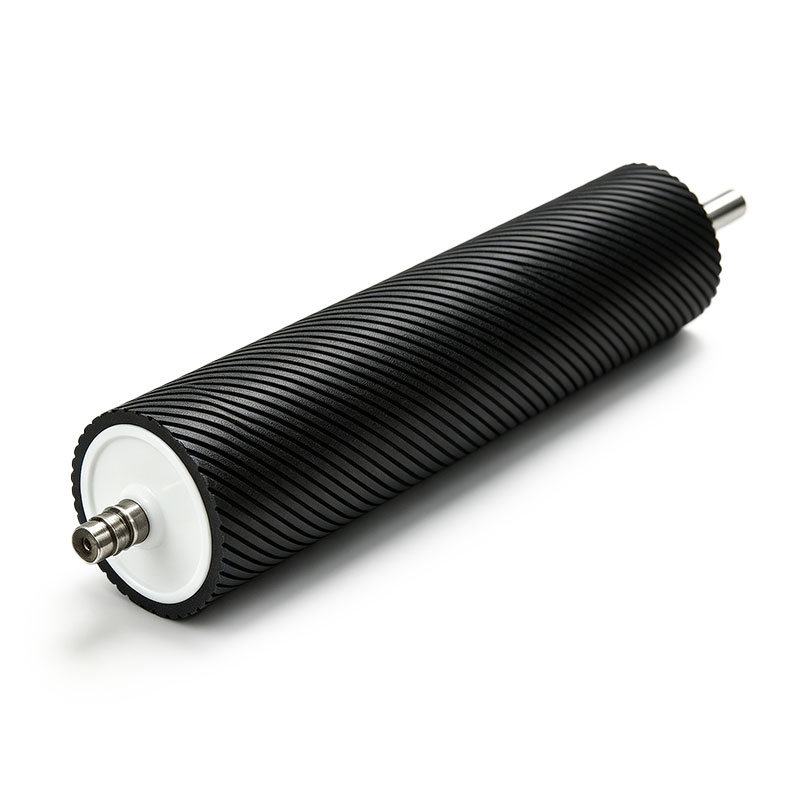

Custom Spiral Grooved Rubber Roller for Web Guiding & Processing

The AstraRoll Custom Spiral Grooved Rubber Roller delivers unparalleled web stabilization, zero-slip tracking, and fluid expulsion for demanding modern wide-web manufacturing systems. At high line speeds, traveling substrates (such as plastic films, foils, and coated papers) constantly trap air between themselves and standard flat rollers. This creates a dangerous "air-cushion effect" where the web loses contact and hydroplanes, causing serious severe tension spikes, lateral drifting, and product scratching.

Our precision spiral-grooved rubber rollers entirely eliminate these synchronization bottlenecks. The continuous helical grooves act as high-efficiency drainage and ventilation paths, disrupting the boundary air layer instantly. This allows the elastomeric surface to maintain 100% positive contact with the substrate, while providing a mild outward spreading action that helps smooth out center bagging and edge wrinkles.

Technical Parameter

Product Framework: Precision CNC Machined Spiral Grooved / Helical Fluted Rubber Roller

Coating Elastomer: High-Resilience NBR / Anti-Static Polyurethane (PU) / Specialized EPDM

Hardness Window: 55 Shore A - 85Shore A (±3 Shore A strict control window)

Groove Configurations: Custom Left/Right Hand Helical, Chevron, Diamond, or Straight Flutes

Groove Dimensions: Width: 1mm - 6mm | Depth: 1mm - 5mm (Tailored to substrate gauge)

Total Indicator Runout (TIR): ≤0.015mm (CNC finish-ground relative to bearing axis journals)

Dynamic Balancing: ISO 21940 G2.5 standard matching for zero high-speed chattering

Base Core Options: Heavy-Wall Carbon Steel / Corrosion-Proof Stainless Steel / Light Aluminum

Applications

High-Speed Film & Foil Converting: Anti-slip idler and guide rollers for BOPP, PET, and lithium battery separator coating lines running above 300m/min.

Rotogravure & Flexographic Printing: Continuous air-elimination and web-steering rollers situated inside drying tunnels and rewind stations.

Paper & Carton Packaging Machinery: Moisture-wiping, dewatering, and traction rollers handling continuous paperboard processing paths.

Laminating & Slitting Ranges: Tension-control and wrinkle-smoothing tracking rollers installed directly before slitter knife configurations.

Why Choose AstraRoll's Custom Spiral Grooved Rubber Roller?

Engineered Helical Channels Destroy the Air-Cushion Effect: High-velocity web movement creates micro-air layers that lift films off flat rollers. AstraRoll’s mathematically balanced left-and-right spiral patterns continuously push trapped air out to the sides, ensuring maximum traction and zero web tracking drift.

Micro-Spreading Matrix Minimizes Center Wrinkling: The opposing directional rotation of our helical grooves creates a gentle, continuous outward pulling force across the material face, reducing center slack zones and preventing expensive film folds or scratching.

CNC Grinding & Grooving Yields Flawless Concentricity (≤0.015mm TIR): Rough or uneven groove lips can puncture or score thin foils. We utilize state-of-the-art CNC grinding-and-grooving tooling arrays to achieve ultra-smooth channel transitions and perfect parallel accuracy, protecting sensitive coatings.

Autoclave Bonding Resists Severe Operational Shear Stress: Heavy linear pressures and high speeds can stress and tear open low-grade grooved rubber edges. Our multi-stage steel blasting, specialized chemical bonding primers, and full autoclave vulcanization forge an unbreakable molecular bond that guarantees zero rubber chipping or delamination.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
