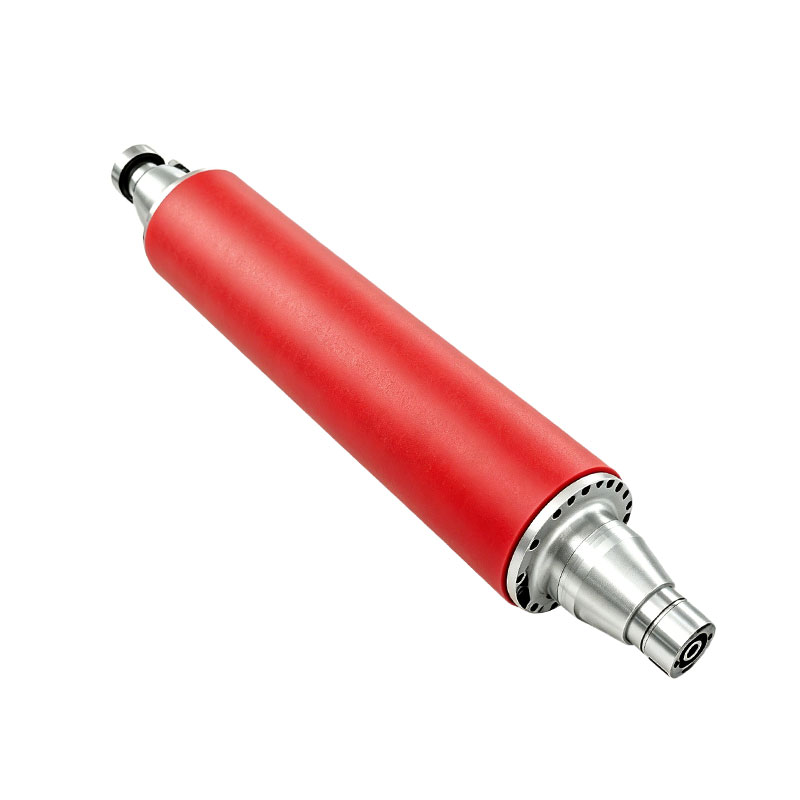

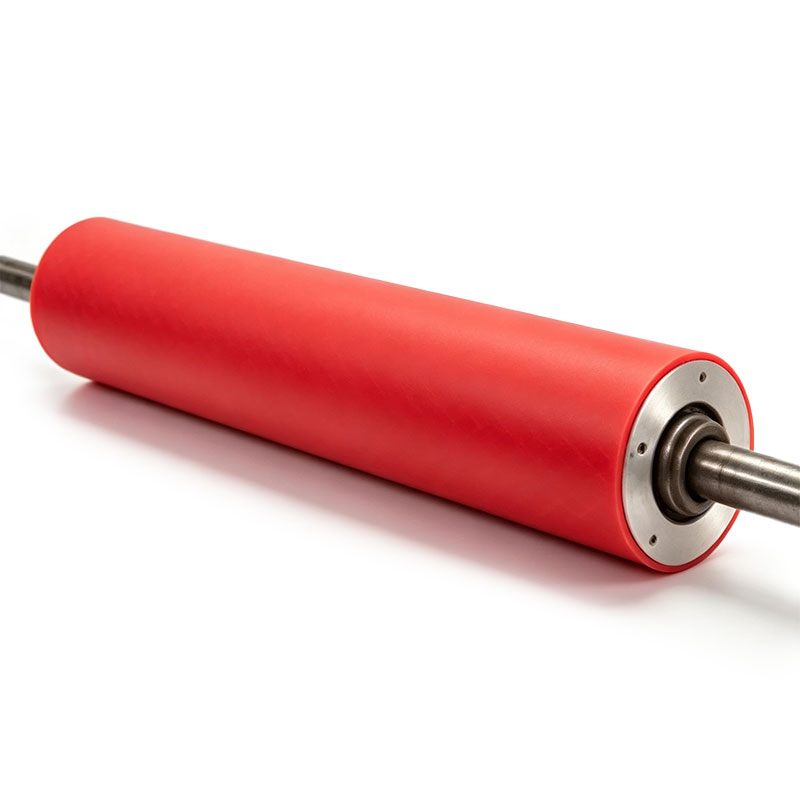

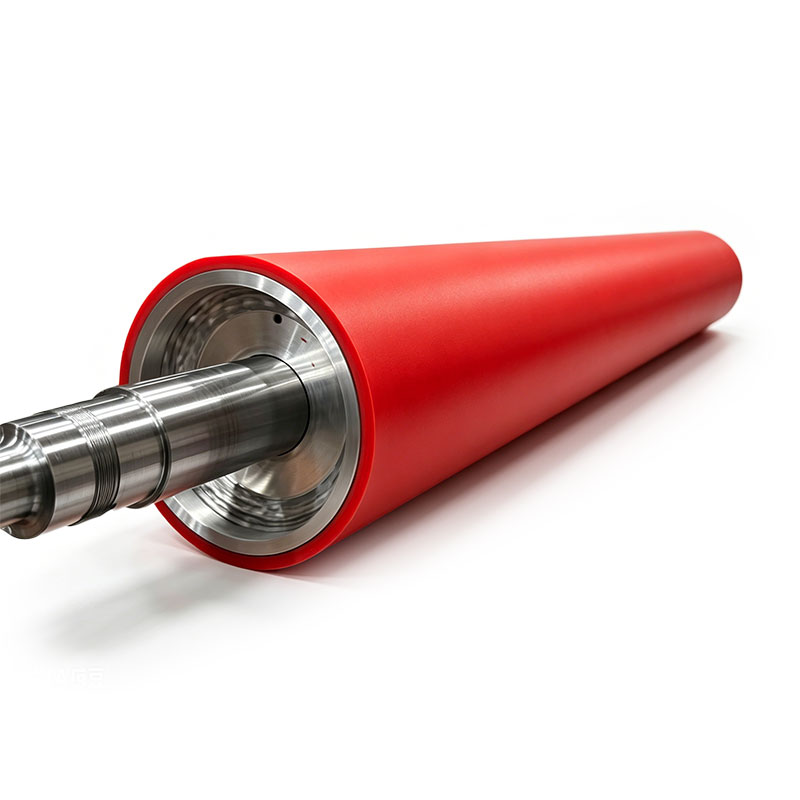

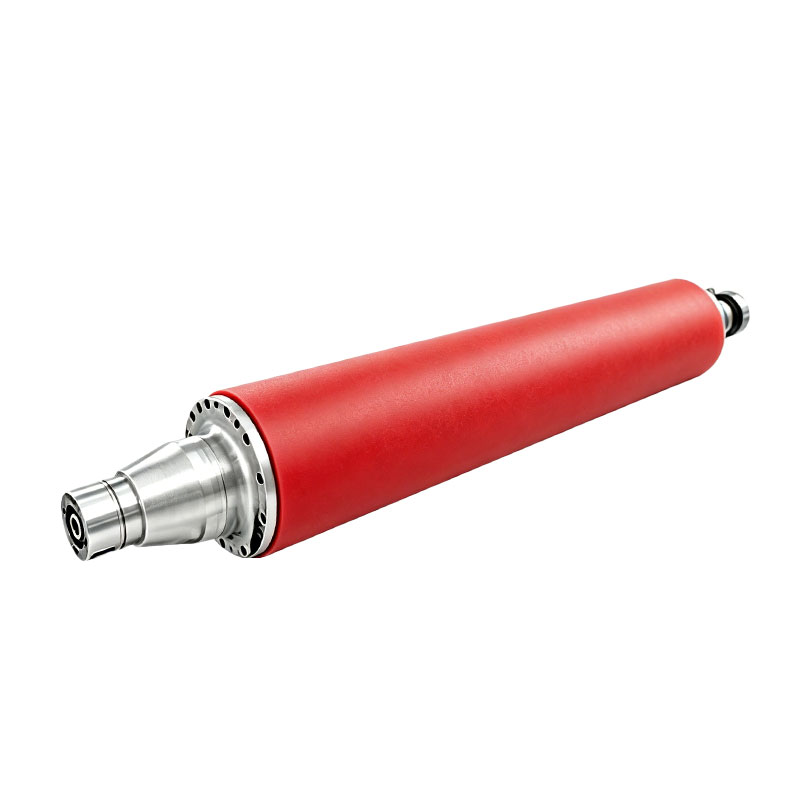

Custom Rubber Coated Electromagnetic Induction Heating Roller

The AstraRoll Custom Rubber Coated Electromagnetic Induction Heating Roller is an advanced thermal component developed for production setups requiring both high processing temperatures and uniform resilient nip pressure. Traditional fluid-heated rollers coated in rubber struggle with severe thermal lag, heat resistance across layers, and localized hot spots, leading to inconsistent substrate bonding and rapid rubber degradation.

Our technology solves this by using internal electromagnetic coils that heat the steel base cylinder directly beneath the rubber cover. The outer shell features a proprietary, high-thermal-conductivity rubber or silicone formula that ensures rapid heat transfer to the web surface while maintaining its physical elasticity. This fluid-free design completely removes hot oil contamination hazards, offering clean, fast-responding temperature calibration for modern multi-layer film, foil, and textile lamination lines.

Technical Parameter

Outer Surface Material: Premium High-Thermal-Conductivity Rubber or Specialized Silicone

Internal Heating: Solid-state internal multi-zone electromagnetic induction coils

Durometer Hardness: 50 Shore A - 90 Shore A (±3Shore A strict tolerance)

Maximum Operating Temp: Continuous performance up to +200℃(Rubber)/ +250℃ (Silicone)

Temperature Uniformity: Cross-Web Temperature Profile Variance ≤±1℃

Total Indicator Runout (TIR): ≤0.005mm (CNC precision ground at raw operating temperatures)

Dynamic Balancing Level: ISO 21940 Grade G2.5 standard for smooth vibration-free line tracking

Core Structural Base: Forged Heavy-Wall Seamless Steel Base Tube Framework

Applications

Precision Film Lamination: Thermal bonding of multi-layer flexible packaging sheets, optical protective films, and barrier layers without crushing materials.

Lithium-Ion Battery Assembly: Delivering consistent heat and pressure to delicate separator lines or coated current collectors.

Textile & Non-Woven Bonding: Hot-pressing, backing, and thermo-bonding composite fabrics requiring soft nip contact.

Substrate Embossing & Foil Stamping: Providing uniform heat transfer for stamping plastic sheets, holographic papers, and metallic foils.

Why Choose AstraRoll's Rubber Coated Electromagnetic Induction Heating Roller?

100% Fluid-Free Configuration with Zero Contamination: Uses solid-state induction coils instead of pressurized thermal oil or steam. This design completely removes the risk of fluid leaks or seal failures that can ruin packaging films, optical substrates, or electronics line cleanrooms.

High-Conductivity Rubber Compound Precludes Delamination: Standard rubber acts as an insulator, trapping heat and cracking under thermal stress. AstraRoll uses a specialized, highly cross-linked rubber compound filled with micro-sized thermal agents. This structure speeds up heat transfer to the web while preventing layer delamination and maintaining rubber elasticity at +250℃.

≤±1℃ Dynamic Thermal Uniformity Across Web: The integrated multi-zone internal electromagnetic core adaptively adjusts induction output. This eliminates edge-cooling and keeps the entire rubber profile within an ultra-strict ≤±1℃ variance, protecting heat-sensitive films from warping.

Sub-Micron Runout for Even Contact Pressure (≤0.005mm Runout): Thermal expansion often warps standard rolls, causing uneven nip pressure. We perform final precision grinding on the outer rubber face under thermal stress simulation, ensuring a dynamic runout within ≤0.005mm for flat, uniform bonding across the entire material width.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
