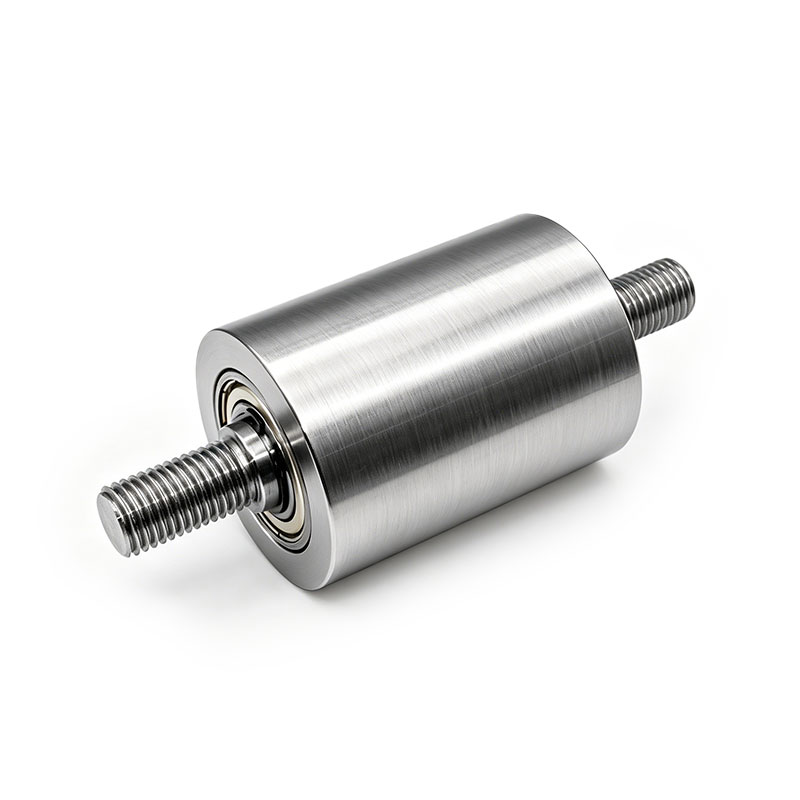

Custom Unpowered Gravity Conveyor Rollers for Heavy Loads
Product Overview:
In automated material handling and heavy manufacturing, unpowered gravity conveyor lines are the most cost-effective and maintenance-free way to move goods. However, when faced with massive wooden pallets, multi-ton castings, or heavy bulk containers, standard spring-loaded, thin-wall stamped rollers fail catastrophically. The tubes bow under pressure, the stamped bearings crush, and the spring-loaded shafts rattle violently within the conveyor frame, eventually tearing the mounting holes. The AstraRoll Custom Heavy-Duty Gravity Roller is built to conquer these brutal environments. We completely abandon cheap stamped housings, utilizing a heavy-wall seamless steel tube with CNC-bored ends that perfectly house industrial-grade precision ball bearings. The defining feature is our rigid external threaded shaft (available with custom hex wrench flats). When bolted tightly to your conveyor side frames using heavy nuts, the roller acts as a structural cross-beam. This permanently eliminates shaft rattling, provides astronomical bending resistance, and ensures a frictionless, ultra-smooth glide for your heaviest payloads.
Roll Function: Conveyor Roller, Material Handling
Industry Applications: Industry, Logistics Conveyor Systems, Packaging
Inquiry Email: sales@astraroll.com
Custom Unpowered Gravity Conveyor Rollers for Heavy Loads Details
The AstraRoll Technical Advantage
We build our heavy-duty unpowered rollers to withstand massive static and dynamic impacts without compromising rolling efficiency:
Rigid Threaded Shaft Locking: Unlike spring-loaded hex shafts that must have loose clearances to snap into a frame, a threaded shaft is bolted solidly to the sidewall. This zero-clearance fit eliminates side-to-side play, suppresses operational noise, and vastly increases the overall torsional rigidity of your conveyor chassis.
Heavy-Wall Anti-Bending Structure: We match the tube's wall thickness specifically to your payload. By utilizing thick-walled seamless steel, the roller experiences near-zero mid-span deflection (bowing) even when heavy pallets are parked on the line for days, protecting the internal bearings from eccentric shear forces.

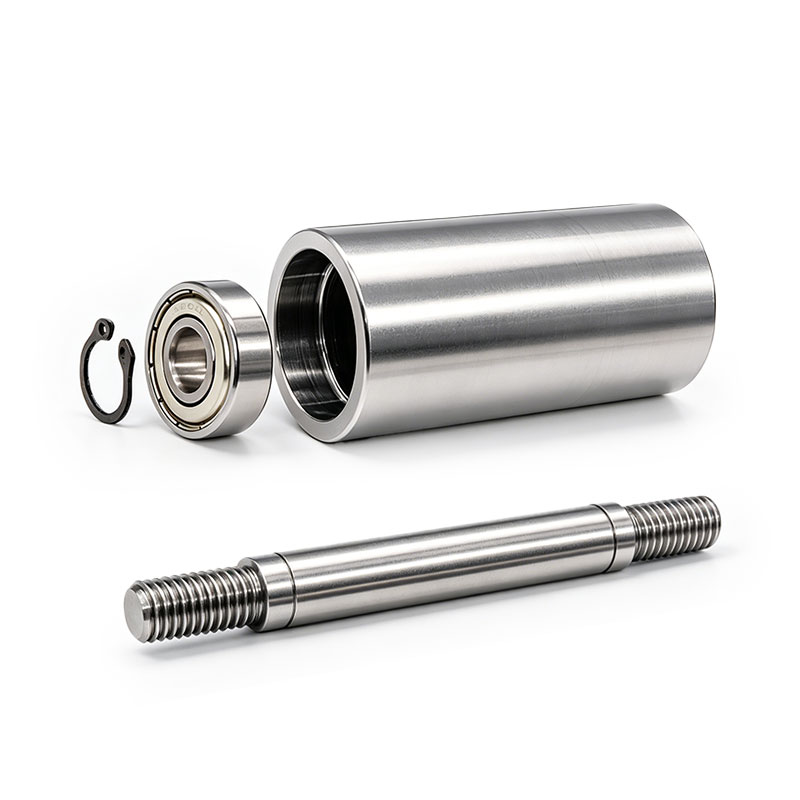

Precision Embedded Bearing: The bearing housings are CNC-bored directly into the heavy tube ends. This creates a perfect interference fit for the industrial deep groove ball bearings, reducing starting rolling resistance by over 70% compared to standard stamped commercial rollers.
100% Concentricity Control: Every heavy-duty roller is inspected for Total Indicator Runout (TIR ≤ 0.05mm). This guarantees that fast-moving, heavy goods will not bounce, chatter, or track off-center as they travel down a gravity decline.
Key Specifications
Please note: AstraRoll gravity rollers are 100% custom-manufactured to your specific conveyor frame width, thread sizes, and load requirements.
Tube Material: SUS304, SUS316L, Carbon Steel, or Aluminum.
Shaft Material: Solid C45 Steel or Stainless Steel.
Tube Outer Diameter (O.D.): 38mm, 50mm, 60mm, 76mm, 89mm, up to 114mm+.
Wall Thickness: 2.0 mm, 3.0 mm, 4.5 mm, 6.0 mm, up to 10.0mm.
Thread Sizes: M10, M12, M14, M16, M20 (Standard Metric or custom Imperial threads).
Load Capacity: Ranging from 80 kg up to 1,500+ kg per individual roller.
Surface Treatment: Zinc-plated (standard), Precision ground (bare steel), or PU coated.
Why Choose AstraRoll?

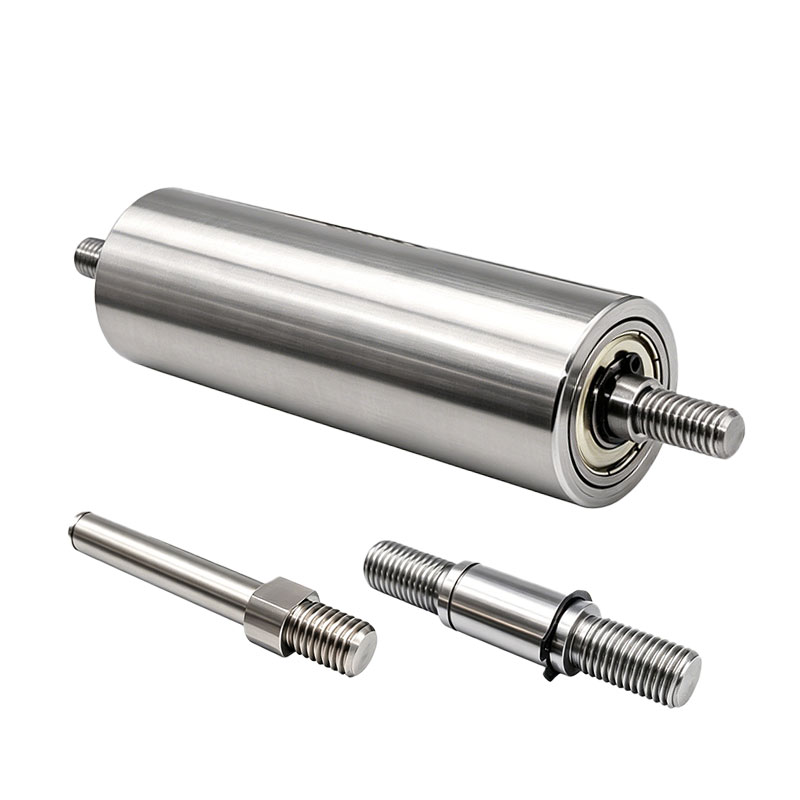

1. Custom Machined Wrench Flats
Installing threaded rollers can be frustrating if the central shaft spins freely while you try to tighten the lock nut. AstraRoll solves this by CNC-machining precise hexagonal steps (wrench flats) at the base of the threads. This allows your assembly team to securely grip the shaft with a standard open-ended wrench while torquing the nut down, saving massive amounts of assembly time and preventing stripped threads.
2. Application-Specific Engineering
You do not have to guess which tube thickness will survive your factory floor. Provide our engineering team with your conveyor's internal width (between-frame dimension) and your maximum dynamic load per pallet. We will calculate the exact tube diameter, wall thickness, and shaft size required to guarantee a zero-failure operational lifespan.
Frequently Asked Questions (FAQs)

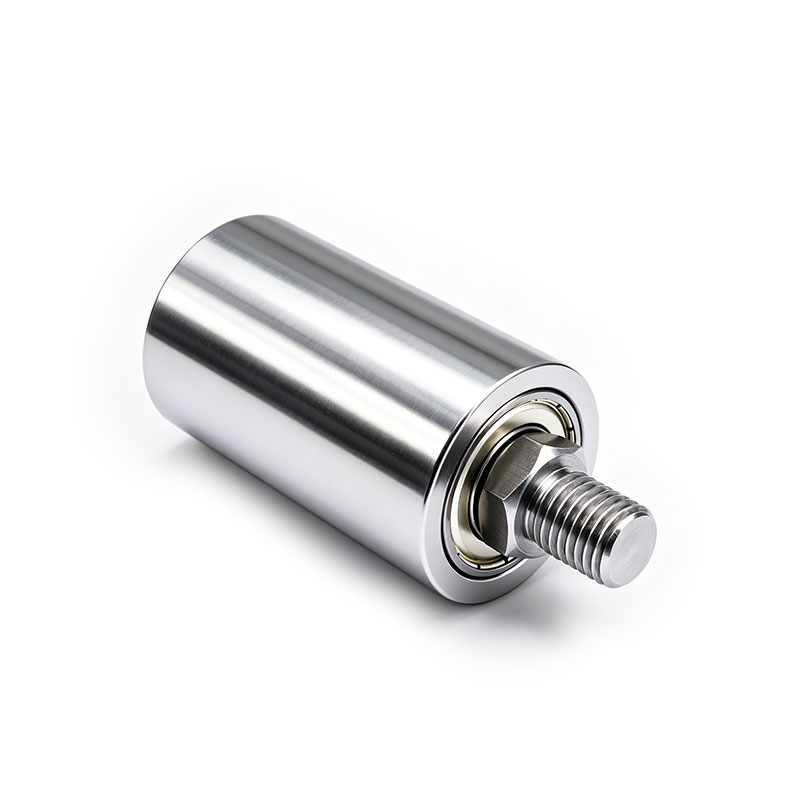

Q: What is the purpose of the hexagonal step on the threaded shaft shown in the images?
A: That is the Wrench Flat. When tightening the lock nuts on both sides of a roller, the internal shaft will naturally want to spin. The hex step allows an installer to hold the shaft completely stationary with an open-ended wrench while using a ratchet to securely torque the nut against the conveyor frame, ensuring a permanent, vibration-proof installation.
Q: How do I choose the correct wall thickness for a heavy pallet conveyor?
A: Selection depends on the maximum dynamic load per roller and the overall length (face width) of the roller. For wide conveyors (e.g., over 1,000mm) carrying 1-ton pallets, we highly recommend utilizing a larger outer diameter (e.g., 76 mm or 89 mm) with a wall thickness of no less than 4.5mm to prevent the tube from bowing in the center.
Q: Can these unpowered rollers be used in washdown, wet, or cold storage environments?
A: Yes, but standard zinc-plated carbon steel will eventually rust under constant water exposure or condensation. For food processing, cold storage, or chemical washdown environments, you must specify our All-Stainless Steel Series, featuring SUS304 tubes, stainless shafts, and stainless steel bearings equipped with 2RS rubber seals to completely lock out moisture.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
