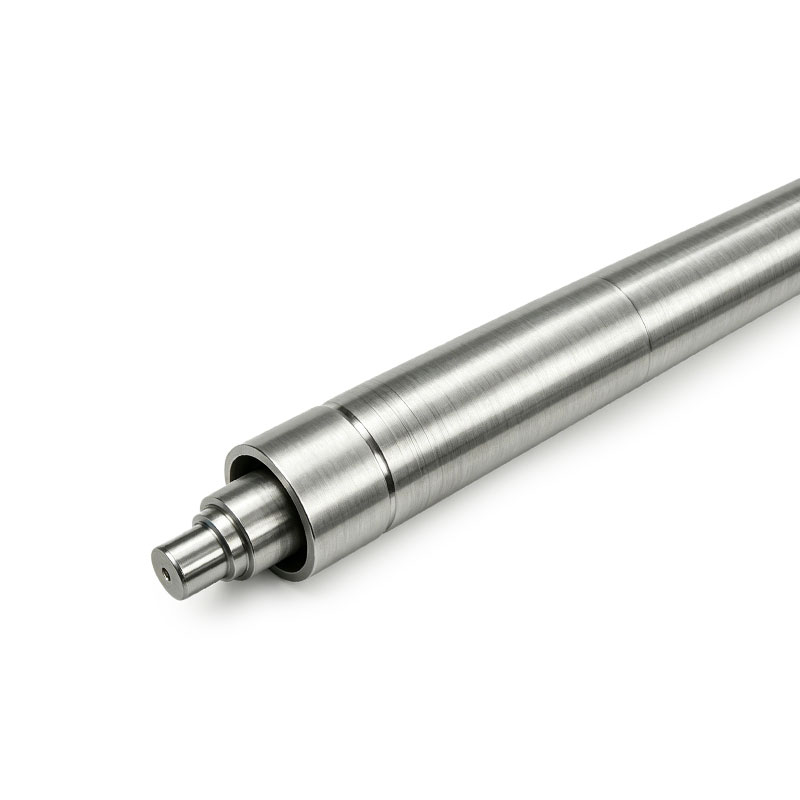

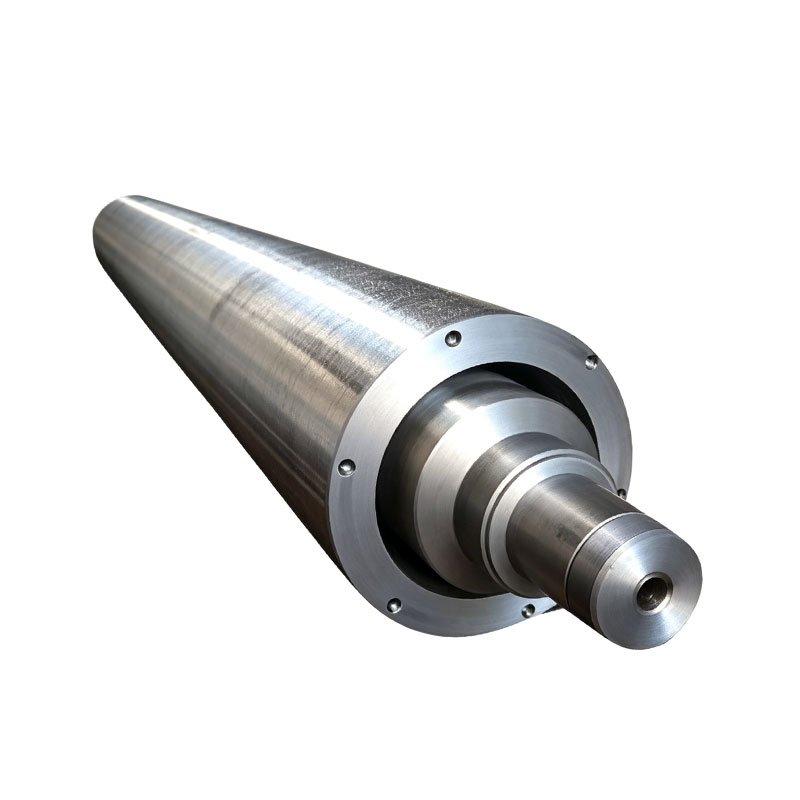

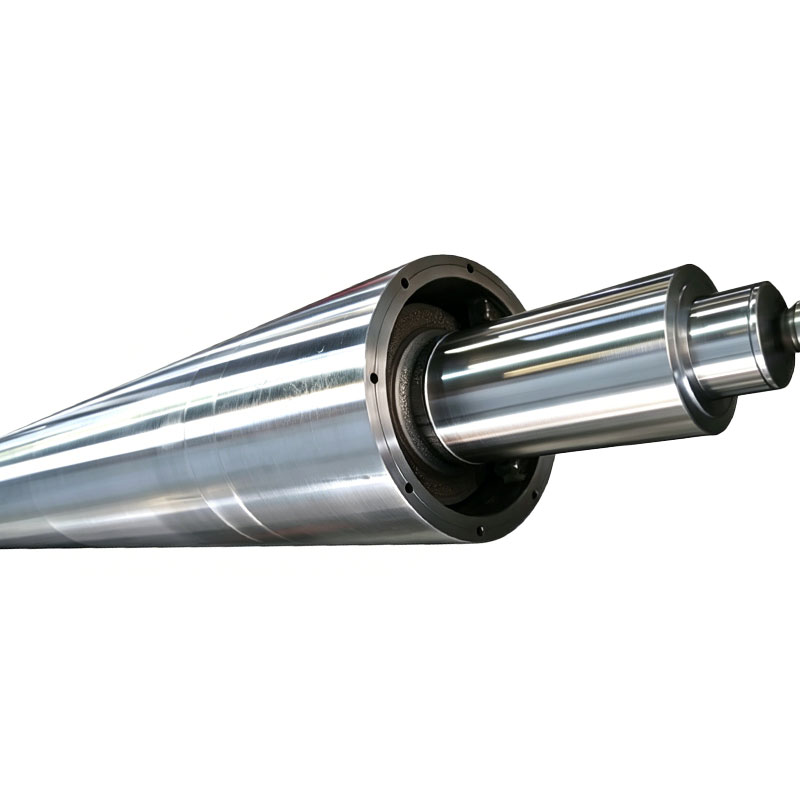

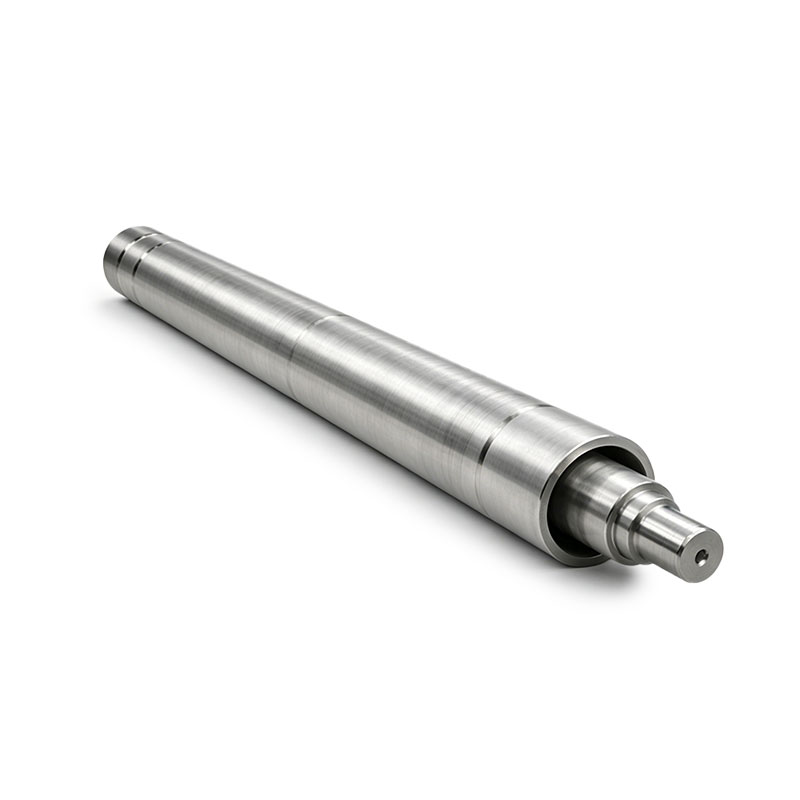

Stainless Steel Anti Deflection Roller Manufacturer
Product Overview:
In wide-web processing—such as textile squeezing, paper calendering, or high-speed laminating—standard heavy-duty rollers face a critical physics problem: under extreme nip pressure, the center of the roller bows (deflects) away from the mating roll. This microscopic bending results in uneven pressure, causing wet center edges on fabrics, uneven adhesive coatings on films, or wrinkled paper webs. As a specialized Stainless Steel Anti-Deflection Roller Manufacturer, AstraRoll eliminates this issue entirely. Our Custom Anti-Deflection Roller features a highly engineered internal architecture. By utilizing a massively rigid, stationary central shaft combined with specialized internal supports, the outer stainless steel shell is forced to remain perfectly straight regardless of the tonnage applied to the ends. Constructed from premium, corrosion-resistant SUS304 or SUS316L stainless steel, these rollers deliver absolute, uniform linear nip pressure across the entire working width, guaranteeing flawless product quality and zero middle-sagging.
Roll Function: Spreader Roller, Printing Roller
Industry Applications: Printing, Textile, Packaging, Converting
Inquiry Email: sales@astraroll.com
Stainless Steel Anti Deflection Roller Manufacturer Details
The AstraRoll Technical Advantage
Engineering a roller that defies the laws of bending under extreme tonnage requires highly advanced internal mechanics:
Zero Center Deflection: Standard rollers are supported only at their extreme ends, causing them to bow in the middle like a hammock. Our anti-deflection rollers support the rotating outer shell uniformly from the inside via a stationary central shaft and specialized internal bearing arrays, effectively neutralizing bending forces.
Perfectly Uniform Nip Pressure: Because the outer shell remains perfectly straight, the nip pressure applied to your web is identical from the left edge, through the center, all the way to the right edge. This prevents "baggy centers" in films and ensures uniform moisture extraction in textile mangles.
Premium Stainless Steel Shel: Squeezing processes often involve water, dyes, acids, or harsh chemicals. The robust, thick-walled stainless steel outer sleeve guarantees permanent immunity to rust and chemical pitting, protecting both the internal mechanisms and your delicate web.
Ultra-Low Maintenance: Despite their complex internal architecture, our rollers are sealed with high-grade rotary seals to prevent fluid ingress. The internal bearings are lubricated for long-term, high-load operation, ensuring years of maintenance-free production.
Key Specifications
Please note: Every AstraRoll anti-deflection roller is 100% custom-engineered to match your machine's exact face width, maximum nip pressure, and speed requirements.
Outer Shell Material: SUS304 or SUS316L Stainless Steel.
Center Shaft Material: High-Yield Forged Alloy Steel (e.g., 4140/42CrMo).
Outer Diameter (O.D.): Custom from 100mm up to 800mm+.
Face Length: Custom manufactured from 1,000mm up to 6,000mm+.
Deflection Tolerance: ≤ 0.02mm under maximum rated load.
TIR (Concentricity): CNC ground to ≤ 0.01mm.
Why Choose AstraRoll?
1. A Precision Stainless Steel Anti-Deflection Roller Manufacturer
Manufacturing an anti-deflection roller is significantly more complex than standard roller production. It requires immense CNC boring capabilities and deep mechanical engineering expertise to calculate exact load distributions. AstraRoll designs, machines, assembles, and tests every internal component in-house, ensuring guaranteed linear pressure performance before the roller ever leaves our facility.
2. Turnkey Coating & Assembly Services
While the outer shell is stainless steel, many applications (like textile squeezing) require an elastomer surface. AstraRoll can take your Custom Anti-Deflection Roller and apply premium Polyurethane (PU), NBR, or EPDM rubber coatings directly over the stainless shell, delivering a complete, ready-to-install nip assembly tailored perfectly to your process.
Frequently Asked Questions (FAQs)
Q: How do I know if I need an Anti-Deflection Roller or just a larger diameter standard roller?
A: If you are running a wide-web machine (e.g., over 2,000mm) and applying heavy pneumatic or hydraulic pressure to the ends of the roller, and you are experiencing uneven coating thickness or wet centers on your material, a standard roller will not fix the issue. Only an internally supported Anti-Deflection Roller can guarantee perfectly flat, uniform linear pressure.
Q: Are these rollers "Dead Shaft" or "Live Shaft"?
A: They are strictly Dead Shaft designs. The massive inner alloy steel shaft is bolted rigidly to your machine frame and does not rotate. It acts as the stationary backbone. Only the outer stainless steel sleeve rotates around this central shaft on internal bearings.
Q: Can you repair or rebuild existing anti-deflection rollers from other brands?
A: Yes. Because of the extreme internal forces, the internal bearings and rotary seals will eventually wear out after years of heavy use. AstraRoll provides complete overhaul services. We will disassemble your existing roller, replace all internal bearings, upgrade the seals, regrind the outer stainless shell, and recalibrate it to OEM specifications.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
