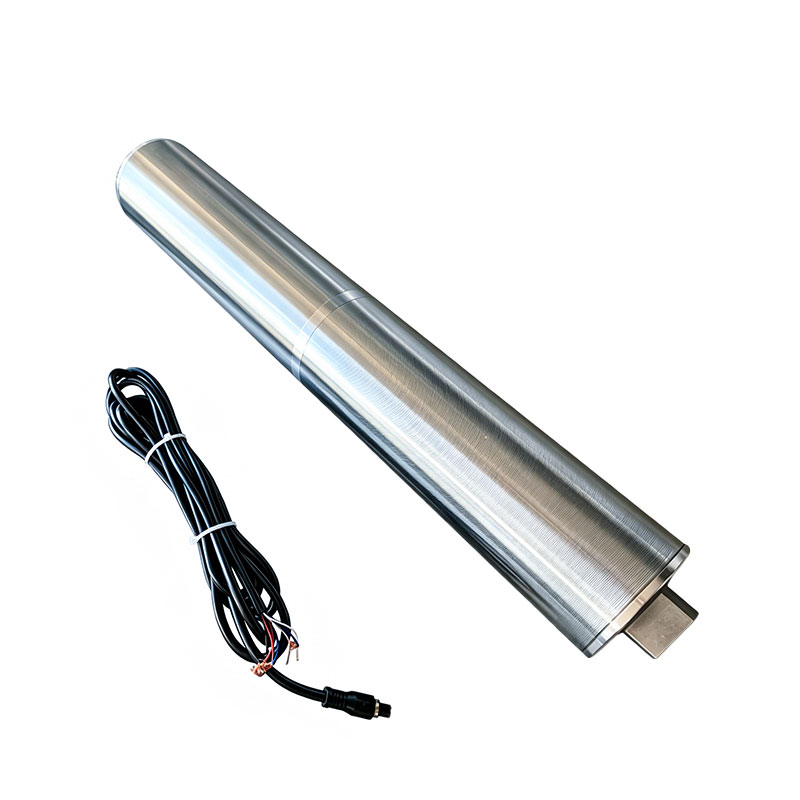

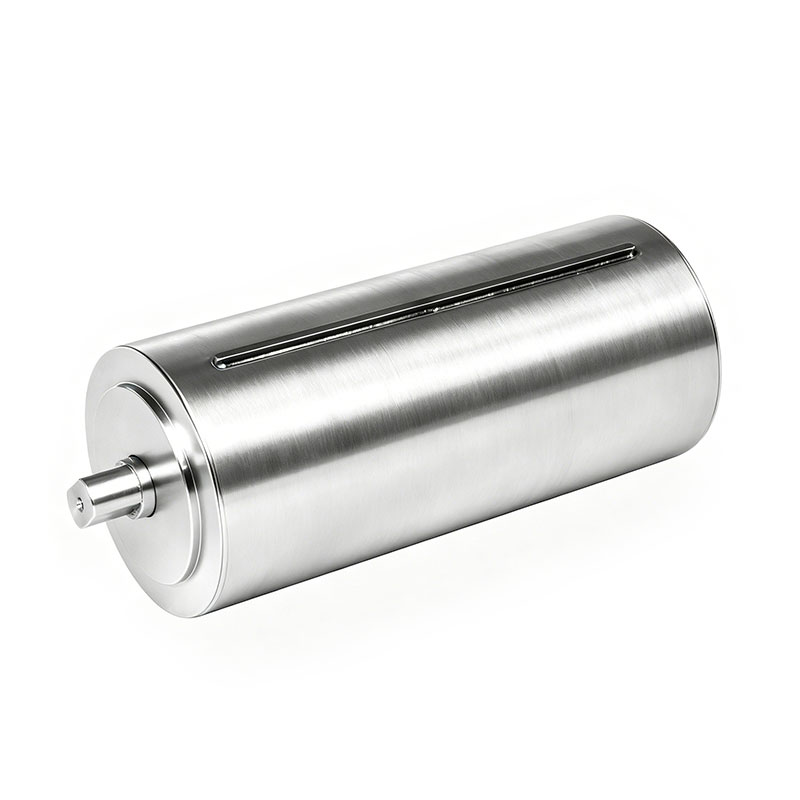

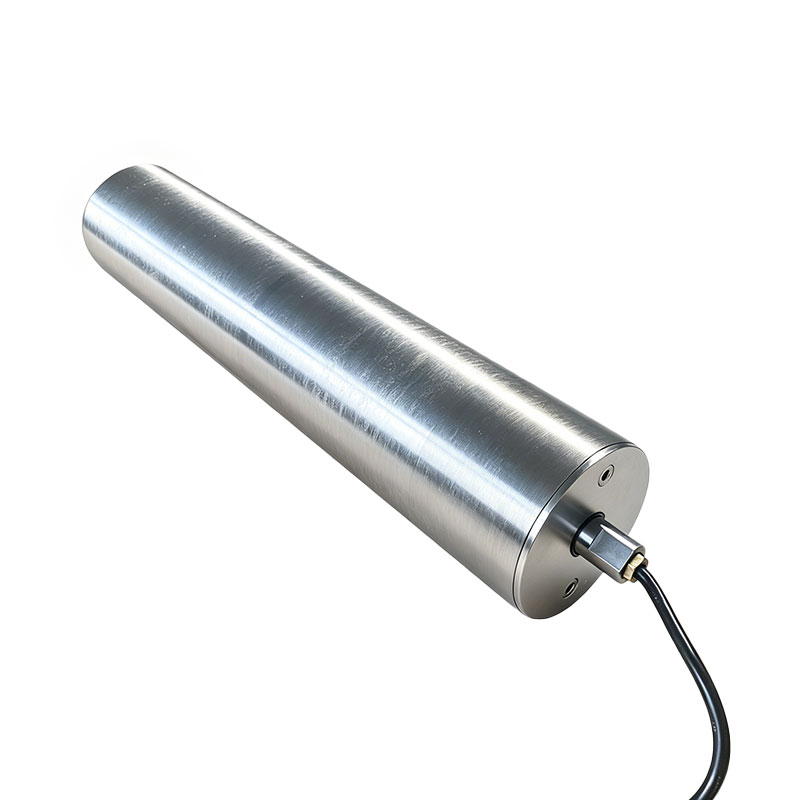

Custom Washdown Stainless Steel Drum Motor For Food Processing

The AstraRoll Technical Advantage

Engineering a self-contained motorized pulley that survives extreme washdowns requires flawless sealing and thermal management:

IP69K Sanitary Sealing: We utilize advanced double-lip PTFE rotary shaft seals and O-rings to completely isolate the internal electronics and gearing. This allows the drum motor to be blasted with 1,450 PSI water at 80°C (176°F) without a single drop penetrating the core.

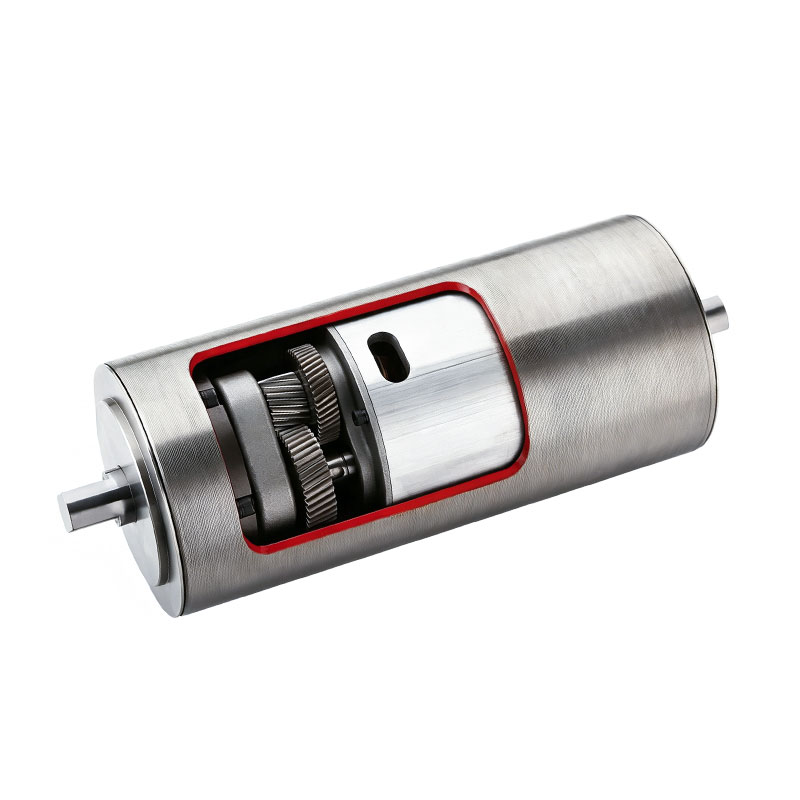

Space-Saving Internal Architecture: Because the motor and gearbox are housed entirely within the pulley shell, there are no protruding motors or bulky external gear reducers. This allows for incredibly streamlined conveyor designs, saving valuable factory floor space and improving worker safety by eliminating exposed pinch points.

Crevice-Free Polished Surface: The SUS304 or SUS316L shell is smoothly polished with seamlessly welded end housings. There are no external cooling fins, bolts, or mounting brackets where meat scraps, allergens, or bacterial biofilms can accumulate.

High-Efficiency Power Transfer: Direct drive internal gearing eliminates the friction and energy loss associated with external chains and sprockets, delivering up to 96% mechanical efficiency directly to your conveyor belt.

Primary Applications

AstraRoll Washdown Stainless Steel Motorized Pulleys are the industry standard for strict sanitary environments:

• Meat, Poultry & Seafood Processing: Driving raw product conveyors that undergo aggressive daily chemical foaming and high-pressure steam sanitization.
• Bakery & Dairy: Handling sticky doughs, powders, and dairy products where standard motors would quickly foul and fail.
• Pharmaceutical & Cleanrooms: Sterile packaging and pill conveying lines requiring zero particulate generation and easy wipe-downs.
• Agricultural Wash Lines: Transporting freshly harvested fruits and vegetables through water baths and sorting stations.

Key Specifications

Please note: Every AstraRoll Drum Motor is custom-built based on your conveyor's load, belt speed, and width requirements.

Outer Diameter (O.D.): Custom from 60mm up to 320mm+.
Face Length: Custom manufactured from 250mm up to 1,500mm+.
Power Output: 0.03 kW up to 5.5 kW (Fractional to 7.5 HP).
Voltage Options: 115V / 230V / 380V / 460V (Single or Three-Phase, VFD compatible).
Lubrication: FDA/USDA H1 Approved Food-Grade Synthetic Oil.
Sealing Rating: IP66, IP67, IP69K.

Why Choose AstraRoll?

1. Modular Plastic Belt Integration

Modern food processing heavily relies on modular plastic belts (like Intralox or Habasit). AstraRoll can CNC-machine the stainless steel shell of the drum motor to perfectly match the sprocket profile of your specific modular belt, or we can vulcanize food-grade FDA rubber/polyurethane lagging onto the shell to drive standard smooth belts.

2. Food-Grade Thermal Management

Enclosing an electric motor inside a sealed steel drum generates heat. AstraRoll strictly utilizes premium copper windings and submerges the internal components in an FDA H1-approved food-grade synthetic oil bath. This oil safely transfers heat to the outer stainless steel shell, where the moving conveyor belt continuously cools the unit, preventing overheating even during 24/7 continuous operation.

Frequently Asked Questions (FAQs)

Q: Do I need to change the oil inside the drum motor regularly?
A: No. AstraRoll drum motors are shipped pre-filled with high-grade synthetic FDA H1 food-safe oil designed for the lifetime of the unit under normal operating conditions. For standard food conveying, the internal mechanics are virtually maintenance-free and require no routine oil changes.

Q: Can this motorized pulley be controlled by a Variable Frequency Drive (VFD)?
A: Yes. Our internal AC induction motors are fully compatible with VFDs (inverters). This allows you to precisely dial in your conveyor speed to match production fluctuations, sorting requirements, or specific processing times on the line.

Q: Is it safe to use harsh caustic chemicals and chlorine on the drum motor?
A: Yes. We specifically utilize highly corrosion-resistant SUS304 or SUS316L stainless steel for the shell, shafts, and end caps, paired with chemically resistant Viton or PTFE seals. This configuration easily withstands the caustic foaming agents, chlorinated sanitizers, and quaternary ammonium compounds standardly used in food plant sanitation protocols.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
