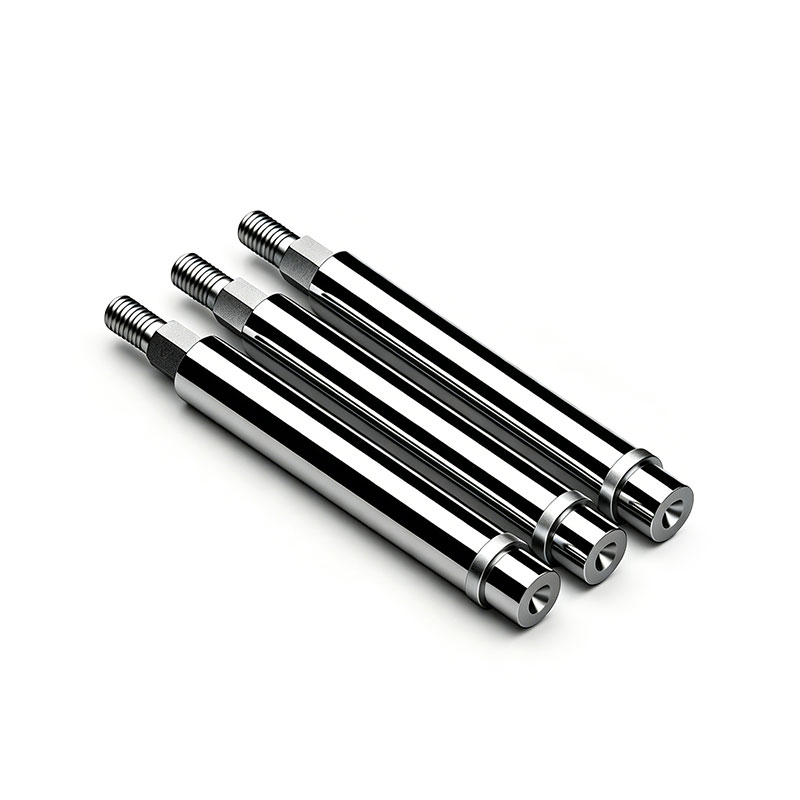

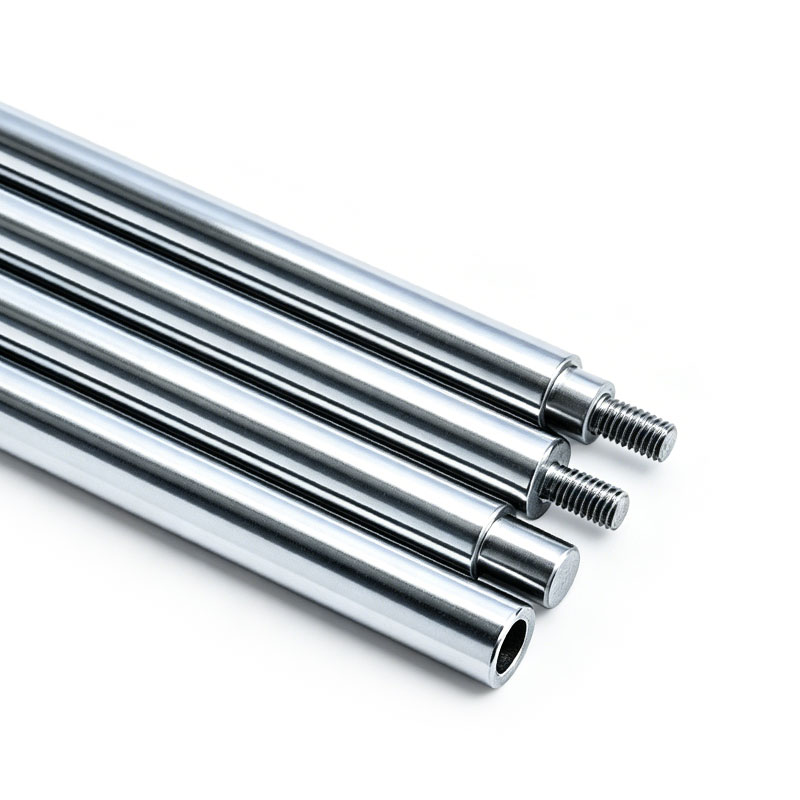

Industrial Stainless Steel Hydraulic Cylinder Shaft
Product Overview:
In high-pressure hydraulic systems, the cylinder shaft (piston rod) is the most vulnerable component. It must continuously extend and retract through tight polyurethane seals under immense pressure. If the shaft pits from rust or gets scratched by debris, hydraulic fluid will bypass the seals, causing catastrophic pressure loss and environmental contamination. While standard carbon steel shafts rust rapidly in harsh environments, the AstraRoll Industrial Stainless Steel Hydraulic Cylinder Shaft provides the ultimate line of defense. We manufacture these shafts using premium stainless steel billets, ensuring the core of the rod is permanently immune to oxidation, saltwater, and chemical washdowns. To prevent the soft stainless steel from wearing against the seals, we apply a thick, micro-cracked hard chrome plating layer. These Custom Chrome Plated Stainless Steel Shafts offer the perfect engineering synergy: the unbreakable rust immunity of a stainless core, combined with the razor-smooth, extreme surface hardness (850+ HV) of hard chrome. The result is a frictionless, leak-free linear motion component built to survive the world's most unforgiving environments.
Roll Function:
Industry Applications: Industry, Mining, Medical, Agriculture, Food, Beverage
Inquiry Email: sales@astraroll.com
Industrial Stainless Steel Hydraulic Cylinder Shaft Details
The AstraRoll Technical Advantage
Manufacturing a flawless hydraulic cylinder shaft requires absolute control over straightness, surface finish, and metallurgy:
Synergistic Hard Chrome Plating: Bare stainless steel is relatively soft and prone to "galling" (friction tearing) when sliding through tight seals. By electroplating a precise layer of hard chrome over the stainless core, we create a surface with a hardness of HRC 65-70. This provides a glass-like sliding surface that dramatically extends the lifespan of your hydraulic wipers and pressure seals.
Micro-Precision Centerless Grinding: A hydraulic seal cannot seal against a wavy or rough surface. We utilize heavy-duty centerless grinders to achieve an ultra-fine surface roughness of Ra 0.2 to 0.4 μm, ensuring instantaneous hydrodynamic lubrication between the shaft and the seal.
Laser-Verified Straightness: If a cylinder rod is even slightly bent, it will bind inside the barrel and destroy the bronze guide bushings. AstraRoll straightens every shaft prior to grinding and plating, guaranteeing a linear straightness tolerance of ≤ 0.1 mm/meter.
Quenched & Tempered Cores: For applications requiring massive lifting force (where 304 stainless might bend), we utilize 400-series martensitic stainless steels (like 431) or AISI 4130 alloy steel. These are Quenched and Tempered (Q&T) to achieve exceptional tensile and yield strength, preventing buckling under heavy compressive loads.
Key Specifications
Please note: AstraRoll cylinder shafts are 100% custom-machined to your exact hydraulic engineering blueprints.
Base Shaft Material: SUS304, SUS316L, SUS420, SUS431, or AISI 4130/4140.
Surface Treatment: Hard Chrome Plated.
Chrome Thickness: 20 μm - 50 μm (Customizable).
Chrome Hardness: 850 - 1000 HV (HRC 65+).
Outer Diameter (O.D.): Custom from 6mm up to 300mm+.
Overall Length: Custom manufactured up to 6,000mm.
Surface Roughness: Ra 0.2 - 0.4 μm.
Diameter Tolerance: ISO f7, g6 (Standard for hydraulic cylinders).
Why Choose AstraRoll?
1. One-Stop Cylinder Rod Manufacturing
Purchasing raw chrome-plated bar stock and then outsourcing the end-machining to a local CNC shop often damages the delicate chrome layer. AstraRoll handles the entire process in-house. We cut, CNC-turn the threads and grooves, centerless grind, and then perform the final hard chrome plating and polishing. You receive a 100% ready-to-install component with zero machining defects.
2. Strict Salt Spray Testing
For marine and offshore OEMs, corrosion resistance is not a guess—it's a requirement. Our custom chrome-plated stainless steel shafts are subjected to rigorous NSS (Neutral Salt Spray) and CASS testing, guaranteeing hundreds of hours of corrosion-free performance in brutal saltwater environments before shipment.
Frequently Asked Questions (FAQs)
Q: What is the difference between f7 and g6 tolerances for a hydraulic shaft?
A: Both are precision ISO tolerances used for shafts that slide inside bearings or seals. A g6 tolerance is slightly tighter and closer to the nominal diameter, often used for standard hydraulic applications. An f7 tolerance provides slightly more clearance, which is sometimes preferred in heavy machinery cylinders to account for thermal expansion and guide ring lubrication.
Q: Can you manufacture hollow hydraulic cylinder shafts?
A: Yes. For weight reduction in mobile hydraulics or aerospace applications, AstraRoll can utilize deep-hole drilling and honing techniques to manufacture high-strength hollow cylinder rods, complete with internal and external hard chrome plating if required.
Q: Do I need Induction Hardening before Chrome Plating?
A: It depends on your application. Standard hard chrome plating is very thin and provides surface wear resistance. If your cylinder shaft is exposed to heavy external impacts (e.g., excavators where rocks might strike the rod), we recommend Induction Hardening the steel core to HRC 50+ before applying the chrome layer. This prevents the shaft from denting under impact, which would otherwise crack the rigid chrome plating.
Q1. Are you a trader or direct factory?
We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.
Q2. What are your main products?
AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.
Q3. What about delivery time?
We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.
Q4. How can I get a quote for customized products?
Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.
Q5. What is your payment?
TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
