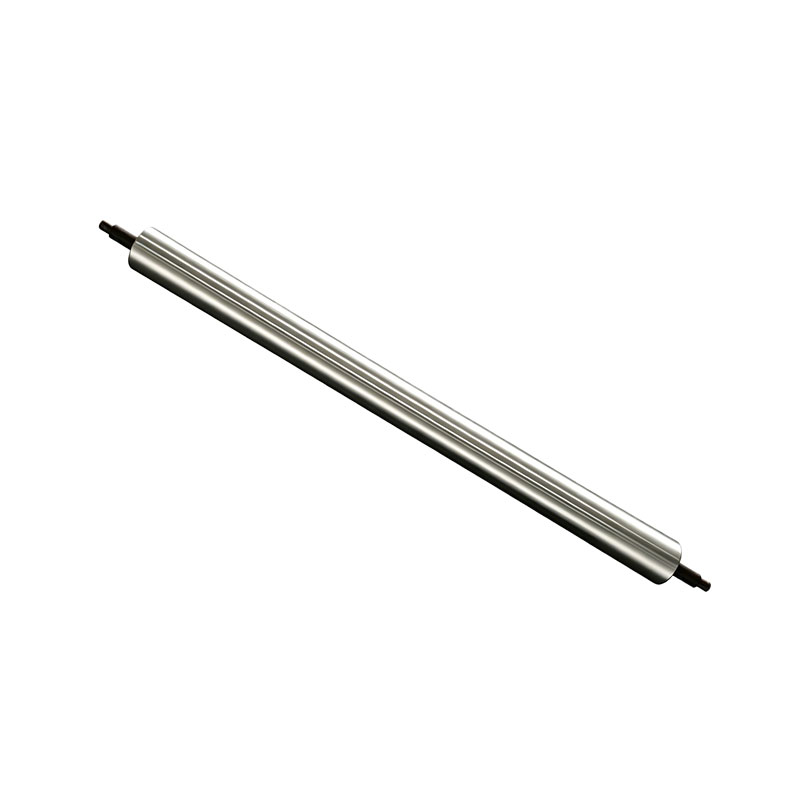

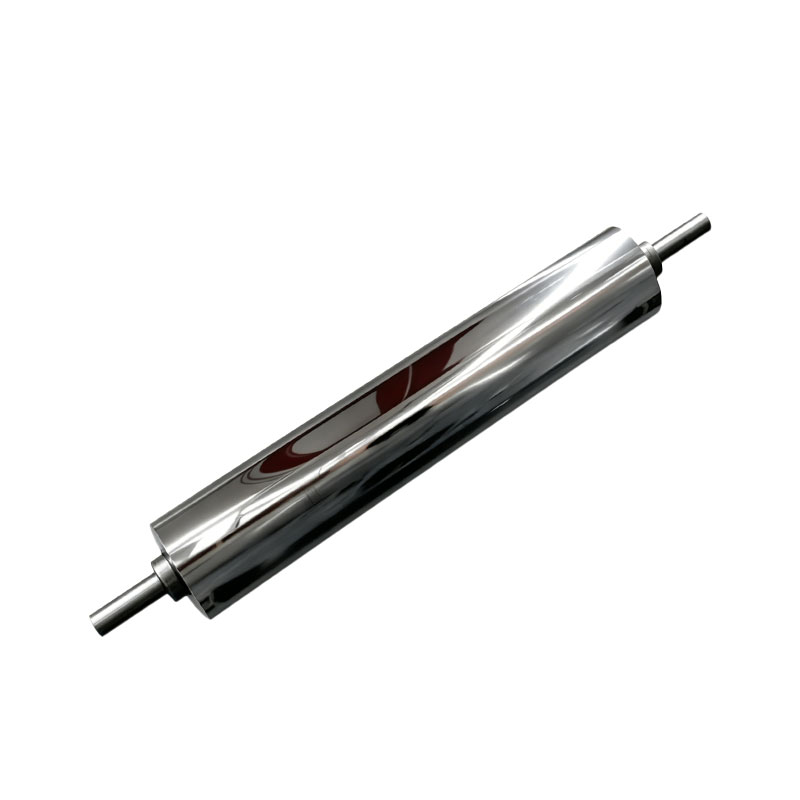

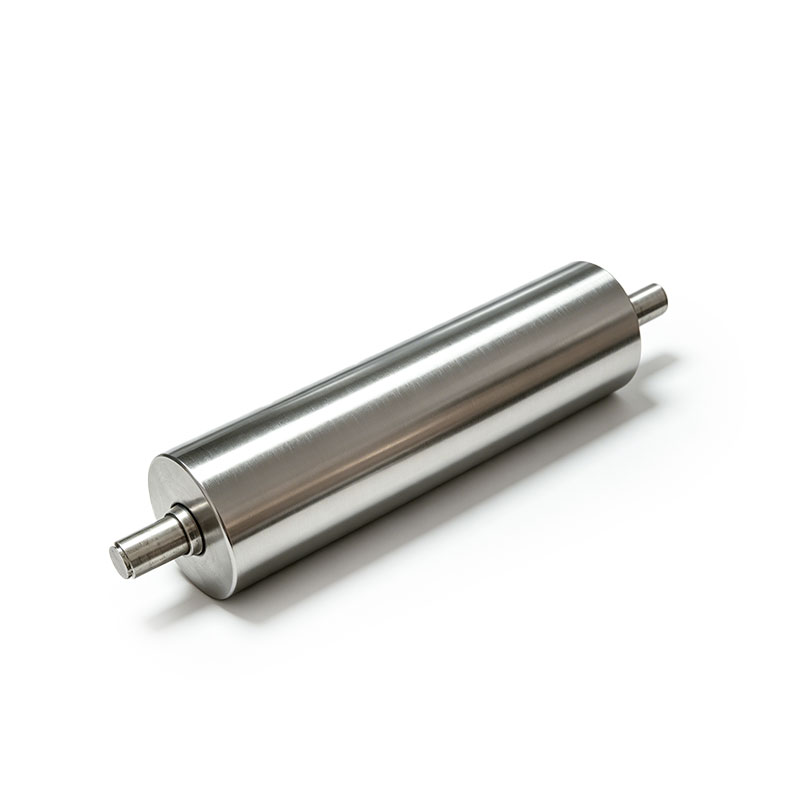

Stainless Steel Combination Guiding Roller

The AstraRoll Custom Stainless Steel Combination Guiding Roller is an advanced engineering component designed explicitly for industries with zero-tolerance policies for rust, chemical corrosion, and material contamination. Standard steel rollers quickly degrade when exposed to the high humidity, organic solvents, or volatile chemicals common in printing and battery film lines.

AstraRoll's combination guide rollers overcome this by matching premium stainless steel shells with an innovative multi-piece combined internal core architecture. This specialized configuration allows the roller to minimize total weight and rotating inertia while boosting cross-span deflection resistance. Every combination roller is micro-ground to a flawless finish and fitted with high-precision internal bearings, creating a low-resistance, perfectly concentric guiding mechanism that tracks the most sensitive film or foil substrates without creating surface micro-scratches.

Technical Specifications

Product Category: Premium Anti-Corrosive Combination Web Guiding Roller

Shell Material: High-Purity Stainless Steel (SS304 / SS316 / SS316L)

Internal Structure: Advanced Combination / Modular Core with reinforced stress relief

Surface Finish: Ultra-Fine Micro-Grinding (Ra 0.1μm - Ra0.4μm) or Mirror-Polished

Concentricity / Runout:≤0.005mm (Achieved via CNC precision grinding)

Dynamic Balance Rating:G2.5 Class (Ultra-low rotational inertia for high-speed tracking)

Corrosion Resistance:Fully immune to moisture, oxidation, alcohols, NMP, and mild acids

Bearing Configuration:Integrated premium low-friction sealed bearings (Custom options)

Product Applications

Delivers sterile, rustproof, and ultra-precise web guidance across diverse production lines:

Food & Pharmaceutical Packaging: High-purity film guiding and tracking within sterile form-fill-seal (FFS) systems and cleanroom packaging conversion lines.

Lithium Battery Component Handling: Corrosion-resistant web transportation for wet-process separators, copper foils, and aluminum foils exposed to aggressive extraction solvents.

Wet Chemical and Coating Extrusions: Primary guide rollers operating inside or directly adjacent to chemical coating bathes, liquid applications, and high-humidity quenching zones.

High-Speed Flexographic & Gravure Printing: Low-inertia combination idler and guiding rollers that reduce web tension fluctuations on lightweight flexible packaging plastics.

Why Choose AstraRoll's Stainless Steel Combination Guiding Roller?

Premium Corrosion-Immune Material Matrix: Standard chrome-plated carbon rollers eventually pinhole, causing sub-surface rust that bubbles up and damages your webs. AstraRoll constructs these rollers from thick-walled, industrial-grade SS304 or SS316 stainless steel. This creates an inherently rustproof and non-reactive shell that remains pristine even under continuous exposure to aggressive chemicals, water baths, and strict sanitization washdowns.

Advanced Low-Inertia Combination Engineering: Solid or heavy steel rollers require substantial film tension just to spin, causing thin films to stretch or slip. Our Combination architecture optimizes the internal core-to-shell ratio using multi-point concentric ribs. This dramatically reduces rotational inertia, allowing the roller to spin effortlessly in tandem with the web, preventing web-drag, edge-curling, and friction scratches.

Micro-Level Concentricity for Perfect Parallelism (≤0.005mm): Any unevenness or vibration across a guide path causes the web to drift and mistrack. We machine our stainless steel combination rollers on high-end CNC cylindrical grinding rigs, locking the total radial runout to ≤0.005mm. This ensures dead-straight cross-web tracking, maintaining uniform tension profiles from unwind to rewind.

Seamless, Zero-Defect Surface Finishing: Our proprietary multi-stage micro-finishing process yields an ultra-smooth surface profile free of chatter marks, turning lines, or micro-burrs. This clean surface geometry prevents air-entrainment bubbles between the web and the roller face, guaranteeing stable, uniform web tracking even at extreme operational linear velocities.
