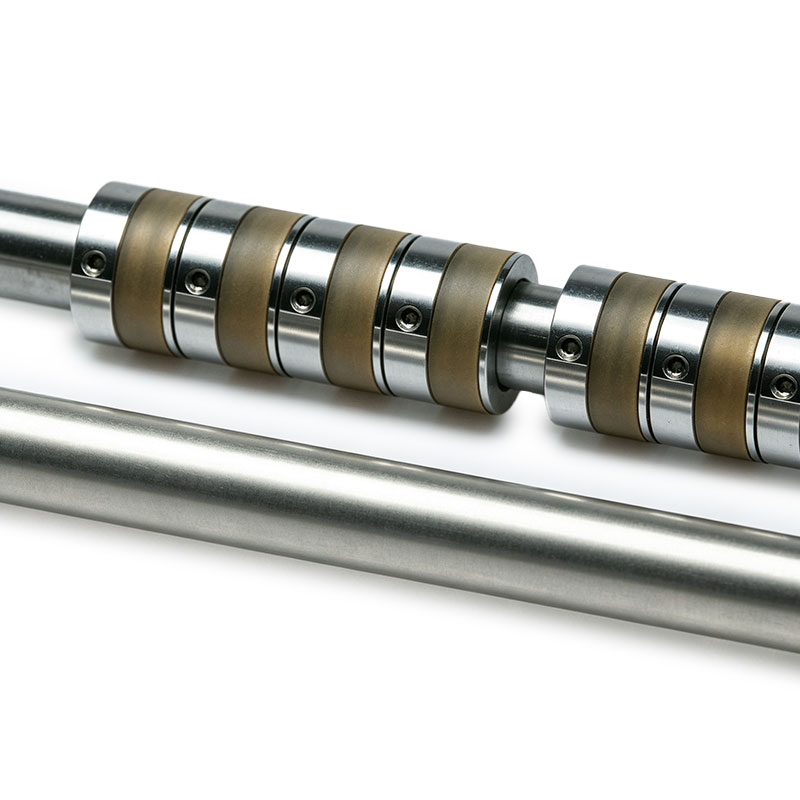

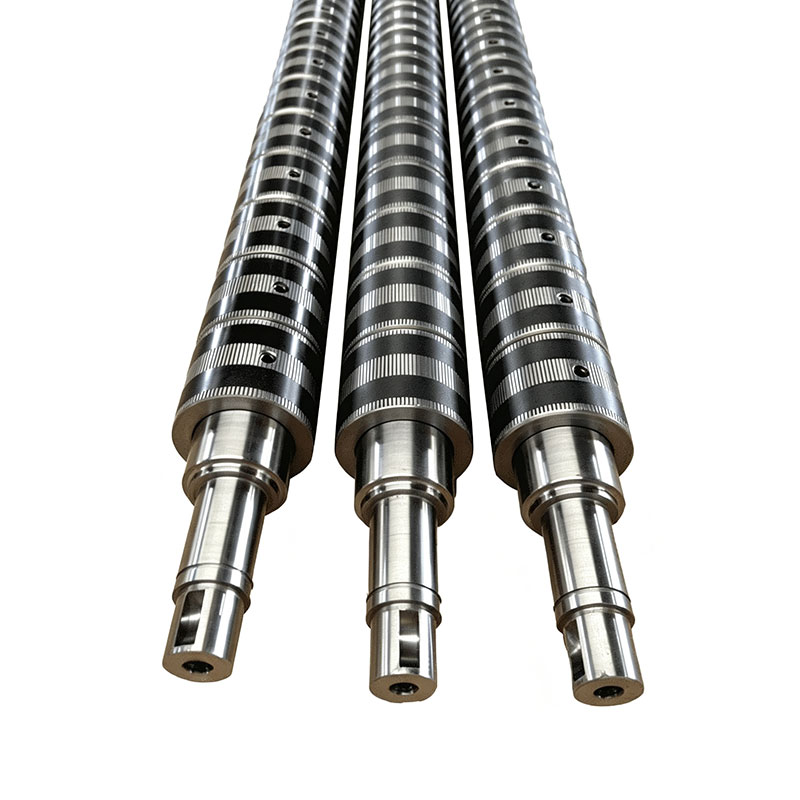

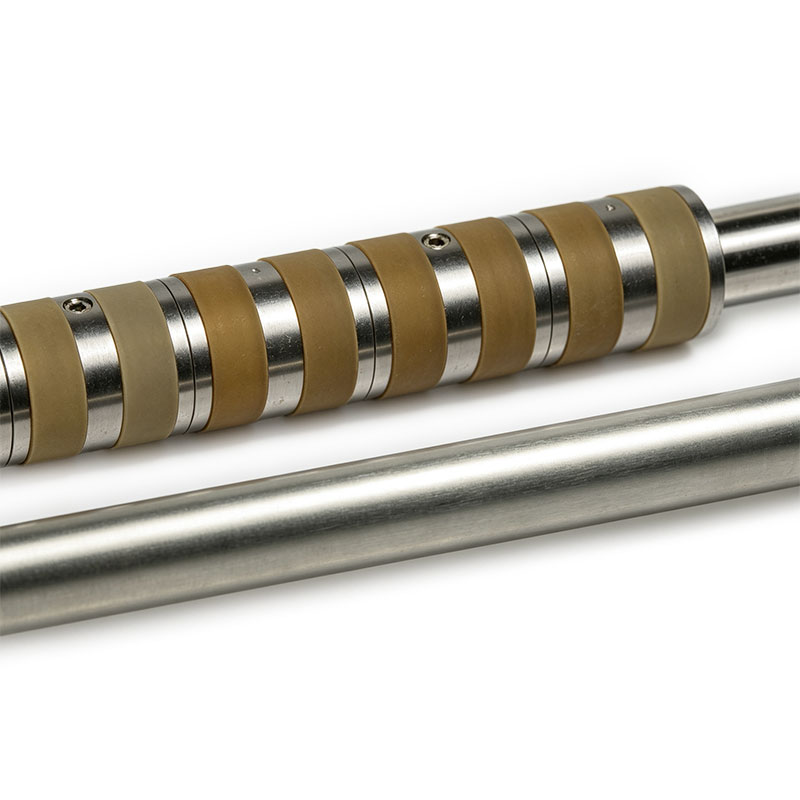

Segmented Gluing Roller for Folder Gluer Machines

The AstraRoll Custom Segmented Gluing Roller delivers precise pattern adhesive coating and maximum setup flexibility for advanced folding carton and corrugated box production. In high-speed packaging lines, changing box dimensions or glue flap positions on a solid, fixed roller requires changing the entire roller assembly, causing extended setup delays. Furthermore, inferior rubber rollers often cause adhesive buildup, glue slinging, and uneven application, leading to messy bond seams or unglued product rejects.

Our segmented gluing rollers eliminate these packaging bottlenecks. By utilizing independent, slide-adjustable PU or rubber rings clamped onto a heavy-duty mandrel, operators can quickly realign, add, or remove gluing segments to match any custom folding pattern. The engineered non-stick surface profile ensures a clean, crisp cutoff at the end of each glue line, drastically reducing adhesive waste and eliminating box-to-box sticking issues during compression stacking.

Technical Parameter

Product Framework: Precision Segmented / Sectioned / Split-Ring Gluing Roller Assembly

Segment Material: High-Resilience Cast Polyurethane (PU) / Specialty Non-Stick Elastomer

Hardness Window: 70 Shore A - 90 Shore A (±3 Shore A strict compounding)

Mandrel / Core Base: Stainless Steel 304 / Hard Anodized Aluminum / Precision Carbon Steel

Segment Width Choice: Customized per layout (e.g., 5 mm, 10 mm, 20 mm, up to 50 mm discrete widths)

Total Indicator Runout (TIR): ≤0.01mm (CNC finish-ground segments for perfectly level contact)

Adhesive Compatibility: Water-based cold glues, PVA adhesives, and high-performance dextrin glues

Solvent Immunity: Excellent resistance to industrial adhesive cleaners, water, and washing chemicals

Applications

High-Speed Folder Gluers: Critical sectioned glue wheel and applicator roll setups within linear, crash-lock bottom, and multi-point folding carton machines.

Corrugated Box Manufacturing: Flexo folder gluer (FFG) joint-gluing stations requiring highly durable, segmented edge-gluing wheels.

Envelope & Mailer Production: Precision split-line adhesive application wheels running high-volume paper bag and commercial envelope folding lines.

Rigid Box & Setup Carton Systems: Modular transfer rollers handling patterned gluing for luxury cosmetics, electronics, and footwear packaging loops.

Why Choose AstraRoll's Segmented Gluing Roller for Folder Gluer Machines?

Modular Slide-Adjustment Cuts Changeover Times: Adjusting glue patterns on solid rollers means swapping whole parts, which halts production. AstraRoll’s segmented system uses independent locking rings that slide laterally across a single shaft, allowing operators to adjust glue zone spacing to new box specs within minutes.

Crisp Adhesive Cutoff Prevents Glue Squeezing & Smeared Flaps: Poor material transfer causes tailing or glue stringing, which ruins carton aesthetics and jams packing lines. Our custom-cast polyurethane features an optimized surface energy that cleanly shears liquid adhesives, providing sharp, uniform placement without edge overflow.

High Solvent Resilience Lowers Washing Downtime: Dried adhesives bond fiercely to standard rubbers, requiring aggressive scraping that destroys the roller face. Our premium non-porous PU matrix resists swelling or cracking from harsh industrial cleaners, allowing glue residues to be washed off easily.

Micron-Level Concentricity Ensures Leak-Free Bonding (≤0.01 mm TIR): Minor diameter variations across individual segments lead to uneven compression, skipped glue lines, or dry patches. We clamp and finish-grind all segments together on CNC equipment to a total indicator runout (TIR) of ≤0.01mm, guaranteeing continuous, zero-defect adhesive lines.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
