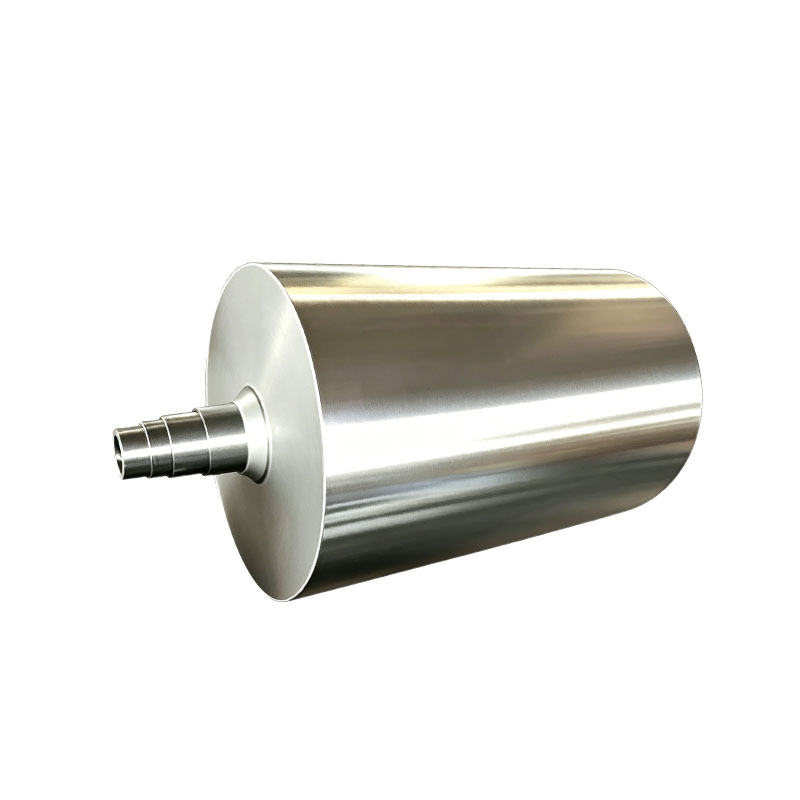

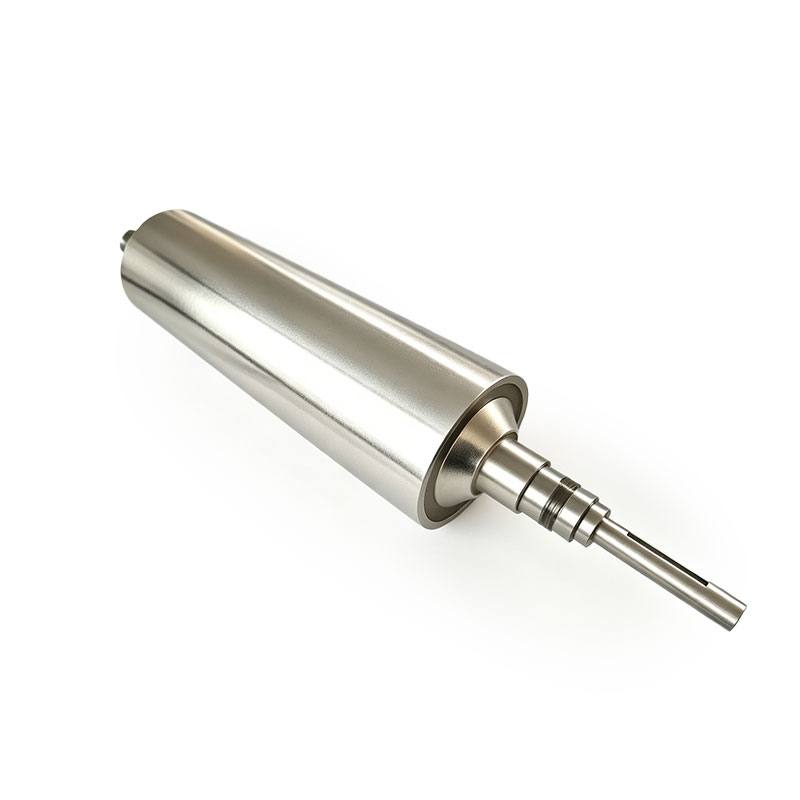

Calendering Roller with Super Mirror Cooling Technology

The AstraRoll Calendering Roller with Super Mirror Cooling Technology represents the pinnacle of precision roll engineering, customized explicitly for high-pressure polymer sheet crystallization, sheet polishing, and heavy-duty battery electrode compaction. In calender lines, the roller must concurrently perform two contradictory, high-stakes actions: apply multi-ton linear squeezing forces to gauge the material, while instantaneously extracting heat via internal fluids to freeze the polymer structure.

AstraRoll solves this challenge by implementing an optimized dual-shell structural geometry over a premium forged alloy base. Engineered to handle continuous thermal cycling and high rotational torque, our rollers eliminate the risk of structural bowing or centerline sagging. The exterior working face is finished with an ultra-dense, zero-pinhole hard chrome matrix that is ground to a microscopic mirror topography, guaranteeing absolute material transparency, uniform density, and uncompromised surface purity across the entire web span.

Technical Specifications

Product Framework: Heavy-Duty Calendering, Polishing, and Structural Squeezing Roll

Core Base Material: Premium Forged Alloy Steel (42CrMo / 38CrMoAl) entirely stress-relieved

Cooling Internal Geometry: Multi-Pass Spiral Double-Helix Flow Channels for water/thermal oil

Surface Plating: Electroplated Dense Micro-Layer Hard Chrome Matrix

Surface Roughness: Super-Mirror Polish Finish (Ra≤0.005μm- Ra 0.008μm)

Surface Hardness: ≥HRC 62 (Post-induction hardening and deep-nitriding treatments)

Concentricity / Runout: ≤0.003mm (Achieved through specialized cylindrical grinders)

Temperature Uniformity: ≤±0.3℃ across the entire effective roll face under load

Dynamic Balance Rating: G2.5 high-precision dynamic balancing for vibration-free rotation

Product Applications

Delivers uncompromised thickness profiling and surface texturing across severe manufacturing loads:

Optical Sheet & Plate Extrusion: Primary calendering and cooling for display-grade PC, PMMA, and PET sheets used in light-guide panels and protective screens.

Lithium Battery Electrode Calendering: Ultra-high pressure compaction rollers for densifying cathode/anode slurry coatings onto copper/aluminum foils.

High-End PVC Calendering Lines: Production of flexible or rigid PVC films, luxury vinyl tiles (LVT) backing layers, and automotive interior skins.

Functional Co-Extrusion Foil Laminating: Acting as the primary reference calendar roll for bonding multilayer barrier films and engineering packaging composites.

Why Choose AstraRoll's Calendering Roller with Super Mirror Cooling Technology?

Flawless Ra≤0.005μm Super-Mirror Polishing: High-end plastic sheets tolerate zero micro-marks; any surface variance on the roller imprints a permanent defect on the sheet, ruining optical clarity. AstraRoll uses an isolated, climate-controlled polishing bay and multi-pass diamond-slurry abrasives to achieve a pristine, mirror finish (Ra≤0.005μm) that guarantees absolute substrate transparency.

Advanced Double-Helix Internal Flow Dynamics(≤±0.3℃High-Efficiency Cooling): In effective calendering, uneven temperature across the roller face causes uneven cooling contraction, leading to localized inner stresses and sheet warping (wavy edges). Our internally simulated double-helix flow path layout optimizes fluid velocity and turbulence, locking temperature deviations to ≤±0.3℃ for continuous, flawless thermal management.

Heavy-Duty 42CrMo Forged Core for Zero Deflection: When subjected to multi-ton linear hydraulic pressures during calendar operations, standard welded steel tubes buckle microscopically in the center. AstraRoll machines every roller from single-piece 42CrMo alloy steel forgings followed by extensive tempering. This maximizes structural yield strength, ensuring the roller remains perfectly parallel with a radial runout of ≤0.003mm under load.

High-Density Hard Chrome Armor (≥HRC62 Ultra-Wear Resistance): High-pressure calendering and abrasive polymer melt flows quickly score standard metal rolls. AstraRoll integrates a specialized multi-layer dense electroplating protocol that yields a uniform, non-porous outer chrome shell (≥HRC 62). This provides excellent resistance against mechanical scratching and structural outgassing corrosion, drastically extending the production lifetime between regrinding intervals.
