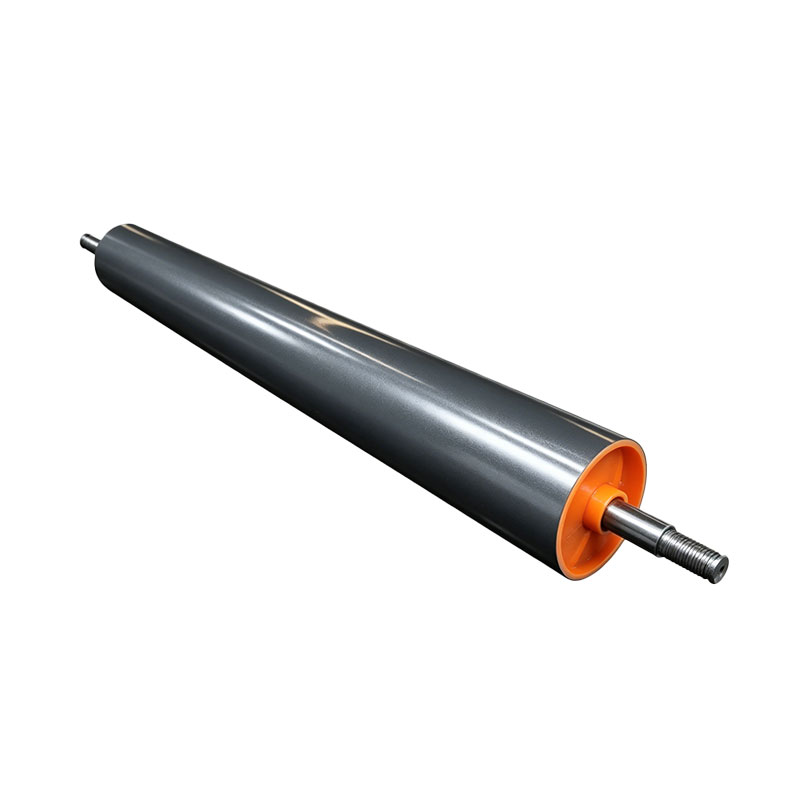

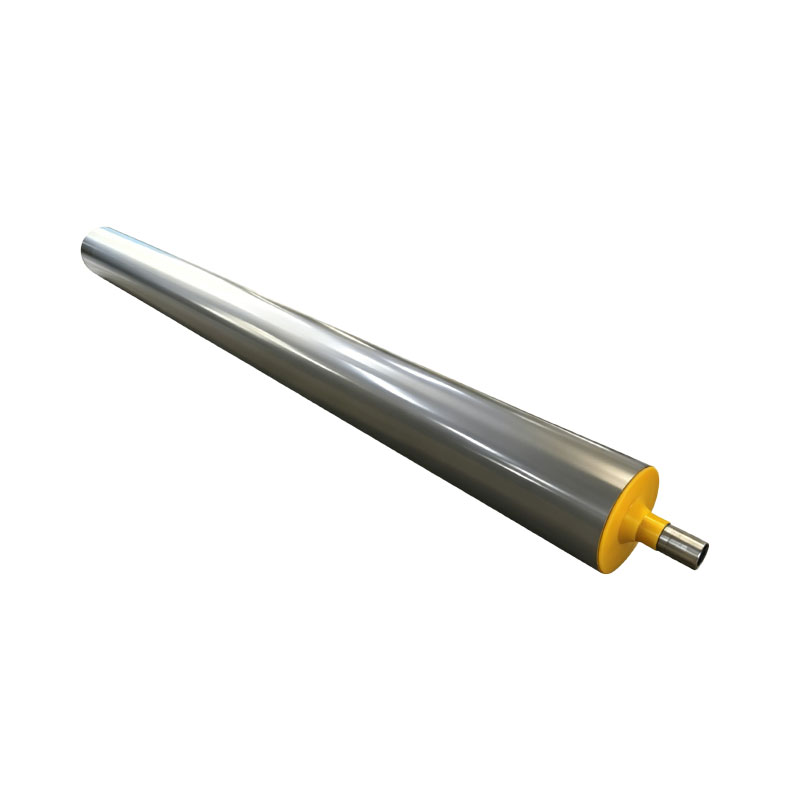

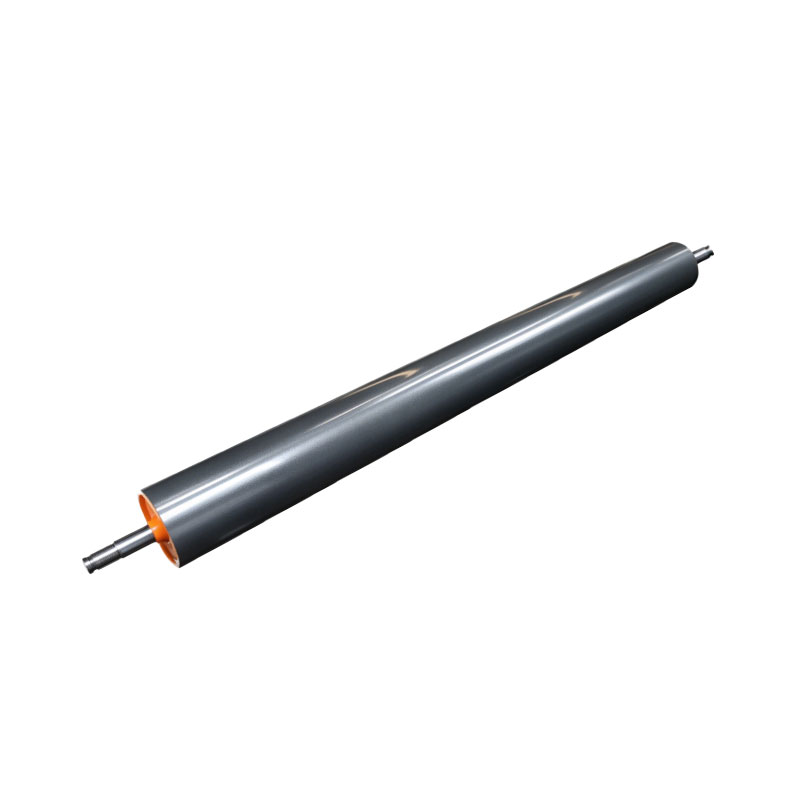

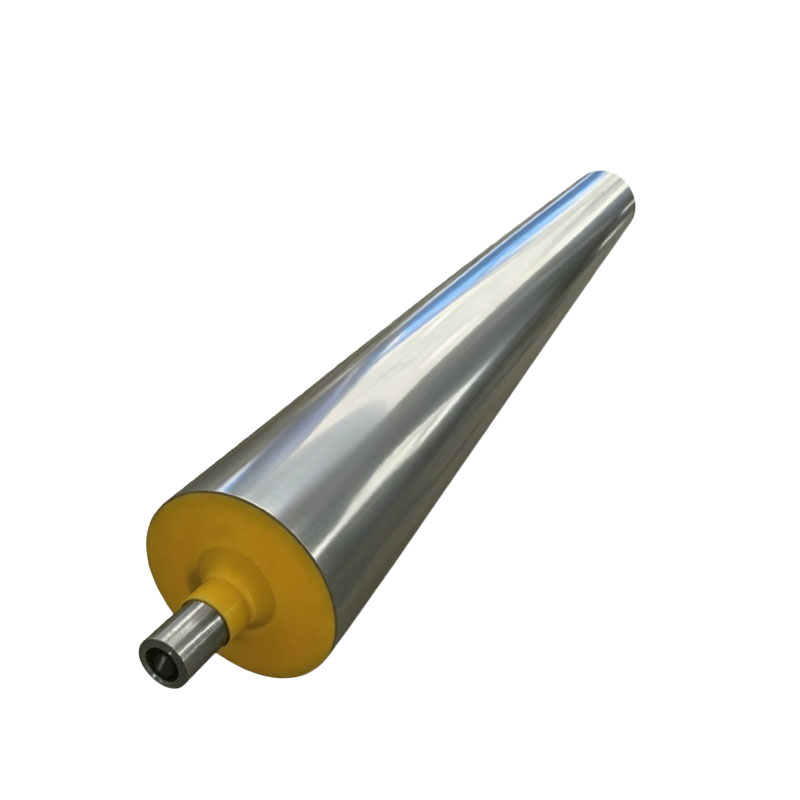

Custom Specialty Coating Roll for Surface Treatment

The AstraRoll Custom Coating Roll for Special Surface applications is an elite engineering solution developed for production lines that break away from standard web-handling boundaries. In modern manufacturing, coating liquids onto "special surfaces"—whether they are highly abrasive, chemically aggressive, ultra-smooth display films, or deeply texturized porous matrices—requires a roller that goes beyond standard dimensional replication.

Built on a robust, multi-tempered forged alloy matrix, our special surface coating rollers are designed from the ground up to balance mechanical precision with custom surface energy. We work directly with your CAD drawings and chemical datasheets to engineer the perfect roll geometry, choosing from advanced micro-grain structures, low-friction chemical vapor depositions, or flawless mirror finishes to ensure stable fluid mechanics, optimized liquid release, and zero degradation under non-standard industrial environments.

Technical Parameter

Core Material: High-Grade Forged Alloy Steel (42CrMo / 38CrMoAl)

Concentricity (static run out): ≤0.02mm

Temperature difference on roll face: ≤1 degree

Material on surface: Silicon, Silicon Oxide, Chromium Oxide

Surface Treatment: Rubber Coating, Plasma Spraying

Max Dimension: φ800*8000mm

Product Applications

Delivers uncompromised fluid control for pioneering surface modification lines:

Functional Film Treatments: Applying sub-micron anti-static, anti-glare (AG), or anti-fingerprint (AF) coatings onto optical sheets and electronic display overlays.

Composite and Metallic Foil Converting: High-precision adhesive or barrier coating application on flexible copper foils, aluminum packaging, and carbon-fiber prepregs.

Specialty Paper & Textile Coating: Delivering consistent wax, silicone, or polymer layer weights onto textured release liners, decorative papers, and engineered technical fabrics.

Adhesive Tape & Protective Layer Lines: Acting as the core application or reference backing roller for high-tack, high-viscosity specialty chemical pressure-sensitive adhesives (PSA).

Why Choose AstraRoll's Custom Coating Roll for Special Surface?

Tailored Surface Energy & Topography: Standard smooth rollers often suffer from "fluid ribbing" or coating beads when handling special fluids with high surface tension. AstraRoll custom-engineers the micro-topography of the chrome layer (adjusting roughness and grain orientation) to match your chemical matrix, ensuring perfect fluid wetting, seamless release, and zero coating voids.

Micro-Level Concentricity for Tight Gap Control (≤0.003mm): Coating onto complex or thin specialty surfaces leaves no margin for error; any roller runout causes cyclical wavy patterns on the product. Our rolls undergo finishing on premium CNC cylindrical grinders, locking radial runout to ≤0.003mm to maintain a perfectly uniform fluid gap across maximum production line speeds.

Premium ≥HRC 62 Armor Against Corrosive Slurries: Many functional surface treatment fluids contain aggressive solvents, acidic catalysts, or micro-abrasive particles that destroy standard rollers. AstraRoll applies a dense, multi-layer hard chrome electroplating matrix that seals off micropores, providing excellent resistance against both chemical oxidation and physical abrasion.

Deflection-Free Forged Alloy Base: To achieve uncompromised coating parallelism across wide spans, our rollers discard basic welded tubes in favor of 42CrMo forged structural steel. Multiple thermal stress-relief cycles ensure the roller maintains a perfectly uniform profile under high tension and varying thermal loads, delivering consistent cross-web coating thickness year after year.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
