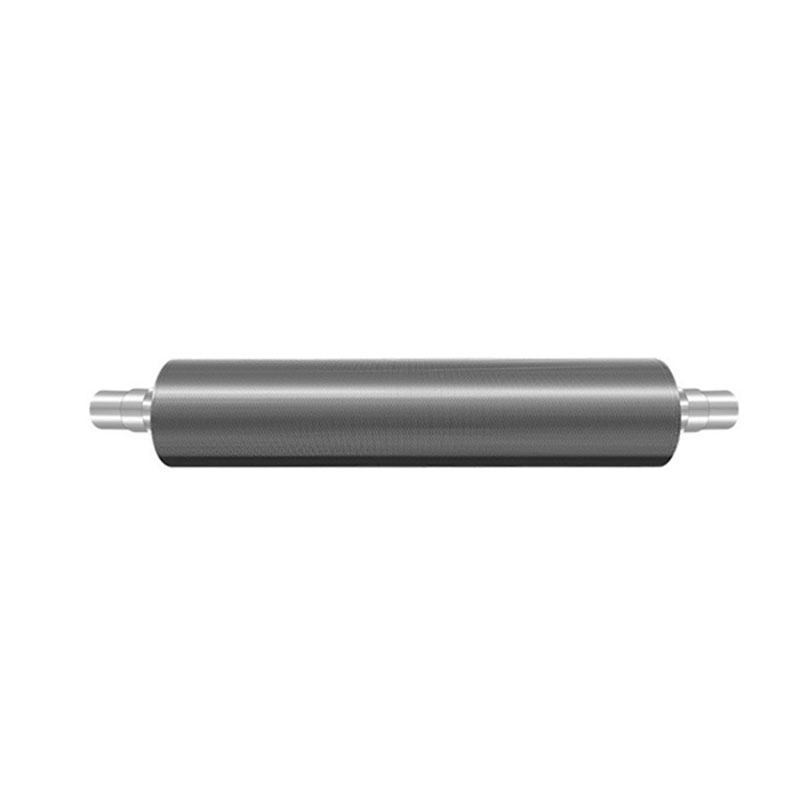

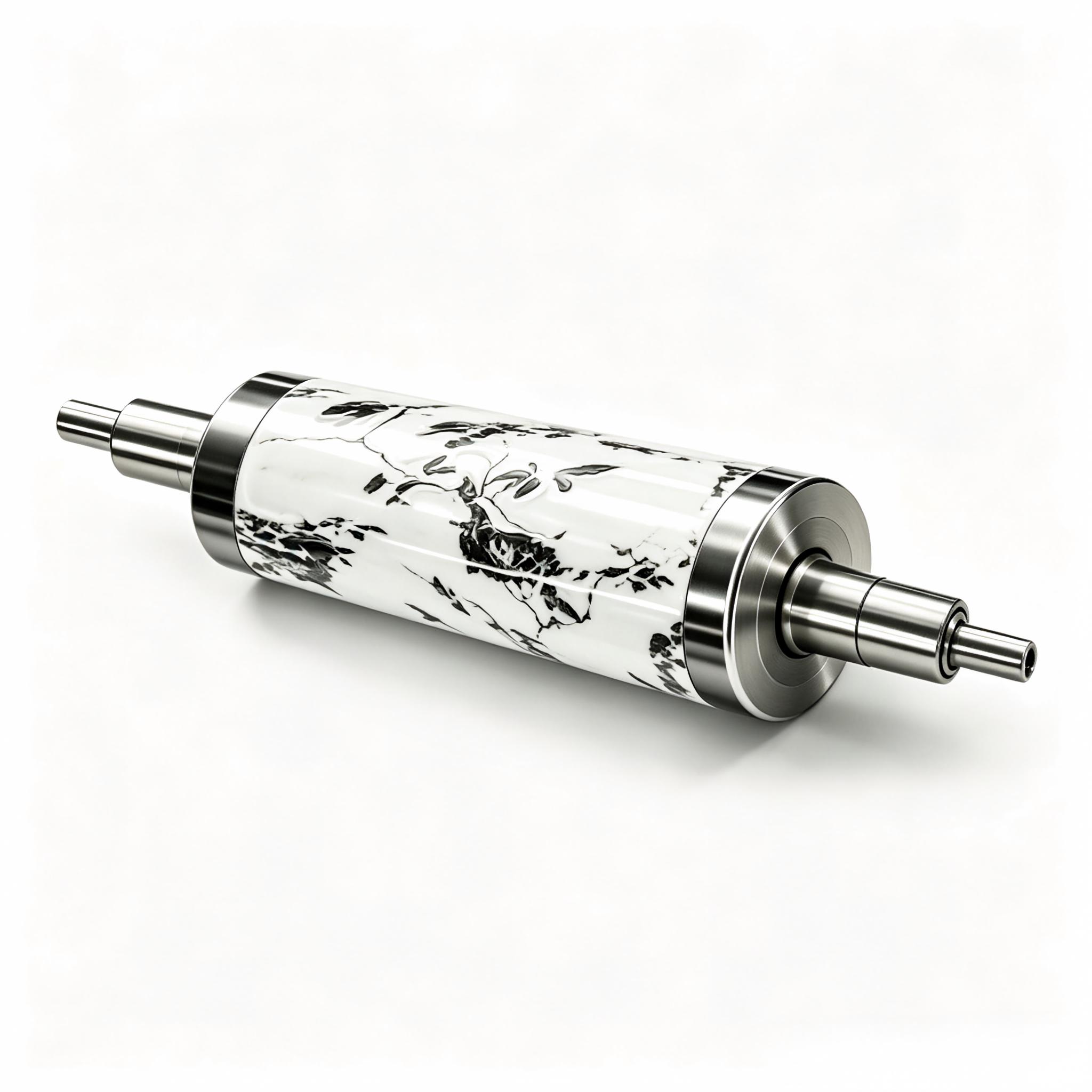

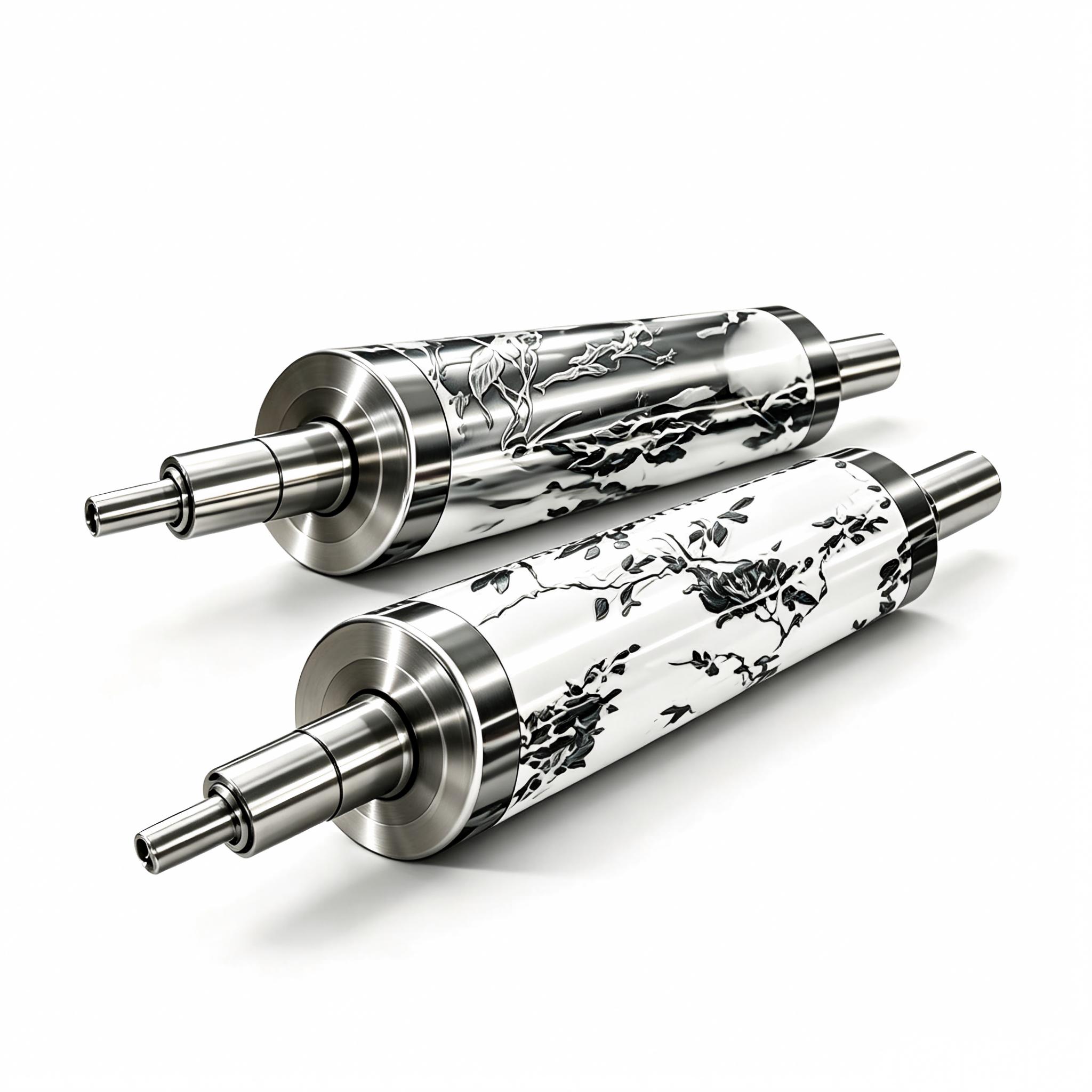

Custom Electromagnetic Induction Heating Embossing Roller

The AstraRoll Custom Electromagnetic Induction Heating Embossing Roller combines heavy mechanical forging with advanced multi-zone thermal controls to handle demanding decorative and functional texturing. By shifting from traditional fluid circulation to internal electromagnetic induction, the roller eliminates the long preheating delays, fluid sealing degradation, and oil mist contamination risks typical of hot oil setups. Each cylinder is machined from premium grade forged alloy blanks, undergoing strict hardening and stress-relieving processes to yield deep shell hardness (HRC50-58). Computerized multi-zone coils heat the roller profile evenly from within, keeping thermal expansion linear. Combined with precision CNC laser texture engraving, this architecture allows manufacturers to transfer highly intricate, multi-layered, three-dimensional designs onto flexible substrates without registration drift or pattern blurring.

Technical Parameter

Base Core Material Options: Forged Alloy Steel: 42CrMo, 38CrMoAl, 40Cr, 34CrNiMo6, 60CrNi, 9Cr3Mo

Heat Treatment Protocol: Quenched & Tempered, Stress-Relieved, Deep Surface Hardening

Surface Hardness Layer: HRC50 - 58(Deep wear-resistant hardened matrix)

Dimensional Capacity: Diameter: φ200 - 1000mm | Face Length: 1000 - 3000mm

Operating Thermal Window: +60℃ to +250℃ (Fully adjustable continuous tuning)

Linear Running Velocity: 20 - 200m/min dynamic web speed capacity

Maximum Linear Pressure: ≤20KN/m continuous structural loading

Temperature Uniformity: Cross-Web Profile Temperature Variance ≤±1℃

Manufacturing Accuracy: Flatness, TIR Runout, Concentricity ≤0.005mm

Thermal Deformation Limit: ≤0.005mm dynamic displacement under heated conditions

Pattern Texturing: High-precision CNC laser engraving with micro-level error limits

Applications

Decorative Wallpapers & Panels: Precision embossing for high-end home wallpapers, PVC decorative wall sheets, engineered wood flooring textures, furniture veneer overlays, and synthetic marble surfaces.

Hygienic Packaging Films: Fine-line engraving and pattern embossing for food packaging bags, PE diaper backsheets, and sanitary napkin components.

Flexible Substrate Processing: High-speed continuous pattern transfer for non-woven webs, technical textiles, artificial leathers (PU/PVC), cardstock, and commercial paper rolls.

Security & Optical Materials: Micro-grooving applications for anti-counterfeiting laser patterns, thermal transfer printing, and specialty rubber processing lines.

Why Choose AstraRoll's Electromagnetic Induction Heating Embossing Roller?

Premium Forged Alloy Matrix with HRC50-58 Shield: Standard steel rollers crack or wear smooth when subjected to continuous blade friction and high line pressures (≤20KN/m). AstraRoll utilizes heavy forged alloy bases (e.g., 42CrMo, 34CrNiMo6) paired with multi-stage stress relief and deep surface quenching. This creates an HRC50-58 barrier that protects the engraved pattern contours from mechanical flattened spots or chipping.

≤±1℃ Multi-Zone Adaptive Heat Control: Temperature variations at the roller borders distort pattern depth across the web. Our internal induction architecture features multi-zone coil grids that allow segment-specific or fully independent control. This keeps the effective running face within a strict ≤±1℃ tolerance window, ensuring clean, uniform texture depth from edge to edge.

Sub-Micron Heated Concentricity for Flawless Registration (≤0.005mm Dynamic Runout): Thermal expansion often causes standard rollers to warp, leading to blurred details and poor pattern definition. We maintain uniform internal wall thickness and machine the core to precise tolerances, keeping thermal deformation, flatness, and total indicator runout (TIR) within ≤0.005mm. This structural stability yields crisp details and clear 3D layering for intricate materials like wallpaper and synthetic leather.

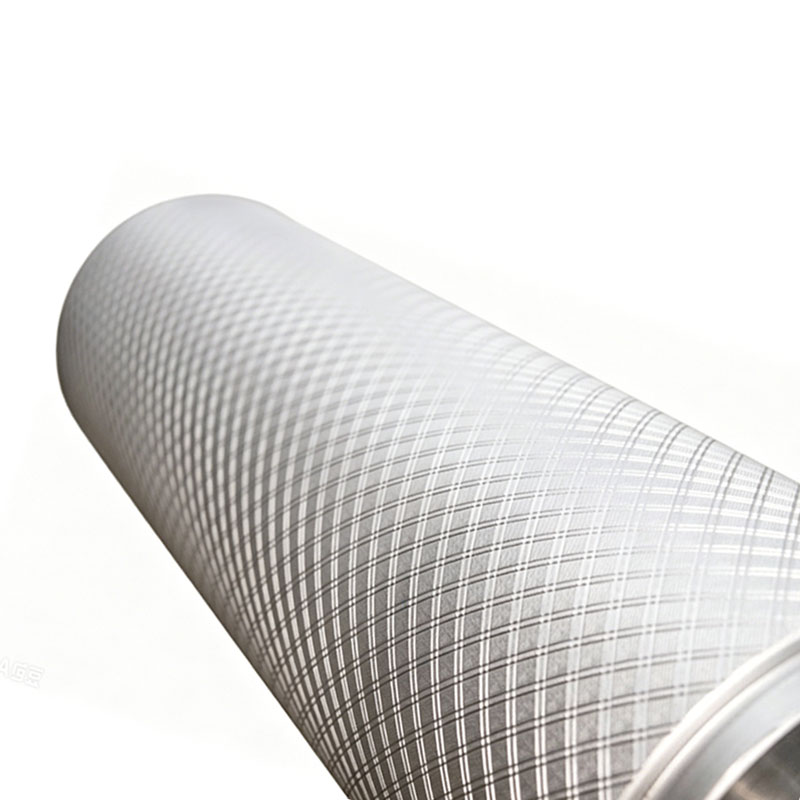

Micro-Level Laser Engraving Precision: Our advanced CNC laser texture cutting systems translate complex multi-tier drawings directly onto the hardened steel face. This process eliminates chemical etching variances and manual tooling errors, ensuring clean line profiles, uniform depths, and reliable pattern tracking across high-speed webs up to 200 m/min.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
