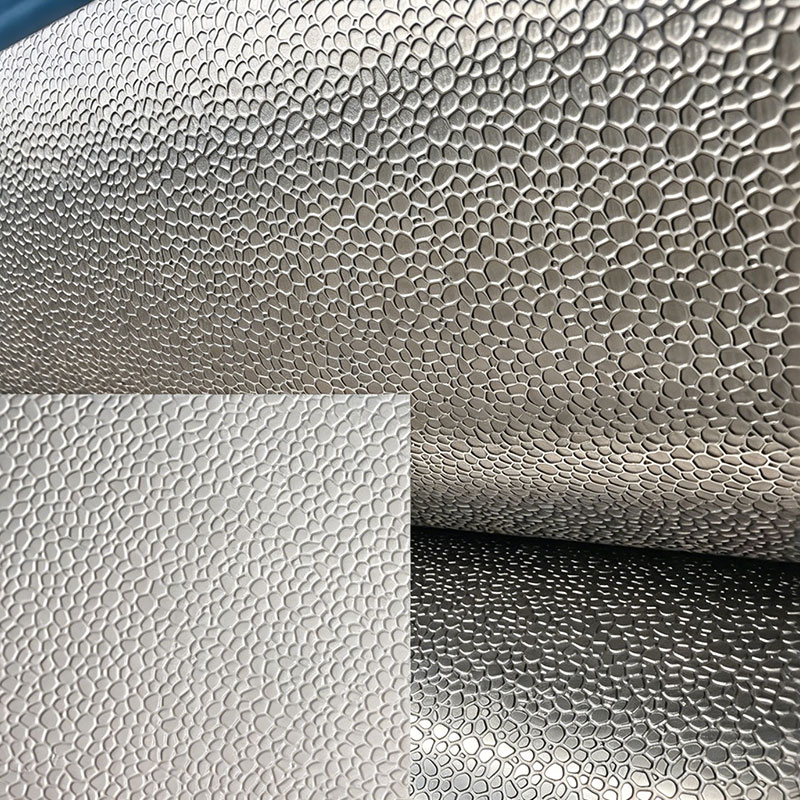

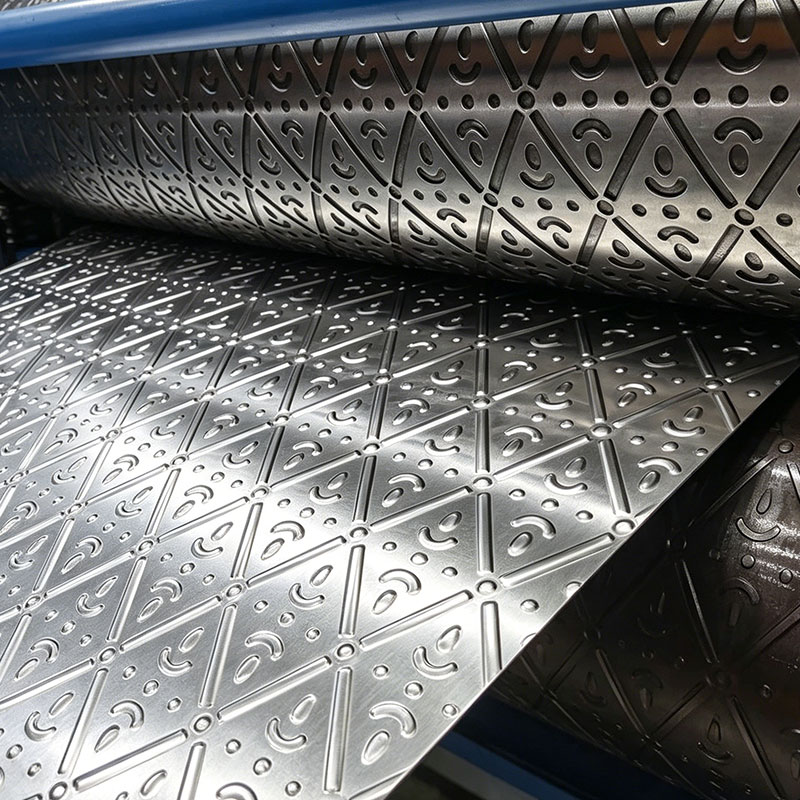

Heavy-Duty Steel Plate Embossing Roller for Checkered and Tread Patterns

The AstraRoll Technical Advantage

Embossing metal is vastly different from embossing paper or plastic. It requires absolute metallurgical integrity and micron-level machining:

Precision 3D CNC Engraving: We do not use chemical etching for heavy-duty metal embossing. Our patterns are physically milled into the forged steel using multi-axis CNC machines. This guarantees steep, highly defined pattern walls and sharp peaks that deliver a crisp, deeply embossed texture into the metal sheet.

Superior Wear Resistance: Pressing steel against steel generates immense abrasive wear. Following the CNC engraving process, the roller surface undergoes specialized Induction Hardening. This hardens the outer layer to HRC 58-62 while keeping the inner core ductile, ensuring the engraved pattern remains sharp for years without snapping the roller.

Forged Steel Monoblock Construction: To withstand the massive hydraulic or mechanical nip pressure required to deform 3mm to 10mm thick steel plates, we exclusively use premium forged alloy steel billets (like 42CrMo or H13). This eliminates the internal voids and weaknesses found in cheap cast rollers.

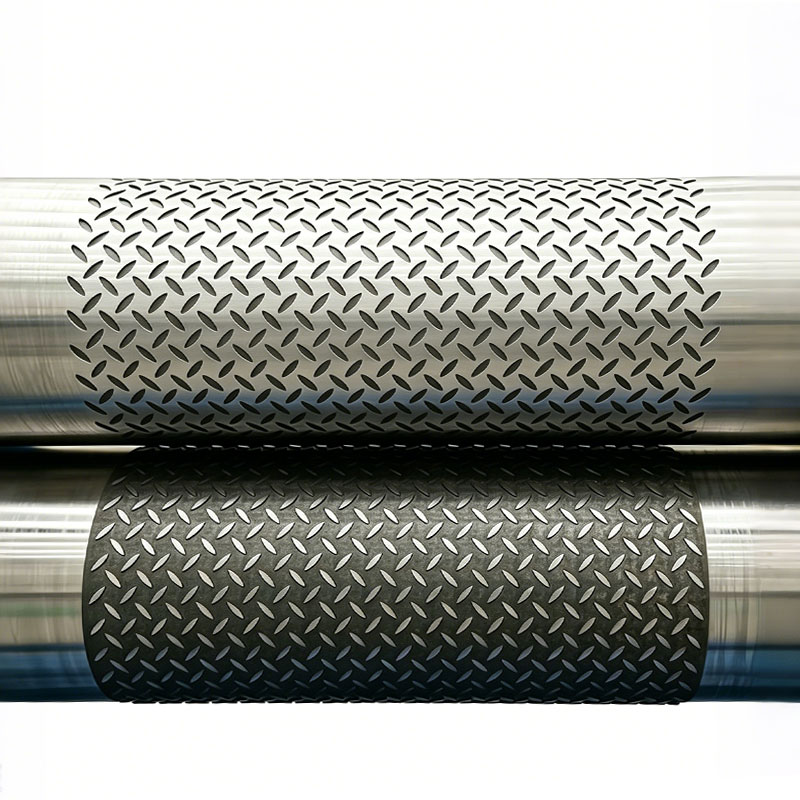

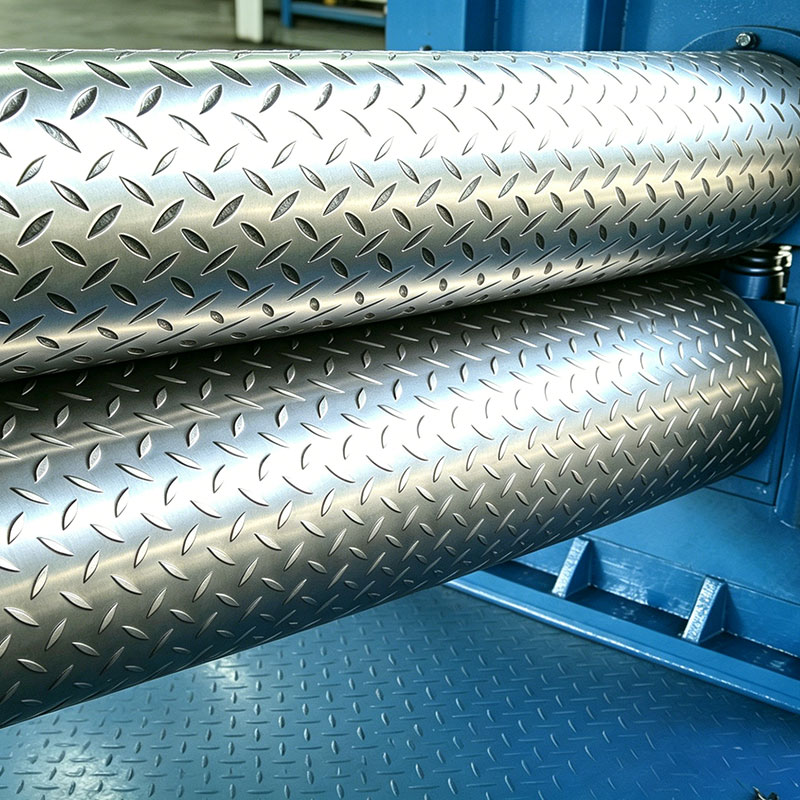

Matched Male/Female Registration: For deep-draw tread patterns, we manufacture paired rollers (one male, one female). Our advanced gearing and CNC synchronization ensure the two rollers mesh flawlessly during operation, embossing the sheet without shearing or tearing the metal.

Key Specifications

Please note: AstraRoll metal embossing rollers are 100% custom-engineered to match your rolling mill's tonnage capacity, sheet width, and specific metal substrate.

Outer Diameter (O.D.): Custom from 200mm up to 800mm+.
Face Length: Custom manufactured from 500mm up to 3,000mm.
Substrate Compatibility: Aluminum, Carbon Steel, Galvanized Steel, and Stainless Steel (Thicknesses ranging from 0.5mm to 10mm+).
Pattern Depth: Custom milled from 0.5mm up to 5.0mm deep.
Concentricity (TIR): CNC ground to ≤ 0.02mm to ensure uniform pattern depth across the entire sheet width.

Why Choose AstraRoll?

1. In-House Turnkey Manufacturing

Manufacturing a Heavy-Duty Steel Plate Embossing Roller requires forging, heavy turning, CNC multi-axis milling, and highly controlled heat treatments. AstraRoll handles every step inside our own facility. This vertical integration allows us to strictly control the metallurgical quality and ensures that the final CNC engraving perfectly matches your requested CAD tread pattern.

2. Roll Regrinding and Re-Engraving Services

After millions of cycles, even hardened steel will begin to show wear, resulting in shallow tread patterns on your steel plates. AstraRoll provides a highly cost-effective refurbishment service. Ship us your worn embossing rollers; we will anneal the steel, turn off the worn surface, re-engrave the pattern using original CNC files, re-harden, and return it to you in OEM condition.

Frequently Asked Questions (FAQs)

Q: Can this roller emboss Stainless Steel plates?
A: Yes, but embossing stainless steel (which has a very high yield strength) is much more difficult than embossing aluminum or carbon steel. If you are processing stainless steel sheets, you must inform us. We will upgrade the core material to premium hot-work tool steel (e.g., H13) and apply specialized hardening treatments to ensure the roller's peaks do not crush under the extreme pressure required.

Q: Do I need a single engraved roller or a matched Male/Female pair?
A: This depends on the thickness of the plate and the depth of the pattern. For thinner sheets (e.g., 1mm - 2mm aluminum) where a deep 3D texture is required on both sides, a Matched Pair (Male/Female) is necessary. For thicker carbon steel tread plates (e.g., 3mm - 8mm) where the pattern is only required on the top surface, a single-engraved roller pressing against a smooth, hardened anvil roller is the industry standard.

Q: How do I ensure the pattern depth is uniform across a 2-meter-wide steel sheet?
A: Under extreme tonnage, a 2-meter-wide roller will naturally bow (deflect) slightly in the center, causing the pattern to be shallower in the middle of the steel plate than at the edges. To counteract this, AstraRoll engineers calculate the exact deflection based on your machine's pressure and machine a precise Camber (Crown) into the roller's profile, guaranteeing a flawless, uniform pattern transfer from edge to edge.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
