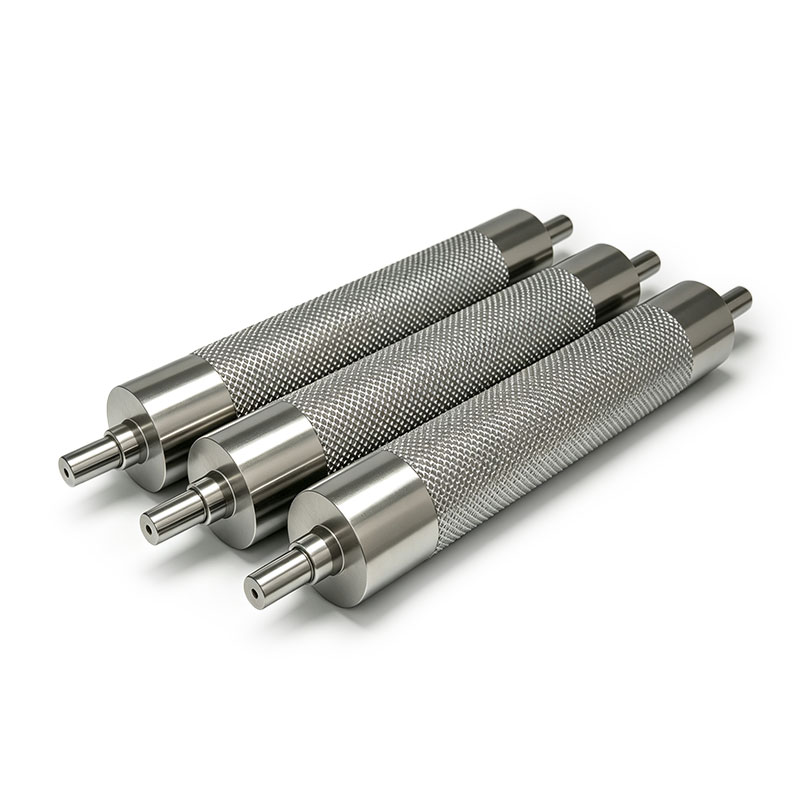

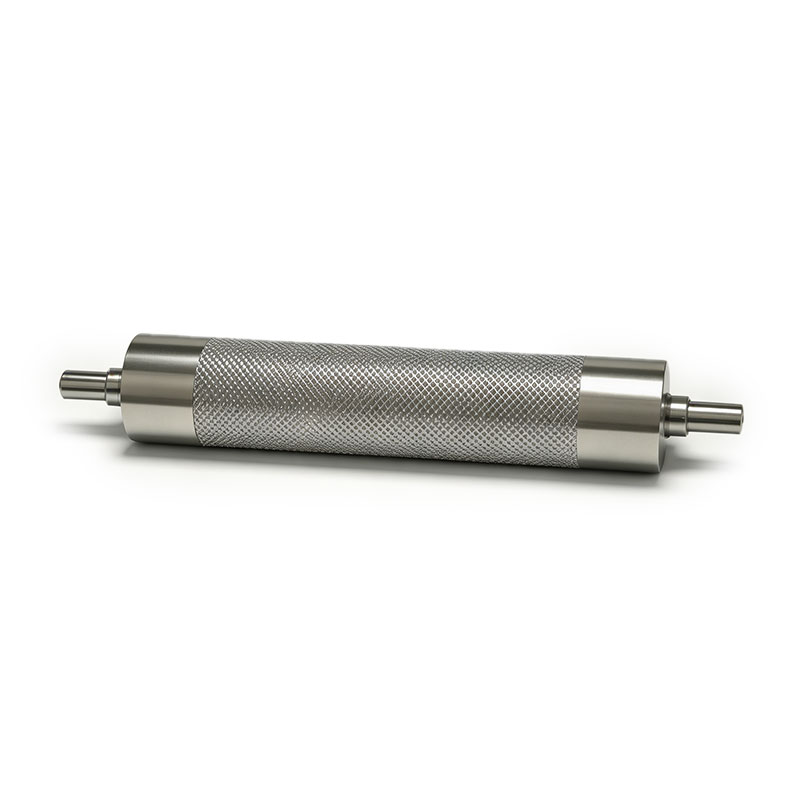

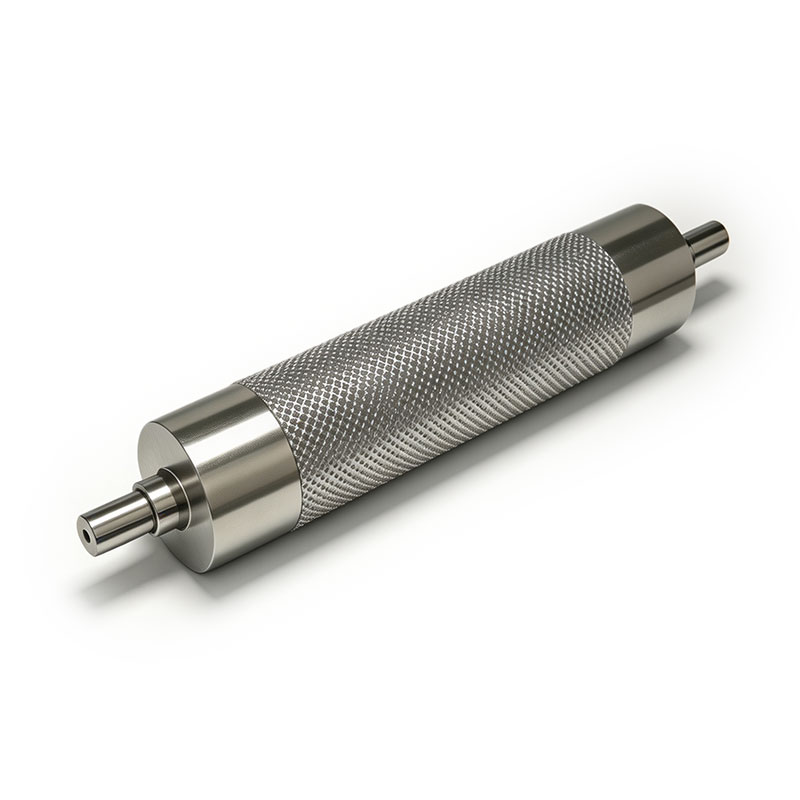

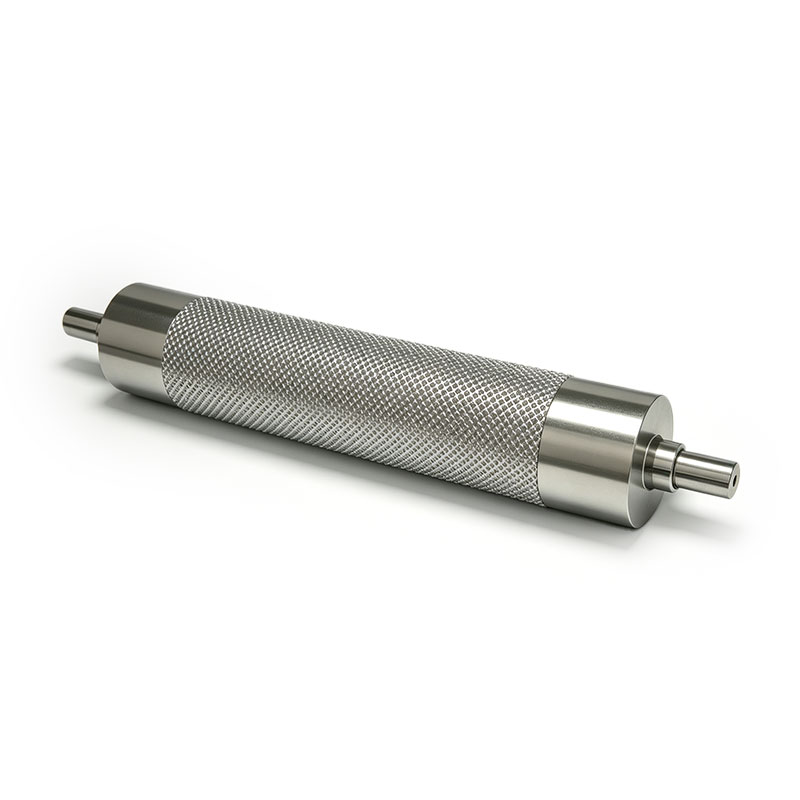

Custom Embossing Roller for Honeycomb & Hollow Board Machinery

The AstraRoll Custom Embossing Roller provides unmatched structural integrity, pattern accuracy, and high-volume production stability for the world's leading manufacturers of honeycomb and hollow board materials. Positioned as a mission-critical component in automated formation lines, these textured rollers are responsible for pressing delicate substrates (including paper pulp, plastic resins, and composite sheets) into rigid, durable three-dimensional structures without material tearing or thinning. Standard generic patterned rollers often suffer from misalignment between the male and female dies, leading to uneven honeycomb cells, crushing, or visual defects in the finished board.

Our specialized embossing rollers completely eliminate these formation bottlenecks. Leveraging advanced multi-axis CNC machining, we generate complex geometric grids, circular dimples, or sinusoidal waves with flawless consistency across the entire width of the roller face. We employ a strict mathematical pattern matching protocol between the upper and lower matched pair rollers, securing a perfect, synchronized meshing gap. This ensures perfectly uniform pressure distribution, zero slip, and consistent structural dimensions throughout millions of continuous operational cycles.

Technical Parameters

Product Framework: Heavy-Duty Precision Pattern Matching Embossing / Structuring Roller

Core Base Options: Premium Forged Carbon Steel / Reinforced Alloy Steels (Anti-deflection)

Pattern Types: Hexagonal Honeycomb, Circular Dimples, Sinusoidal Waves, Custom Geometric Grids

Patterning Technology: Precision Multi-Axis CNC Engraving / Computerized Laser Etching

Surface Hardness: 55HRC - 62HRC (Induction hardened on patterns for ultimate wear life)

Surface Cladding: 0.02mm - 0.05mm Hard Chrome Plating / Nickel-Phosphorus Alloy option

Matching Tolerance: Flawless Male-Female Meshing synchronization (≤0.02mm variance)

Dynamic Balancing: ISO 21940 G2.5 standard matching for smooth high-speed line travel

Applications

Honeycomb Core Production: High-volume formation of paper or plastic (PP, PET) honeycomb cell arrays for lightweight panels used in packaging, automotive, and aerospace.

Hollow Board Manufacturing: Continuous shaping of polypropylene (PP) hollow fluted sheets (often called Coroplast or Correx) used for durable signages, reusable boxes, and construction protection.

Textured Plastic Panel Forming: Continuous embossing of decorative or functional textures on thick plastic sheets (ABS, PE, PMMA) utilized in interior cladding and furniture.

Why Choose AstraRoll's Custom Embossing Roller?

Flawless Male-Female Pattern Matching Secures Structural Strength: Diameter shifting across wide rollers creates uneven sheet dryness and web tracking wrinkling. AstraRoll utilizes simultaneous computerized engraving on both male and female rollers, guaranteeing absolute geometric parallelism for perfect uniform contact tracking.

Deep Induction Hardening Defeats Severe Abrasion: Continuous processing of raw fibers and plastic melts acts like constant fine sandpaper, cutting grooves into cheap rollers. Our patterned faces are subjected to deep-induction hardening (up to 62HRC), maintaining constant outer diameter geometry and hard traction over millions of feed cycles.

Uniform Cladding Finish for Superior Deflection Resistance Under Heavy Tonnage Gaps: Concentrated linear pressures inside paper press lines can tear low-grade rubber sleeves right off their cores. We apply specialized chemical primers followed by high-pressure autoclave vulcanization, fusing the elastomer permanently to the steel base with zero interface delamination.

Anti-Stick Coatings Prevent Thin Material Tearing: Static friction or material adhesion can cause delicate honeycomb walls to stick and tear away from the roller during extraction spikes. Our specialized coatings decrease drag on your line and saving motor energy, protecting delicate optical coatings.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
