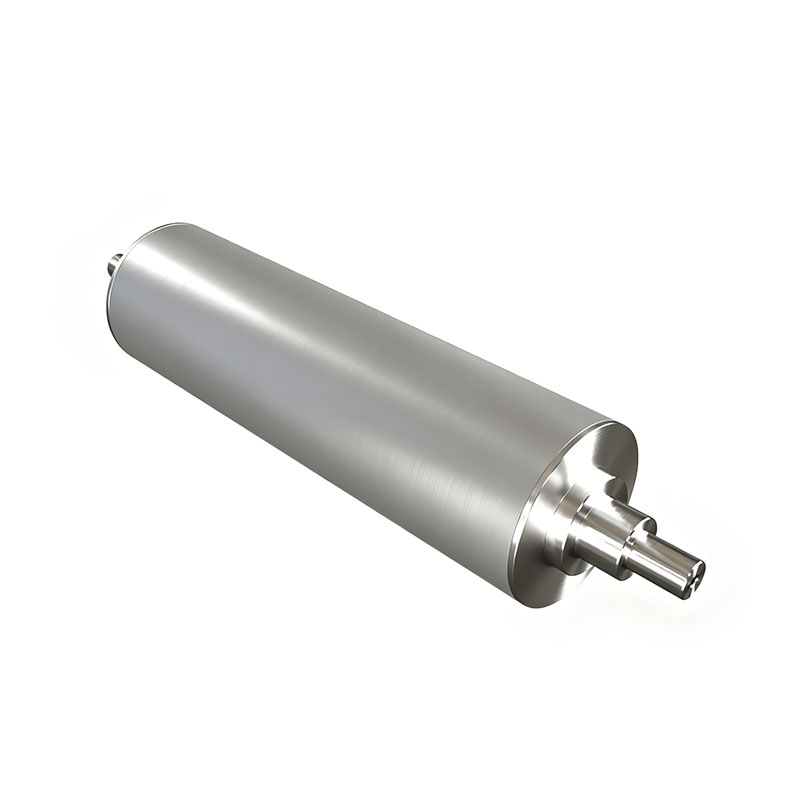

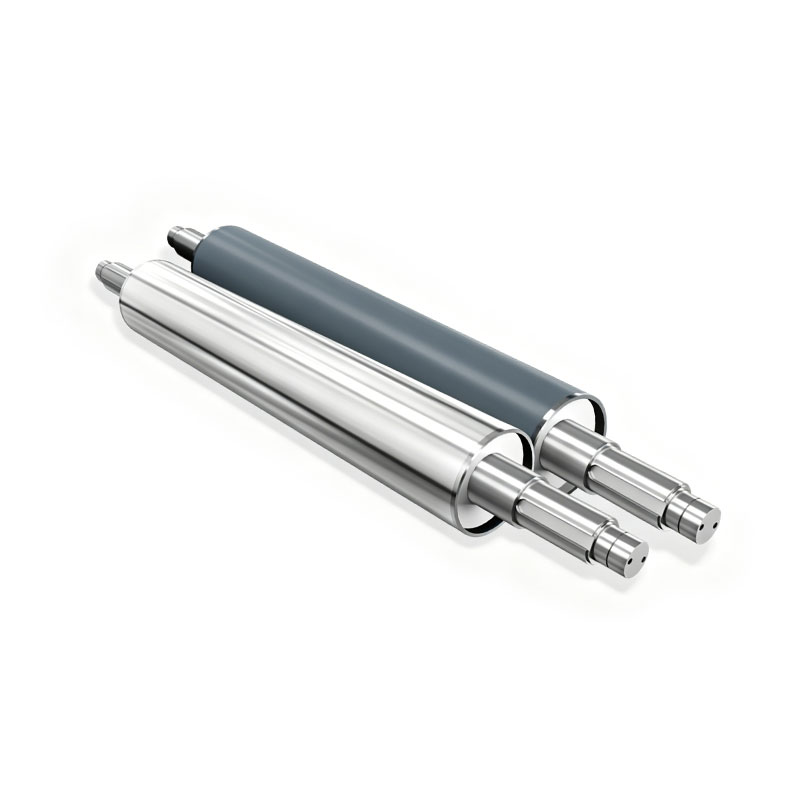

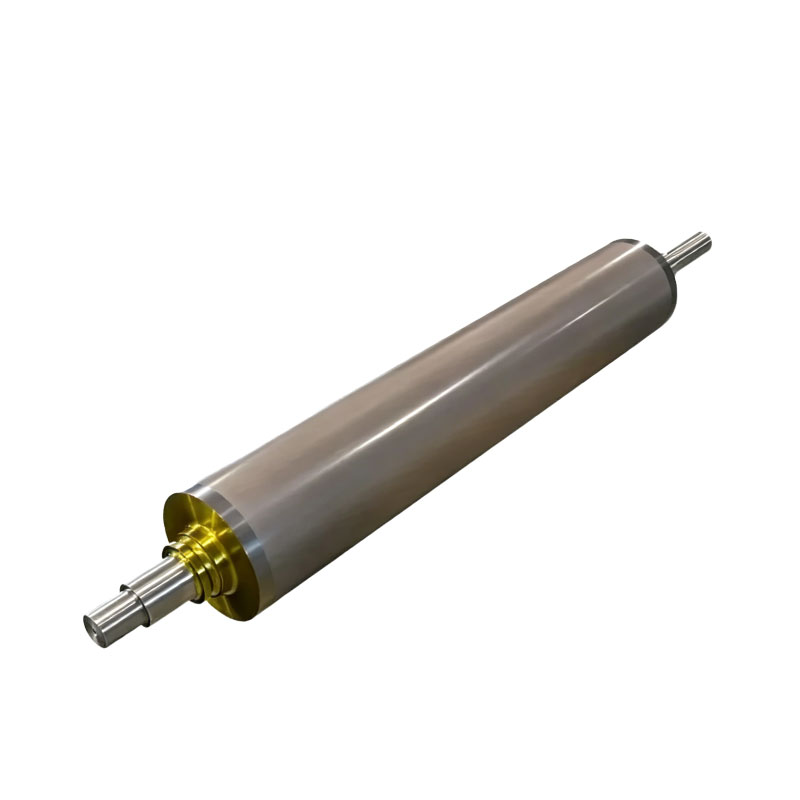

Custom Hard Alloy Steel Anilox Roller for Flexo Printing

The AstraRoll Custom Hard Alloy Steel Annilox Roller is an elite-tier fluid metering component engineered explicitly for high-speed flexographic printing, corrugated box slotting, and automated flexible packaging machinery. In modern flexo printing, achieving sharp halftone dots, vibrant solid fills, and uniform ink coverage requires an anilox roller that maintains absolute cross-web cell volume consistency under severe continuous mechanical loads. Traditional welded steel rollers quickly suffer from structural deflection and rapid cell wear under the continuous scraping of steel doctor blades, leading to drifting ink volumes, color shifts, and expensive production downtime.AstraRoll eliminates these performance bottlenecks by merging advanced heavy-duty alloy steel metallurgy with cutting-edge engraving technology. We select premium 42CrMo forged structural steel as the rigid skeleton, subjecting it to multi-stage thermal stress-relief protocols to ensure absolute geometric stability. The working surface is treated with deep-induction hardening and a proprietary non-porous hard chrome electroplating matrix (≥HRC62). Our precise texturing systems then carve flawless micro-cells (such as quadrangular pyramids or continuous helical channels) calculated precisely to your required dry ink weight, delivering a low-vibration, long-life metering solution that locks in flawless printing quality year after year.

Technical Parameters

Product Framework: Hard Alloy Steel Anilox Matrix for Flexographic Applications

Core Base Material: Premium Forged Alloy Steel (42CrMo / High-Tensile Structural Steel)

Surface Armor Layer: Electroplated High-Density Wear-Resistant Hard Chrome Matrix

Surface Hardness: ≥HRC 62 (≥HV 800 for robust micro-abrasion defense)

Screen Count Spectrum: 40 LPI to 800 LPI (Lines Per Inch) fully custom-tailored

Cell Geometries Available: Quadrangular (Pyramid), Helical (Continuous Grooves), Tri-helical

Geometric Precision: Radial Runout ≥0.003mm, Cylindricity ≥0.003 mm across full span

Dynamic Balance Rating: G2.5 Class calibrated on multi-axis electronic test rigs

Ink Compatibility: Fully compatible with water-based, solvent-based, and UV-curable flexo inks

Applications

Wide-Web Flexographic Printing: Primary ink metering and transfer rolls for wide-format packaging presses running on polyethylene (PE), polypropylene (PP), and corrugated boards.

Corrugated Box & Carton Printing: Heavy-duty, high-impact ink dosing rollers operating inside inline flexo folder-gluers and multi-color printer slotters.

Narrow-Web & Label Converting: High-resolution halftone and solid process color printing for self-adhesive labels, thermal transfer stocks, and pharmaceutical foils.

Industrial Varnishing & Coating: Precision delivery of uniform overprint varnishes (OPV), water-based protective lacquers, and UV glossy topcoats.

Why Choose AstraRoll's Hard Alloy Steel Anilox Roller?

Sub-Micron Cell Volumetric Uniformity: Microscopic variations in cell volume across a wide web cause cloudy printing, striping, or cyclical color shifting. AstraRoll utilizes automated CNC texturing and etching machinery that maintain exact tool pressure, carving identical cell depths and smooth cell walls from journal to journal. This yields an effortless, predictable ink split and razor-sharp graphic reproduction across every single print run.

Ultra-Hard ≥HRC62 Armor Against Doctor Blade Wear: Continuous scraping from steel doctor blades quickly wears down standard steel rolls, flattening cell walls and permanently altering ink capacity. AstraRoll applies a specialized deep-induction hardening process to the alloy steel base before plating a thick, high-density hard chrome layer. Pushing the surface hardness above ≥HRC62, this hard matrix effortlessly resists score marks and frictional micro-abrasion, locking in stable cell volumes for millions of linear impressions.

Deflection-Free Forged 42CrMo Base Matrix (≤0.003mm Core Concentricity): At high linear speeds, any mechanical deflection or high runout in an anilox roll acts like a hammer, creating cyclical vibration, uneven ink transfer, and print banding defects. AstraRoll subjects every alloy steel core to extensive thermal stress-relief aging cycles, followed by precision grinding. Keeping total radial runout strictly below ≤0.003mm and applying G2.5 dynamic balancing eliminates high-frequency web chatter and ensures whisper-quiet continuous operation.

Superior Anti-Plugging Topography for Fast Cleanups: Stubborn water-based or UV-curable flexo inks love to dry out and lock inside cell bottoms, permanently reducing the roll's transfer capacity. Our specialized post-engraving finishing and micro-polishing routines smooth out any microscopic burrs or sharp edges inside the cell channels. This optimized micro-geometry lowers surface energy for a clean ink release and makes routine flushing or solvent washdowns far more effective, drastically reducing job changeover downtime.
